HAWK AP 7-BT-WT | 4GB RAM [PCT]

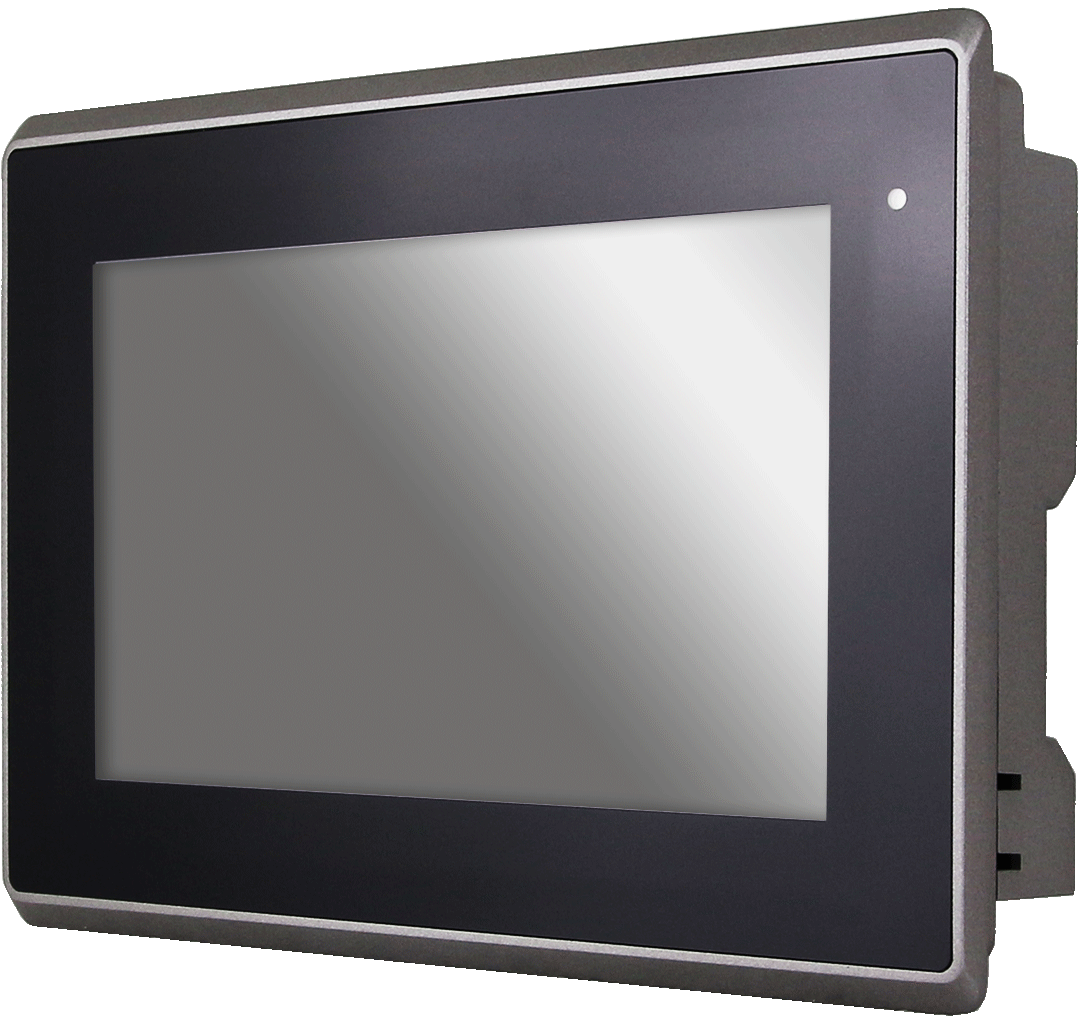

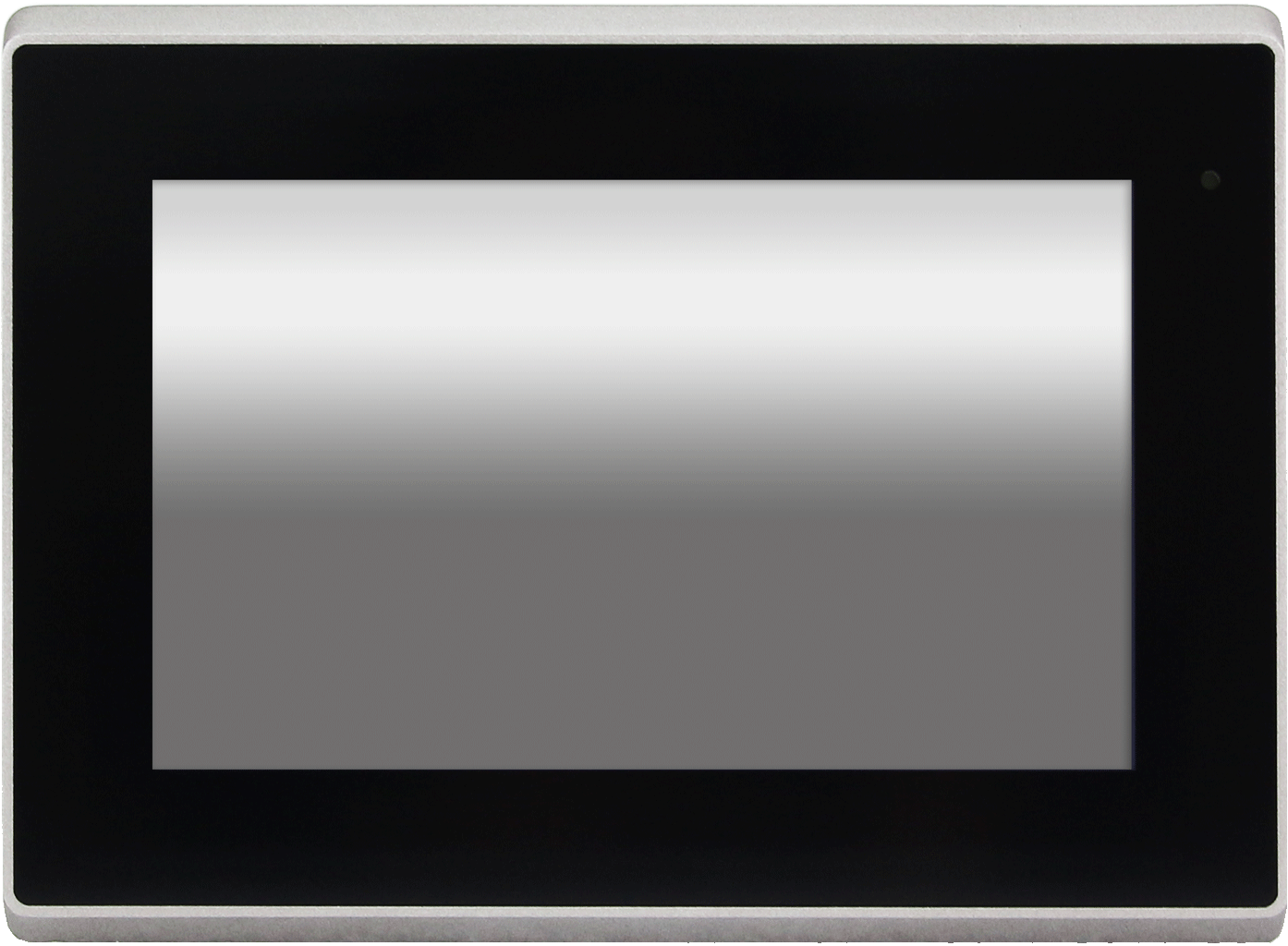

7" Entry level IP66 Panel-PC for operating in wide temperatures

Prices on request

No longer available

Product number: 610021.13

The fanless design of the Industrial Panel-PC offers 24/7 reliability, thanks to low power Intel® Celeron CPU. The HAWK AP xx-BT-WT series' projected capacitive touch screen (PCT) with pure flat, multi-touch support, anti-scratching, can be operated in the extended temperature range [-20

Key facts	• 7" ~ 17" • Intel® Celeron® N2930 • 4GB DDR3L • IP66 • Wide Temperature • Capacitive, resistive • Fanless
Display Size	7“ • 8“ • 10.1“ • 12.1“ • 15“ • 17“
Aspect ratio / resolution	16:10 / 800 x 480 (7“) • 4:3 / 800 x 600 (8“) • 16:10 / 1280 x 800 (10.1“) • 4:3 / 1024 x 768 (12.1“) • 4:3 / 1024 x 768 (15“) • 5:4 / 1280 x 1024 (17“)
Touch	Capacitive (PCT); Resistive (RTW)
Protection class	IP66 Compliant Front Bezel
Front	Aluminium, silver
CPU	Intel® Celeron® N2930, 4x 1.83GHz/2.16GHz
Chipset	Intel® Baytrail SoC - Embedded Long Life Chipset
RAM	4GB DDR3L, 1600MHz (on board)
Storage interface	1x 1.8” SATA SSD (MO-297) • 1x SD card slot, max. 32GB (7“; 8“) 1x 2.5” SATA HDD/SSD • 1x SD-Card-Slot, max. 32GB (10.1“; 12.1"; 15"; 17“)

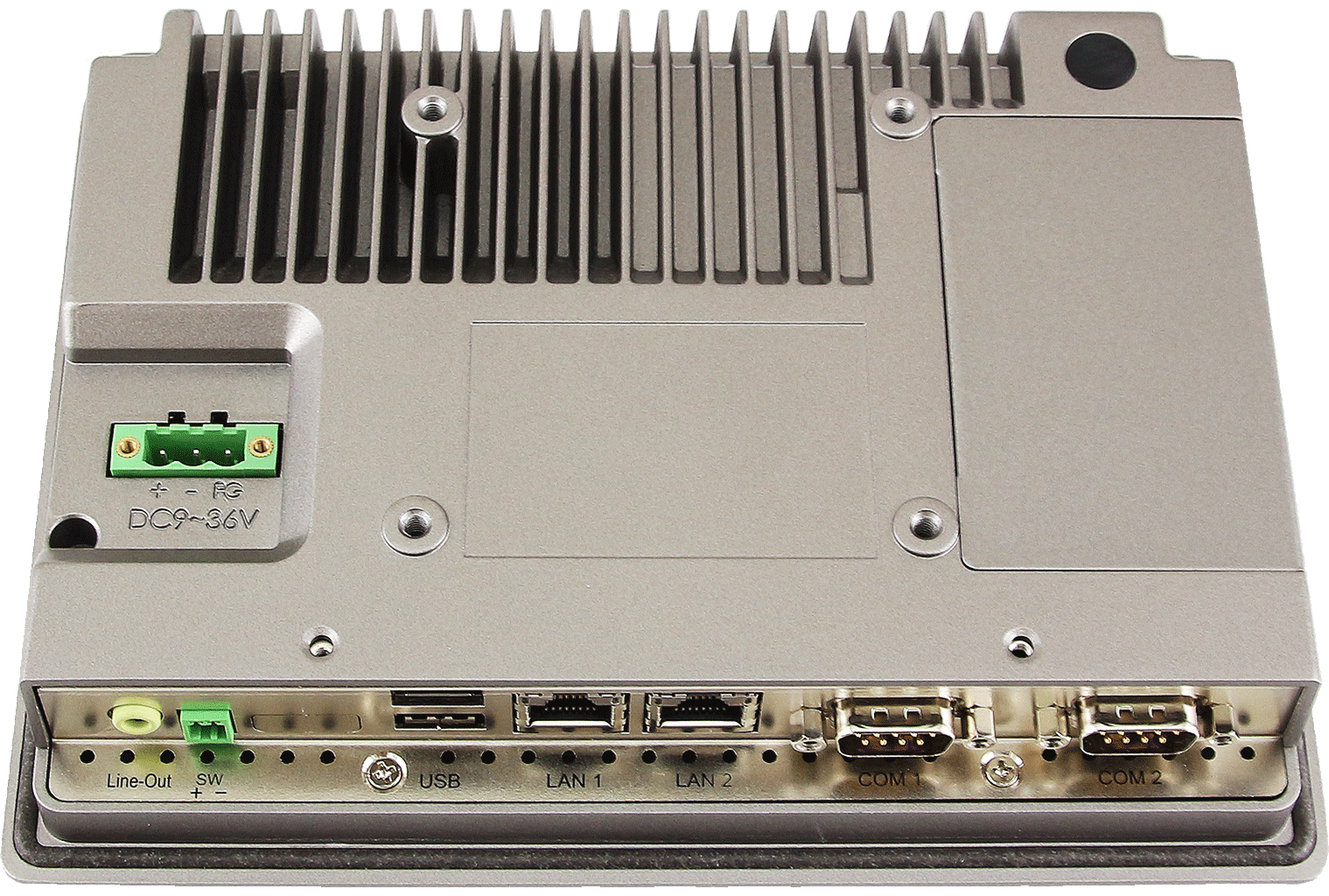

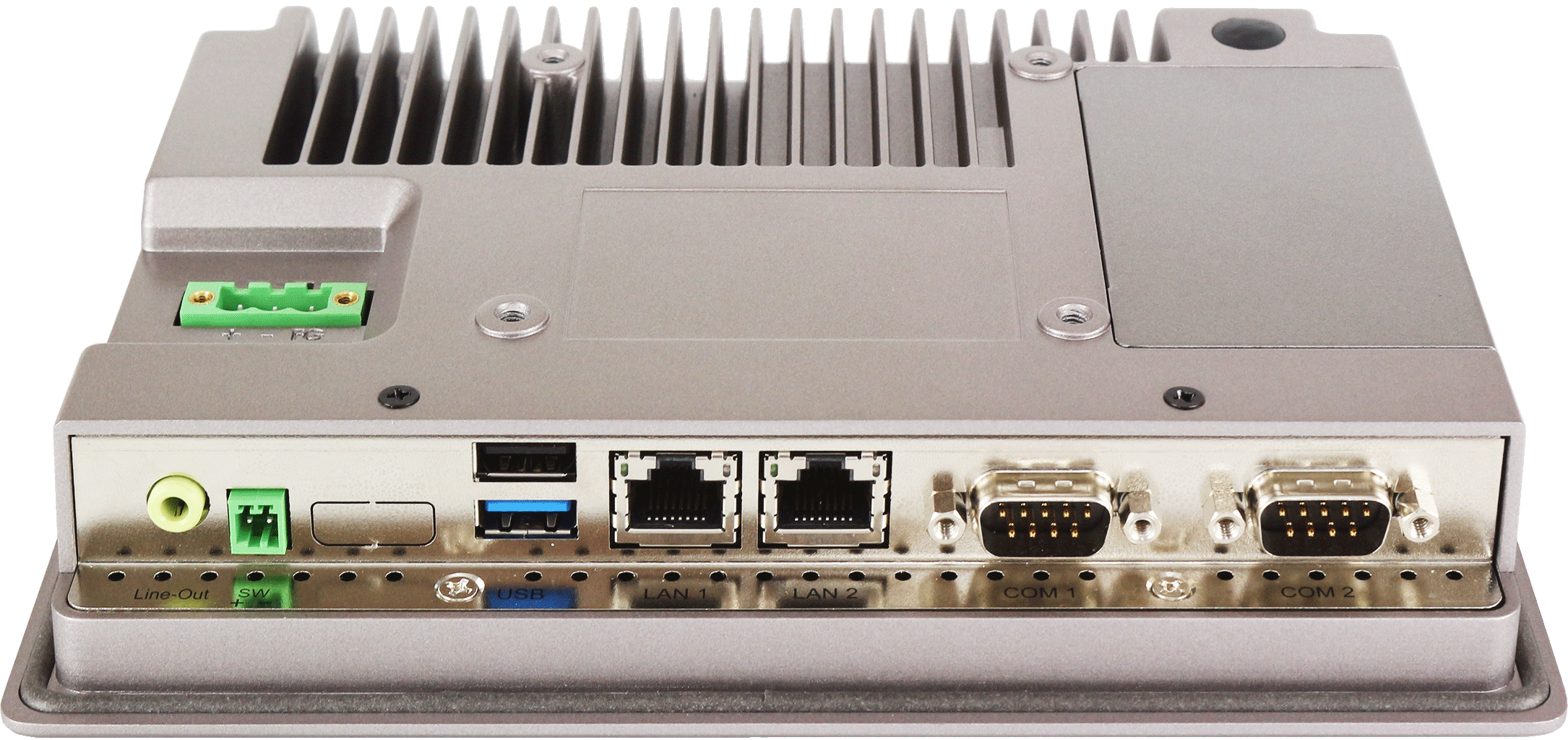

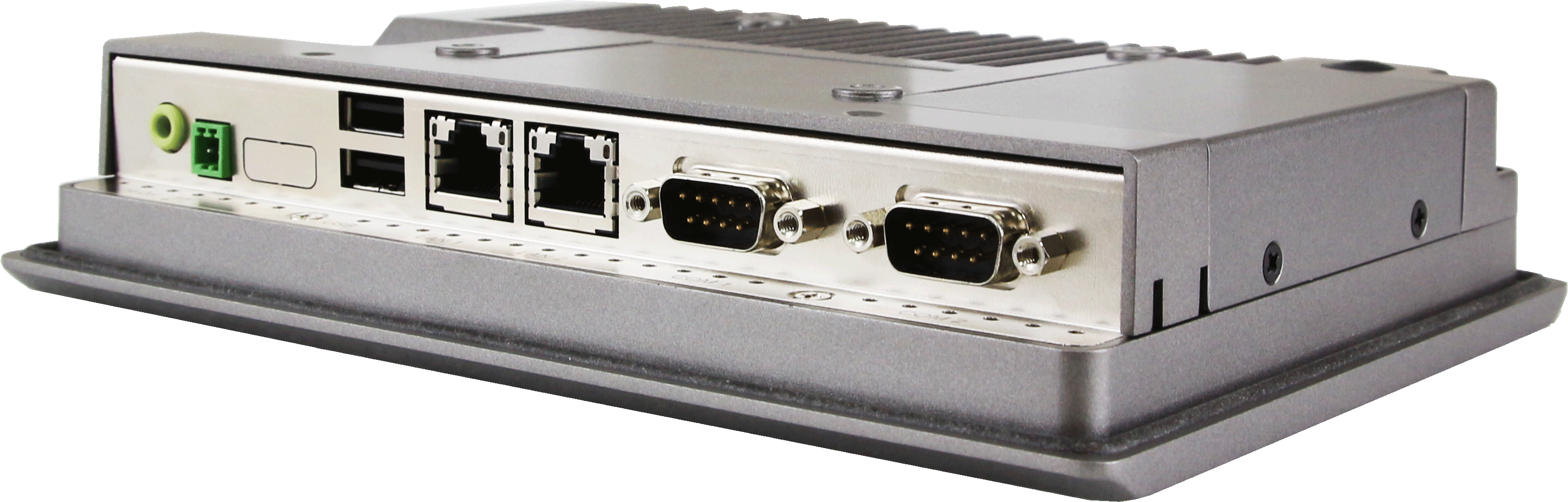

Ports	2x Gigabit-LAN RJ-45 • 2x USB 3.0 type A • 1x RS-232/422/485 DB9 (COM1), default RS-232 • 1x RS-232 DB9 (COM2) • 1x Audio Line Out
PCI / PCIe / mini-PCIe	1x mini-PCIe-Slot (full size) • 1x Micro SIM Slot
Cooling System	Passive, fanless
Mounting	Panel mounting • VESA 75 x 75 (7“; 8“) • VESA 100 x 100 (10.1“; 12.1"; 15"; 17“)
Power input	9V to 36V DC 1x 3-pin Terminal Block Connector • 1x 2-pin Power Switch Connector (7“ - 10.1“) 1x 3-pin DC power input terminal • 1x 2-pin connector for power on/off button (12.1"; 15"; 17“)
Power consumption	Without accessories: 28W (7“) • 26W (8“) • 28W (10.1“) • 32W (12.1“) • 30W (15“) • 38W (17“)
Operating system	Windows 10 IoT Enterprise • Windows 10/64
Max. color	262K (7“) • 16.2M (8“; 12.1“; 15“; 17“) • 16.7M (10.1“)
Luminance /cd/m2	350 (7“; 10.1“; 17“ ) • 450 (8“) • 450/500 (12.1“) • 300 (15“)
View angle / H/V	160° / 160° (7“) • 140° / 130° (8“) • 170° / 170° (10.1“) • 178° / 178° (12.1“) • 176° / 176° (15“) • 170° / 160° (17“)
Backlight lifetime / hrs	40,000 (7“; 8“) • 30,000 (10.1“) • 50,000/30,000 (12.1“) • 70,000 (15“) • 30,000 (17“)
Contrast ratio	1000:1 (7“; 15“; 17“) • 500:1 (8“) • 800:1 (10.1“) • 1500:1/1000:1 (12.1“)
Operating temperature	-20° to 60°C
Storage temperature	-30° to 70°C
Storage humidity	10% to 90% @ 40°C, non-condensing
Certificate	CE/FCC Class A/CB/UL
Weight / kg	1.2 (7“) • 1.9 (8“) • 1.7 (10.1“) • 3.1 (12.1“; 15“) • 6.02 (17“)

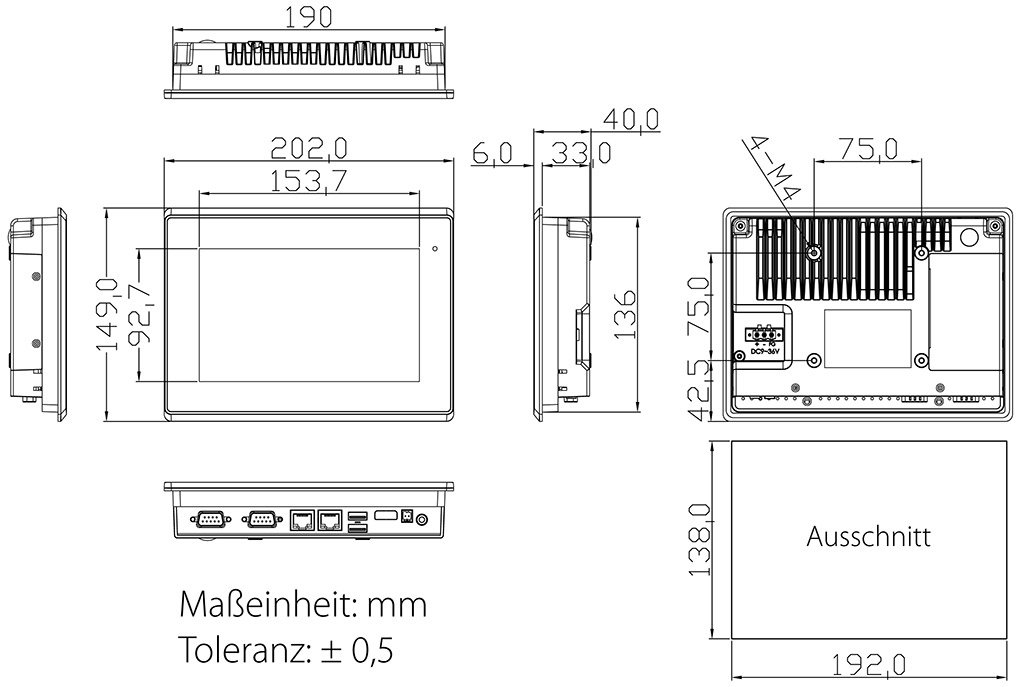

Dimensions / mm	202 x 149 x 40 (7“) • 231.1 x 176.1 x 50 (8“) • 285 x 189 x 48.9 (10.1“) • 319 x 245 x 51.7 (12.1“) • 410 x 310 x 54.67 (15“) • 439 x 348 x 64.8 (17“)
Scope of delivery	Power supply, 60W • 3-pin terminal connector • retaining clip • touch pen • driver CD
