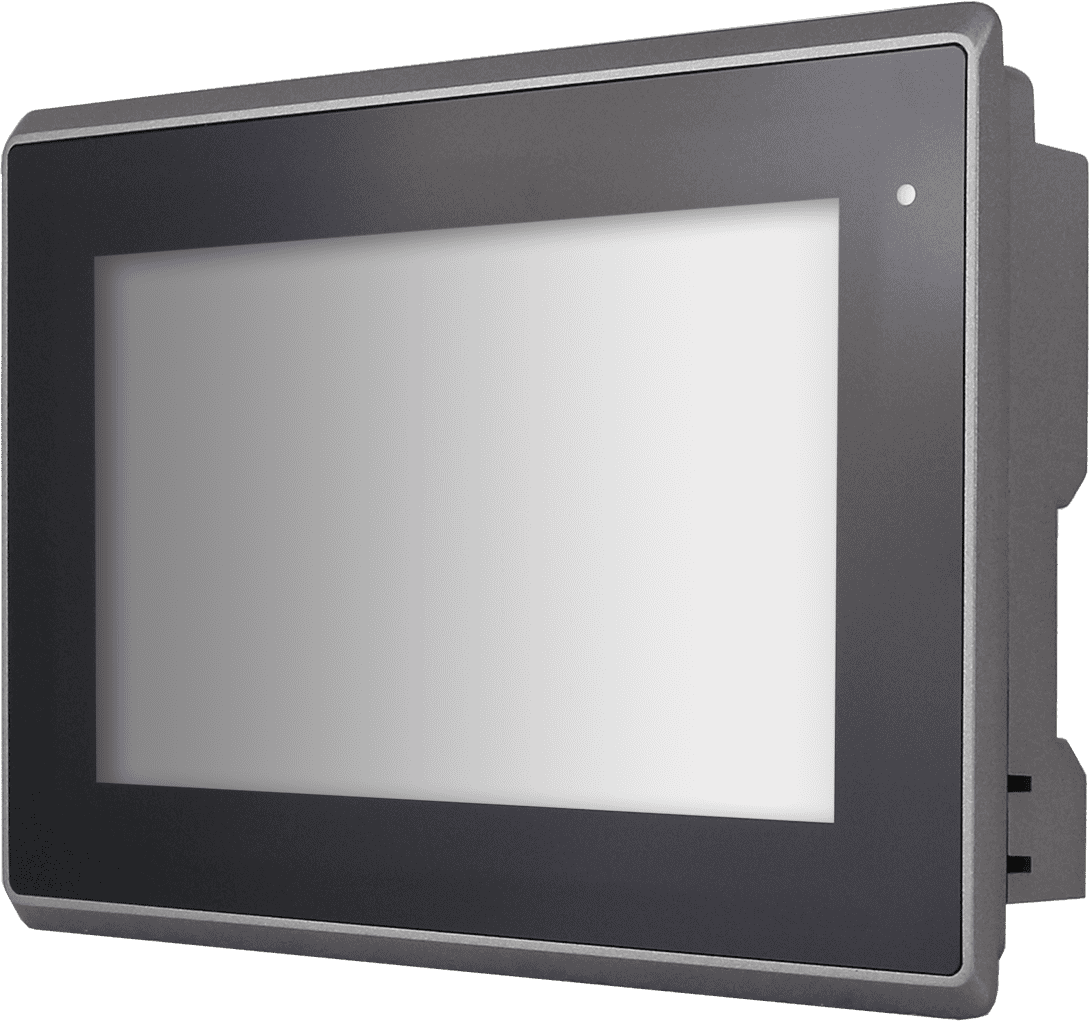

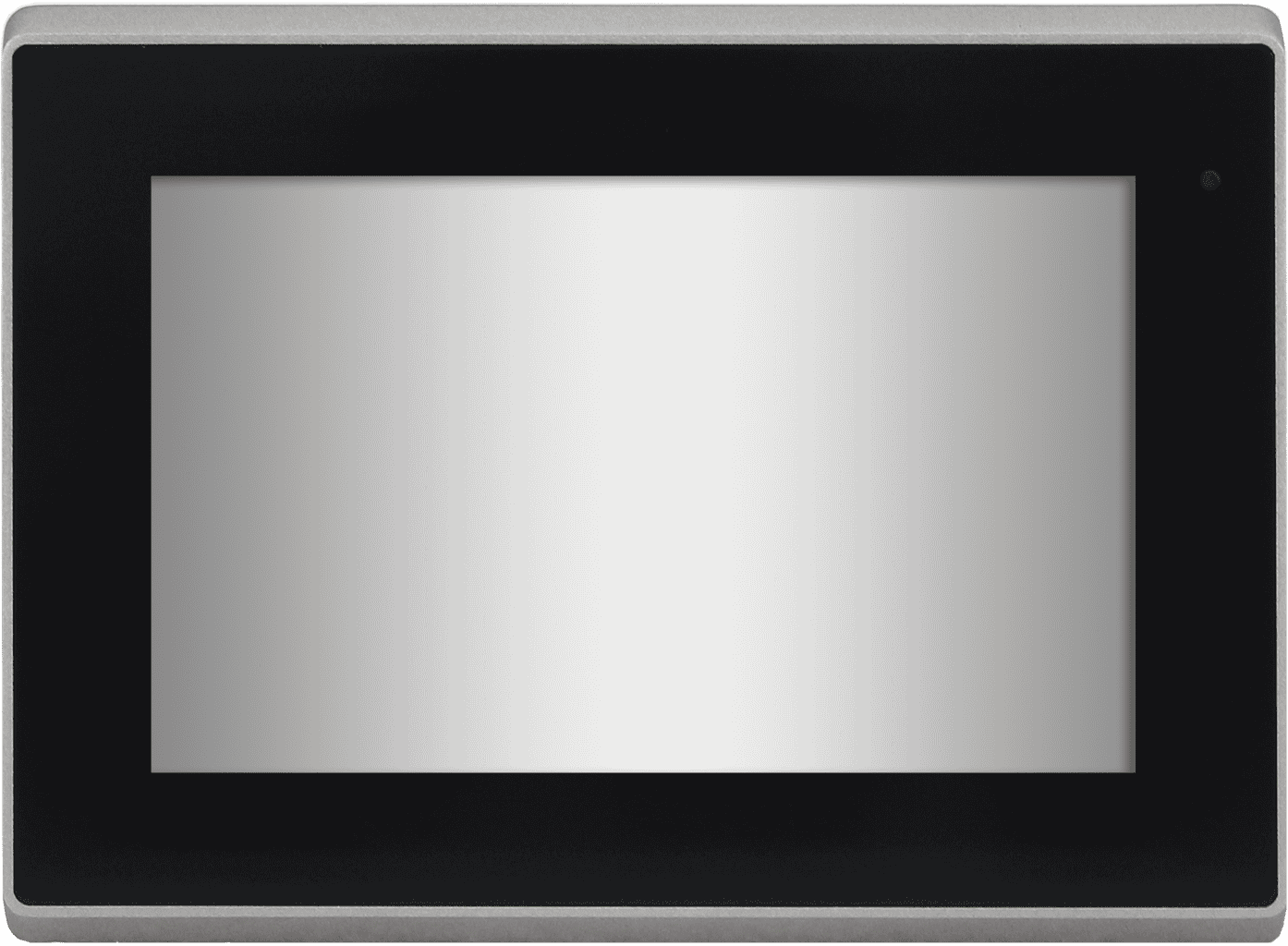

HAWK AP 7-EL-WT | Intel® Celeron® J6412 [PCT]

7" Elkhart Lake IP66 Panel-PC for operating in wide temperatures

Skip image gallery
_Panel-PC_HAWK AP 7-EL-WT | Intel® Celeron® J6412 [PCT]
_Panel-PC_HAWK AP 7-EL-WT | Intel® Celeron® J6412 [PCT]
_Panel-PC_HAWK AP 7-EL-WT | Intel® Celeron® J6412 [PCT]
_Panel-PC_HAWK AP 7-EL-WT | Intel® Celeron® J6412 [PCT]
_Panel-PC_HAWK AP 7-EL-WT | Intel® Celeron® J6412 [PCT]
_Panel-PC_HAWK AP 7-EL-WT | Intel® Celeron® J6412 [PCT]
_Panel-PC_HAWK AP 7-EL-WT | Intel® Celeron® J6412 [PCT]
_Panel-PC_HAWK AP 7-EL-WT | Intel® Celeron® J6412 [PCT]
Prices on request

Prices excl. VAT plus shipping costs

Available in 21 days, delivery time 1-2 weeks [incl. assembly & function test]

Screen | Size
Touch | Type
Summary
RAM:
Storage:
WLAN:
Mobile Network:
Operating System:
RAM:
Mandatory
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 4GB
W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 4GB RAM: 4GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 8GB
W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 8GB RAM: 8GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 16GB
W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 16GB RAM: 16GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 32GB
W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 32GB RAM: 32GB
Storage:
Systemkomponenten & Zubehör_Components_Accessories_M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 64GB
M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 64GB Storage | Size: 64GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 128GB
M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 128GB Storage | Size: 128GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 256GB
M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 256GB Storage | Size: 256GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 512GB
M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 512GB Storage | Size: 512GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 1TB
M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 1TB Storage | Size: 1TB
Reset choice
€0.00*
WLAN:
Systemkomponenten & Zubehör_Components_Accessories_WLAN - M.2 2230 module, Intel® Wi-Fi 6 AX200 [802.11ac, Bluetooth 5.1]
WLAN - M.2 2230 module, Intel® Wi-Fi 6 AX200 [802.11ac, Bluetooth 5.1]
Reset choice
€0.00*
Mobile Network:
Systemkomponenten & Zubehör_Components_Accessories_4G_GPS - miniPCIe module [w/antenna]
4G_GPS - miniPCIe module [w/antenna]
Systemkomponenten & Zubehör_Components_Accessories_5G/GPS M.2 3052 module Quectel RM520N-GL [w/2x antenna]
5G/GPS M.2 3052 module Quectel RM520N-GL [w/2x antenna]
Reset choice
€0.00*
Operating System:
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 IoT Enterprise LTSC 2021 - #ENTRY 64bit [For Intel Atom, Celeron, Pentium]
Windows® 10 IoT Enterprise LTSC 2021 - #ENTRY 64bit [For Intel Atom, Celeron, Pentium] OS | Variant: #ENTRY 64bit [For Intel Atom, Celeron, Pentium]
_Components_Accessories_Windows® 11 IoT Enterprise 2024 LTSC - #ENTRY
Windows® 11 IoT Enterprise 2024 LTSC - #ENTRY OS | Variant: #ENTRY 64bit [For Intel Atom, Celeron, Pentium]
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 Professional - 64bit
Windows® 10 Professional - 64bit OS | Variant: 64bit
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 11 Professional OEM - 64bit
Windows® 11 Professional OEM - 64bit
Reset choice
€0.00*

€1,117.00*

Prices excl. VAT plus shipping costs

Product number: 610101.2
The HAWK AP xx-EL-WT series is specially designed for use in the extended temperature range [-20°~60°C]. The human-machine interface's (HMI) fanless design offers 24/7 reliability - powered by the energy-saving Elkhart Lake Intel® Celeron® J6412. Operation is via a projected capacitive touchscreen (PCT) with multi-touch support or a resistive touch (RTW) for operation with protective gloves, for example. Wi-Fi (opt.), dual LAN, serial, and USB interfaces are also onboard.
Key facts• 7“ ~ 17“
• Intel® Celeron® J6412
• max. 32GB DDR4
• IP66
• Capacitive, resistive
• Wide Temperature
• Fanless
Display Size 7“ • 8“ • 10.1“ • 12.1“ • 12.1“ Wide • 15“ • 17“
Aspect ratio / resolution 16:10 / 800 x 480 (7“) • 4:3 / 800 x 600 (8“) • 16:10 / 1280 x 800 (10.1“) • 4:3 / 1024 x 768 (12.1“; 12.1“ Wide) • 4:3 / 1024 x 768 (15“) • 5:4 / 1280 x 1024 (17“)
Touch Capacitive (PCT) • Resistive (RTW)
Protection class IP66 Compliant Front Bezel
Front Aluminium, silver
CPU Intel® Celeron® J6412, 4x 2.0GHz/2.6GHz, 1.5MB L2 cache
Chipset Intel® Baytrail SoC - Embedded Long Life Chipset
RAM 1x 260-pin SO-DIMM up to 32GB DDR4 3200MHz
Storage interface 1x M.2 B-Key slot (support SATA3 2242/2280, default 2242)

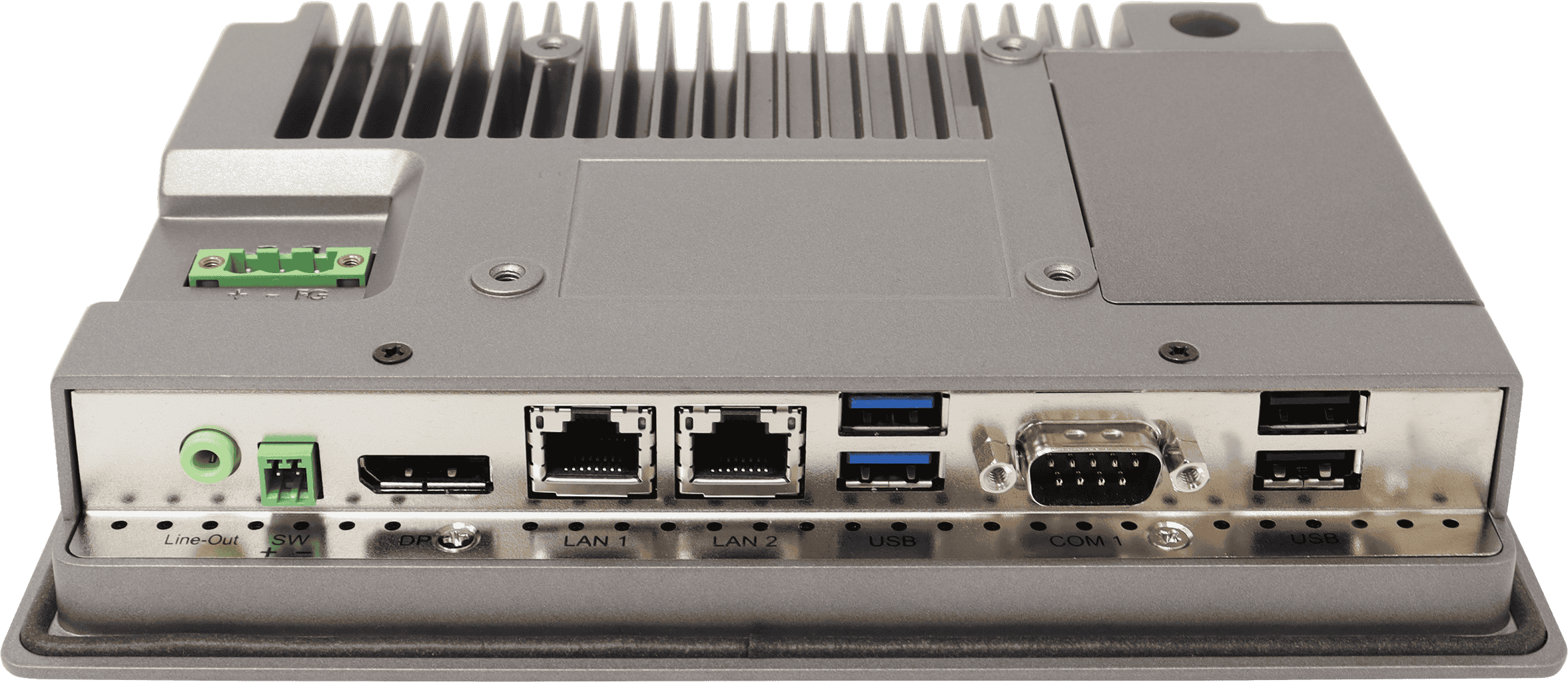

Ports 2x 2.5 Gigabit-LAN RJ-45 (I226) • 2x USB 3.2 Gen2 type A • 2x USB 2.0 type A • 1x RS-232/422/485 (default RS-232; select via BIOS) • 1x Line-out • 1x DP, support DP++
PCI / PCIe / mini-PCIe 1x mini-PCIe slot (full size) • 1x M.2 E-key • 1x Nano SIM Card Holder
Cooling System Passive, fanless
Mounting Panel mounting • VESA 75 x 75 (7“; 8“) • VESA 100 x 100 (10.1“ - 23.8)
Power input 9V to 36V DC 1x 3-pin Terminal Block Connector • 1x 2-pin Power Switch Connector
Power consumption Without accessories: 28W (7“) • 26W (8“) • 28W (10.1“) • 32W (12.1“) • 30W (15“) • 35W (15.6“) • 38W (17“) • 45W (18.5“) • 42W (19“; 21.5“) • 73W (32")
Operating system Windows 10 IoT • Windows 11 IoT
Max. color 262K (7“) • 16.2M (8“; 15“; 17“) • 16.7M (10.1“; 12.1“; 12.1“ Wide)
Luminance /cd/m2 350 (7“; 10.1“; 17“) • 450 (8“) • 450/500 (12.1“) • 600 (12.1“ WIde) • 300 (15“)
View angle / H/V 60° / 160° (7“) • 140° / 130° (8“) • 170° / 170° (10.1“; 12.1 Wide) • 176°/176° / 178°/178° (12.1“) • 176° / 176° (15“) • 170° / 160° (17“)
Backlight lifetime / hrs 40,000 (7“; 8“) • 30,000 (10.1“; 17“) • 50,000/30,000 (12.1“) • 70,000 (15“) • 50,000 (12.1“ Wide)
Contrast ratio 1000:1 (7“; 12.1“; 12.1“ Wide; 17“) • 500:1 (8“) • 800:1 (10.1“) • 2000:1 (15“)
Operating temperature 0° to 50°C
Storage temperature -30° to 70°C
Storage humidity 10% to 95% @ 40°C, non-condensing
Certificate CE/FCC Class B / UL
Weight / kg 1.1 (7“) • 1.8 (8“) • 1.85 (10.1“) • 2.73 (12.1“) • 3.03 (12.1“ Wide) • 4.53 (15“) • 6.07 (17“)

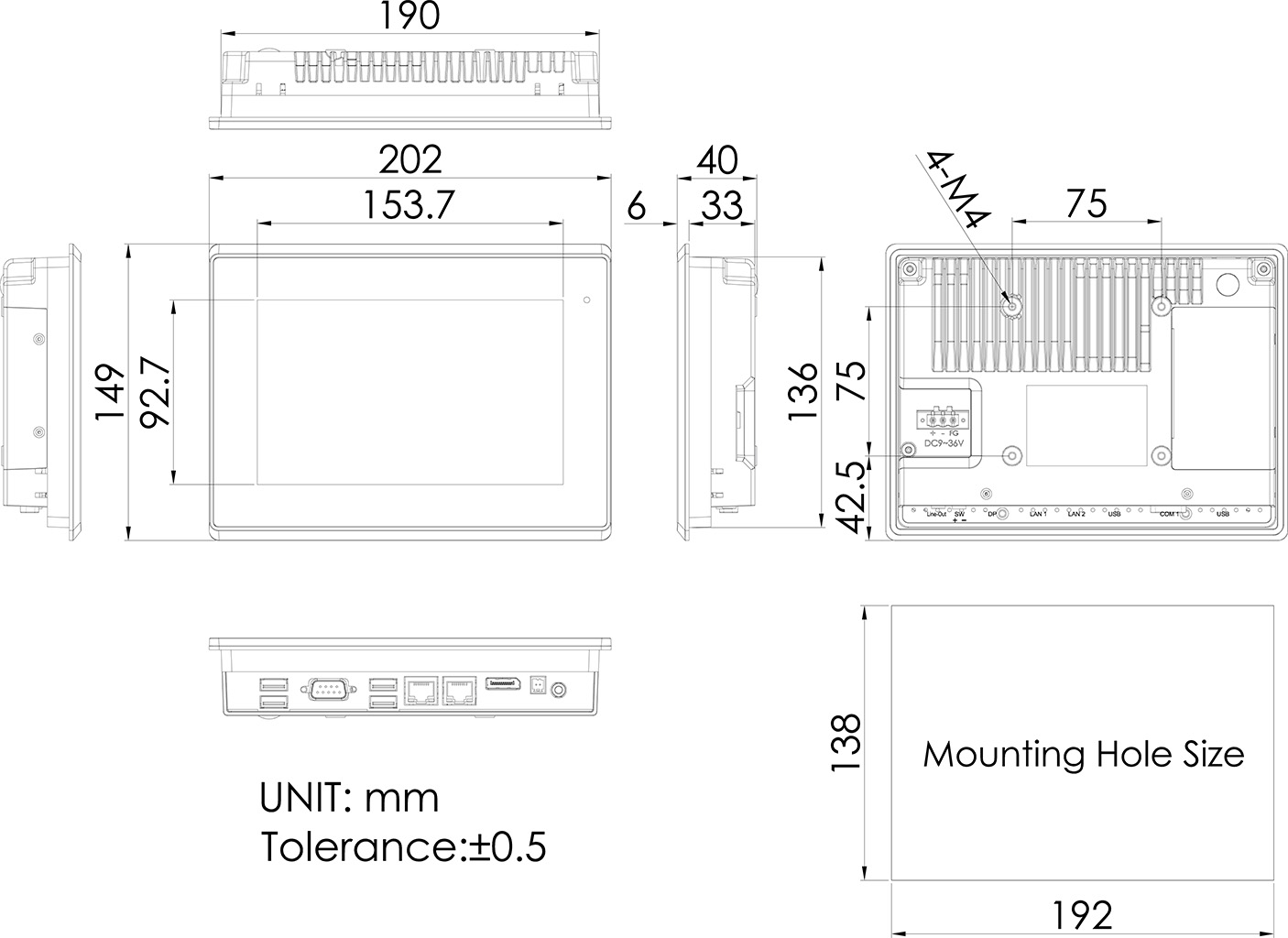

Dimensions / mm 202 x 149 x 40 (7“) • 231.1 x 176.1 x 50 (8“) • 285 x 189 x 48.9 (10.1“) • 319 x 245 x 51.7 (12.1“; 12.1“ Wide) • 410 x 310 x 54.67 (15“) • 439 x 348 x 64.8 (17“)
Scope of delivery Power supply, 60W • 3-pin terminal connector • retaining clip • touch pen • driver CD
