System Components & Accessories

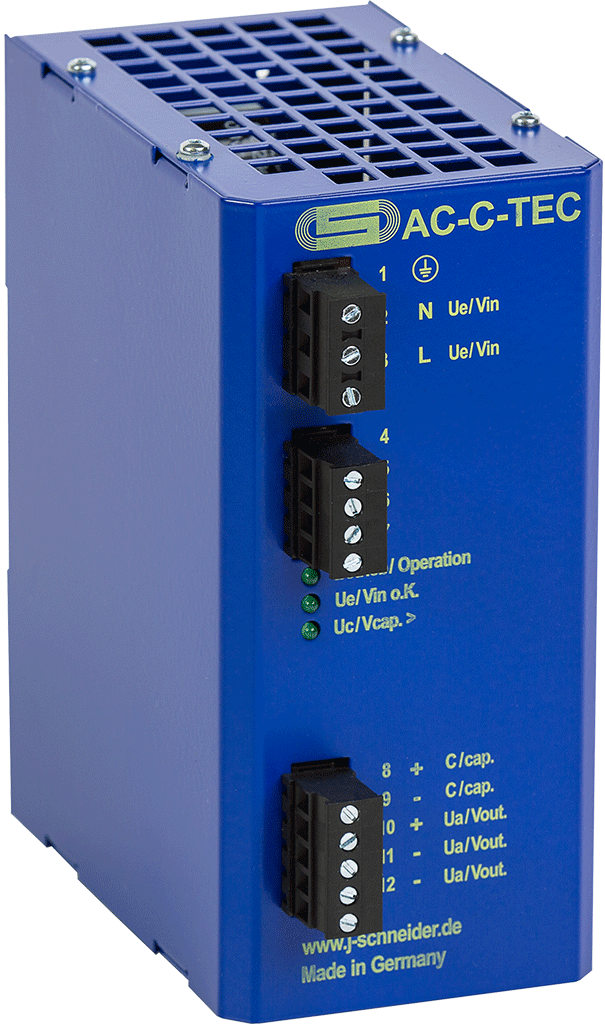

USV [AC/DC]

• AC Input / DC Output

• Maintenance free

• Long-life ultracapacitors

• Wide temperature

• Energy: 1.500Ws ~ 13.400Ws

• Expandable: Yes (Available expansion modules: 1kWs, 2kWs, 8kWs, 16kWs)

Prices on request

Details

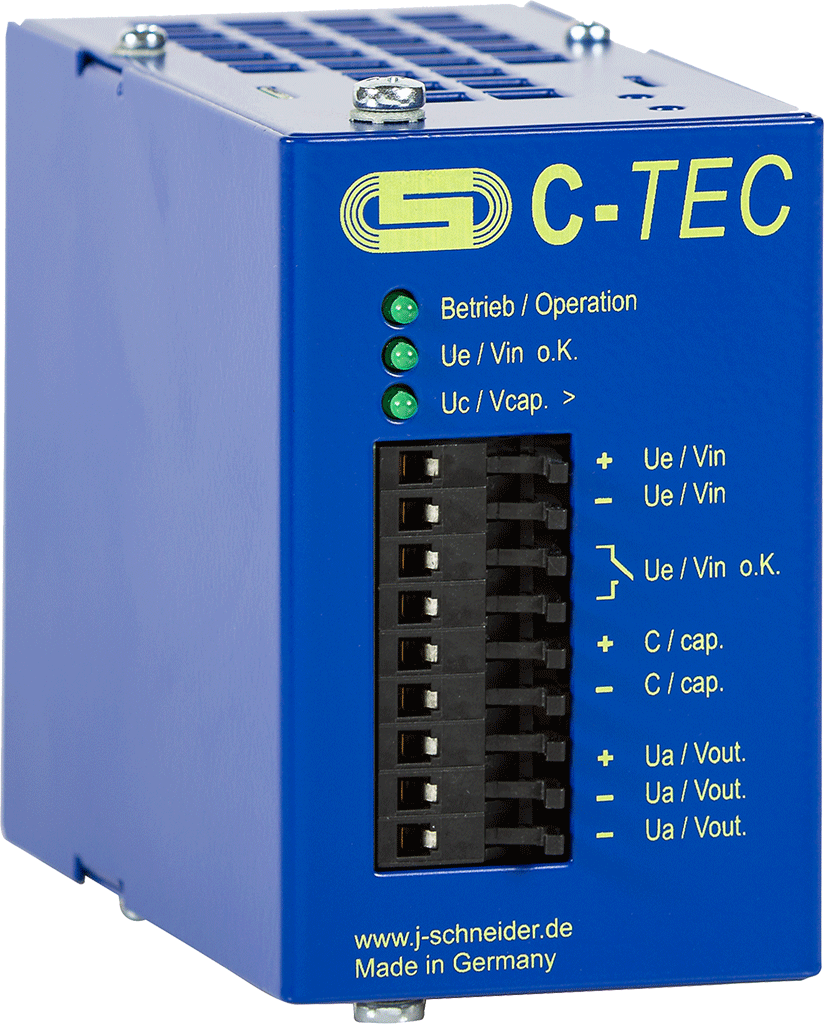

USV [DC/DC]

• DC Input / DC Output

• Maintenance free

• Long-life ultracapacitors

• Wide temperature

• Energy: 1.500Ws ~ 13.400Ws

• Expandable: Yes (Available expansion modules: 1kWs, 2kWs, 8kWs, 16kWs)

Prices on request

Details

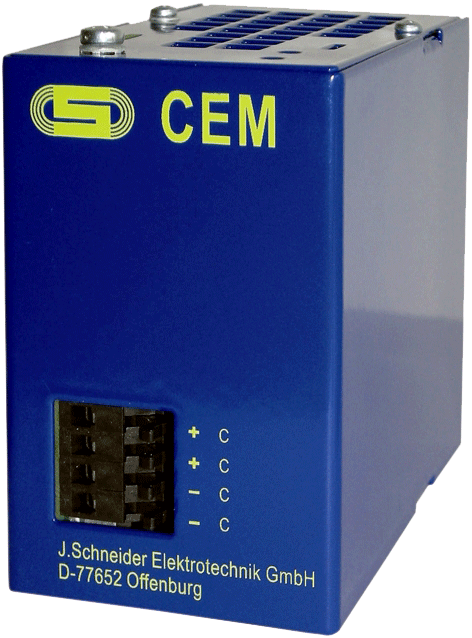

USV-Erweiterungsmodul

• DC Input / DC Output

• Maintenance free

• Long-life ultracapacitors

• Wide temperature

• Energy: 1.000Ws ~ 16.000Ws

Prices on request

Details

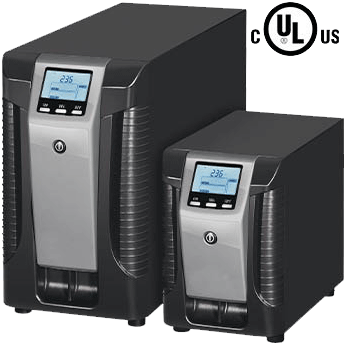

USV [AC/AC] On-Line System w/LCD Display

• AC Input / AC Output

• Rack mounting or Tower

• Maintenance free

• Long-life ultracapacitors

• Rating: 1.000VA / 3.000VA

Prices on request

Details

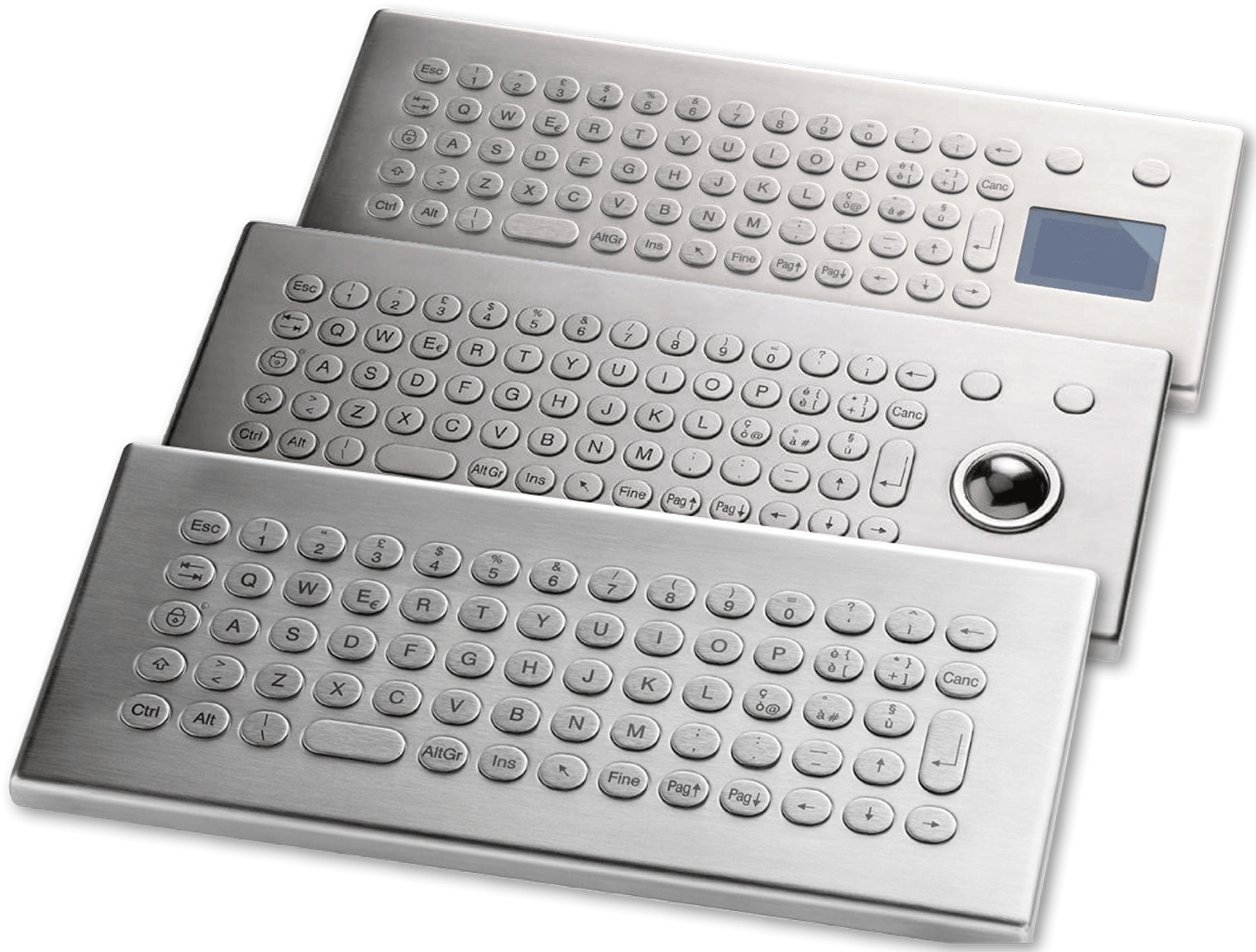

FOX 68T

• Installation type: T (Table version)

• Pointing device: Without, TI (Stainless steel trackball), TP (capacitive touchpad)

• Interface: USB Typ A

• Materials: AISI316L stainless steel

• Actuation force: 1,5N (typical)

• Switching technology: Graphite pad on printed circuit board with gold contacts

• Insulation: >500K Ohm

• Maximum Current and Voltage: 50mA, 25V AC/DC

• IP protection class: IP65, IP54/IP65 (TI)

• Operating temperature: 0°C ~ 50°C (TI), -10°C ~ 70°C (without pointing device, TP)

• Standard layout: DE

• Dimensions/mm: 334 x 150 x 37 (without pointing device), 399 x 150 x 39 (TI), 399 x 150 x 37 (TP)

Prices on request

Details

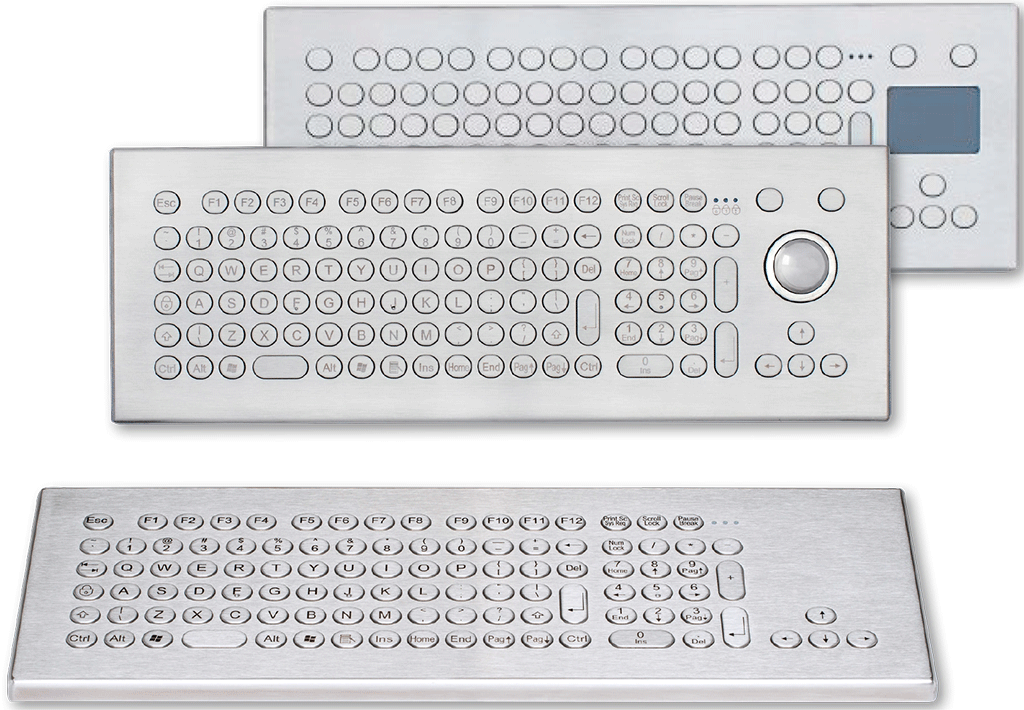

FOX 105T

• Installation type: T (Table version)

• Pointing device: Without, TI (Stainless steel trackball), TP (capacitive touchpad)

• Interface: USB Typ A

• Material: AISI316L stainless steel

• Actuation force: 1.5N (typical)

• Switching technology: Graphite pad on printed circuit board with gold contacts

• Insulation: >500K Ohm

• Maximum Current and Voltage: 50mA, 25V AC/DC

• IP protection class: IP65, IP54/IP65 (TI)

• Operating temperature: 0°C ~ 50°C (TI), -10°C ~ 70°C (without pointing device, TP)

• Standard layout: DE

• Dimensions /mm: 484 x 172 x 39

Prices on request

Details

SMART C-Link bundle, Transmitter/Receiver

• DVI/USB-Extender

• SMART C-Link Transmitter boxed > Housing: Aluminium box, cap rail mounting

• Connection: 1:n

• Interfaces: 1x DVI, 1x USB, 1x Power Supply, 1x Ethernet

• Power: 24V DC 4W

• Maximum power consumption: 4W + 30W w/PoE

• SMART C-Link Receiver boxed > Housing: Aluminium box, cap rail mounting

• Connection: 1:n

• Interfaces: 1x 24V DC, 1x Ethernet (PoE), 1x DVI-I, 2x USB Host Typ-A

• Power: 24V DC 4W

• Maximum power consumption 10W

• Max. distance: 100m, CAT 6 cable

Prices on request

Details

USV | 9250Ws [DC/DC, Ultracapacitor-based, Daisy-Chainable]

• Universal standalone power backup module compatible with all box-PCs

• Supercapacitor-based, -25 to 65°C wide temperature operation

• 9250 watt-second energy capacity

• Maximum 180W output power for the connected back-end system

• Over 10 years lifespan, and 500,000 charging/ discharging cycles

• Extending back-up time in the event of an unforeseen power outage

• Monitoring energy and power consumption to extend operation time for safe system shutdown

• Versatile operating mode

• Normal backup mode

• Ignition control mode for standard box-PC and in-vehicle controller

• EN50155 certificate

Prices on request

Details

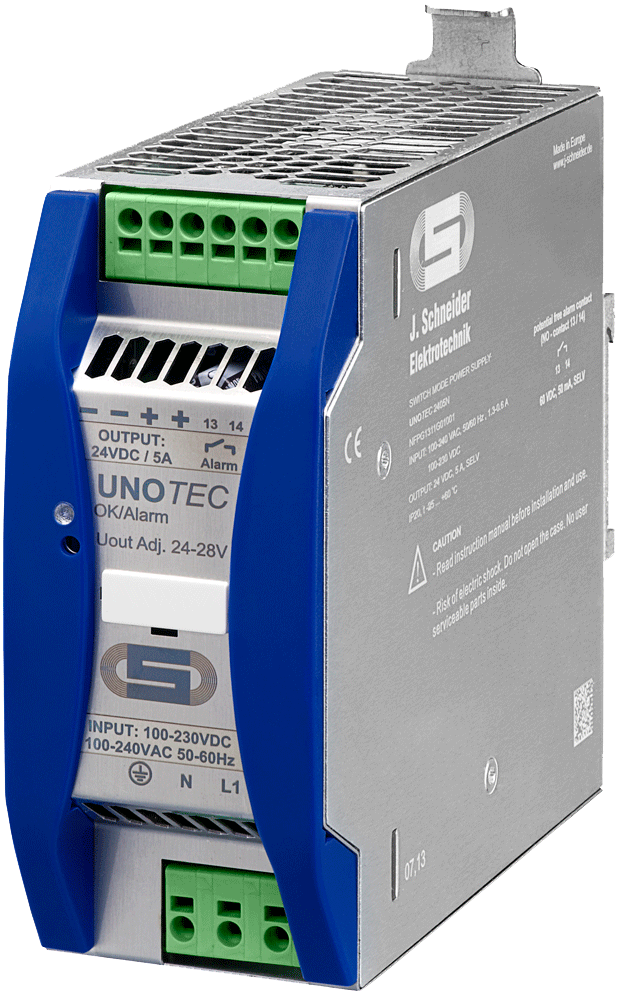

Schaltnetzteil [DIN-rail mount]

• Input voltage: 100V ~ 240V AC

• Output voltage: 24V DC

• Output current: 5A / 10A / 20A

• Performance: 120W / 240W /480W

• Operating temperature: -40°C ~ 60°C

• Protection class: IP20

• Mounting: DIN-rail

Prices on request

Details

Tischnetzteil [Terminal Block]

• Input voltage: 230V AC, Schuko IEC cord

• Output voltage: 12V ~ 24V DC, 2- and 3-pin terminal connector

• Output current: 5A ~ 11.67A

• Performance: 60W ~ 280W

• Operating temperature: -20° to 60°C

• Protection class: IP20

• Mounting: Table device

Prices on request

Details

Redundancy module [DC IN 24V | DC OUT 24V/20A max.]

• Input voltage: 22V to 28V DC, nominal 24V DC

• Output voltage: 24V DC

• Output current: max. 20A

• Performance: 480W

• Operating temperature: -40° to 80°C

• Protection class: IP20

• Mounting: DIN rail mounting

• Note: Redundant operation of two power adapters

Prices on request

Details

Power supply - 480W [24V/20A, DIN-rail mount]

• Input voltage: 100V to 240V AC

• Output voltage: 24V DC

• Output current: max. 20A

• Performance: 480W

• Operating temperature: -25°C ~ 70°C

• Protection class: IP20

• Mounting: DIN rail mounting

• Plug: Terminal block; 2- or 3-pin, female, included

Prices on request

Details

4G_GPS - miniPCIe module [w/antenna]

• LTE: 800 (B20) / 1800 (B3) / 2600 (B7)

• UMTS | HSPA: 900, 2100 MHz

• LTE Cat.3

• Embedded GPS | GLONASS receiver

• Rx Diversity and MIMO 2x2

• 3GPP release 9 compliant

• SIM application Tool Kits 3GPP TS 51.014

• Built in UDP / TCP / FTP / SMTP stack

• IP stack with TCP and UDP protocol

• Standard and extended AT command set

• Transfer rate: 4G 50/100, 3.75G 5.76/42.0, 3G 384/384, 2G 236/236

• Incl. 1x antenna

Prices on request

Details

WLAN - M.2 2230 module, Intel® Wi-Fi 6 AX200 [802.11ac, Bluetooth 5.1]

• TX/RX Streams, 2x2

• Bands, 2.4; 5GHz (160MHz)

• Max. Speed, 2.4Gbps

• Wi-Fi CERTIFIED,Wi-Fi 6 (802.11ax)

• Compliance, FIPS; FISMA

• Integrated Bluetooth Technology

• Bluetooth version, 5.2

• Antenna,2x2

• Geeignete Betriebssysteme: Windows 11; 64-bit; Windows 10; 64-bit; Linux

• 0°C to 80°C

• 2.83g

Prices on request

Details

2-port 10GigE Ethernet PCIe card, Intel® X550-AT2 [2x 10GigE] - opt. w/PoE+

• Bus Interface: Gen3 PCI Express x4

• 10 GbE Port: 2x 10 GbE ports by Intel® X550-AT2 controller, supporting 15.5 KB jumbo frame, teaming and IEEE 1588

• Network Protocol Support: IEEE 802.3 Ethernet interface for 10GBASE-T (IEEE 802.3an), NBASE-T (IEEE 802.3bz) and 1000BASE-T (IEEE 802.3ab)

• PoE Capability: Optional IEEE 802.3at-2009 (PoE+), up to 25.5W per port

• Cable Requirement: For 10GBASE-T: CAT 6a (100 meters) or CAT 6 (55 meters), For 5Gbps NBASE-T: CAT 6 (100 meters), For 2.5Gbps NBAST-T: CAT 5e (100 meters)

• Power Requirement: Maximum 11.5W for 2x 10 GbE operation, Maximum 51W for powering PoE+ devices

• EMC: CE Class A, according to EN 55024/ 55032, FCC Class A, according to FCC Part 15, Subpart B

• EMS: IEC 61000-4-x Class/ Level 3

• Operating Temperature: 0°C ~ 60°C with air flow

• Dimension: 167.7 mm (W) x 111.2 mm (H)

Prices on request

Details

4-port 5GBASE-T PoE+ PCIe card, Marvel AQC111C [4x 5GigE, 4x PoE+]

• 4x IEEE 802.3bz 5GBASE-T Ethernet ports by four Marvel AQC111C controllers

• Compliant with IEEE 802.3at to deliver up to 25.5 W for each port

• Supports 5G/ 2.5G/ 1G/ 100M link speed

• x4, Gen3 PCI Express interface offering 4GB/s total bandwidth

• Per-port PoE+ power on/ off control

• Compatible with COTS NBASE-T industrial cameras

Prices on request

Details
