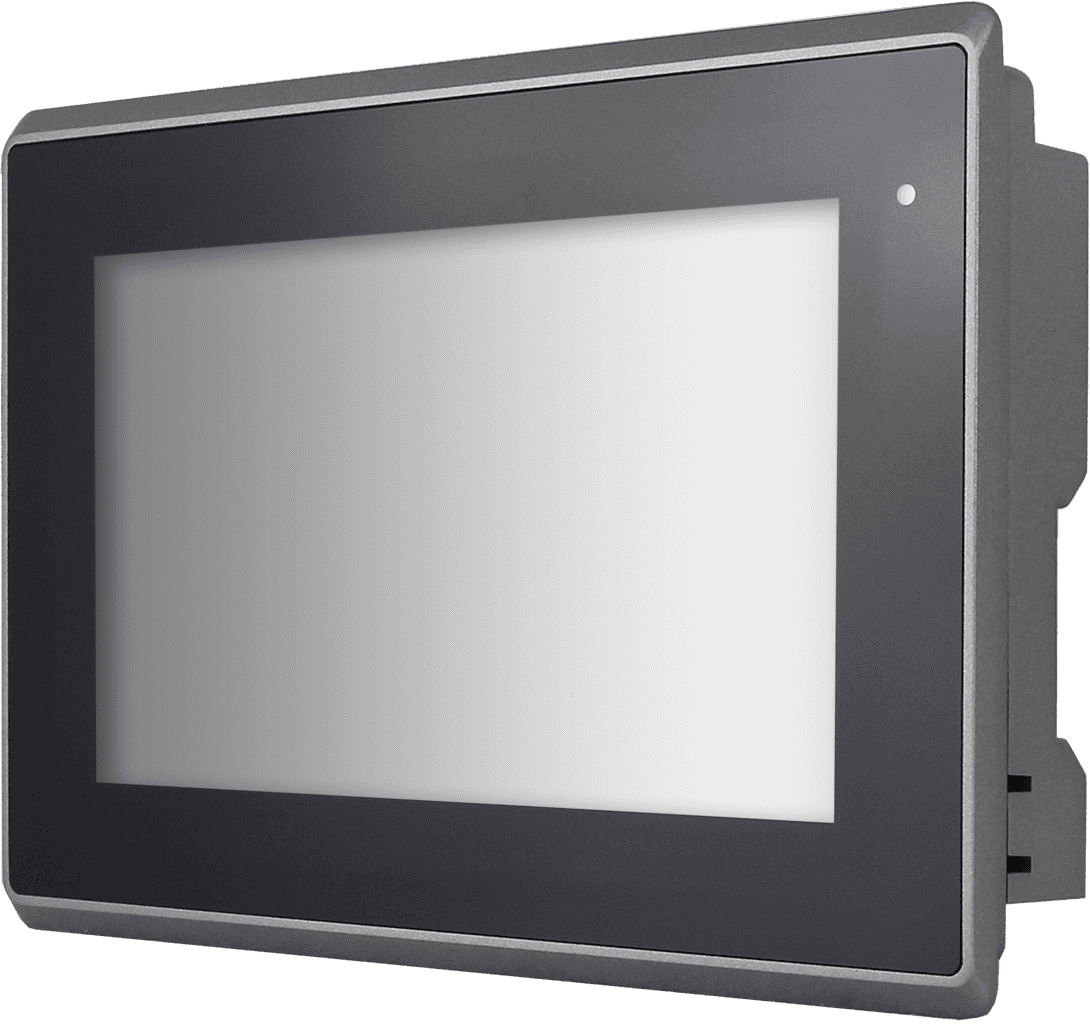

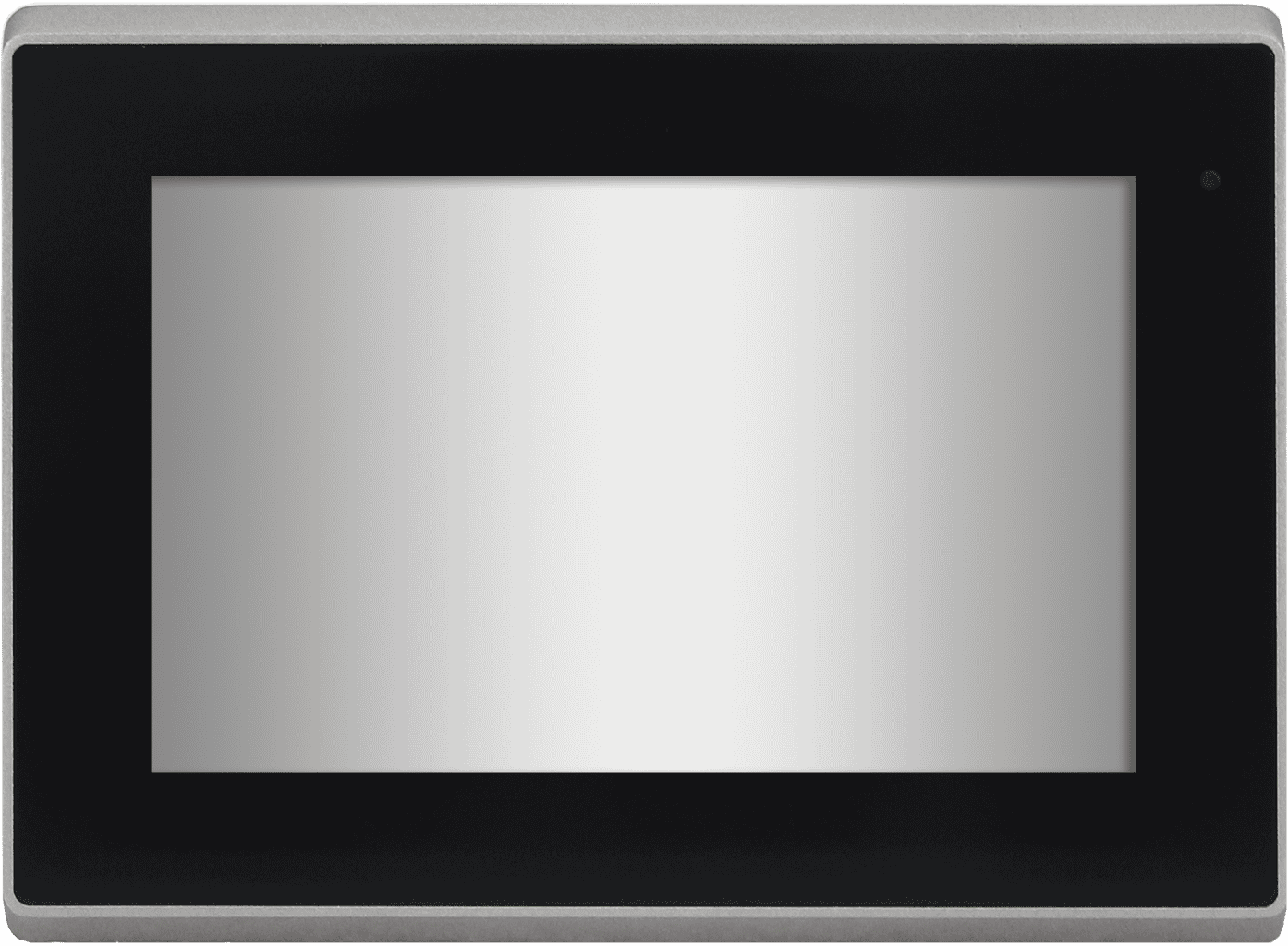

HAWK AP 7-EL | Intel® Celeron® J6412 [RTW]

The human-machine interface's (HMI) fanless design offers 24/7 reliability - powered by the energy-saving Elkhart Lake Intel® Celeron® J6412. Operation is via a projected capacitive touchscreen (PCT) with multi-touch support or a resistive touch (RTW) for operation with protective gloves, for example. Wi-Fi (opt.), dual LAN, serial, and USB interfaces are also onboard.

Key facts	• 7" ~ 23.8" • Intel® Celeron® J6412 • max. 32GB DDR4 • IP66 • Capacitive, resistive • Fanless
Display Size	7" • 8" • 10.1" • 12.1" • 12.1" Wide • 15" • 15.6" • 17" • 18.5" • 19" • 21.5" • 24"
Aspect ratio / resolution	16:10 / 800 x 480 (7“) • 4:3 / 800 x 600 (8“) • 16:10 / 1280 x 800 (10.1“) • 4:3 / 1024 x 768 (12.1“; 12.1" Wide) • 4:3 / 1024 x 768 (15“) • 16:9 / 1920 x 1080 (15.6“) • 5:4 / 1280 x 1024 (17“; 19“) • 16:9 / 1920 x 1080 (18.5“; 21.5“; 24")
Touch	Capacitive (PCT) (7" - 23.8") • Resistive (RTW) (7" - 21.5")
Protection class	IP66 Compliant Front Bezel
Front	Aluminium, silver
CPU	Intel® Celeron® J6412, 4x 2.0GHz/2.6GHz, 1.5MB L2 cache
Chipset	Intel® Baytrail SoC - Embedded Long Life Chipset
RAM	1x 260-pin SO-DIMM up to 32GB DDR4 3200MHz
Storage interface	1x M.2 B-Key slot (support SATA3 2242/2280, default 2242)

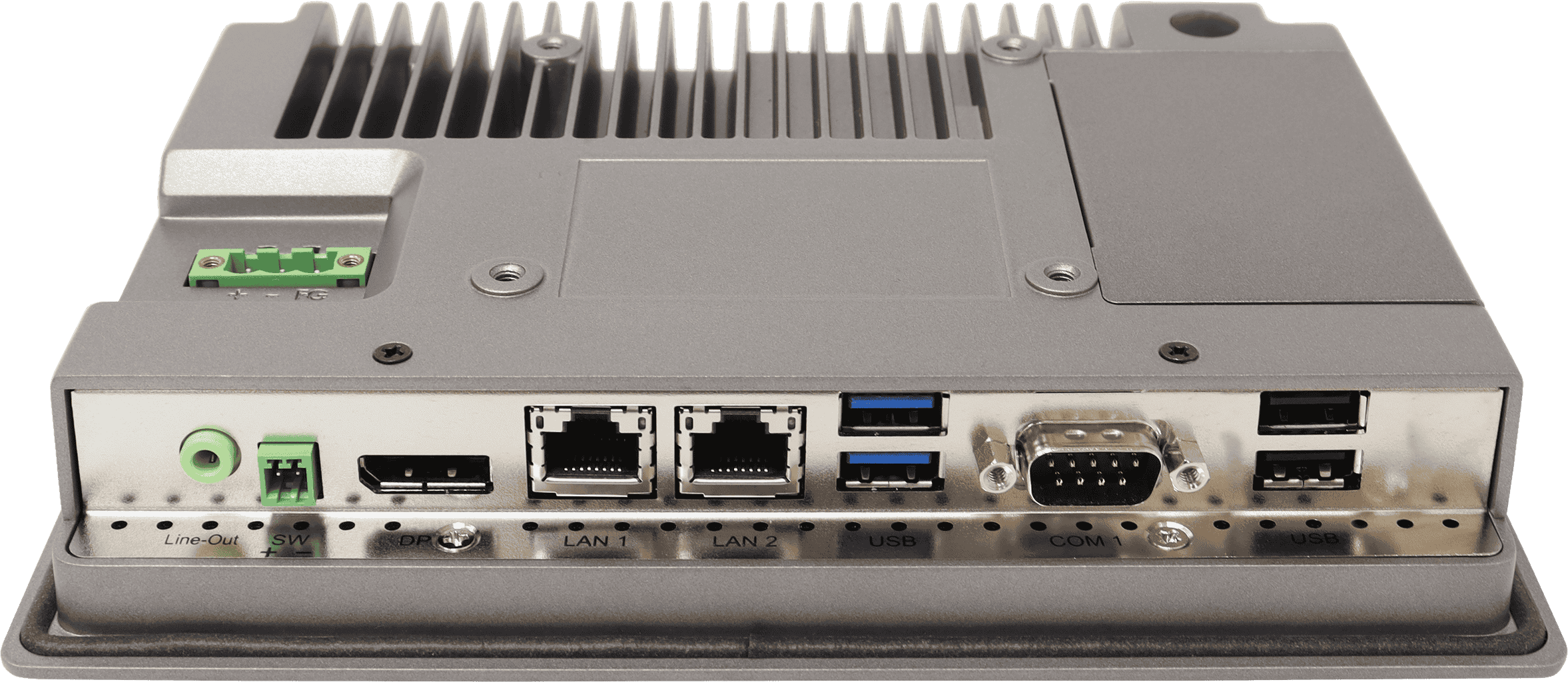

Ports	2x 2.5 Gigabit-LAN RJ-45 (I226) • 2x USB 3.2 Gen2 type A • 2x USB 2.0 type A • 1x RS-232/422/485 (default RS-232; select via BIOS) • 1x Line-out • 1x DP, support DP++
PCI / PCIe / mini-PCIe	1x mini-PCIe slot (full size) • 1x M.2 E-key • 1x Nano SIM Card Holder
Cooling System	Passive, fanless
Mounting	Panel mounting • VESA 75 x 75 (7"; 8") • VESA 100 x 100 (10.1" - 23.8")
Power input	9V to 36V DC 1x 3-pin Terminal Block Connector • 1x 2-pin Power Switch Connector
Power consumption	30W (7") • 32W (8") • 34W (10.1") • 40W (12.1"; 12.1" Wide; 15"; 15.6") • 46W (17") • 50W (18.5"; 19"; 21.5") • 62W (24")
Operating system	Windows 10 IoT • Windows 11 IoT
Max. color	262K (7“) • 16.2M (8“; 15“; 17“) • 16.7M (10.1“; 12.1“; 12.1" Wide; 15.6“; 18.5“; 19“; 21.5“; 23.8")
Luminance /cd/m2	350 (7“; 10.1“; 17“; 19“) • 450 (8“) • 450/500 (12.1“) • 600 (12.1“ WIde) • 300 (15“) • 400/500 (15.6“) • 300/350 (18.5“) • 250 (21.5“; 23.8")
View angle / H/V	160° / 160° (7“) • 140° / 130° (8“) • 170° / 170° (10.1“; 12.1 Wide) • 176°/176° / 178°/178° (12.1“) • 176° / 176° (15“) • 170°/160° / 178°/178° (15.6“; 18.5“) • 170° / 160° (17“; 19“) • 178°/178° (21.5“; 23.8")
Backlight lifetime / hrs	40,000 (7“; 8“) • 30,000 (10.1“; 17“; 21.5“; 23.8") • 50,000/30,000 (12.1“) • 70,000 (15“) • 50,000 (12.1" Wide; 15.6“; 18.5“; 19“; 21.5")
Contrast ratio	1000:1 (7“; 12.1“; 12.1“ Wide; 17“; 18.5“; 19“; 21.5“) • 500:1 (8“) • 800:1 (10.1“) • 2000:1 (15") • 500:1/1000:1 (15.6“) • 3000:1 (23.8")
Operating temperature	0° to 50°C
Storage temperature	-30° to 70°C
Storage humidity	10% to 95% @ 40°C, non-condensing
Certificate	CE/FCC Class B / UL
Weight / kg	1.1 (7“) • 1.8 (8“) • 1.85 (10.1“) • 2.73 (12.1“) • 3.03 (12.1“ Wide) • 4.53 (15“) • 3.92 (15.6“) • 6.07 (17“) • 6.55 (18.5“) • 7.47 (19“) • 7.11 (21.5“) • 9.85 (23.8")

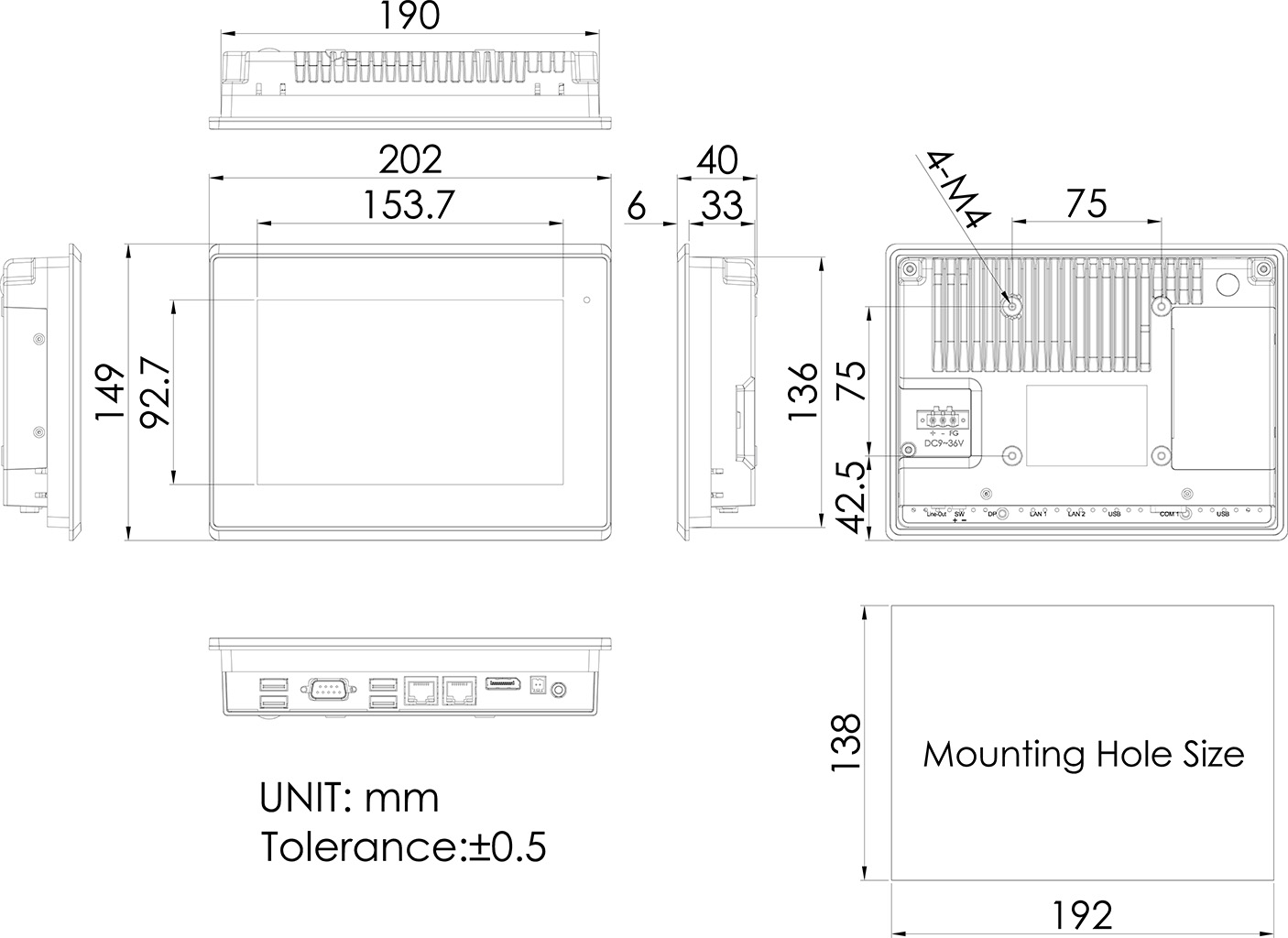

Dimensions / mm	202 x 149 x 40 (7“) • 231.1 x 176.1 x 50 (8“) • 285 x 189 x 48.9 (10.1“) • 319 x 245 x 51.7 (12.1“; 12.1“ Wide) • 410 x 310 x 54.67 (15“) • 412 x 277.5 x 58.9 (15.6“) • 439 x 348 x 64.8 (17“) • 499.6 x 314.6 x 65.4 (18.5“) • 468 x 380 x 64.8 (19“) • 557.3 x 362.3 x 64.8 (21.5“) • 640 x 395 x 65.1 (23.8")
Scope of delivery	Power supply, 60W • 3-pin terminal connector • retaining clip • touch pen • driver CD
