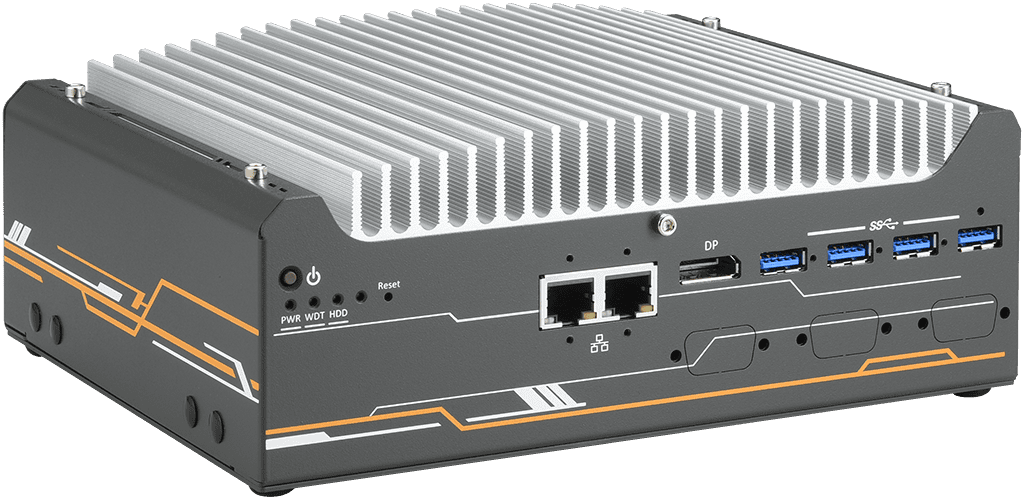

GOLUB 9501 | Barebone [2x 2.5GigE]

Compact fanless Industrial-PC • 13th Gen. Intel® Core™ i9/i7/i5/i3/Celeron

GOLUB 9501 is a cost-effective compact fanless Industrial Box-PC based on the Intel 13th/12th-Gen platform. Built on the advanced Intel 7 process, Intel 13th Gen processors offer up to 24 cores/ 32 threads to deliver up to 2x the performance when compared to previous Intel 10th or 11th Gen platforms. GOLUB 9501 is a cost-effective, compact and yet powerful fanless embedded computer that offers the ultimate computing for various industrial applications.

GOLUB 9501 offers essential I/O functions for general industrial needs including dual 2.5GbE ports, dual display ports and four USB3.2 ports. In addition, it features a Gen4 x4 M.2 NVMe slot for the latest NVMe SSDs with read/ write speeds up to 7000 MB/s. Also, it supports a 2.5” or 3.5” HDD storage for high capacity storage needs such as data collection or surveillance applications. It also offers two mPCIe and one M.2 E key slots for installing WiFi or 5G/ 4G wireless communication modules.

As a cost-effective and compact embedded computer, GOLUB 9501 delivers excellent computing performance and offers essential necessary I/O connectivityons to meet customers’ needs and cost. It is suitable for a variety of industrial applications.

Key facts	• 13th Gen. Intel® Core™ i9/i7/i5/i3/Celeron • Up to 32GB DDR4 • Fanless • Optional: Digital I/O
Protection class	IP20
CPU	Supporting Intel® 13th/12th-Gen Alder Lake Core™ CPU (LGA1700 socket, 35W/ 65W TDP)
Chipset	Intel® H610E platform controller hub
RAM	Up to 32GB non-ECC DDR4 3200 SDRAM (one SODIMM slot)
Storage interface	1x internal SATA port for 3.5” HDD or 2.5” HDD/ SSD • 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD

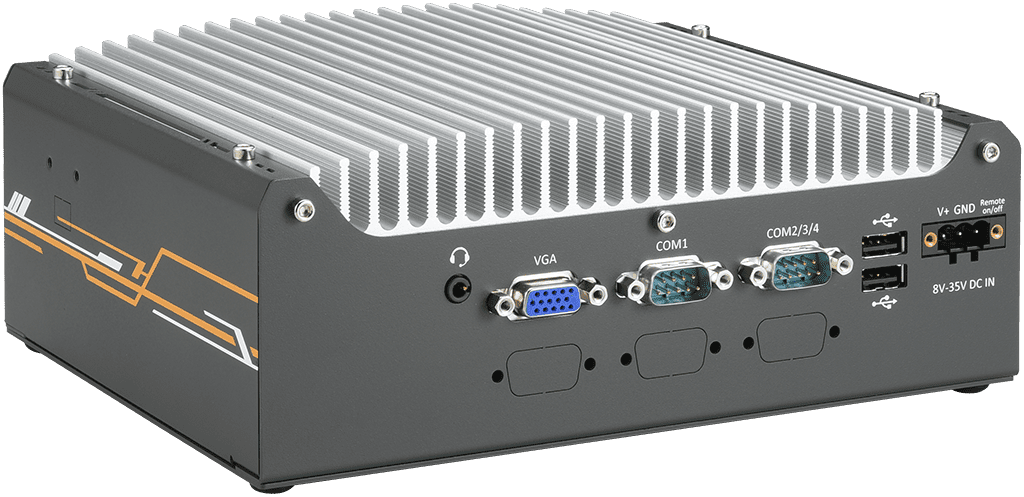

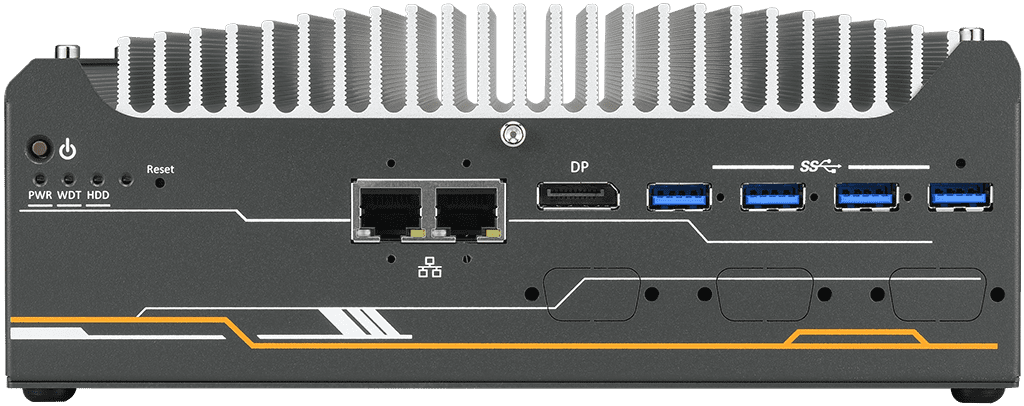

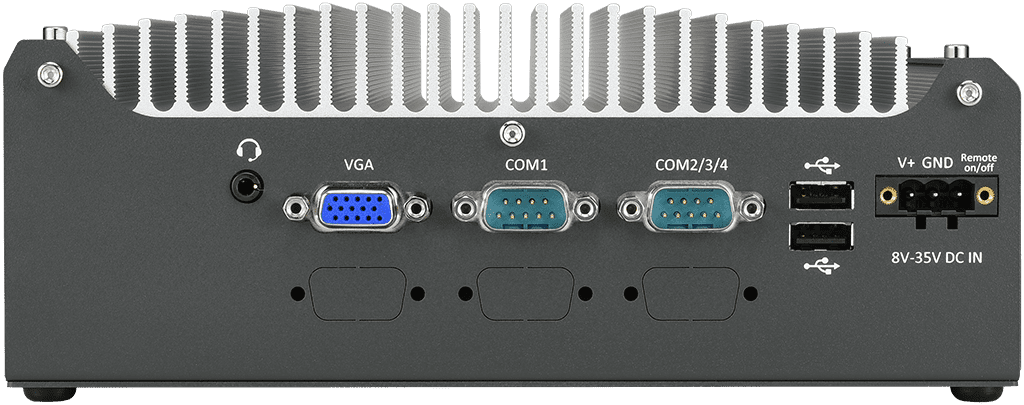

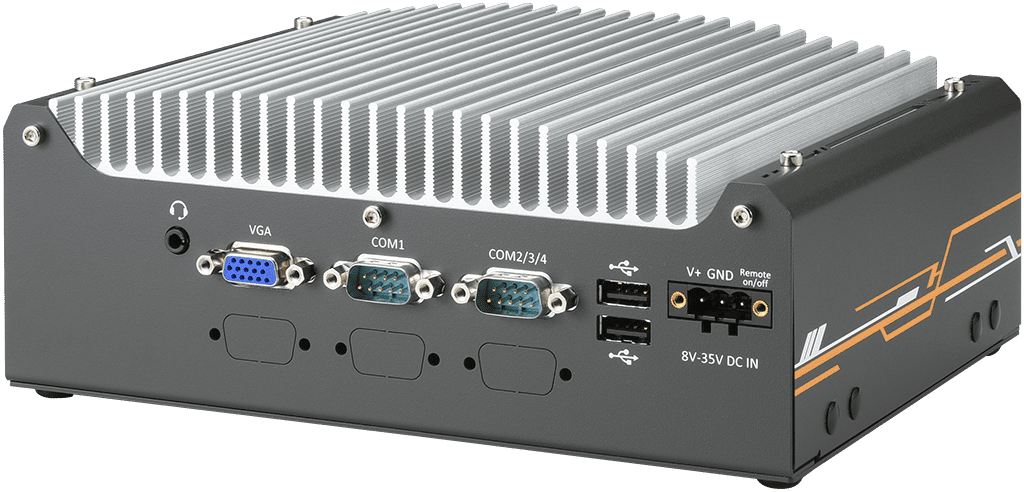

Ports	2x 2.5GBASE-T Ethernet ports by Intel® I226-IT GbE controllers • 4x USB 3.2 Gen1 (5 Gbps) ports • 2x USB 2.0 ports • 1x software-programmable RS-232/422/485 ports (COM1) • 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2) • 1x VGA output, supporting 1920 x 1200 resolution • 1x DisplayPort, supporting 4096 x 2304 resolution • 1x 3.5 mm jack for mic-in and speaker-out
PCI / PCIe / mini-PCIe	2x full-size mini-PCI Express sockets with internal SIM sockets • 1x M.2 2230 E key socket for WiFi5, WiFi6 or Google edge TPU module
DIO	4-CH isolated DI and 4-CH isolated DO (GOLUB 9505)
MezIO™-interfaces	1x MezIO™-Erweiterungsport für MezIO™-Module

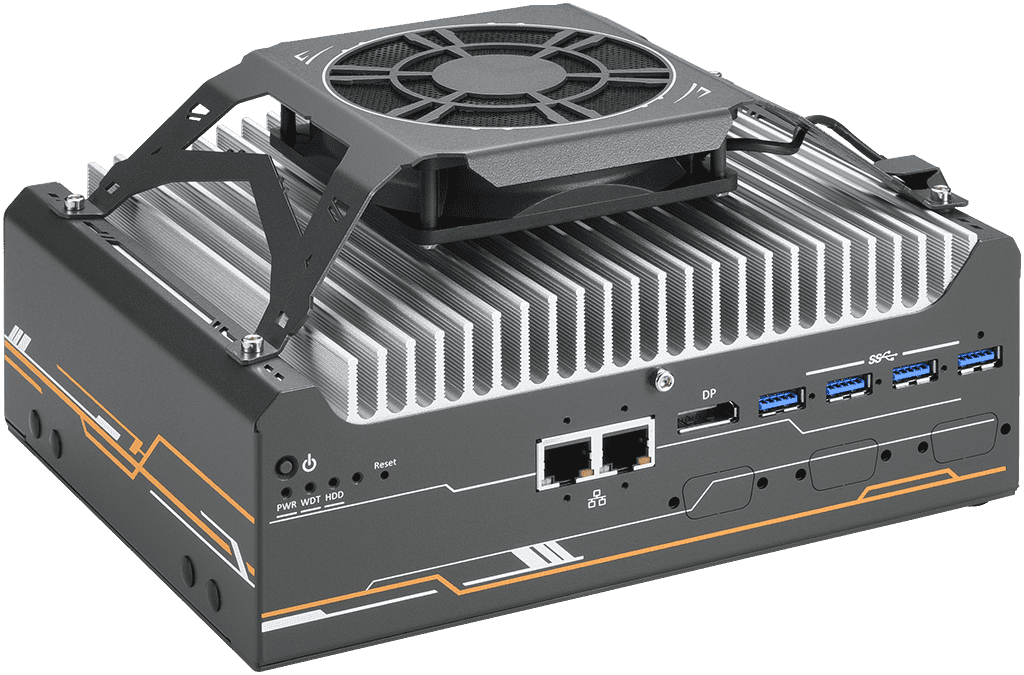

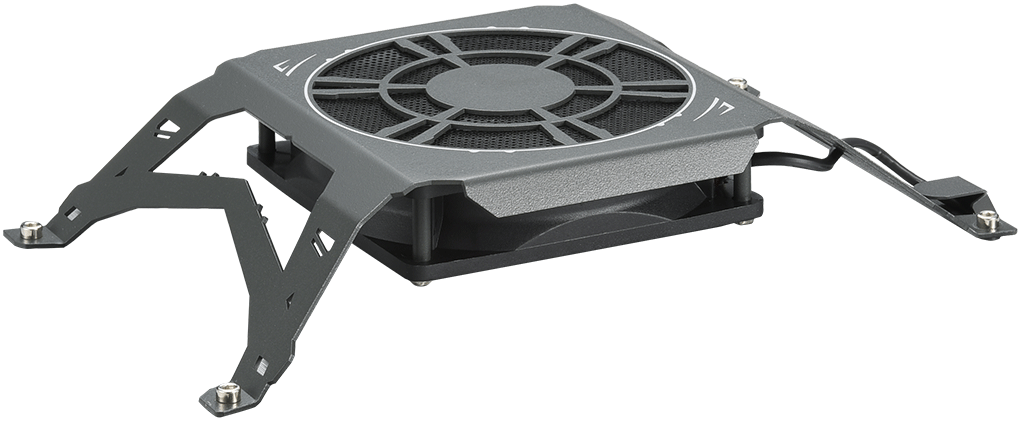

Cooling System	Passive, fanless • option: Fan kit with 92mm x 92mm

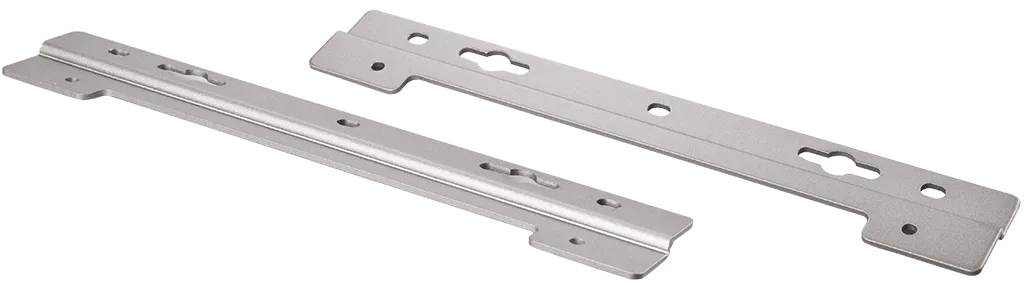

Mounting	Option: Wall-mount • DIN-Rail mounting
Power input	1x 3-pin pluggable terminal block for 8V-35V DC input with remote on/off control
Power consumption	TBA
Operating system	Option: Microsoft Windows® 10 • Fedora 29 • Ubuntu 16.04.5 LTS & Ubuntu 18.04.0 LTS
Operating temperature	with 35W CPU -10°C to 60°C • with 65W CPU -10°C to 60°C (installation of the optional fan kit is recommended)
Storage temperature	-40° to 85°C
Storage humidity	10% bis 90%; non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
Certificate	CE/FCC Class A, according to EN55032 & EN55035
Weight / kg	2.5

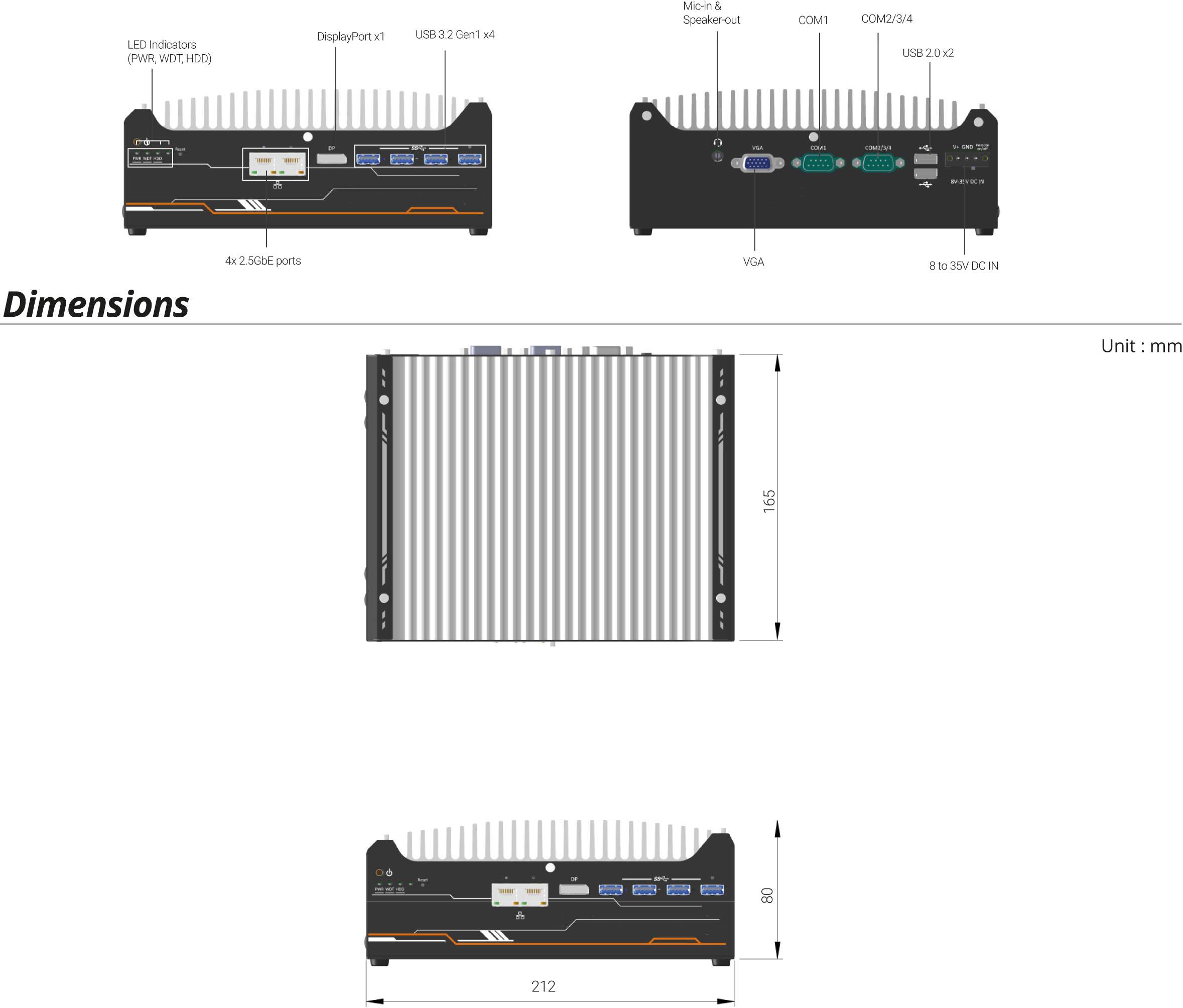

Dimensions / mm	212 x 165 x 63
Scope of delivery	2x 3-pin terminal connector • Driver CD
