GOLUB 11501 | Barebone [2x 2.5GigE]

Compact fanless Industrial-PC • Intel® Core™ Ultra 200 series

The GOLUB 11501 is a cost-effective, compact, fanless embedded AI computer powered by an Intel® Core™ Ultra 200 series processor. It is an ideal solution for machine vision or factory automation applications that demand cutting-edge CPU performance, cost efficiency, minimal I/O, and flexible storage options.

Powered by the latest Core™ Ultra 200 processors, the GOLUB 11501 delivers nearly 120% of the performance while consuming only 80% of the power compared to the previous generation, thanks to TSMC‘s advanced 3nm process technology. In addition to its superior CPU performance, the Core™ Ultra 200 series also features an integrated Neural Processing Unit (NPU), providing enhanced AI inference capabilities alongside rule-based algorithms to meet the demands of modern machine vision applications.

The GOLUB 11501 offers essential I/O functions for industrial application needs, including dual 2.5GbE ports, dual display ports, and four USB 3.2 ports. Additionally, it features a Gen4 x4 M.2 NVMe slot for high-speed OS read/write operations, along with an internal 2.5“/3.5“ SSD/HDD bay for high-capacity storage—ideal for data logging or video recording. For internal expansion, it provides two mPCIe slots and one M.2 E-Key slot for adding COM ports, Wi-Fi, or 5G/ 4G LTE connectivity.

Combining a proven thermal design with essential I/O functionality, the GOLUB 11501 delivers a rugged, compact, and budget-friendly computing solution tailored for a wide range of industrial applications.

Key facts	• Intel® Core™ Ultra 200 series CPU • Max. 64GB DDR5 • Cost-effective embedded AI computer • Fanless
Protection class	IP20
CPU	Supports Intel® Core™ Ultra 200 series CPU (LGA 1851 socket), 35W and 65W TDP
Chipset	Intel® H810 platform controller hub • fTPM 2.0; option: dTPM 2.0 (f= Software TPM, d= Hardware TPM)
RAM	Up to 64GB DDR5 6400 memory via one SODIMM slot
Storage interface	2x 2.5GBASE-T Ethernet ports with screw-lock by Intel® I226-V GbE controllers; Port 2 supports Wake-on-LAN (WOL) • 4x USB 3.2 Gen1 (5 Gbps) ports with screw-lock • 2x USB 2.0 ports • 1x HDMI, supports 4096 x 2160 resolution • 1x DisplayPort, supports 4096 x 2304 resolution • 1x software-programmable RS-232/422/485 port (COM1) • 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2)
Ports	1x Internal SATA port for 1x 3.5” HDD or 1x 2.5” HDD/ SSD • 1x M.2 2280 M key socket (PCIe Gen4x4) for NVMe SSD
PCI / PCIe / mini-PCIe	2x full-size mini-PCI Express sockets with internal SIM sockets • M.2 E 1x M.2 2230 E key socket for WiFi module
Cooling System	Passive, fanless • optional: fan kit
Mounting	Wall-mount • DIN-rail mount
Power input	1x 3-pin pluggable terminal block for 8V to 48V DC input with with remote on/off control
Operating temperature	With 35W CPU -25°C to 60°C • With 65W CPU (installation of the optional fan kit is recommended) -25°C to 60°C
Storage temperature	-40° to 85°C
Storage humidity	10% to 90%; non-condensing
Vibration	MIL-STD-810H, Method 514.8, Category 4
Shock	MIL-STD-810H, Method 516.8, Procedure I
Certificate	CE/ FCC Class A, according to EN 55032 & EN 55035
Weight / kg	2.5 kg (excluding wall mount kit)

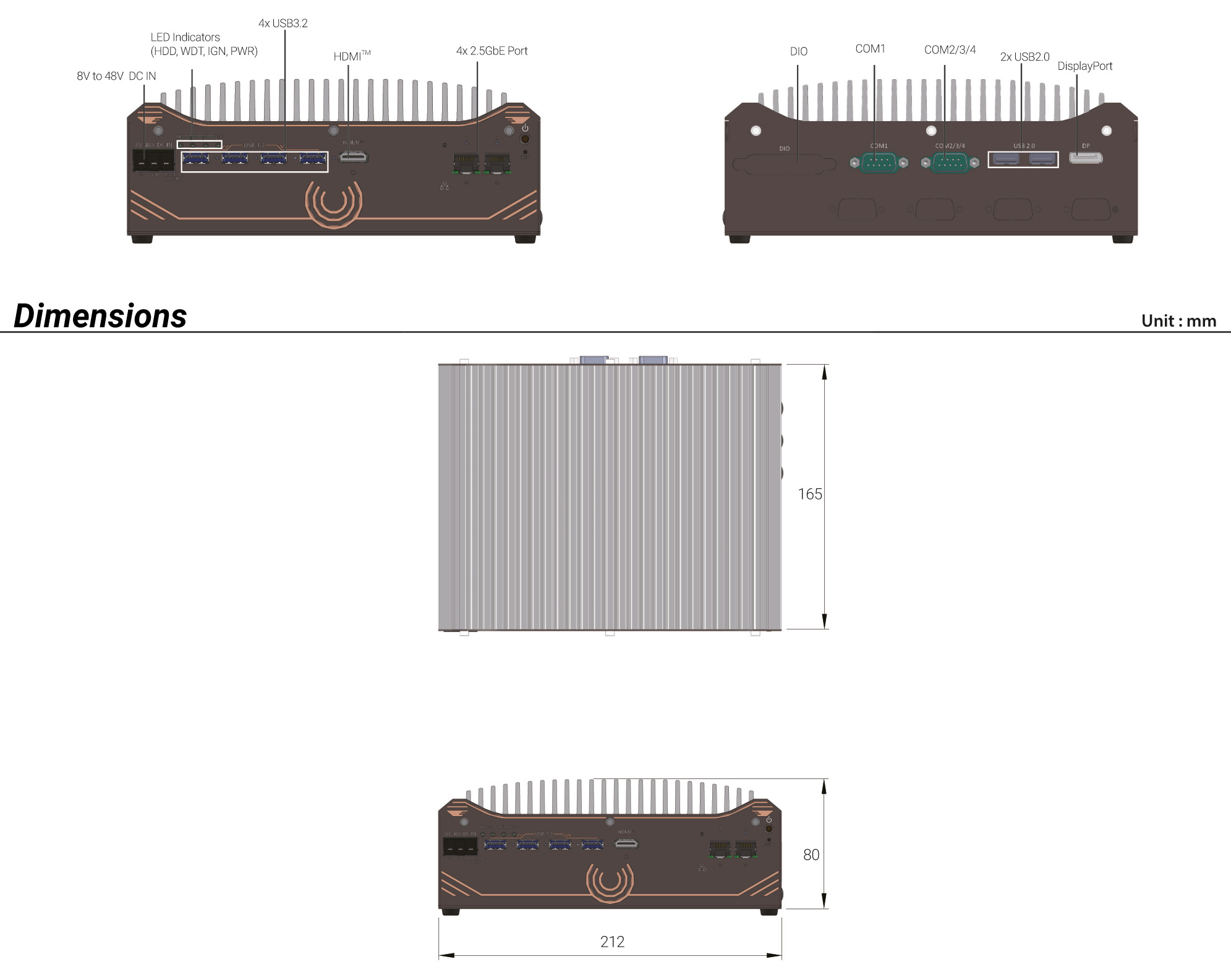

Dimensions / mm	212 x 165 x 80

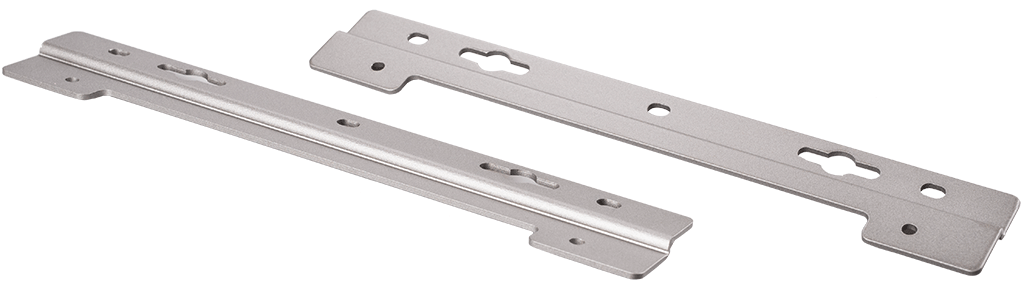

Scope of delivery	Accessory Kit • DVI to VGA Adapter • Wall Mount Kit
