GOLUB 7200 | Barebone [6x GigE, 4x PoE+ M12]

Rugged PC for in-vehicle applications with PCIe • 9th Gen. Intel® Core™ i7/i5/i3

The GOLUB 7200 series is a robust vehicle controller with the patented cassette module and a x16 PCIe slot for flexible add-on cards. Powered by 9th and 8th generation Intel® Core™ processors with up to 8 cores/8 threads and 64GB DDR4 memory, the system is ideal for advanced in-vehicle applications. The Industrial Box-PC GOLUB 7200 offers a wide range of peripherals, connections and expansion options. It has four or eight 802.3at PoE+ ports that provide 25W of power to connected devices such as IP cameras, with M12 connectors (x-coded) and screw-locking mechanisms on I/Os such as Gigabit Ethernet, USB 3.1 Gen1 and USB 3.1 Gen2 to ensure extremely robust connectivity in environments with shock and vibration. There are two M.2 and three mini PCIe slots to install 3G/ 4G, WIFI, GPS and CAN modules for wireless communication. APROtech also offers an option for a 4G cellular module that is certified to work with reputable US telecom companies and can save you time and money in implementation.

In addition, the patented cassette design provides an additional PCIe slot for an add-on card, increasing flexibility for in-vehicle applications. The GOLUB 7200 series also features two hot-swappable SATA hard disk drive bays, an isolated CAN bus for in-vehicle communication, an isolated DIO for sensor and actuator control, a wide range DC input from 8V to 35V with ignition current control and meets E-Mark and EN 50155/ EN45545 requirements. The GOLUB 7200 series is a flexible and reliable solution for various applications in the vehicle.

Key facts	• 9th Gen. Intel® Core™ i7/i5/i3 • Up to 64GB DDR4 • Fanless • PCIe, Digital I/O, PoE, CAN • In-Vehicle Computing
Protection class	IP20
CPU	Supports Intel® 9th/8th-Gen CPU (LGA1151 socket, 35W TDP)
Chipset	Intel® Q370

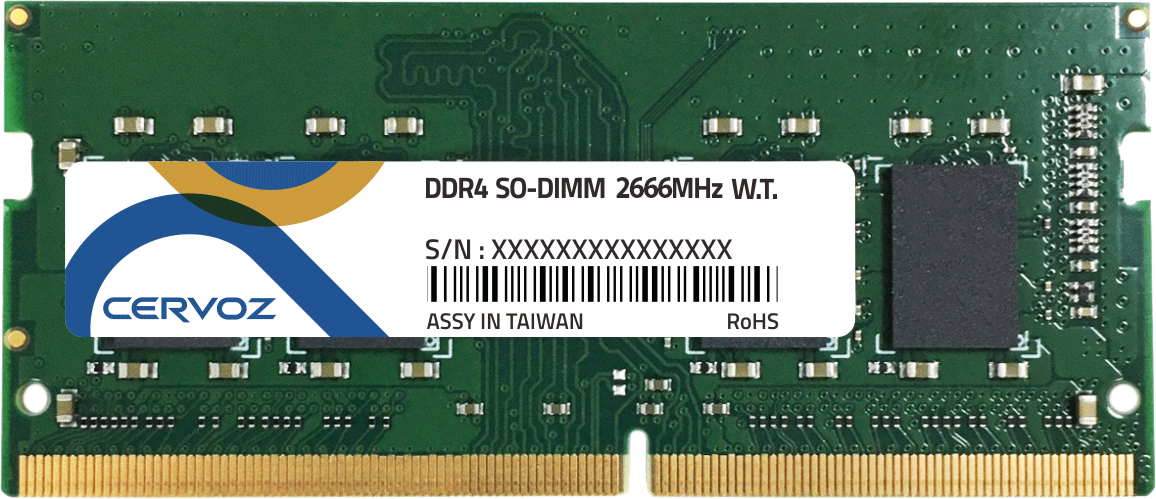

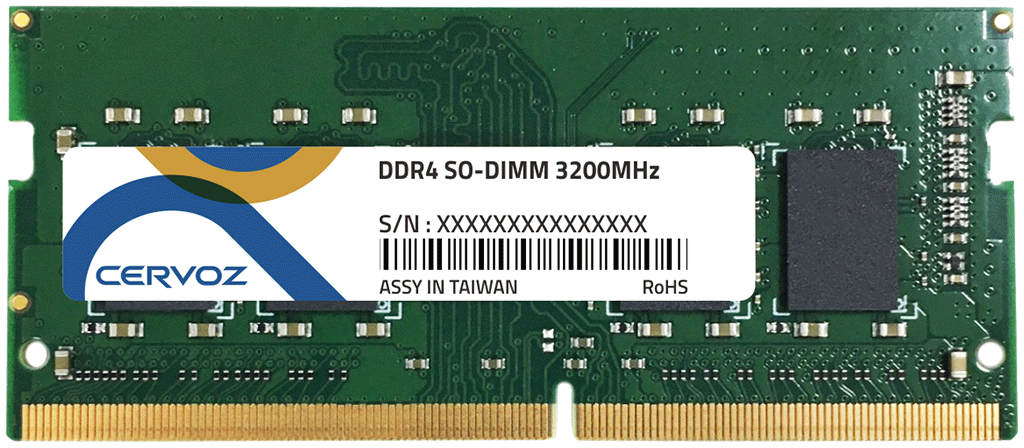

RAM	Up to 64GB DDR4 2666/ 2400 SDRAM (two SODIMM slots)
Storage interface	2x hot-swappable HDD tray for 2.5” HDD/ SSD installation, supporting RAID 0/1 • 1x full-size mSATA port (mux with mini-PCIe) • 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation
RAID	0/1
Ports	2x GigE, 1x Intel® I219, 1x Intel® I210 • 4x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 M12 x-coded connector (GOLUB 7200; GOLUB 7204) • 8x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 RJ45 connector (GOLUB 7208) • 4x USB 3.1 Gen2 (10 Gbps) • 4x USB 3.1 Gen1 (5 Gbps) • 2x software-programmable RS-232/422/485 ports (COM1/ COM2) • 2x RS-232 ports (COM3/ COM4) • 1x VGA, supporting 1920 x 1200 resolution • 1x DVI-D, supporting 1920 x 1200 resolution • 1x DisplayPort, supporting 4096 x 2304 resolution • 1x isolated CAN 2.0 port • 1x Mic-in and 1x speaker-out
PCI / PCIe / mini-PCIe	1x PCIe x16 slot@Gen3, 16-lanes PCIe signals in Cassette • 1x full-size mini-PCIe socket with internal SIM socket (mux with mSATA) • 2x full-size mini-PCIe sockets (USB signals only) with internal SIM sockets • 2x M.2 2242 B key socket, one with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module
DIO	4x isolated DI and 4x isolated DO
Cooling System	Passiv, lüfterlos
Mounting	Wall-mount with damping brackets • option: DIN-Rail
Power input	1x 3-pin pluggable terminal block for 8V to 35V DC input (IGN/ GND/ V+) • 1x 3-pin pluggable terminal block for remote control and PWR LED output
Power consumption	TBA
Operating system	Option: Microsoft Windows® 10 • Fedora 29 • Ubuntu 16.04.5 LTS & Ubuntu 18.04.0 LTS
Operating temperature	-40°C to 70°C
Storage temperature	-40 to 85°C
Storage humidity	10% to 90%; non-condensing
Vibration	IEC61373:2010, Category 1, Class B Body mounted (part of EN50155)
Shock	IEC61373:2010, Category 1, Class B Body mounted (part of EN50155)
Certificate	CE/FCC Class A, according to EN 55022 & EN 55024 EN 50155, EN45545 (GOLUB 7200) EN 50155, EN45545 • E-Mark (GOLUB 7208)
Weight / kg	3.7
Dimensions / mm	240 x 225 x 103
Scope of delivery	2x 3-pin Terminal connector • Rubber absorber • Wall mounting kit • Driver CD
