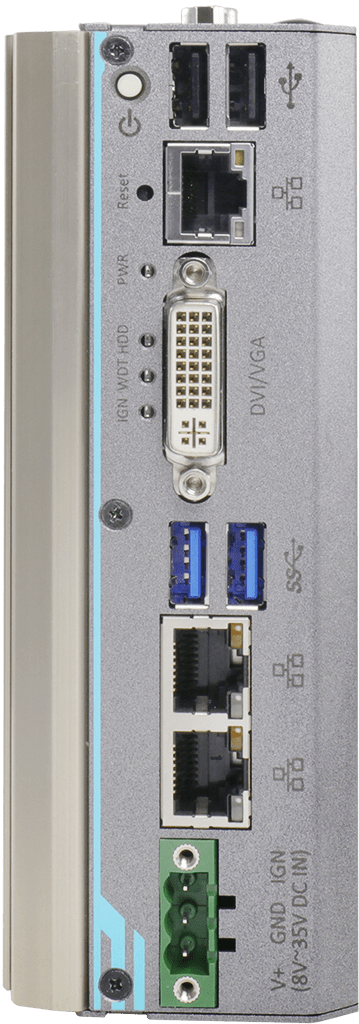

GOLUB 4200, Intel® Pentium® N4200 [3x GigE, MezIO®]

Ultra-compact Rugged PC • Intel® Pentium® N4200

Experience the giant leap in performance of Intel® Apollo Lake Pentium® and Atom® platform! The Industrial Box-PC GOLUB 4200 features the latest Pentium® N4200 and Atom® x7-E3950 quad-core processors which offers up to 1.5 times the CPU performance and 3 times the GPU performance improvement compared to previous generation Atom® E3845 CPU.

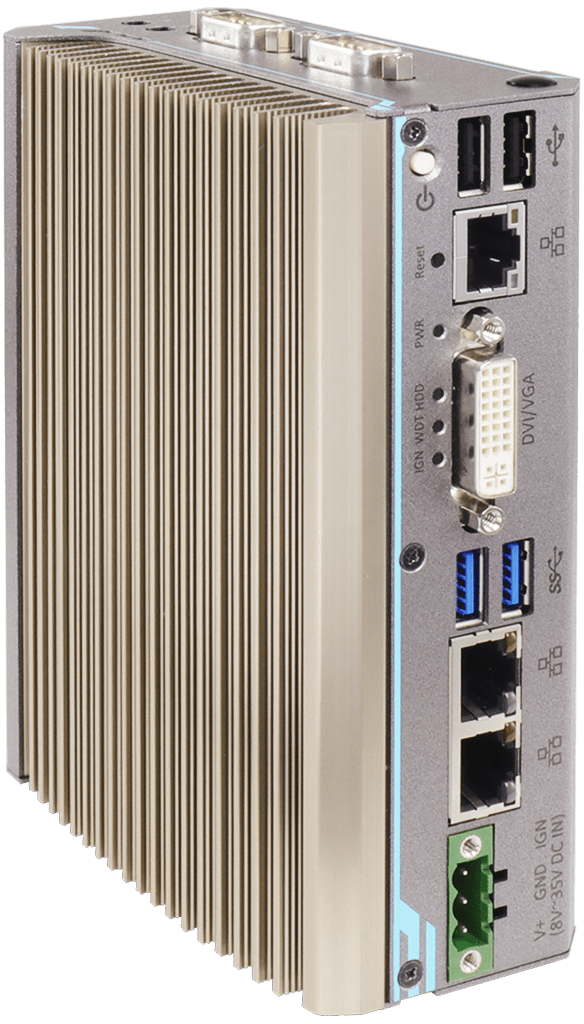

GOLUB 4200 series has an ingenious mechanical design that combines DIN-rail mounting chassis with front-accessible I/O in one ultra-compact enclosure. It has rich computer-like I/Os such as GbE, USB 3.1 Gen1/2,0, COM ports and mSATA storage in a compact footprint that measures just 5.6 x 15 x 11 cm. IEEE 802.3at PoE+ function is also available on 2 of the 3 GbE ports to power cameras for machine vision or surveillance applications. GOLUB 4200 series features MezIO® interface for easy function expansion via versatile MezIO® modules.

With the proven fanless design heritage, the GOLUB 4200 series thrives in harsh environments. Featuring rich I/Os, advanced CPU and compact size, GOLUB 4200 is a compelling fanless embedded controller beneficial for various industrial applications.

Key facts	• Intel® Pentium® N4200 • Up to 8GB DDR3L • Fanless • I/O Expansion slot • Option: Digital I/O, PoE+
Protection class	IP20
CPU	Intel® Pentium® N4200 1.1/ 2.5GHz quad-core processor
Chipset	Intel® Baytrail SoC - Embedded Long Life Chipset

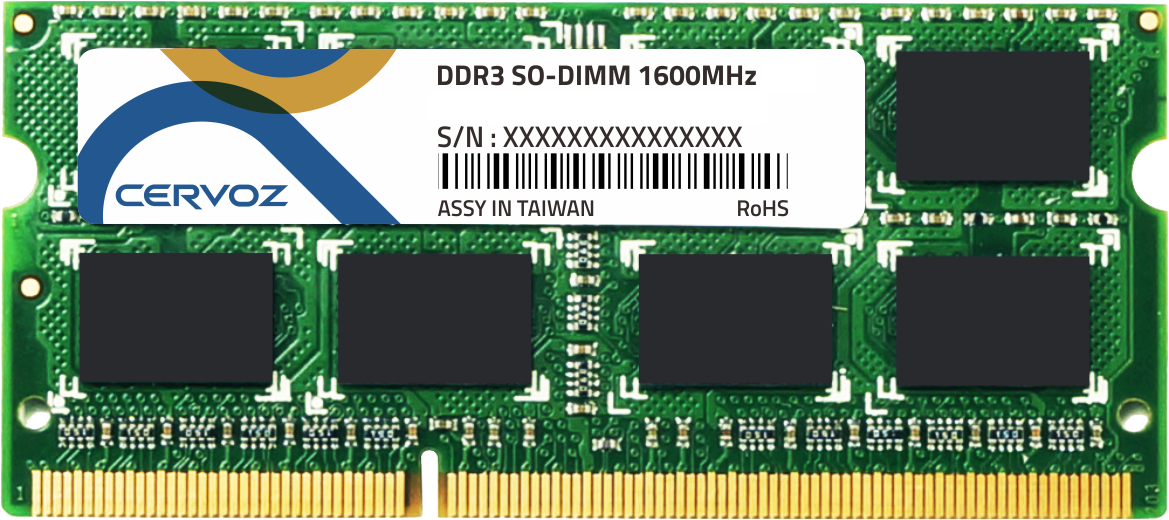

RAM	Up to 8GB DDR3L-1866 (single SODIMM slot)

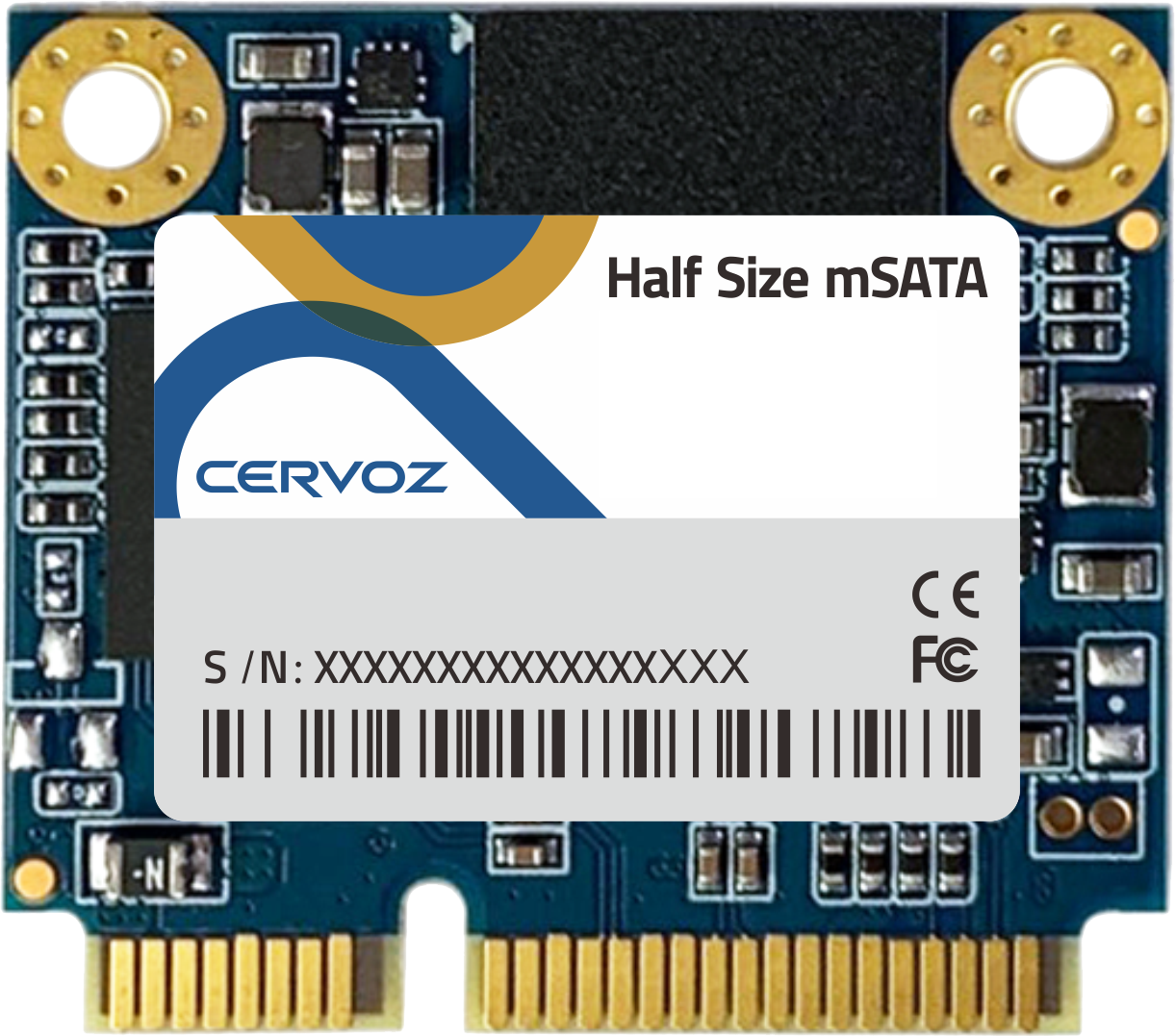

Storage interface	1x half-size mSATA port

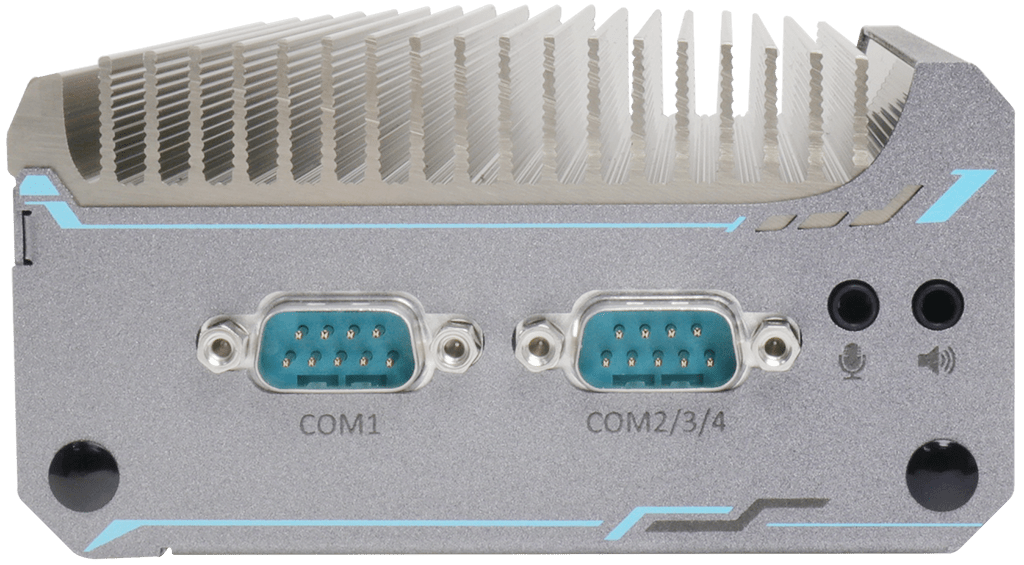

Ports	3x GigE, Intel® I210; PoE+, IEEE 802.3at, port #2 and #3 • 2x USB 3.1 Gen1 (5 Gbps) • 2x USB 2.0 • 1x Software-programmable RS-232/ 422/ 485 ports (COM1) • 3x 3-wire RS-232 ports (COM2/ 3/ 4) or 1x RS-422/ 485 port (COM2) • 1x Mic-in and 1x speaker-out • VGA and DVI dual display outputs via DVI-I • Integrated Intel® HD Graphics 505
PCI / PCIe / mini-PCIe	1x full-size mini-PCI Express slot with USIM socket

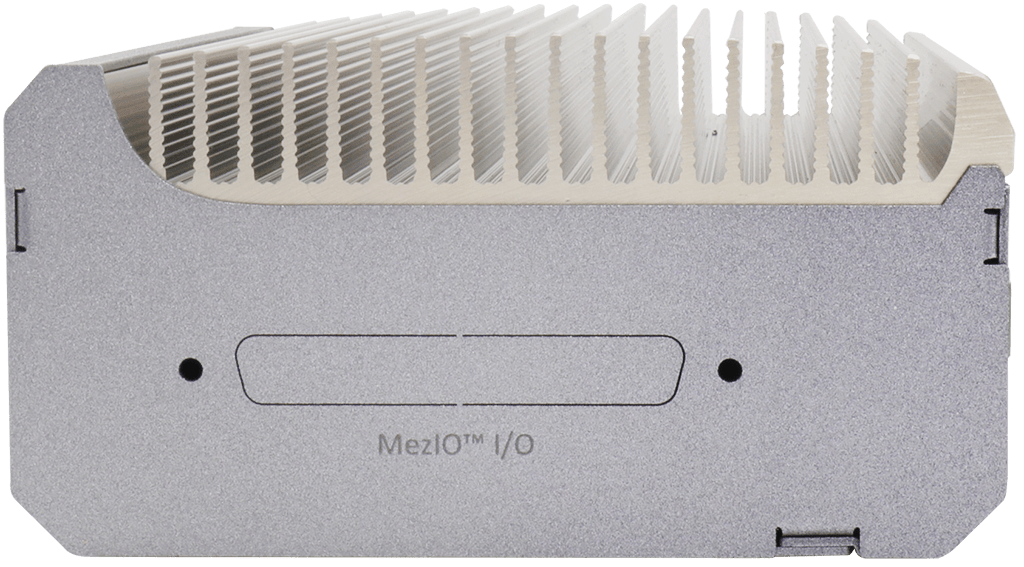

DIO	1x MezIO® expansion interface
Cooling System	Passiv, fanless

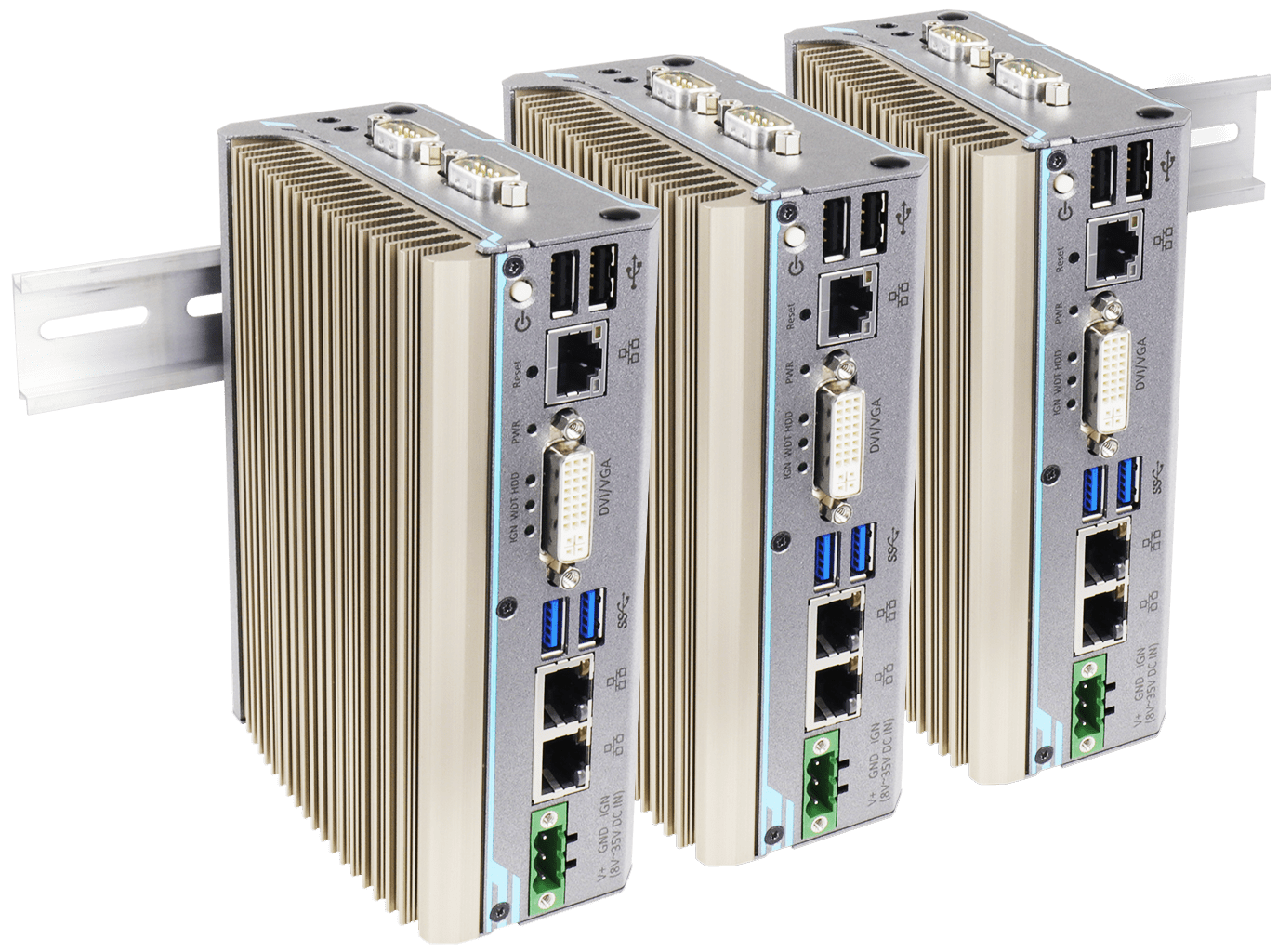

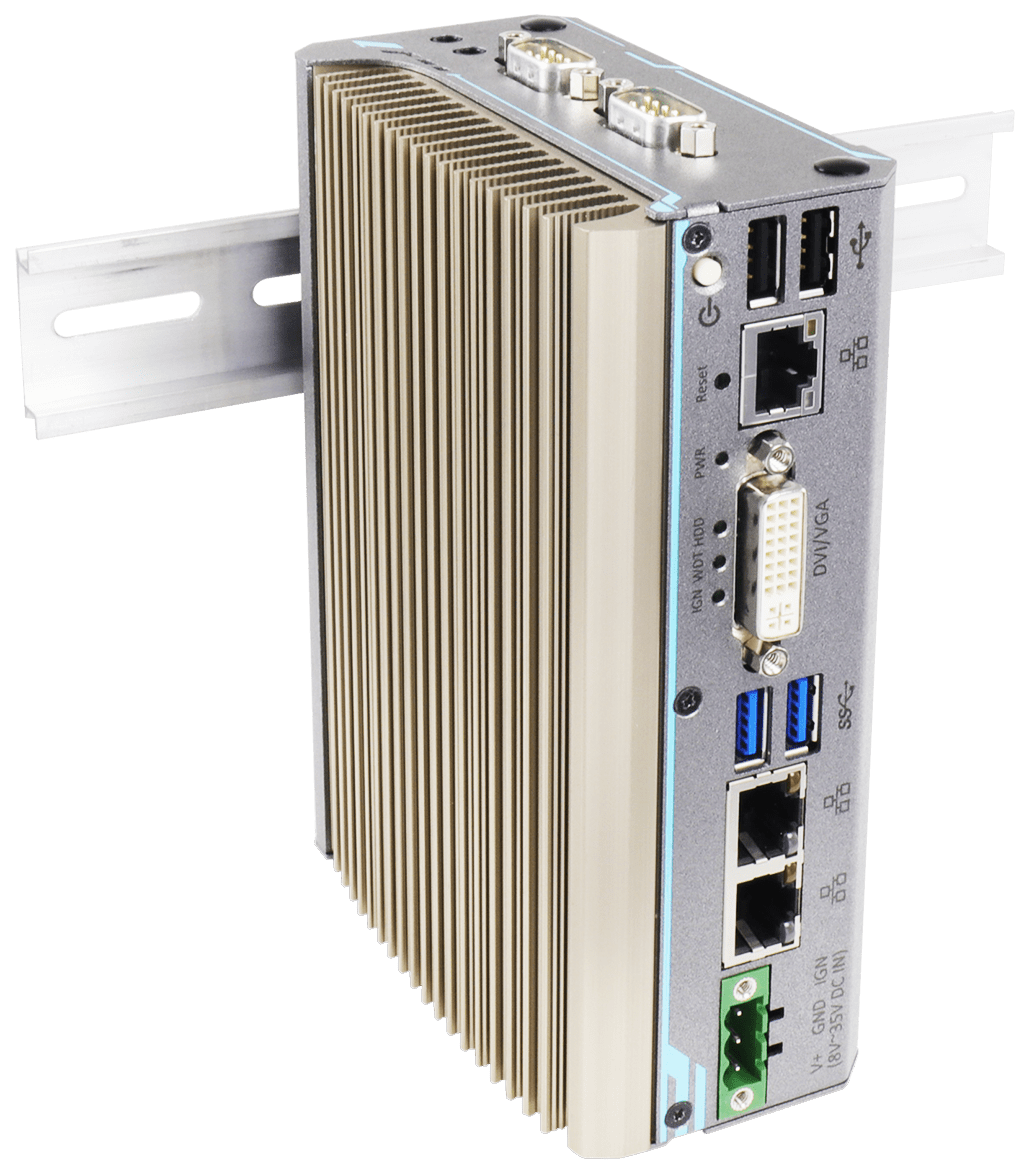

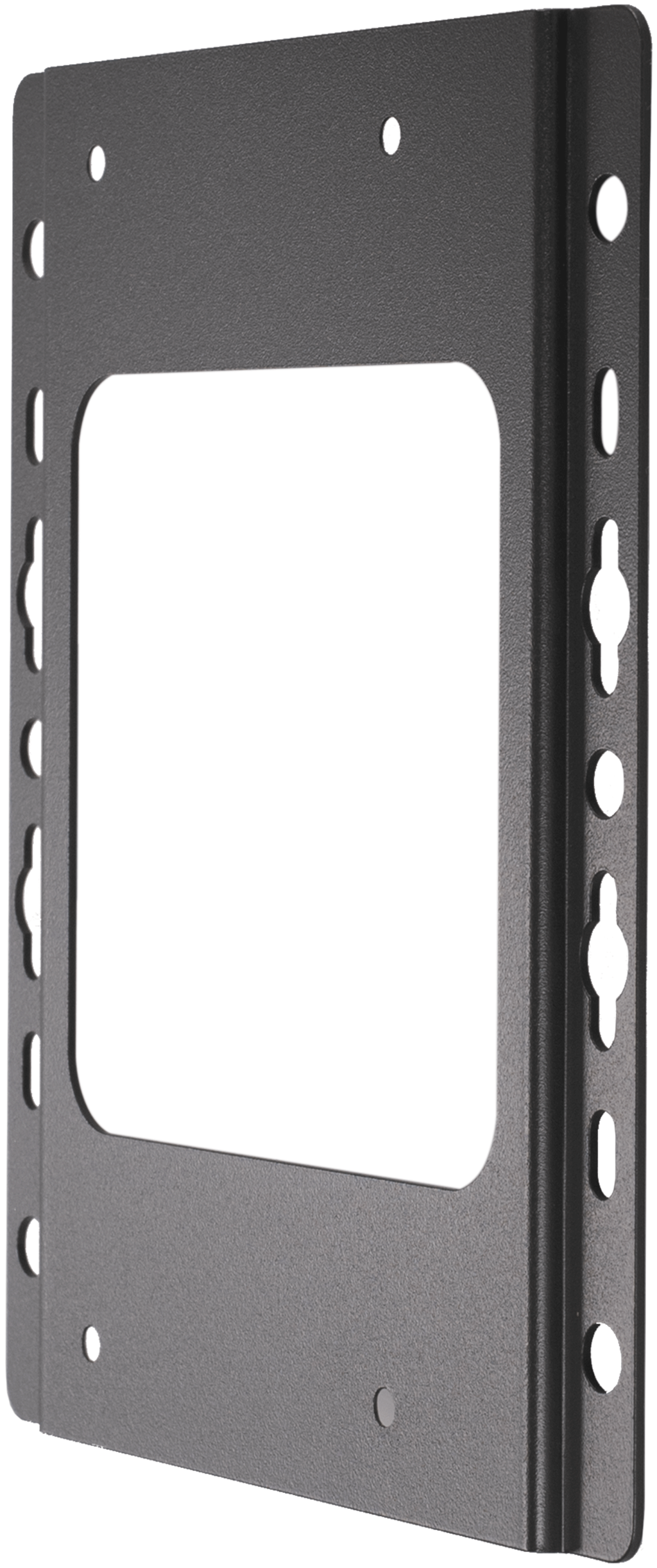

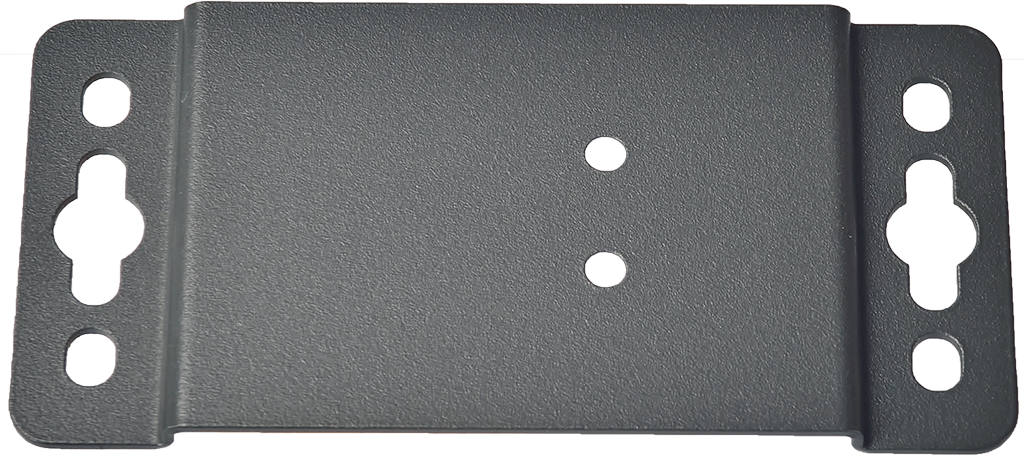

Mounting	DIN-Rail mounting • option: wall mounting
Power input	1x 3-pin pluggable terminal block for 8V to 35V DC input
Power consumption	TBA
Operating system	Windows® 10
Operating temperature	-25°C to 70°C with SSD, 100% CPU loading • -10°C to 50°C with HDD, 100% CPU loading
Storage temperature	-40° to 85°C
Storage humidity	10% to 90%, non-condensing
Vibration	Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
Shock	Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
Certificate	CE/FCC Class A, according to EN 55022, EN 55024 & EN 55032
Weight / kg	0.96

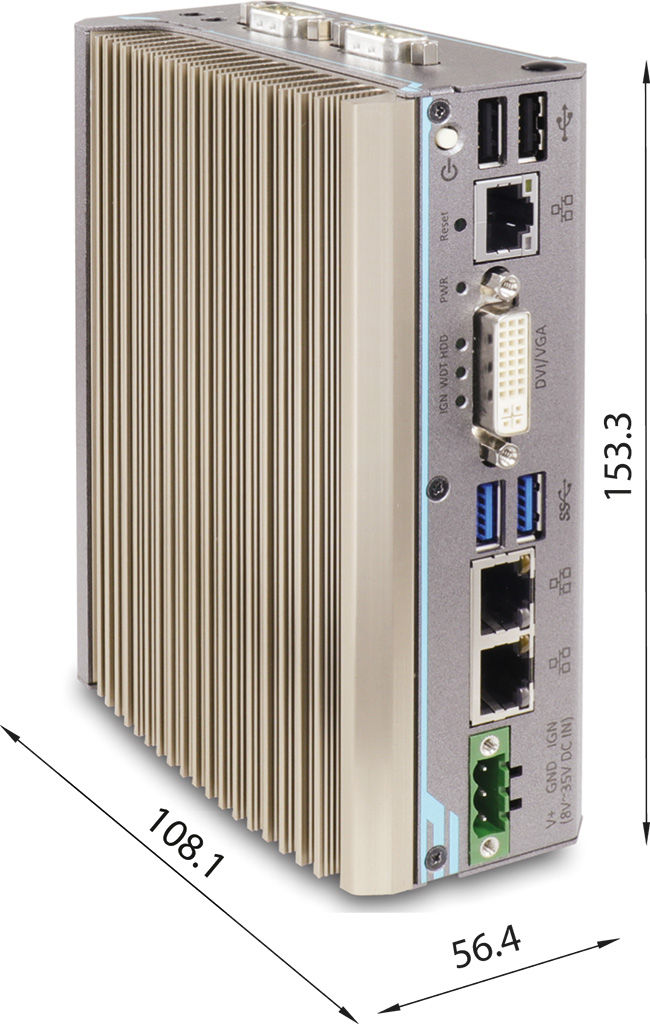

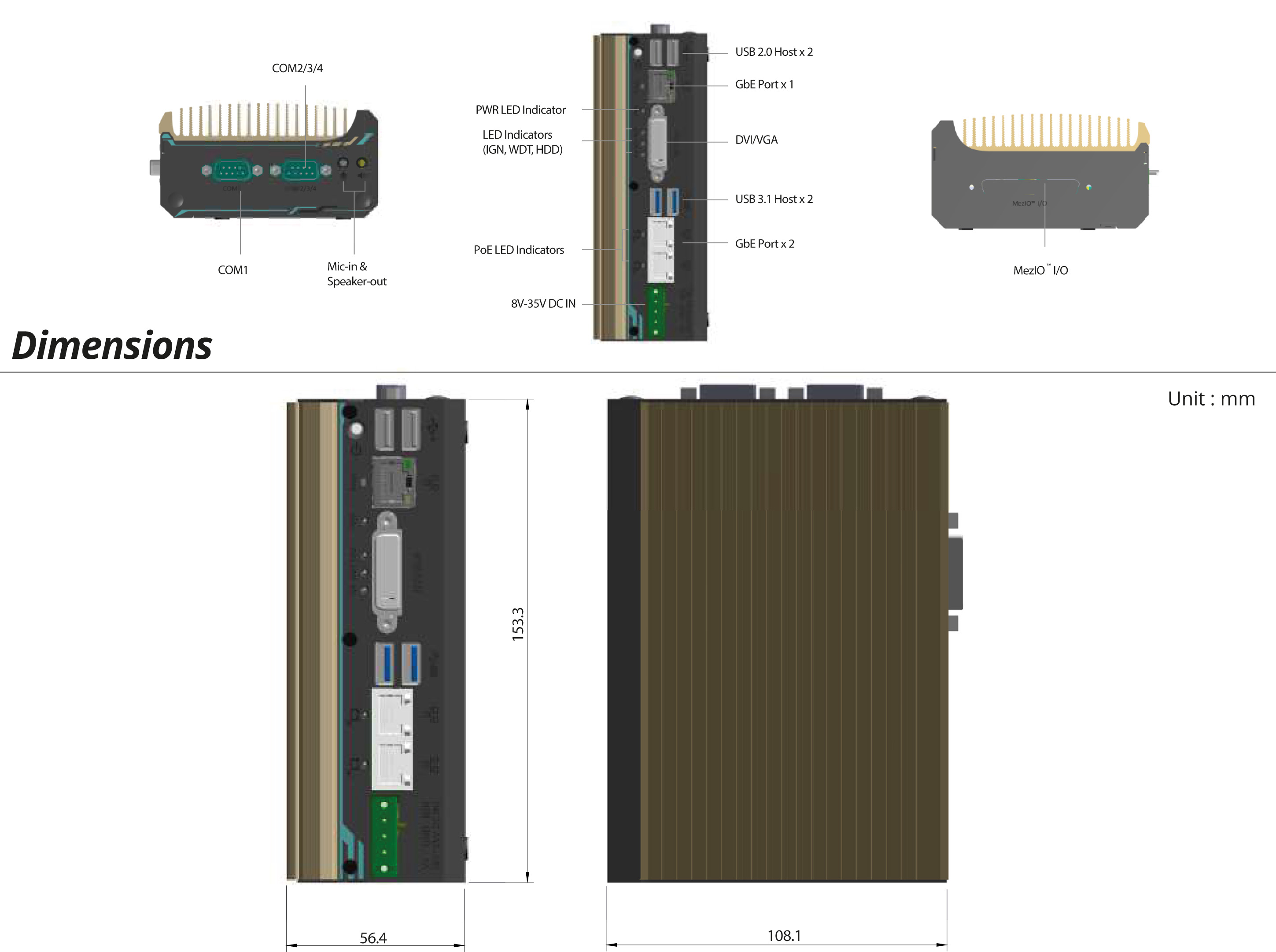

Dimensions / mm	56 x 108 x 153
Scope of delivery	3-pin terminal connector • DIN-Rail mounting kit • driver CD
