GOLUB 410 | Intel® Atom® x6425E [3x 2.5GigE]

Ultra-compact Embedded PC with PoE+ • Intel® Elkhart Lake Atom® x6425E

GOLUB 400 is an ultra-compact fanless embedded computer for industrial applications. It utilizes the latest Intel® Elkhart Lake platform Atom® x6425E 4-core CPU that can deliver 1.8x CPU and 2x GPU performance improvement, compared to the previous generation.

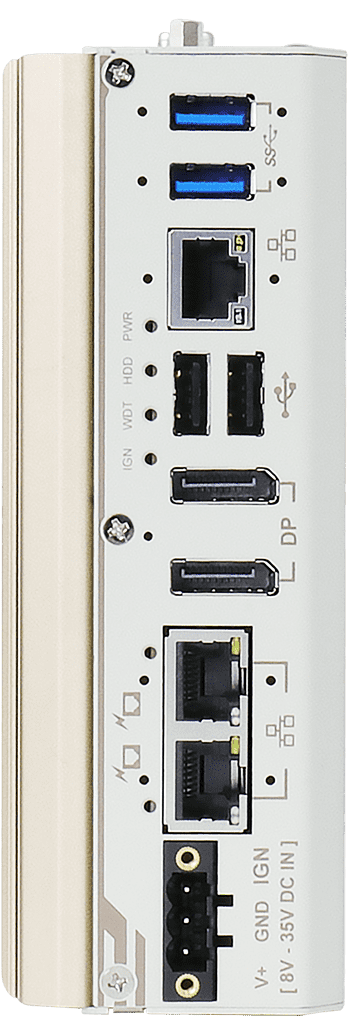

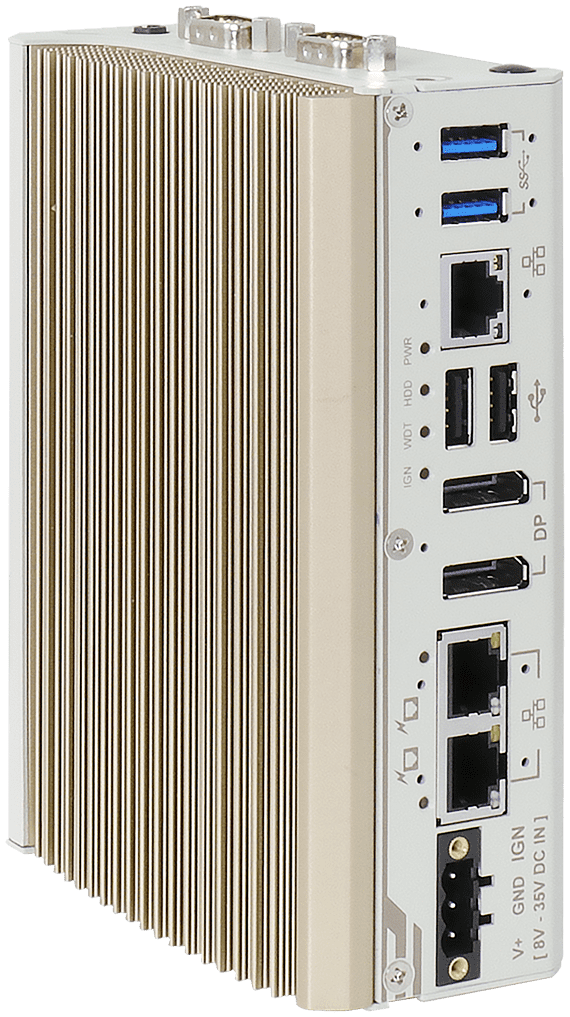

In addition to the performance boost, GOLUB 400 features an ultra-compact design measuring just 56 x 108 x 153 mm, which can easily fit into restricted spaces. The system comes with a DIN-rail mounting chassis and an abundance of front-access I/O interfaces. Featuring three 2.5GBASE-T Ethernet ports with IEEE 802.3 PoE+ capability, they provide higher data bandwidth for devices such as NBASE-T cameras and is backward-compatible with 1000/100/10 Mbps Ethernet. It also has two 4K DisplayPort, 2x USB3.1 Gen1, 2x USB 2.0 and COM ports for general industrial applications.

Supporting proprietary MezIO® interface for function expansion, you can add functions such as isolated DIO, RS-232/422/485, ignition control and 4G/ 5G by installing a MezIO® module. Moreover, the Industrial Box-PC GOLUB 400 comes with an internal M.2 E key socket for a Google TPU or an Intel® Movidius VPU module to transform it into a lightweight AI inference platform at the edge.

Combining the new 10nm Atom® CPU, 2.5G Ethernet ports, PoE+ and ultra-compact enclosure with function expansion capabilities, GOLUB 400 is a compact and yet versatile embedded controller that can fuel various industrial applications.

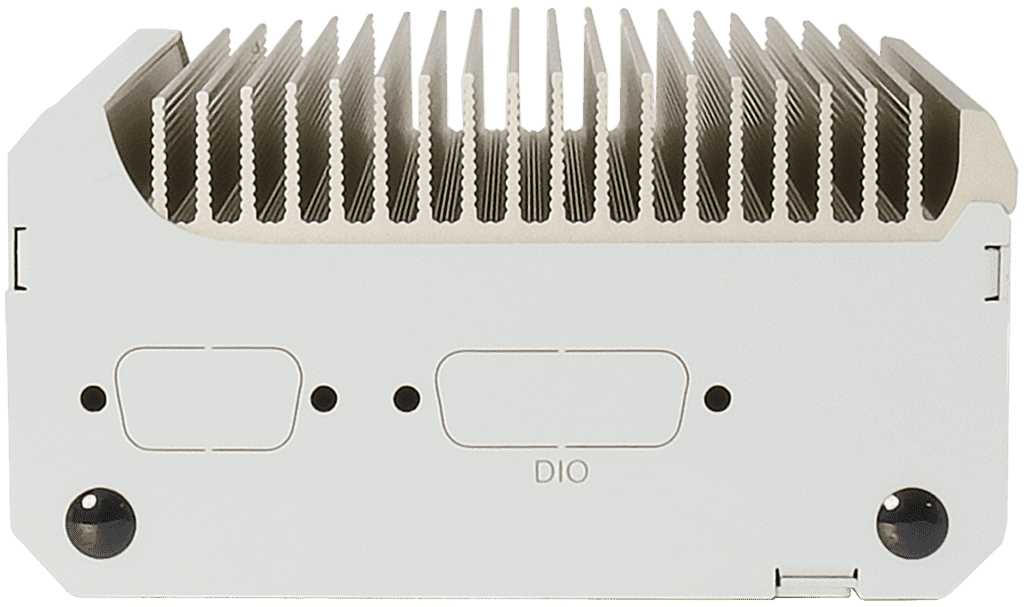

Key facts	• Intel® Elkhart Lake Atom® x6425E • Up to 32GB DDR4 • Fanless • I/O Expansion slot • Optional: PoE+, Digital I/O
Protection class	IP20
CPU	Intel® Elkhart Lake Atom® x6425E quad-core 2GHz/3GHz, 12W processor
Chipset	Intel® Q370
RAM	Up to 32GB DDR4-3200 SDRAM by one SODIMM socket
Storage interface	1x M.2 2280 SATA interface

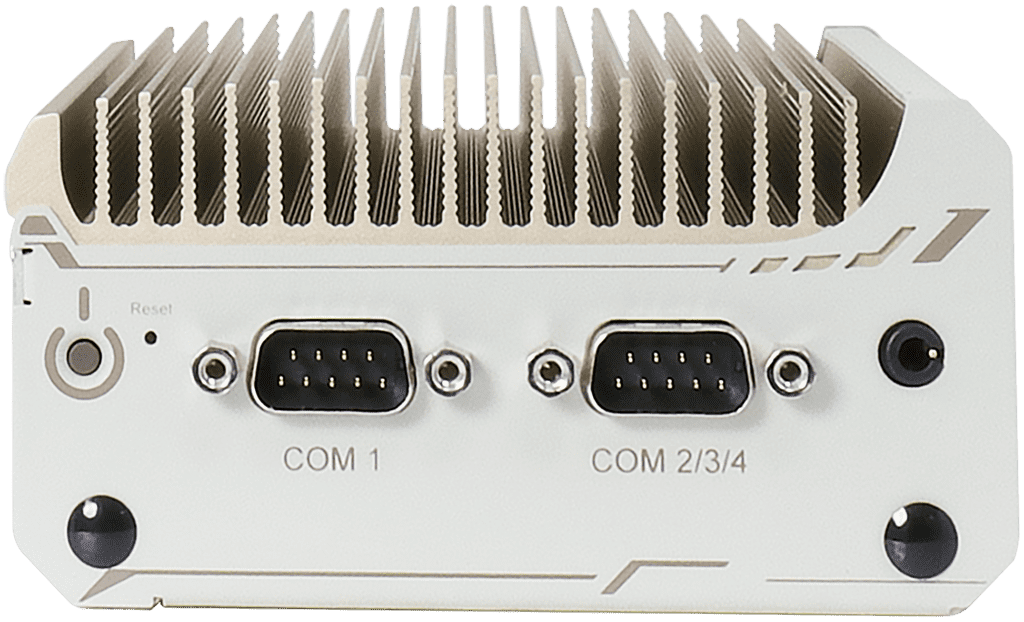

Ports	3x 2.5GBASE-T Ethernet ports by Intel® i226-IT GbE controllers; Option: IEEE 802.3at PoE+ on port #2 and #3 • 2x DisplayPort connector, supporting 4096 x 2160 resolution @ 60Hz • 2x USB 3.1 Gen1 (5 Gbps) • 2x USB 2.0 ports • 1x software-programmable RS-232/422/485 ports (COM1) • 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2) • Option: 1x 3.5 mm jack for mic-in and speaker-out
PCI / PCIe / mini-PCIe	1x M.2 2230 E key socket for WiFi, Google TPU or Movidius VPU module
MezIO™-interfaces	1x MezIO® expansion port for MezIO® modules
Cooling System	Passive, fanless
Mounting	DIN-rail mount • option: Wall-mount
Power input	1x 3-pin pluggable terminal block for 8V to 35V DC input
Power consumption	TBA
Operating system	Option: Windows® 10 • LINUX 64Bit
Operating temperature	-25°C to 70°C
Storage temperature	-40° bis 85°C
Storage humidity	10% to 90%; non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.7, Category 4
Shock	Operating, MIL-STD-810G, Method 516.7, Procedure I
Certificate	CE/FCC Class A, according to EN 55032 & EN 55035
Weight / kg	0.96

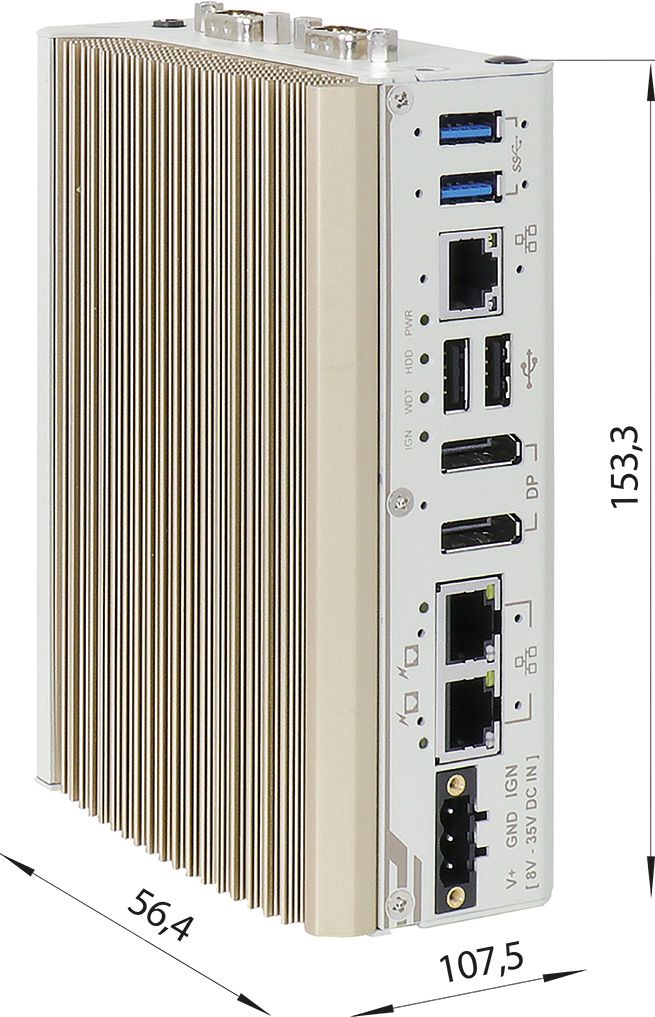

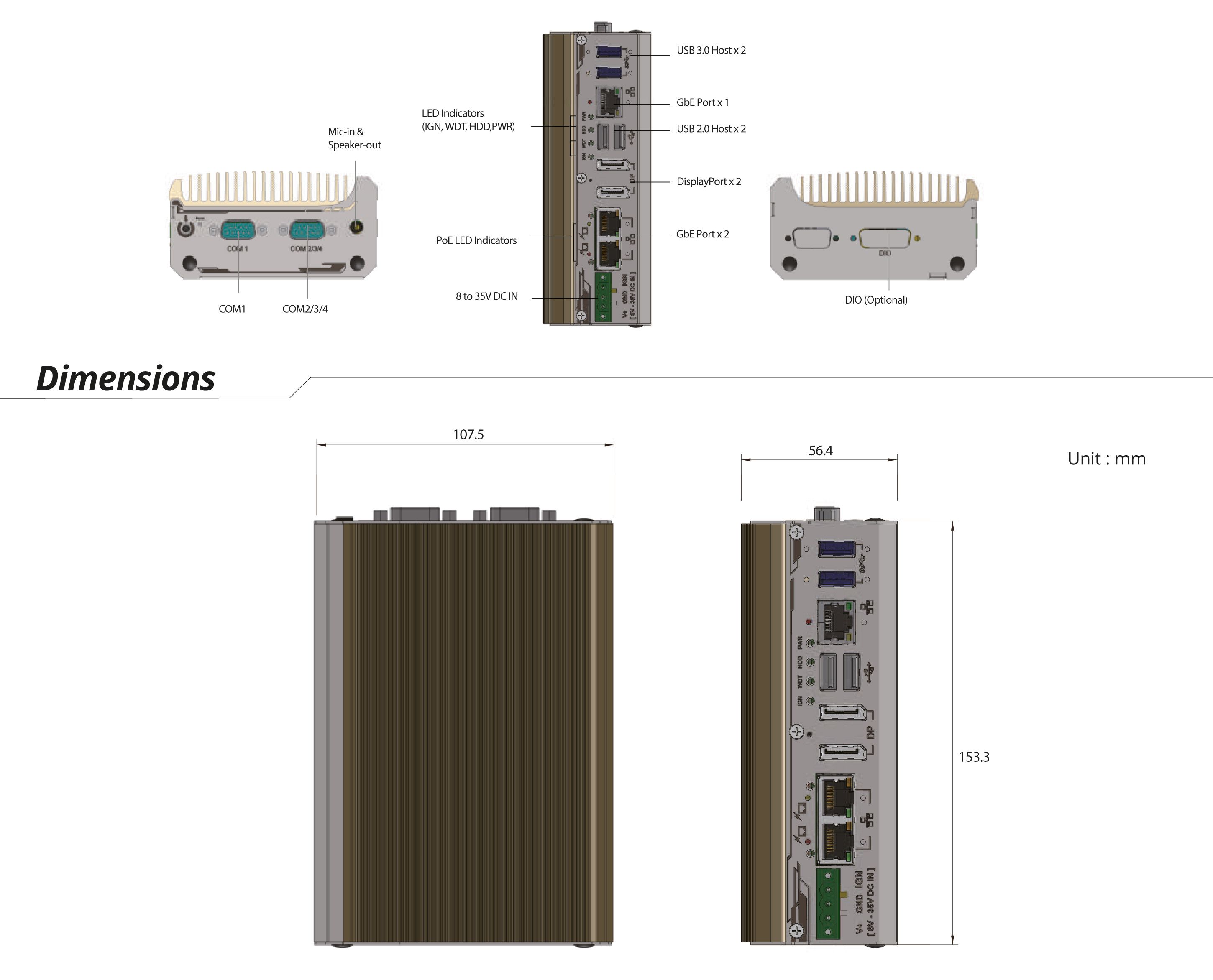

Dimensions / mm	107.5 x 153.3 x 56.4
Scope of delivery	3-pin terminal connector • driver CD • DIN-rail mount kit
