CamCollect® 8108-XL

Edge-AI-Computer for NVIDIA® RTX 3080 • 9th Gen. Intel® Core™ i7/i5/i3

CamCollect® 8108-XL is one of the first rugged edge AI GPU computing platforms to support an NVIDIA® RTX 30 series graphics card up to RTX 3080. Together, the system offers tremendous GPU power up to 29.8 TFLOPS in FP32 to take GPU-accelerated edge computing such as autonomous driving, vision inspection and intelligent video analytics to the next level.

Powered by an Intel® Xeon® E or 9th/ 8th-Gen Core™ (up to 8-core/ 16-thread) CPU with workstation-grade Intel® C246 chipset to support up to 128 GB ECC or non-ECC DDR4 memory, the system is a strong foundation to built a powerful AI edge computing platform on. Featuring a brand new mechanical design that is optimized to bring out the best in the latest RTX 30 series GPU cards and its parallel operation of heterogeneous computing architecture. In addition to the x16 PCIe slot (8-lanes) for RTX 30 series GPU installation, CamCollect® 8108-XL has other one x8 PCIe slots (4-lanes) and one x16 PCIe slot (8-lanes) for users to add on high performance or bandwidth-hungry expansion cards to extend function sets, such as data collection, analytics and communication.

CamCollect® 8108-XL incorporates the patented heat dissipation design, damping brackets and enhanced GPU stabilizing bar, steadying it for reliable and rock-solid operation in shock or vibration conditions. Continuing the heritage of proven power and thermal design, the CamCollect® 8108-XL accepts 8V~48V wide-range DC input to handle heavy power requirements from RTX 30 series GPU under wide temperature operation. Incorporating the built-in ignition control, it can be deployed on a vehicle and directly power it via the car‘s power system. The Industrial Box-PC CamCollect® 8108-XL is response to the never-ending demand for TFLOPS performance in industrial GPU platforms. With proven industrialgrade power, guaranteed thermal performance, and new mechanical design, it takes edge AI computing to the next level.

Key facts	• 9th Gen. Intel® Core™ i7/i5/i3 • Up to 128GB DDR4 • 4x PCIe • Option: PoE+, 10GigE • Supports NVIDIA® RTX 3080
Protection class	IP20
CPU	Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket)
Chipset	Intel® C246 Platform Controller Hub

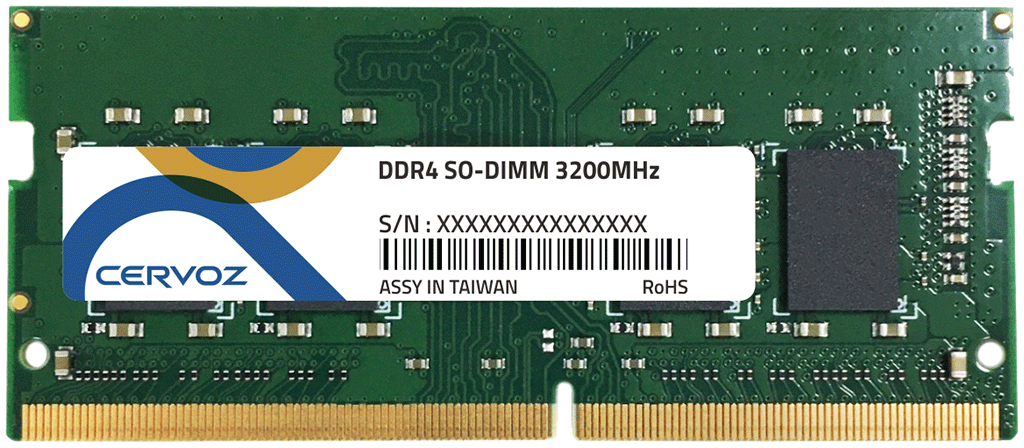

RAM	Up to 128GB ECC/ non-ECC DDR4 2133 SDRAM (four SODIMM slots)
Storage interface	1x hot-swappable HDD tray for 2.5” HDD/ SSD installation • 1x Internal SATA port for 2.5” HDD/ SSD installation, supporting RAID 0/ 1 • 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation • 2x full-size mSATA port (mux with mini-PCIe)
RAID	0/ 1
Ports	2x GigE, 1x Intel® I219-LM; 1x Intel® I210-IT • 4x USB 3.1 Gen2 (10 Gbps) • 4x USB 3.1 Gen1 (5 Gbps) • 1x USB 2.0 (internal for dongle use) • 2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2) • 1x VGA, supporting 1920 x 1200 resolution • 1x DVI-D, supporting 1920 x 1200 resolution • 1x DisplayPort, supporting 4096 x 2304 resolution • 1x 3.5 mm jack for mic-in and speaker-out
PCI / PCIe / mini-PCIe	2x PCIe x16 slot@Gen3, 8-lanes • 2x PCIe x8 slots@Gen3, 4-lanes • 1x M.2 2242 B key socket supporting dual SIM mode with selected M.2 LTE module • 2x full-size mini- PCIe socket
Cooling System	Active, fan
Mounting	Wall-mount with damping brackets
Power input	8V to 48V DC • 2x 4-pin pluggable terminal block input with ignition control
Power consumption	Intel® Xeon® Processor E-2176G, 4GB RAM and 1x SSD: max. ca. 95W • Intel® Xeon® Processor E-2278GEL / Intel® Core™ i 8x00T, 4GB RAM and 1x SSD: max. ca. 85W
Operating system	Option: Windows® 10 • LINUX 64Bit
Operating temperature	-25° to 60°C (with 35W CPU and one NVIDIA® 250W GPU) • -25° to 50°C (with 65W CPU)
Storage temperature	-40° to 85°C
Storage humidity	10% to 90%; non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4 and 3 Grms, 5-500 Hz, 3 Axes
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
Certificate	CE/FCC Class A, EN55032 & EN55035
Weight / kg	5.2
Dimensions / mm	193 x 388 x 198
Scope of delivery	Rubber absorber • wall mounting kit • driver CD
