CamCollect® 10108GC | Barebone [4x PCIe]

Edge AI Computer for NVIDIA® RTX™ 40, RTX™ 6000 • 13th Gen. Intel® Core™ i9/i7/i5/i3/Celeron

Skip image gallery
_Box-PC_CamCollect® 10108GC | Barebone [4x PCIe]
_Box-PC_CamCollect® 10108GC | Barebone [4x PCIe]
_Box-PC_CamCollect® 10108GC | Barebone [4x PCIe]
_Box-PC_CamCollect® 10108GC | Barebone [4x PCIe]
_Box-PC_CamCollect® 10108GC | Barebone [4x PCIe]
_Box-PC_CamCollect® 10108GC | Barebone [4x PCIe]
_Box-PC_CamCollect® 10108GC | Barebone [4x PCIe]
_Box-PC_CamCollect® 10108GC | Barebone [4x PCIe]
_Box-PC_CamCollect® 10108GC | Barebone [4x PCIe]
_Box-PC_CamCollect® 10108GC | Barebone [4x PCIe]
Prices on request

Prices excl. VAT plus shipping costs

Available in 21 days, delivery time 1-2 weeks [incl. assembly & function test]

I/O-Port
Summary
CPU:
RAM:
Storage | NVMe:
Storage | 2.5 Zoll:
WLAN:
Mobile Network:
Expansion | PCIe:
Power Supply:
Operating System:
Operating System:
Operating System:
CPU:
Mandatory
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Celeron® G6900 [2x 3.4GHz] - 46W TDP
CPU: Intel® Celeron® G6900 [2x 3.4GHz] - 46W TDP
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Celeron® G6900T [2x 2.8GHz] - 35W TDP
CPU: Intel® Celeron® G6900T [2x 2.8GHz] - 35W TDP
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Pentium® G7400 [2x 3.7GHz] - 46W TDP
CPU: Intel® Pentium® G7400 [2x 3.7GHz] - 46W TDP
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Pentium® G7400T [2x 3.1GHz] - 35W TDP
CPU: Intel® Pentium® G7400T [2x 3.1GHz] - 35W TDP
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Core™ i3-13100 [4x 3.4/4.5GHz] - 60W TDP
CPU: Intel® Core™ i3-13100 [4x 3.4/4.5GHz] - 60W TDP
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Core™ i3-13100T [4x 2.5/4.2GHz] - 35W TDP
CPU: Intel® Core™ i3-13100T [4x 2.5/4.2GHz] - 35W TDP
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Core™ i5-13500T [14x 1.6/4.6GHz] - 35W TDP
CPU: Intel® Core™ i5-13500T [14x 1.6/4.6GHz] - 35W TDP
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Core™ i5-13500 [14x 2.5/4.8GHz] - 65W TDP
CPU: Intel® Core™ i5-13500 [14x 2.5/4.8GHz] - 65W TDP
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Core™ i7-13700 [16x 2.1/5.2GHz] - 65W TDP
CPU: Intel® Core™ i7-13700 [16x 2.1/5.2GHz] - 65W TDP
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Core™ i7-13700T [16x 1.4/4.9GHz] - 35W TDP
CPU: Intel® Core™ i7-13700T [16x 1.4/4.9GHz] - 35W TDP
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Core™ i9-13900 [24x 2.0/5.6GHz] - 65W TDP
CPU: Intel® Core™ i9-13900 [24x 2.0/5.6GHz] - 65W TDP
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Core™ i9-13900T [24x 1.1/5.3GHz] - 35W TDP
CPU: Intel® Core™ i9-13900T [24x 1.1/5.3GHz] - 35W TDP
RAM:

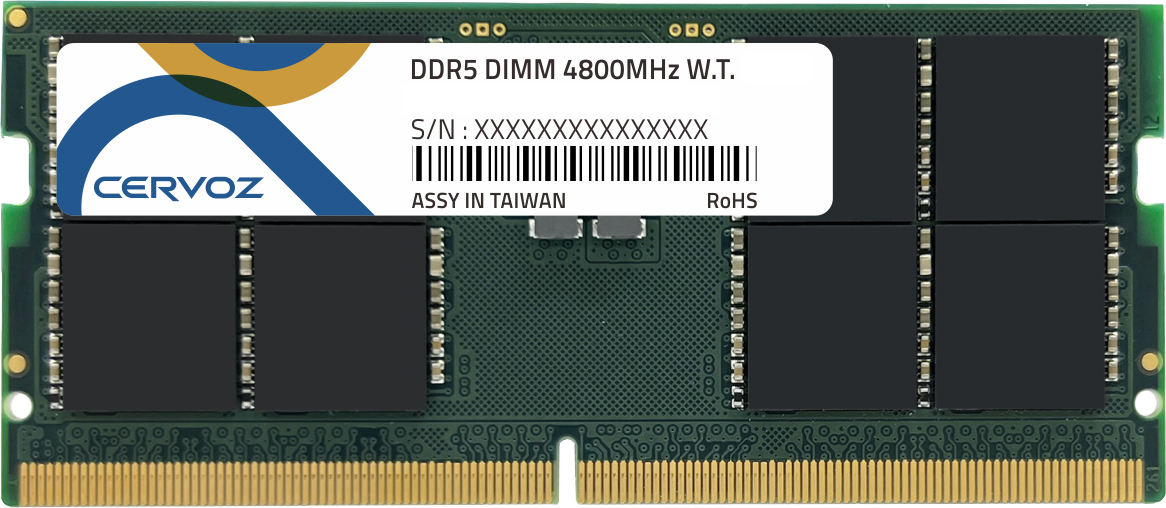

2 slots available - max. 128GB DDR5 SODIMM (max. 64GB per slot)

Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR5-5600, SO-DIMM [0°C ~ 85°C] - 8GB
DDR5-5600, SO-DIMM [0°C ~ 85°C] - 8GB RAM: 8GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR5-5600, SO-DIMM [0°C ~ 85°C] - 16GB
DDR5-5600, SO-DIMM [0°C ~ 85°C] - 16GB RAM: 16GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR5-5600, SO-DIMM [0°C ~ 85°C] - 32GB
DDR5-5600, SO-DIMM [0°C ~ 85°C] - 32GB RAM: 32GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR5-5600, SO-DIMM [0°C ~ 85°C]
DDR5-5600, SO-DIMM [0°C ~ 85°C] - 48GB RAM: 48GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR5-5600, SO-DIMM [-40°C~+85°C] - 8GB
W.T. | DDR5-5600, SO-DIMM [-40°C~+85°C] - 8GB RAM: 8GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR5-5600, SO-DIMM [-40°C~+85°C] - 16GB
W.T. | DDR5-5600, SO-DIMM [-40°C~+85°C] - 16GB RAM: 16GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR5-5600, SO-DIMM [-40°C~+85°C] - 32GB
W.T. | DDR5-5600, SO-DIMM [-40°C~+85°C] - 32GB RAM: 32GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR5-5600, SO-DIMM [-40°C~+85°C]
W.T. | DDR5-5600, SO-DIMM [-40°C~+85°C] - 48GB RAM: 48GB
Storage | NVMe:

Recommended for the installation of the operating system.

Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 128GB
M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 128GB Storage | Size: 128GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 256GB
M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 256GB Storage | Size: 256GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 512GB
M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 512GB Storage | Size: 512GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 1TB
M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 1TB Storage | Size: 1TB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (NVMe PCIe Gen. III x4) W.T. SSD, TLC [-40°C ~ 85°C] - 128GB
M.2 2280 (NVMe PCIe Gen. III x4) W.T. SSD, TLC [-40°C ~ 85°C] - 128GB Storage | Size: 128GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (NVMe PCIe Gen. III x4) W.T. SSD, TLC [-40°C ~ 85°C] - 256GB
M.2 2280 (NVMe PCIe Gen. III x4) W.T. SSD, TLC [-40°C ~ 85°C] - 256GB Storage | Size: 256GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (NVMe PCIe Gen. III x4) W.T. SSD, TLC [-40°C ~ 85°C] - 512GB
M.2 2280 (NVMe PCIe Gen. III x4) W.T. SSD, TLC [-40°C ~ 85°C] - 512GB Storage | Size: 512GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (NVMe PCIe Gen. III x4) W.T. SSD, TLC [-40°C ~ 85°C] - 1TB
M.2 2280 (NVMe PCIe Gen. III x4) W.T. SSD, TLC [-40°C ~ 85°C] - 1TB Storage | Size: 1TB
Reset choice
€0.00*
Storage | 2.5 Zoll:
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 240GB
2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 240GB Storage | Size: 240GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 480GB
2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 480GB Storage | Size: 480GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 960GB
2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 960GB Storage | Size: 960GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 1.92TB
2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 1.92TB Storage | Size: 1,92TB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 3.84TB
2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 3.84TB Storage | Size: 3,84TB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 7.68TB
2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 7.68TB Storage | Size: 7,68TB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 128GB
2.5 Zoll W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 128GB Storage | Size: 128GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 256GB
2.5 Zoll W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 256GB Storage | Size: 256GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 512GB
2.5 Zoll W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 512GB Storage | Size: 512GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 1TB
2.5 Zoll W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 1TB Storage | Size: 1TB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll W.T. SSD, TLC [PLP, -40°C ~ 85°C]
2.5 Zoll W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 2TB Storage | Size: 2TB
Reset choice
€0.00*
WLAN:
Systemkomponenten & Zubehör_Components_Accessories_WLAN - M.2 2230 module, Intel® Wi-Fi 6 AX200 [802.11ac, Bluetooth 5.1]
WLAN - M.2 2230 module, Intel® Wi-Fi 6 AX200 [802.11ac, Bluetooth 5.1]
Mobile Network:
Systemkomponenten & Zubehör_Components_Accessories_4G_GPS - miniPCIe module [w/antenna]
4G_GPS - miniPCIe module [w/antenna]
Systemkomponenten & Zubehör_Components_Accessories_5G/GPS M.2 3052 module Quectel RM520N-GL [w/2x antenna]
5G/GPS M.2 3052 module Quectel RM520N-GL [w/2x antenna]
Reset choice
€0.00*
Expansion | PCIe:
Systemkomponenten & Zubehör_Components_Accessories_USB 8-port PCIe x4 card [8x USB 3.1 Gen1]
USB 8-port PCIe x4 card [8x USB 3.1 Gen1]
Systemkomponenten & Zubehör_Components_Accessories_4-port Ethernet PoE+ PCIe card, Intel® I350-AM4 [4x GigE, 4x PoE+, Low-profile]
4-port Ethernet PoE+ PCIe card, Intel® I350-AM4 [4x GigE, 4x PoE+, Low-profile]
Systemkomponenten & Zubehör_Components_Accessories_2-port 10GigE Ethernet PCIe card, Intel® X550-AT2 [2x 10GigE] - 2x 10GigE
2-port 10GigE Ethernet PCIe card, Intel® X550-AT2 [2x 10GigE] - 2x 10GigE Network Connections: 2x GigE, 2x 10GigE
Systemkomponenten & Zubehör_Components_Accessories_2-port 10GigE Ethernet PCIe card, Intel® X550-AT2 [2x 10GigE] - 2x 10GigE w/PoE
2-port 10GigE Ethernet PCIe card, Intel® X550-AT2 [2x 10GigE] - 2x 10GigE w/PoE Network Connections: 2x GigE, 2x 10GigE w/PoE
Systemkomponenten & Zubehör_Components_Accessories_4-port GigE PoE+ PCIe card, Intel® I350-AM4 [4x GigE M12, 4x PoE+]
4-port GigE PoE+ PCIe card, Intel® I350-AM4 [4x GigE M12, 4x PoE+]
Power Supply:
Systemkomponenten & Zubehör_Components_Accessories_MeanWell HRPG-600-24 | AC/DC Netzteil [600W/24V, Einbaunetzteil]
MeanWell HRPG-600-24 | AC/DC power supply [600W/24V, Box Type]
Systemkomponenten & Zubehör_Components_Accessories_MeanWell HRPG-1000-24 | AC/DC Netzteil [1000W/24V, Einbaunetzteil]
MeanWell HRPG-1000-24 | AC/DC power supply [1000W/24V, Box Type]
Reset choice
€0.00*
Operating System:
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 IoT Enterprise LTSC 2021 - #ENTRY 64bit [For Intel Atom, Celeron, Pentium]
Windows® 10 IoT Enterprise LTSC 2021 - #ENTRY 64bit [For Intel Atom, Celeron, Pentium] OS | Variant: #ENTRY 64bit [For Intel Atom, Celeron, Pentium]
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 Professional - 64bit
Windows® 10 Professional - 64bit OS | Variant: 64bit
_Components_Accessories_Windows® 11 IoT Enterprise 2024 LTSC - #ENTRY
Windows® 11 IoT Enterprise 2024 LTSC - #ENTRY OS | Variant: #ENTRY 64bit [For Intel Atom, Celeron, Pentium]
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 11 Professional OEM - 64bit
Windows® 11 Professional OEM - 64bit
Reset choice
€0.00*
Operating System:
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 IoT Enterprise LTSC 2021 - #VALUE 64bit [For Intel Core i5, Core i3]
Windows® 10 IoT Enterprise LTSC 2021 - #VALUE 64bit [For Intel Core i5, Core i3] OS | Variant: #VALUE 64bit [For Intel Core i5, Core i3]
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 Professional - 64bit
Windows® 10 Professional - 64bit OS | Variant: 64bit
_Components_Accessories_Windows® 11 IoT Enterprise 2024 LTSC - #VALUE
Windows® 11 IoT Enterprise 2024 LTSC - #VALUE OS | Variant: #VALUE 64bit [For Intel Core i5, Core i3]
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 11 Professional OEM - 64bit
Windows® 11 Professional OEM - 64bit
Reset choice
€0.00*
Operating System:
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 IoT Enterprise LTSC 2021 - #HIGH END 64bit [For Intel Core i9, Core i7, Xeon]
Windows® 10 IoT Enterprise LTSC 2021 - #HIGH END 64bit [For Intel Core i9, Core i7, Xeon] OS | Variant: #HIGH END 64bit [For Intel Core i9, Core i7, Xeon]
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 Professional - 64bit
Windows® 10 Professional - 64bit OS | Variant: 64bit
_Components_Accessories_Windows® 11 IoT Enterprise 2024 LTSC - #HIGH END
Windows® 11 IoT Enterprise 2024 LTSC - #HIGH END OS | Variant: #HIGH END 64bit [For Intel Core i9, Core i7, Xeon]
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 11 Professional OEM - 64bit
Windows® 11 Professional OEM - 64bit
Reset choice
€0.00*

€1,872.00*

Prices excl. VAT plus shipping costs

Product number: 660117.1

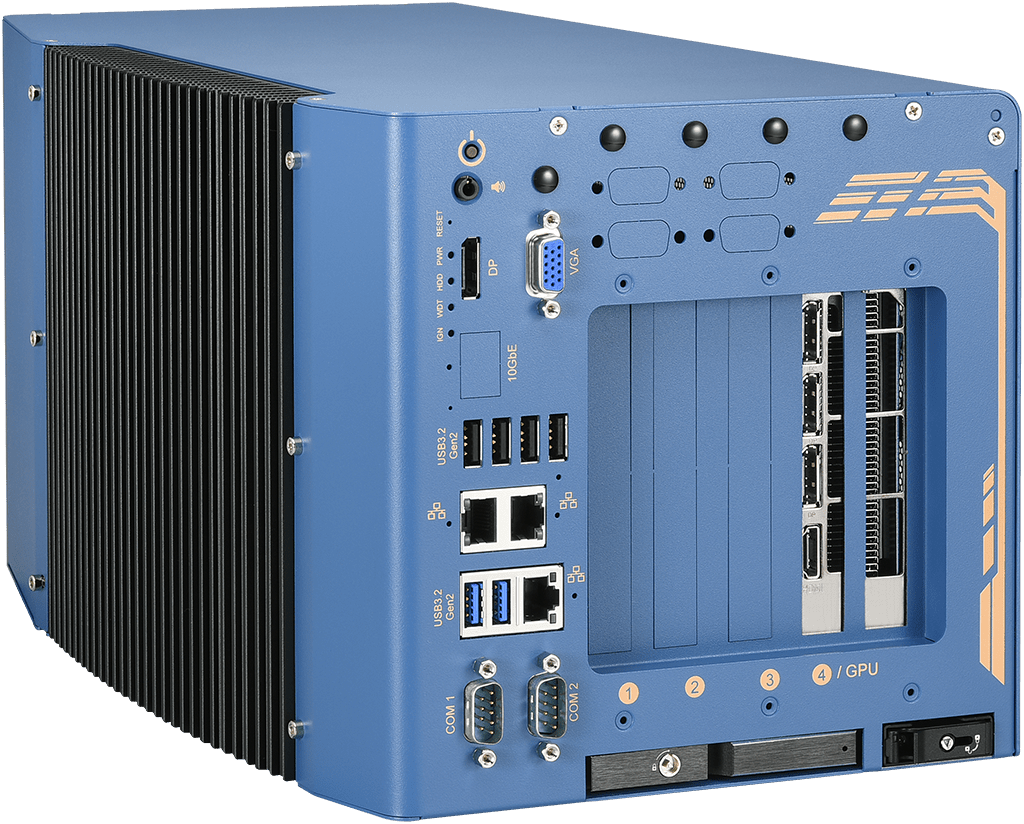

CamCollect® 10108 is the response to the ruggedized Edge AI computer with extreme CPU and GPU performance for autonomous driving and AI-powered factory automation. It leverages an Intel® 14th /13th/ 12th-Gen CPU and an NVIDIA® RTX™ 40 series or the latest RTX™ 6000 Ada GPU, offering single-precision GPU performances up to 48 TFLOPS or 91 TFLOPS, respectively.



Powered by an Intel® 14th /13th/ 12th-Gen CPU with up to 24 cores and 32 threads, CamCollect® 10108 offers up to twice the performance compared to previous Intel® 10th or 11th-Gen platforms. In addition, CamCollect® 10108 supports ECC memory to deliver mission-critical computation, e.g., automated driving in urban traffic. It inherits a proven thermal dissipation design for the CPU and GPU to guarantee rugged, -25°C to 60°C wide-temperature operation. To withstand continuous shaking and juddering conditions in on-highway and off-highway applications, CamCollect® 10108 features an innovative GPU locking bracket to fasten the GPU with the chassis and a damping bracket to absorb high-frequency vibration.

CamCollect® 10108 also features an abundance of I/Os, such as 6x USB3.2 Gen2, 3x 2.5GbE/GbE, and 1x optional 10GbE. Expansion-wise, CamCollect® 10108 offers 3x additional PCIe slots for GMSL2/ industrial camera frame grabbers and various add-on cards. Also, it provides 2x full-size mini PCI Express sockets for CAN bus/ COM/ WiFi expansion and 1x M.2 B key sockets for mobile connectivity with 4G LTE and 5G NR modules. In terms of data storage, CamCollect® 10108 offers an M.2 2280 M socket for Gen4x4 NVMe and dual front-accessible storage options, including a 2.5" SATA HDD/SSD and an optional M.2 2280 Gen4x4 NVMe tray.

By utilizing Intel's 14th /13th/ 12th-Gen platform, state-of-the-art NVIDIA® RTX™ GPU, and industrial-grade power, thermal, and mechanical designs with rich I/O and expansion, CamCollect® 10108 is a rugged edge AI platform that offers unprecedented GPU and CPU computing power for modern AI applications.

Key facts• 13th Gen. Intel® Core™ i9/i7/i5/i3/Celeron
• Up to 128GB DDR5
• 4x PCIe
• Option: 10GigE
• Supports NVIDIA® 350W GPU
Protection class IP20
CPU Supporting Intel® 14th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) • Supporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) • Support Intel® 12th-Gen Core™ CPU (LGA1700 socket, 35W/ 65W TDP)
Chipset Intel® R680E Platform Controller Hub
RAM Up to 128GB ECC/ non-ECC DDR5 4800 SDRAM (up to 2x 64GB SODIMM modules*) *As of Aug, 2023, the maximum single DDR5 SODIMM capacity is 48GB
Storage interface 1x front-accessible, hot-swappable HDD trays for 2.5” HDD/ SSD installation • 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD • Option: 1x front-accessible M.2 2280 M key tray (PCIe Gen4 x4) for NVMe SSD
RAID 0/ 1

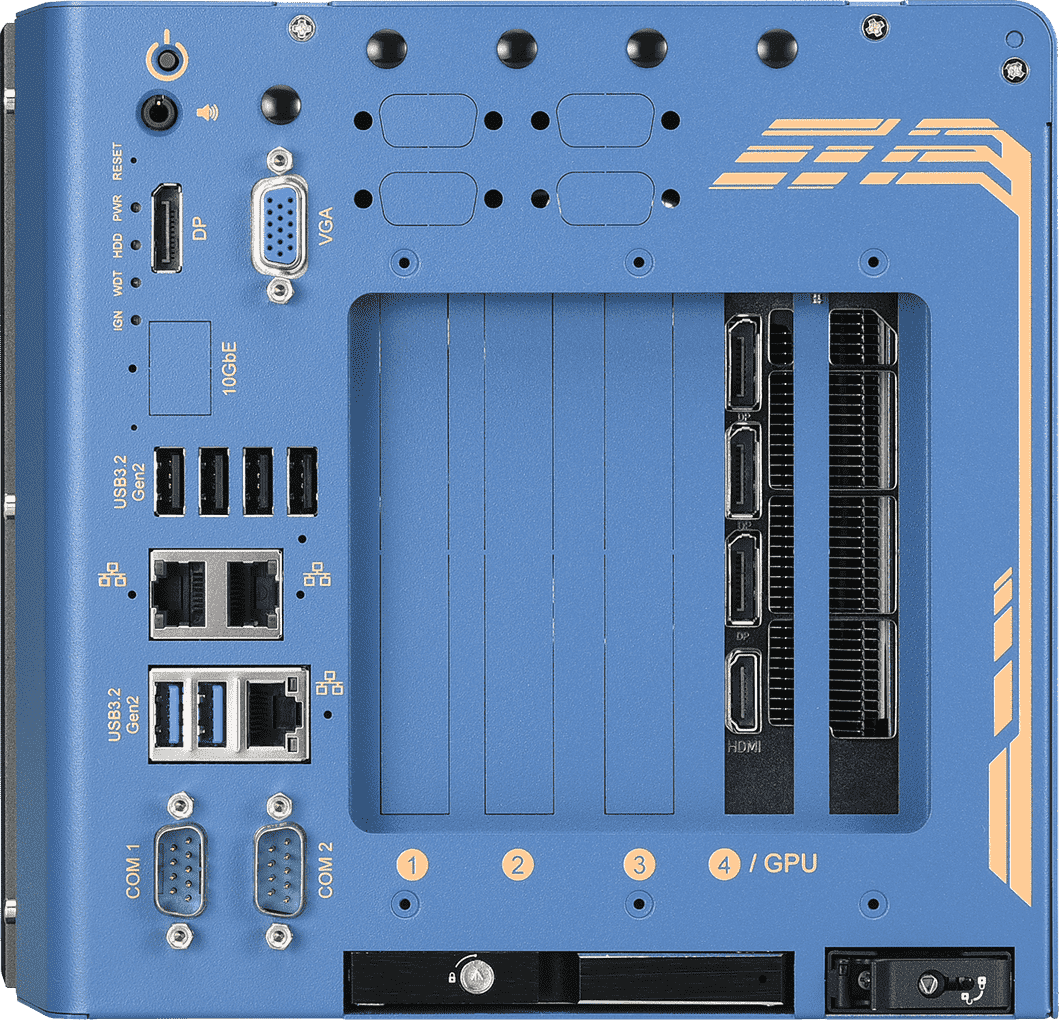

Ports 2x 2.5G Ethernet by I226-IT and 1x Gigabit Ethernet by I219-LM • Option: 1x 10GBASE-T port by Marvell AQC113CS, supporting NBASE-T (5G/ 2.5G) and 1000BASE-T • 6x USB 3.2 Gen2x1 (10 Gbps) ports • 1x USB 2.0 ports (internal for dongle use) • 2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2) • 1x VGA connector, supporting 1920 x 1200 resolution • 1x DisplayPort connector, supporting 4096 x 2304 resolution • 1x 3.5 mm jack for mic-in and speaker-out
PCI / PCIe / mini-PCIe 1x PCIe x16 slot @Gen4, 16-lanes with 65mm slot width. The standard GPU locking bracket is designed for NVIDIA® RTX™ A4000, A5000, A6000, 6000 Ada, and selected RTX 40 Series GPU cards • 3x PCIe x8 slots @Gen3, 4-lanes • 2x full-size mini-PCI Express sockets with internal SIM sockets • 1x M.2 2242/3052 B key socket with internal SIM sockets
DIO 2x full-size mSATA port (mux with mini-PCIe)
Cooling System Active, fan 92 x 92 x 25mm
Mounting Wall-mount with damping brackets

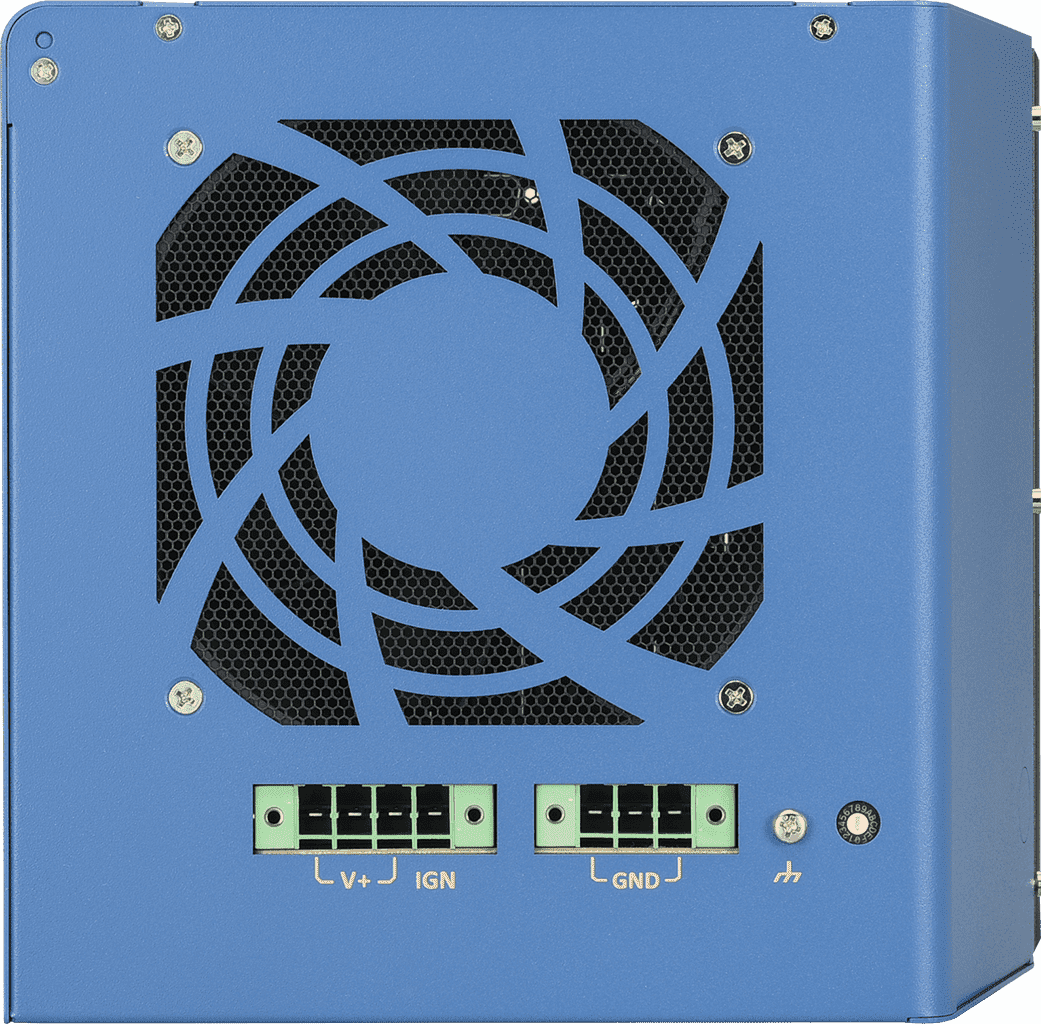

Power input 3-pin + 4-pin pluggable terminal block for 8V to 48V DC input with ignition control
Power consumption Intel® Xeon® Processor E-2176G, 4GB RAM and 1x SSD: max. ca. 95W • Intel® Xeon® Processor E-2278GEL / Intel® Core™ i 8x00T, 4GB RAM and 1x SSD: max. ca. 85W
Operating system Option: Windows® 10 • LINUX 64Bit
Operating temperature With 35W CPU and dual NVIDIA® 350W GPU -25°C to 60°C With 65W CPU and dual NVIDIA® 350W GPU -25°C to 60°C (with optional fan kit) • -25°C to 50°C (without optional fan kit)
Storage temperature -40 to 85°C
Storage humidity 10% to 90%; non-condensing
Vibration MIL-STD-810H, Method 514.8, Category 4 (with damping bracket)
Shock MIL-STD-810H, Method 516.8, Procedure I (with damping bracket)
Certificate CE/FCC Class A, according to EN 55032 & EN 55035
Weight / kg 6.2 (excluding damping bracket)

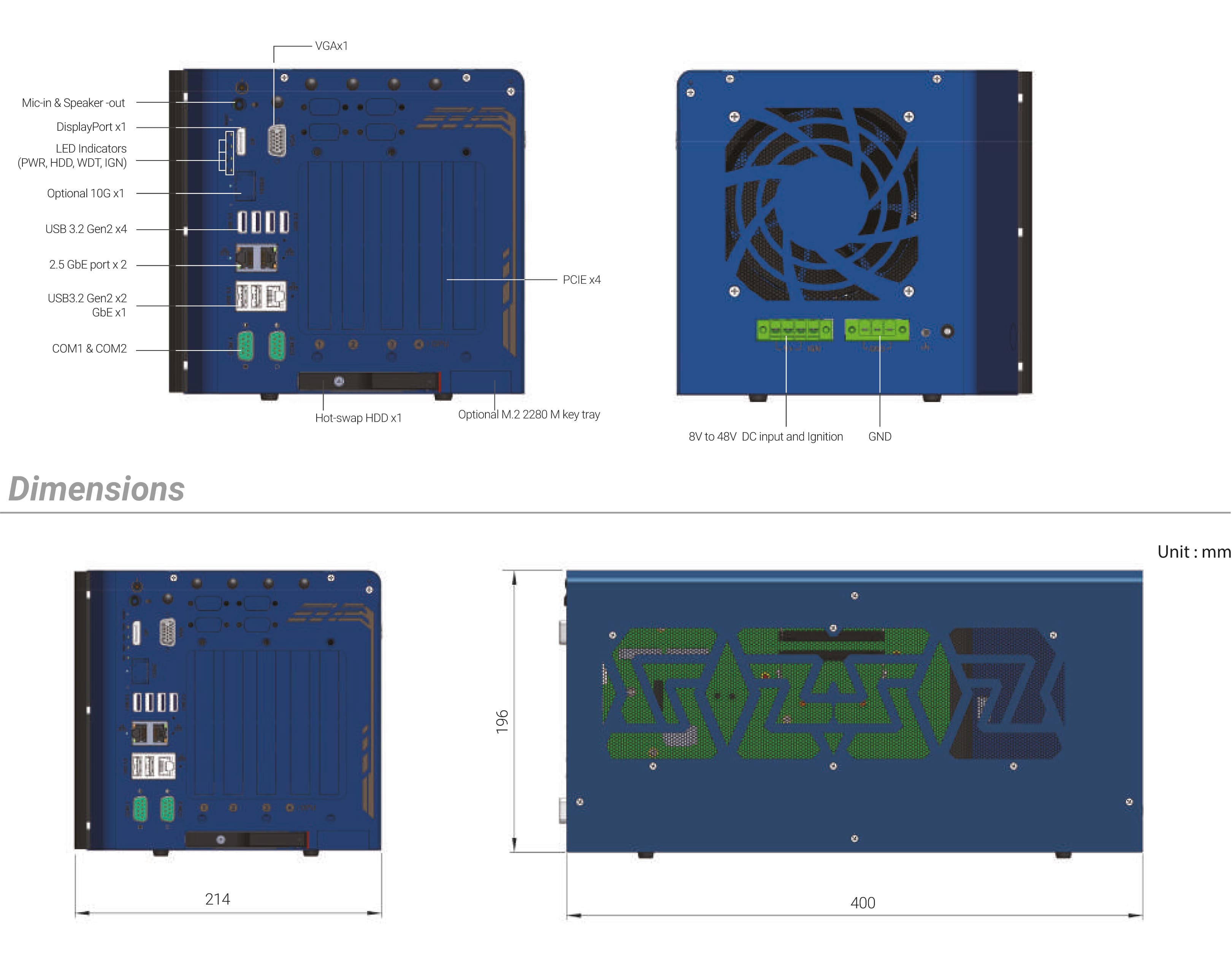

Dimensions / mm 214 x 400 x 196 (without damping bracket)
Scope of delivery 3-pin + 4-pin Terminal connector • Driver CD • Wall mounting kit with damping brackets • Fan
