HAWK RF 16-U2 [Aluminium silver]

15.6" (Widescreen) High-Performance IP65 Panel IPC mit resistivem Touch

Key facts	• 15.6" ~ 24" • Intel® Core™ Ultra Series 2 • Max. 128GB DDR5 • IP65 • Aluminium, Stainless Steel • Resistive • CPU fan
Bildschirmdiagonale	15.6” • 17” • 18.5” • 19” • 21.5" • 24"
Seitenverhältnis / Auflösung	16:9 / 1920 x 1080 (15.6"; 18.5"; 21.5") • 5:4 / 1280 x 1024 (17"; 19") • 16:10 / 1920 x 1200 (24")
Touch	Resistive (RT)
Schutzklasse	Front: IP65 • Rear: IP30
Front	Aluminium silver • Stainless Steel 316L
CPU	Intel® Core™ Ultra Series 2 processors (Arrow Lake-S), up to 65W
Chipsatz	Q870

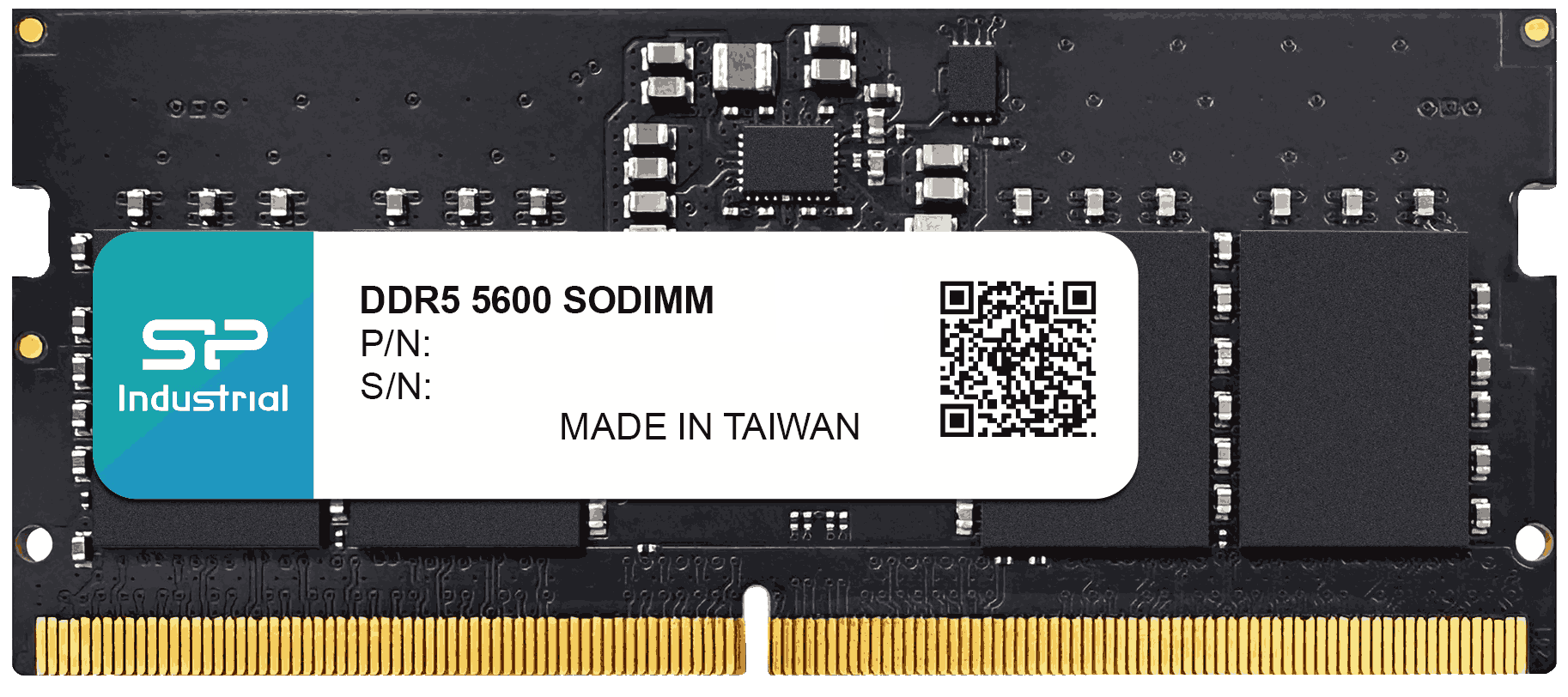

RAM	2x 262-pin SO-DIMM, 128GB (64GB per DIMM), Dual Channel DDR5 5600/6400 MHz
Festplatten-Schnittstellen	1x M.2 (KeyM, 2242/2280) with PCIe Gen 4x4 and SATA3 and USB 2.0 for SSD • 1x M.2 (KeyM, 2242) with PCIe Gen 4x4 and SATA3 for SSD • 2x SATA3 (6Gb/s)
RAID	Intel® VMD RAID 0/1

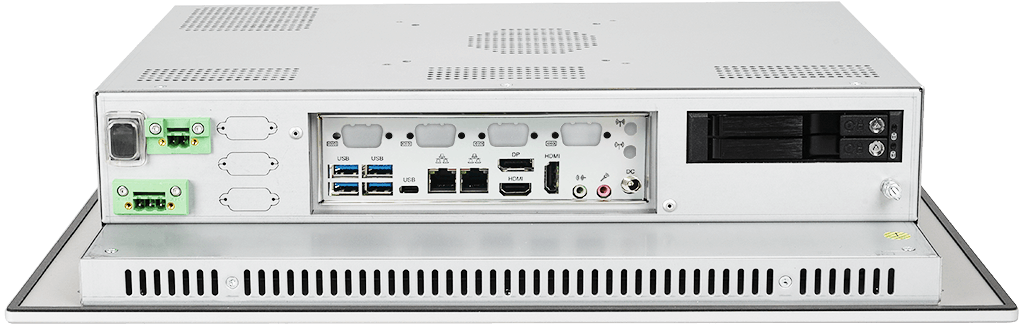

Schnittstellen	1x 1 Gigabit LAN: Intel® I219LM with 10/100/1000 Mbps, supports vPro • 1x 2.5 Gigabit LAN: Intel® I226V with 10/100/1000/2500 Mbps • 1x USB4/Thunderbolt™ 4 (5V/3A, supports DP 2.1 display output)* • 2x HDMI 2.1; 1x DP 1.4a++ • 2x Audio (Line-out, Mic-in or Line-out, Line-in (BOM option)) • 1x DC Jack, DC-in • Optional: 2x COM (RS-232/422/485)* For Thunderbolt support, please refer to support list.
PCI / PCIe / mini-PCIe	1x PCIe x16 (Gen5, support riser cadr x8/x8, x8/x4/x4) • 1x M.2 (Key E, 2230) with PCIe Gen4 x1, USB 2.0 and CNVi for Wireless • 1x M.2 (Key B, 3042/3052) with PCIe Gen4 x1, USB 3.2 Gen1, and USB
Kühlung	Active, CPU fan
Montage	Panel mounting • VESA 100 x 100 (15.6" - 19") • VESA 200 x 200 (21.5"; 24")
Betriebsspannung	12V to 28V DC
Leistungsaufnahme	Depending on CPU
Betriebssystem	Option: Windows® 10 IoT • Windows® 11 prof. • Linux
Farbe (max.)	16.7M
Leuchtdichte /cd/m2	400 (15.6") • 350 (17"; 18.5"; 19") • 300 (21.5"; 24")
Bildwinkel / H/V	160°/160° (15.6") • 170°/160° (17"; 19"; 24") • 178°/178° (18.5") • 170°/170° (21.5")
Lebensdauer Hintergrundbeleuchtung / hrs	50.000 (15.6" - 19"; 24") • 30.000 (21.5")
Kontrastverhältnis	500:1 (15.6") • 800:1 (17") • 1000:1 (18.5"; 19"; 24") • 5000:1 (21.5")
Betriebstemperatur	-20°C to 70°C
Lagertemperatur	-40°C to 85°C
Lagerluftfeuchtigkeit	5% to 90%
Zertifikat	CE
Gewicht / kg	Stainless Steel: 7.5; Aluminium: 7.2 (15.6") • Stainless Steel: 9.3; Aluminium: 7.4 (17") • Stainless Steel: 9.9; Aluminium: 9.6 (18.5") • Stainless Steel: 11.8; Aluminium: 9.3 (19") • Stainless Steel: 13.8; Aluminium: 11.5 (21.5") • Stainless Steel: 16; Aluminium: 13.5 (24")

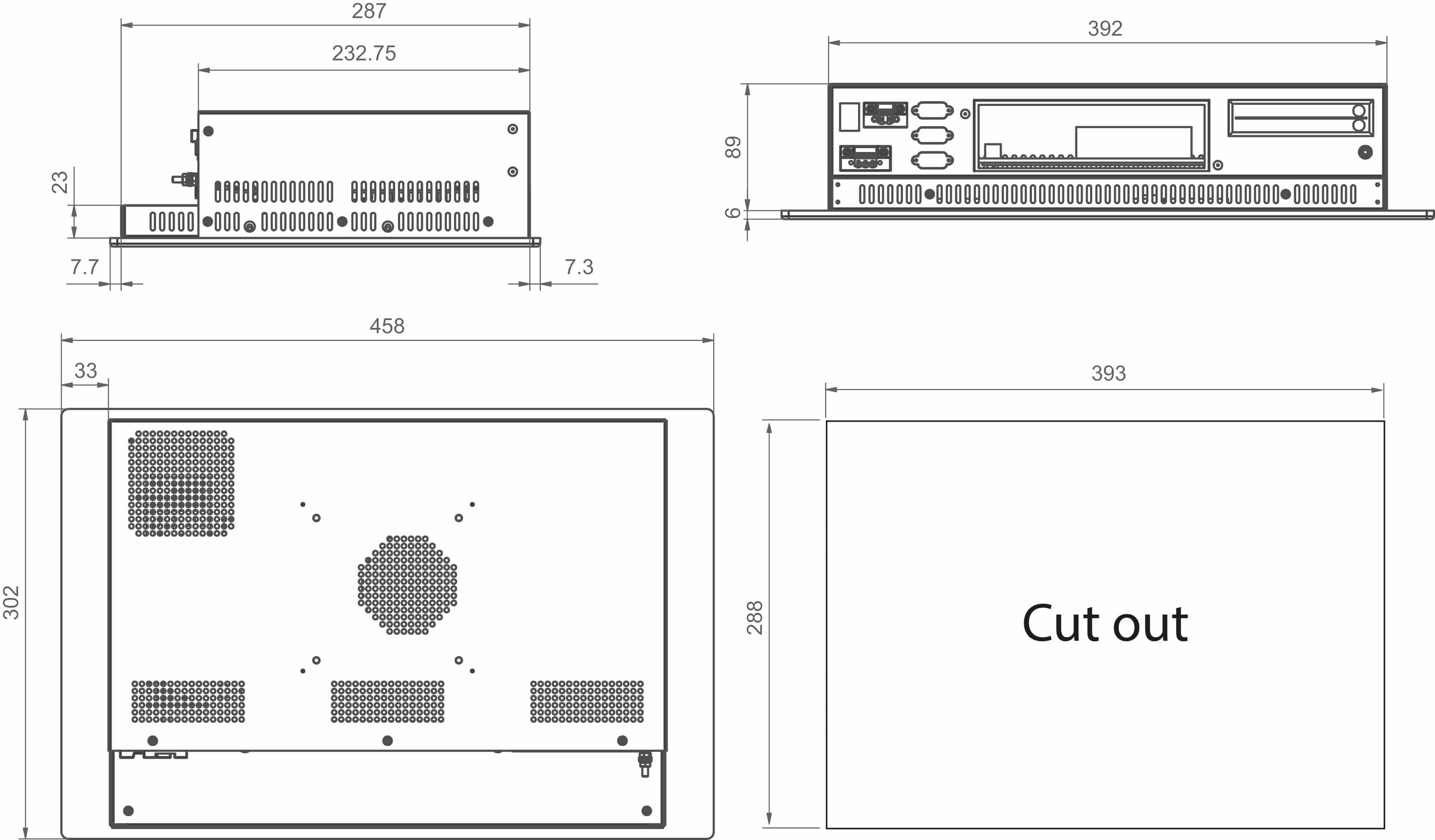

Maß / mm	458 x 302 x 95 (15.6") • 453.5 x 352 x 95 (17") • 527 x 341.5 x 95.5 (18.5") • 494 x 378 x 95.51 (19") • 594.5 x 372 x 95.5 (21.5") • 647 x 413.3 x 95.5 (24")
Lieferumfang	3-pin terminal block connector • retaining clip • touch pen • on/off button • driver CD
