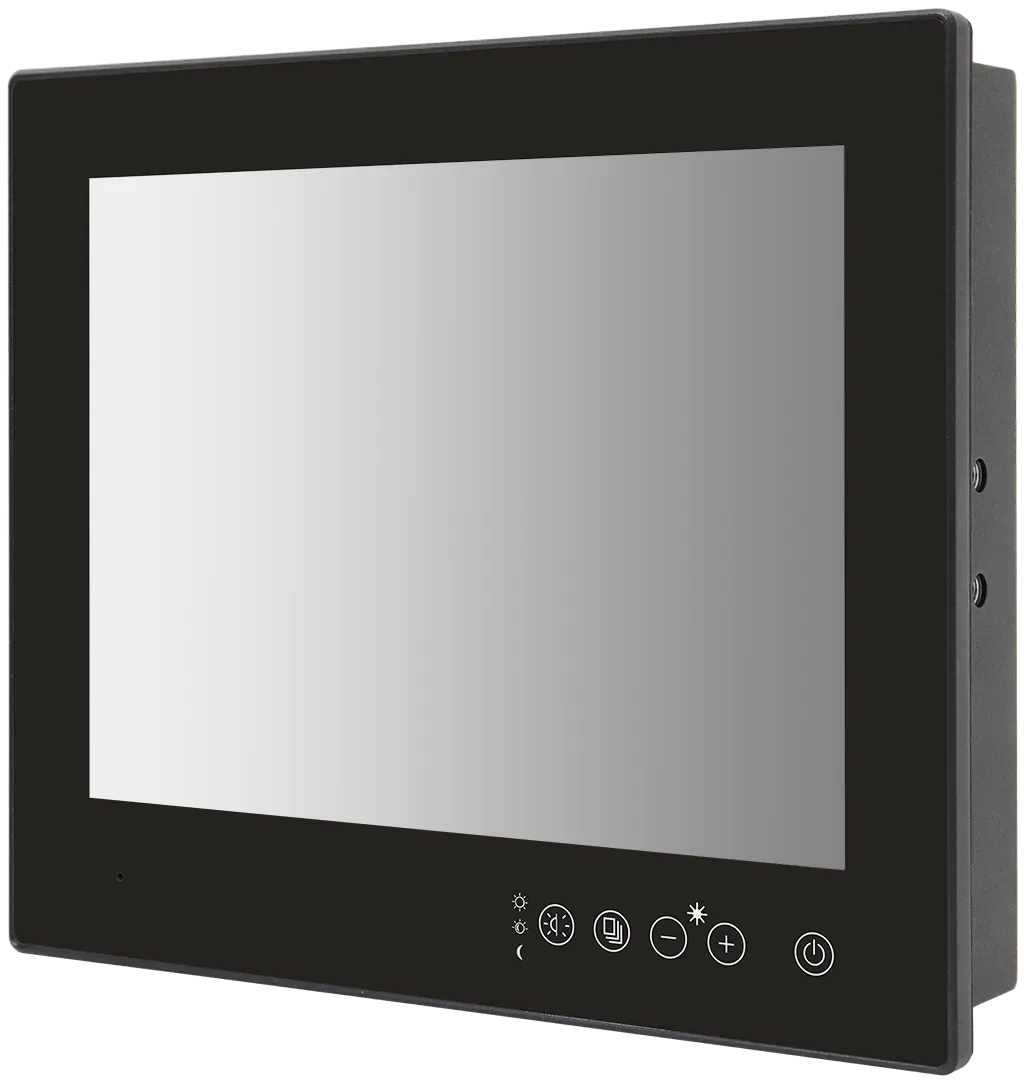

HAWK AP 12-M8 | Intel® Core™ i3-8145UE [PCT]

12.1" Marine-Panel-PC mit IEC60945 Zertifizierung

Key facts	• 12.1" ~ 24" • 8th Gen. Intel® Core™ i3/i5 • Max. 32GB DDR4 • IP66 • Capacitive • IEC 60945 Marine Certification • Fanless
Bildschirmdiagonale	12.1" • 19" • 23.8"
Seitenverhältnis / Auflösung	4:3 / 1024 x 768 (12.1") • 5:4 / 1280 x 1024 (19") • 16:9 / 1920 x 1080 (23.8")
Touch	Capacitive (PCT)
Schutzklasse	Front Panel IP66
Front	Black/ Aluminum Bezel and Aluminum Housing (Anti-Corrosion Coating)
CPU	Intel® Core™ i3-8145UE (2C/4T, 2.2GHz,15W TDP) • Intel® Core™ i5-8365UE (4C/8T, 1.6GHz,15W TDP)
Chipsatz	Intel® Baytrail SoC - Embedded Long Life Chipset
RAM	1x 260pin SO-DIMM, up to 32G DDR4 2400MHz
Festplatten-Schnittstellen	Default: 1x M.2 M-Key 2242 (option 2280 can’t use TB-528 at same time) • Option: 1x 2.5” HDD space

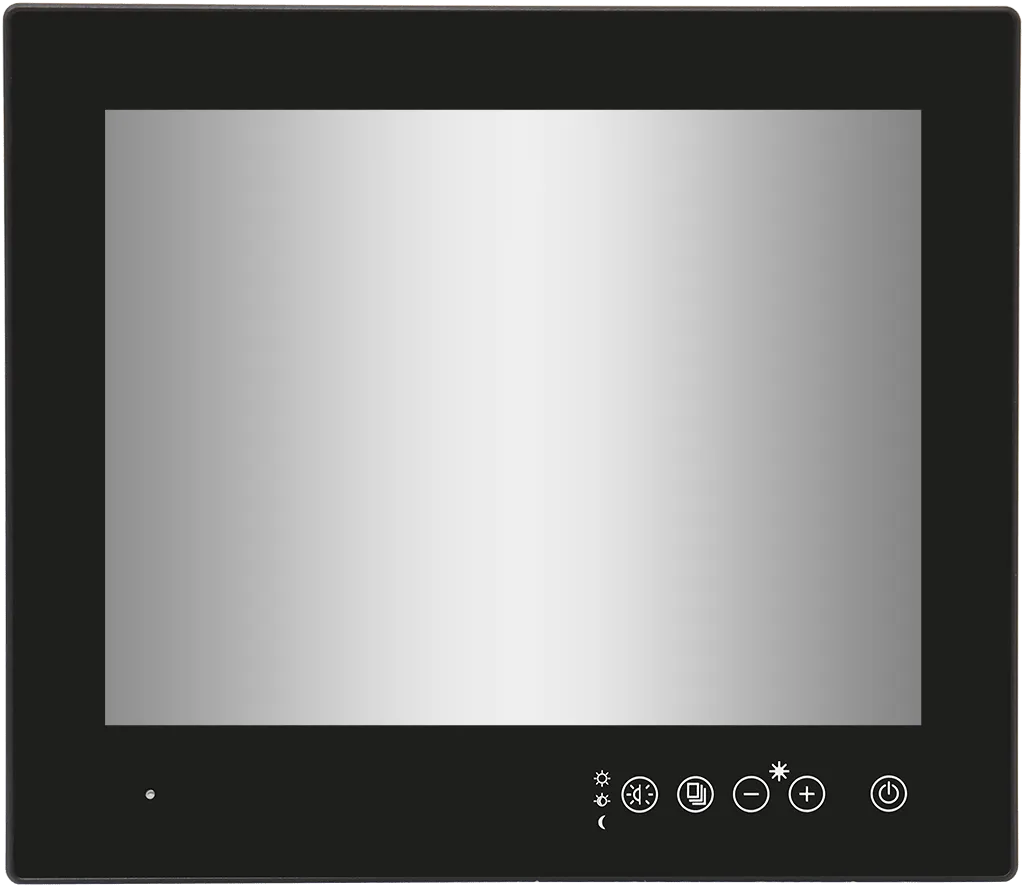

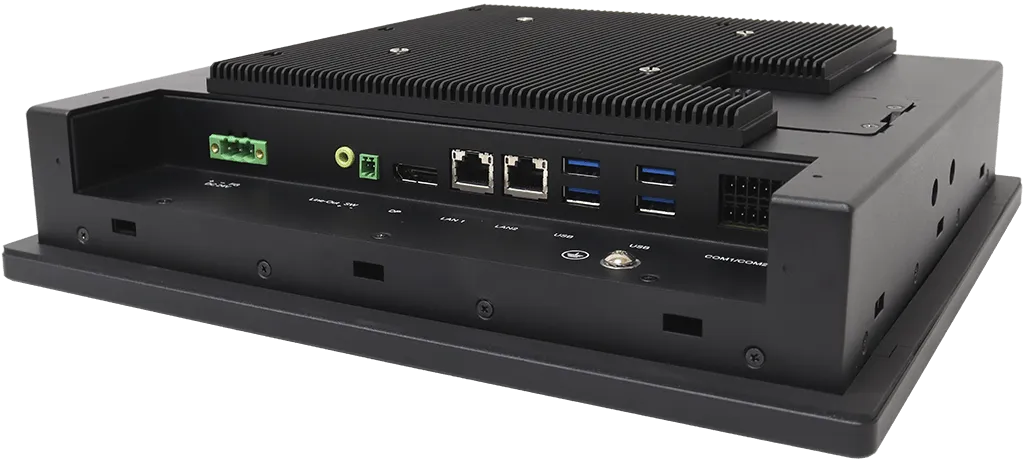

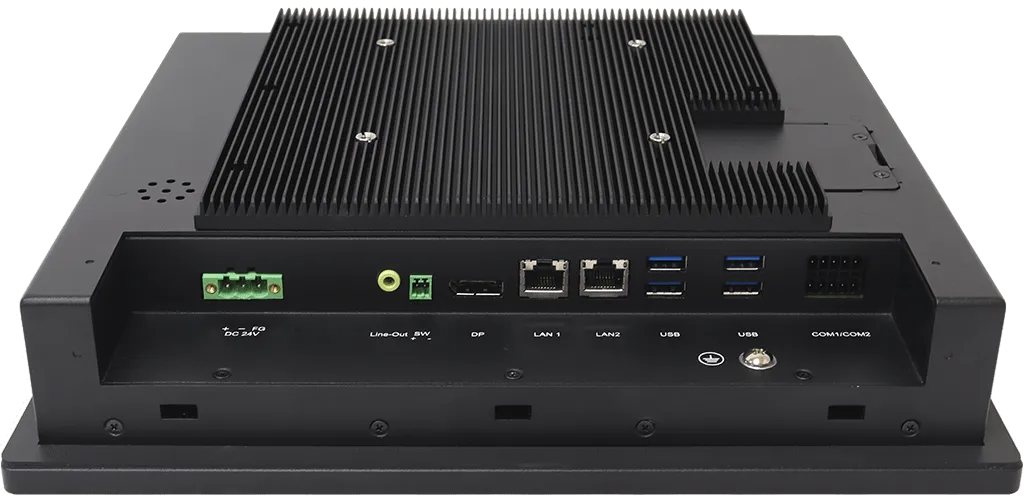

Schnittstellen	2x GbE RJ-45 • 4x USB 3.0 type A • 1x RS-232 (COM1, 5-pin terminal block) • 1x RS-232/422/485 Selectable Default RS-485 (COM 2, 5-pin terminal block) • 1x DisplayPort • 1x Line-out, Phone Jack • 1x ESD Ground Front Side I/O: Keypad Capacitive Touch with LED: - Power; - Brightness+; - Brightness-; - Brightness Mode Swap (DAY, DUSK, NIGHT) • 1x Buzzer
PCI / PCIe / mini-PCIe	1x TB-528 Expansion Connector (for 19” and 23.8” only) • Option: TB-528C2I for Isolation 2x RS-422/485 Isolation
Kühlung	Passive, fanless
Montage	Panel Mount/ VESA Mount • Front Access Mount / Mounting Bracket
Betriebsspannung	DC 24V with Isolated / AC Power option • 1x 2-pin Terminal Block Connector (for remote power switch) • 1x 3-pin Terminal Block Connector
Leistungsaufnahme	50.88W (12.1") • 52.85W (19") • 70W (23.8")
Betriebssystem	Windows 10 • Windows 11
Farbe (max.)	16.7M; option: 16.2M (12.1"; 19") • 16.7M (23.8")
Leuchtdichte /cd/m2	450/500; option High Brightness: 1000 (12.1"; 19") • 600 (12.1" = 13") • 300 (15"; 18.5") • 450 (15.6") • 350 (17"; 19") • 250; option High Brightness: 1000 (23.8")
Bildwinkel / H/V	176°/176°; option: 178°/178° (12.1"; 19") • 176°/176° (15") • 170°/170° (12.1" = 13"; 15.6") • 170°/160° (17") • 178°/178° (19")
Lebensdauer Hintergrundbeleuchtung / hrs	50.000/30.000; option High Brightness: 50.000/70.000 (12.1"; 19") • 70.000 (15") • 50.000 (12.1" = 13"; 15.6"; 19"; 21.5"; 32") • 30.000 (17") • 30.000 (19")
Kontrastverhältnis	1000:1 (12.1"; 19") • 3000:1 (23.8")
Betriebstemperatur	0° to 50°C; option: -20° to 60°C
Lagertemperatur	-30° to 70°C
Lagerluftfeuchtigkeit	10% to 90% @ 40°C, non-condensing
Zertifikat	CE/FCC/IEC 60945
Gewicht / kg	3.6 (12.1") • 6.5 (19") • 7.8 (23.8")

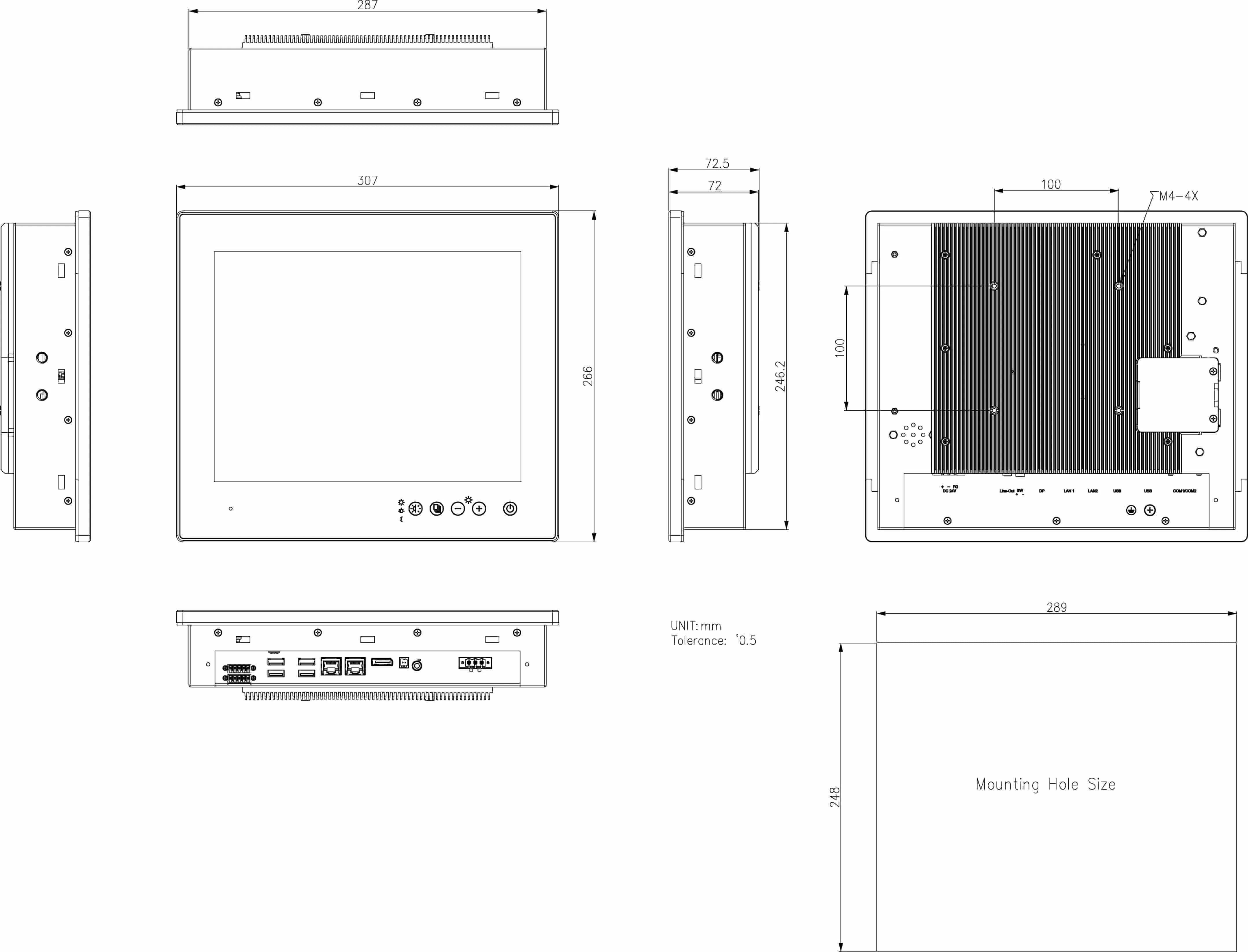

Maß / mm	307 x 266 x 72.5 (12.1") • 439 x 396 x 76.3 (19") • 609 x 400 x 76.3 (23.8")
Lieferumfang	2-pin terminal connector • 3-pin terminal connector • driver CD
