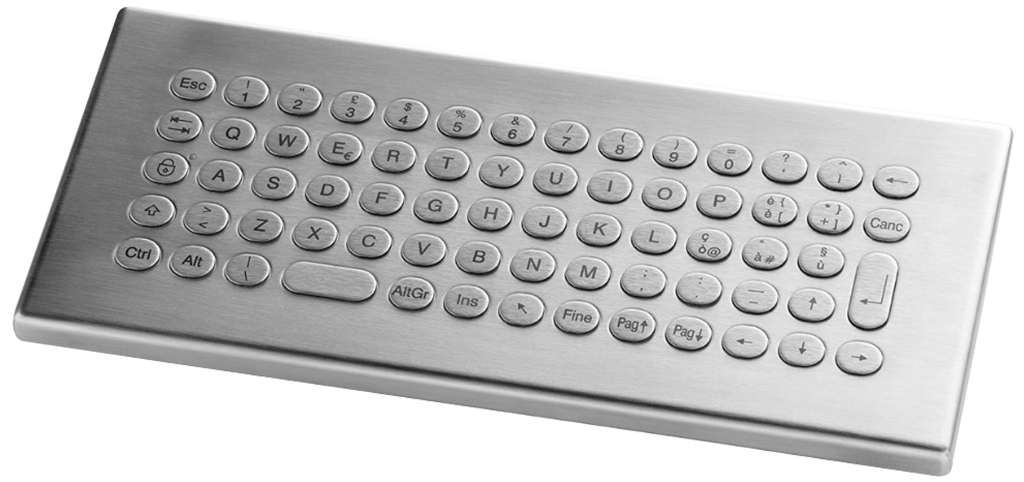

FOX 68T
• Installation type: T (Table version) • Interface: USB Typ A • Materials: AISI316L stainless steel
Product number: 750003.1
| Key facts | • Installation type: T (Table version) • Pointing device: Without, TI (Stainless steel trackball), TP (capacitive touchpad) • Interface: USB Typ A • Materials: AISI316L stainless steel • Actuation force: 1,5N (typical) • Switching technology: Graphite pad on printed circuit board with gold contacts • Insulation: >500K Ohm • Maximum Current and Voltage: 50mA, 25V AC/DC • IP protection class: IP65, IP54/IP65 (TI) • Operating temperature: 0°C ~ 50°C (TI), -10°C ~ 70°C (without pointing device, TP) • Standard layout: DE • Dimensions/mm: 334 x 150 x 37 (without pointing device), 399 x 150 x 39 (TI), 399 x 150 x 37 (TP) |
|---|---|
| Dimensions / mm | 334 x 150 x 37 (without pointing device); 399 x 150 x 39 (TI); 399 x 150 x 37 (TP) |
