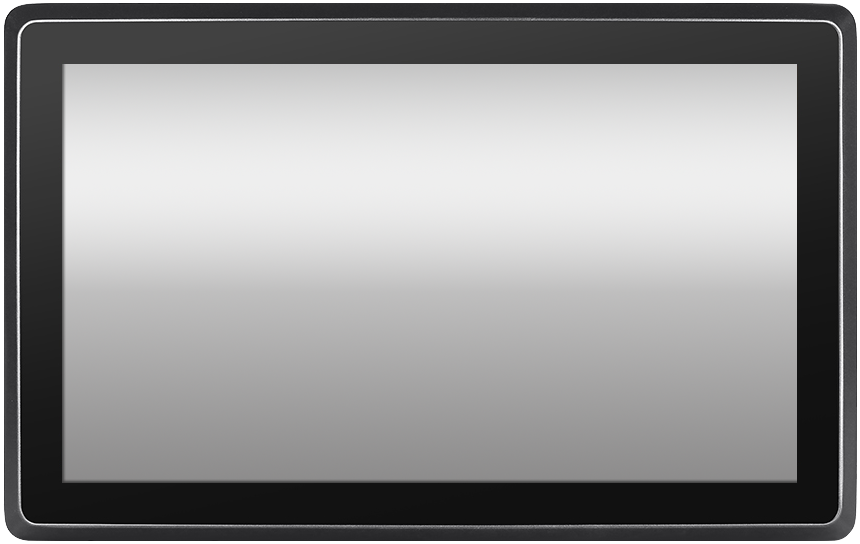

HAWK MT 16-WAM [ANDROID]

15.6" (Widescreen) Web Panel-PC with ANDROID operating system

Prices on request

Available in 21 days, delivery time 1-2 weeks [incl. assembly & function test]

Product number: 610116.8

The HAWK MT xx-WAM series Web Panel-PCs come equipped with Android 12 as the operating system and are suitable for 24/7 operation.
WLAN and Bluetooth are pre-installed, providing a "ready-to-use" experience upon delivery.

Designed for durability, the HAWK MT xx-WAM series Web Panels feature a seamless flat bezel design and a front panel with an IP65 waterproof rating. These PCs are encased in an aluminum alloy shell and demonstrate exceptional mechanical properties and efficient heat dissipation, ensuring reliable performance in any industrial setting. The industrial LCD panel offers a wide viewing angle, high nits, and precise color display. The PCAP multipoint touch is characterized by high sensitivity and a fast response time. The front is protected by 2 mm thick tempered glass.

Key facts	• 7" ~ 21.5" • RK3568 Quad-Core Cortex-A55 • 8GB DDR4 • IP65 • Capacitive • Fanless
Display Size	7" • 8" • 10.1" • 10.4" • 11.6" • 12.1" • 15" • 15.6" • 17" • 17.3" • 19" • 21.5"
Aspect ratio / resolution	16:9 / 1024 x 600 (7“) • 4:3 / 1024 x 768 (8“) • 16:10 / 1280 x 800 (10.1“) • 4:3 / 1024 x 768 (10.4“) • 16:9 / 1920 x 1080 (11.6“; 21.5") • 4:3 / 1024 x 768 (12.1“) • 4:3 / 1024 x 768 (15“) • 16:9 / 1920 x 1080 (15.6“) • 4:3 / 1280 x 1024 (17“; 19") • 16:9 / 1920 x 1080 (17.3“)
Touch	10 point capacitive touch (PCT)
Protection class	Front IP65, waterproof
Front	Black, Silver • Aluminum Alloy
CPU	RK3568 Quad-core Cortex-A55 up to 2.0GHz
Chipset	Intel® Baytrail SoC - Embedded Long Life Chipset
RAM	8GB DDR4
Storage interface	128GB eMMC

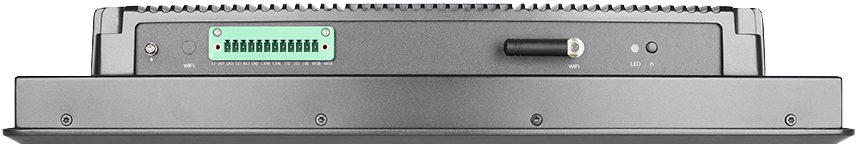

Ports	1x RJ45, 10M/100M//1000M adaptive ethernet • 2x USB 3.0 • 1x COM RS232 • 1x HDMI, Supporting HDMI data output, up to 4K • 1x DC, Supporting 12V-36V power input • 1x 12P Phoenix terminal (Power supply/RS2321/RS4851/CAN1/GPIO3) • 1x TF card slot • 1x SIM slot • 1x Audio I/O • 1x UBOOT
PCI / PCIe / mini-PCIe	1x mini-PCIe-Slot (full size) • 1x Micro SIM Slot (7" - 21.5") 1x Internal mini-PCIe slot full size • 1x SIM card holder / Micro SD card reader (32")
Cooling System	Passive, fanless
Mounting	VESA 75 x 75 • 100 x 100
Power input	External Power Supply: AC 100V - 240V • Working voltage: DC 12V - 36V
Power consumption	≤25W
Operating system	Android 12
Max. color	16.7M
Luminance /cd/m2	300
View angle / H/V	150/145 (7") • 170/170 (8"; 11"; 12"; 15.6") • 170/170 (10.1") • 160/160 (10.4") • 178/178 (15"; 21.5") • 170/150 (17") • 160/140 (17.3") • 170/160 (19")
Backlight lifetime / hrs	40,000 (7“; 8“; 10.1“) • 30,000 (10.1“) • 50,000/30,000 (12.1“) • 70,000 (15“) • 50,000 (15.6“; 18.5“; 19“; 32") • 30,000 (17“; 21.5“)
Contrast ratio	500:1 (7") • 800:1 (8"; 10.1"; 15.6") • 1000:1 (10.4"; 11.6"; 12.1"; 15"; 17"; 19"; 21.5") • 600:1 (17.3")
Operating temperature	-10° to 60°C
Storage temperature	-20° to 70°C
Storage humidity	5% to 85%, non-condensing
Vibration	5Hz-19Hz/1.0mm amplitude, 19Hz-200Hz/1.0g acceleration
Shock	10g acceleration, 11ms period
Certificate	CE/FCC Class A/CB/UL
Weight / kg	2.4 (7") • 2.5 (8") • 3.5 (10.1"; 11.6") • 3.2 (10.4") • 4 (12.1") • 4.8 (15"; 15.6") • 5.5 (17"; 21.5") • 5.8 (17.3") • 5 (19")

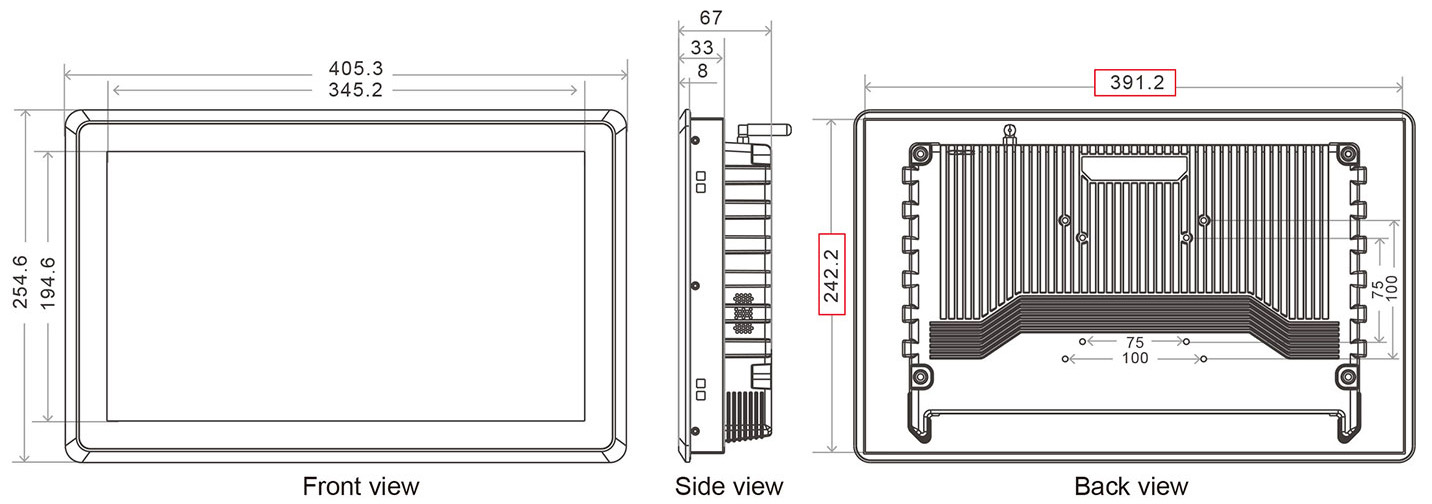

Dimensions / mm	22.504 x 16.07 x 5.9 (7") • 225.04 x 160.7 x 59 (8") • 283.7 x 186.2 x 60 (10.1") • 277.9 x 225.3 x 64.5 (10.4") • 32.83 x 21.63 x 6 (11.6") • 312.3 x 250.8 x 62 (12.1") • 366.1 x 290 x 68 (15") • 40.53 x 25.46 x 6.7 (15.6") • 399.2 x 331.6 x 64.5 (17") • 452 x 285 x 70.5 (17.3") • 438.6 x 363.6 x 62 (19") • 537.4 x 328.8 x 64.5 (21.5")
Scope of delivery	Power adapter; power cord; embedded screws; user manual; warranty card
