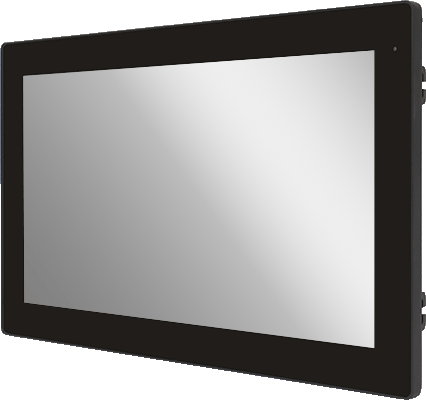

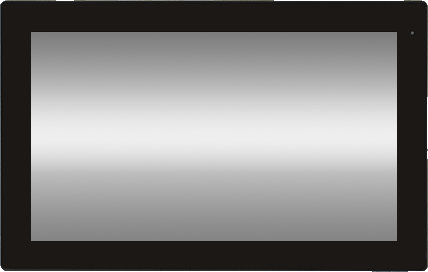

HAWK AP 16-HL | Intel® Core™ i3-1115G4E

15.6" (Widescreen) IP66 Human-Machine-Interface (HMI) with TPM

Skip image gallery
PPCs: Panel Mount_Panel-PC_HAWK AP 16-HL | Intel® Core™ i3-1115G4E
PPCs: Panel Mount_Panel-PC_HAWK AP 16-HL | Intel® Core™ i3-1115G4E
PPCs: Panel Mount_Panel-PC_HAWK AP 16-HL | Intel® Core™ i3-1115G4E
PPCs: Panel Mount_Panel-PC_HAWK AP 16-HL | Intel® Core™ i3-1115G4E
PPCs: Panel Mount_Panel-PC_HAWK AP 16-HL | Intel® Core™ i3-1115G4E
PPCs: Panel Mount_Panel-PC_HAWK AP 16-HL | Intel® Core™ i3-1115G4E
PPCs: Panel Mount_Panel-PC_HAWK AP 16-HL | Intel® Core™ i3-1115G4E
PPCs: Panel Mount_Panel-PC_HAWK AP 16-HL | Intel® Core™ i3-1115G4E
PPCs: Panel Mount_Panel-PC_HAWK AP 16-HL | Intel® Core™ i3-1115G4E
PPCs: Panel Mount_Panel-PC_HAWK AP 16-HL | Intel® Core™ i3-1115G4E
PPCs: Panel Mount_Panel-PC_HAWK AP 16-HL | Intel® Core™ i3-1115G4E
PPCs: Panel Mount_Panel-PC_HAWK AP 16-HL | Intel® Core™ i3-1115G4E
Prices on request

Prices excl. VAT plus shipping costs

Available in 21 days, delivery time 1-2 weeks [incl. assembly & function test]

Screen | Size
CPU
Summary
RAM:
Storage:
WLAN | 4G:
I/O Expansion
Operating System:
RAM:

2 slots available - max. 64 GB DDR4 SODIMM (max. 32GB per slot)

Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4, SO-DIMM - 4GB
DDR4, SO-DIMM - 4GB RAM: 4GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4, SO-DIMM - 8GB
DDR4, SO-DIMM - 8GB RAM: 8GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4, SO-DIMM - 16GB
DDR4, SO-DIMM - 16GB RAM: 16GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4, SO-DIMM - 32GB
DDR4, SO-DIMM - 32GB RAM: 32GB
Storage:
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 128GB
M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 128GB Storage | Size: 128GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 256GB
M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 256GB Storage | Size: 256GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 512GB
M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 512GB Storage | Size: 512GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 1TB
M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 1TB Storage | Size: 1TB
Reset choice
€0.00*
WLAN | 4G:
Systemkomponenten & Zubehör_Components_Accessories_4G_GPS - miniPCIe module [w/antenna]
4G_GPS - miniPCIe module [w/antenna]
Systemkomponenten & Zubehör_Components_Accessories_WLAN - M.2 2230 module, Intel® Wi-Fi 6 AX200 [802.11ac, Bluetooth 5.1]
WLAN - M.2 2230 module, Intel® Wi-Fi 6 AX200 [802.11ac, Bluetooth 5.1]
I/O Expansion
Zubehör [kein Direktverkauf]_Components_Accessories_Expansion | +1x COM RS-232. 2x USB 2.0
I/O-Port: +1x COM RS-232, 2 x USB 2.0
Zubehör [kein Direktverkauf]_Components_Accessories_Expansion | +1x GbE LAN, 2x USB 2.0
I/O-Port: +1x GbE LAN, 2 x USB 2.0
Zubehör [kein Direktverkauf]_Components_Accessories_Expansion | +2x CAN
I/O-Port: +2x CAN
Zubehör [kein Direktverkauf]_Components_Accessories_Expansion | +2x COM RS-232
I/O-Port: +2x COM RS-232
Zubehör [kein Direktverkauf]_Components_Accessories_Expansion | +2x COM RS-422/485 with isolated
I/O-Port: +2x COM RS-422/485 with isolated
Zubehör [kein Direktverkauf]_Components_Accessories_Expansion | +4x USB 2.0
I/O-Port: +4x USB 2.0
Zubehör [kein Direktverkauf]_Components_Accessories_Expansion | +4x USB 2.0, 1x Mini PCIe full size, 1x SIM slot
I/O-Port: +4x USB 2.0, 1 x Mini PCIe full size, 1 x SIM slot
Reset choice
€0.00*
Operating System:
_Components_Accessories_Windows® 11 IoT Enterprise 2024 LTSC - #VALUE
Windows® 11 IoT Enterprise 2024 LTSC - #VALUE OS | Variant: #VALUE 64bit [For Intel Core i5, Core i3]
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 IoT Enterprise LTSC 2021 - #VALUE 64bit [For Intel Core i5, Core i3]
Windows® 10 IoT Enterprise LTSC 2021 - #VALUE 64bit [For Intel Core i5, Core i3] OS | Variant: #VALUE 64bit [For Intel Core i5, Core i3]
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 Professional - 64bit
Windows® 10 Professional - 64bit OS | Variant: 64bit
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 11 Professional OEM - 64bit
Windows® 11 Professional OEM - 64bit
Reset choice
€0.00*

€2,078.00*

Prices excl. VAT plus shipping costs

Product number: 610050.6
Key facts• 10.1" ~ 21.5"
• 11th Gen. Intel® Core™ i3/i5
• Up to 64GB DDR4
• IP66
• Capacitive
• Fanless
Display Size 10.1" • 15.6" • 21.5"
Aspect ratio / resolution 16:10 / 1280 x 800 (10.1") • 16:9 / 1920 x 1080 (15.6"; 21.5")
Touch Capacitive (PCT)
Protection class IP66 Compliant Front Bezel
Front Aluminium
CPU 11th Gen. Intel® Core™ i3/i5 Processors - Intel® Core™ i3-1115G4E, 2x 2.2Ghz/3.9 GHz - 15W TDP • - Intel® Core™ i5-1145G7E, 4x 1.5GHz/4.10GHz - 15W TDP
Chipset SoC
RAM 2x 260-pin SO-DIMM up to 64GB DDR4 3200MHz
Storage interface 1x M.2 M-Key 2280 (Support PCIe/SATA3)

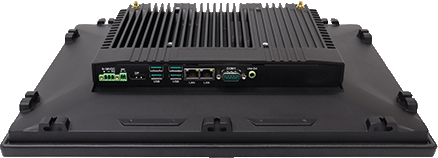

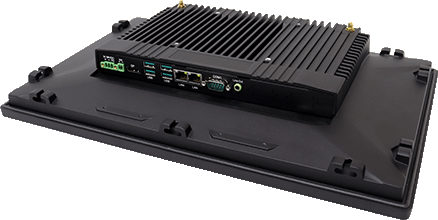

Ports 2x GigE RJ-45 • 4x USB 3.0 type A • 1x DB-9 connector, including: 1x RS-232 (RTS, Rx, Tx, CTS), pin1 RTS/5V/12V selectable via jumper (COM1); 1x RS-232 (Tx, Rx)/422/485(COM2) by Y Cable • 1x DP / HDMI • 1x Audio Line Out
PCI / PCIe / mini-PCIe 1x mini-PCIe slot (full size) • 1x M.2 E key for Wifi/BT Module • 1x Nano SIM slot
Cooling System Passive, fanless
Mounting Panel Mount • VESA 100 x 100
Power input 9V to 36V DC 1x 3-pin Terminal Block Connector • 1x 2-pin Power Switch Connector
Power consumption 48W (10.1") • 70W (15.6") • 92W (21.5")
Operating system Option: Windows 10 IoT • Windows 11
Max. color 16.7M (10.1"; 21.5") • 16.7M / 16.2M (15.6")
Luminance /cd/m2 350 (10.1") • 400/450 (15.6") • 250 (21.5")
View angle / H/V 170°/170° (10.1") • 170°/160° / 170°/170° (15.6") • 178°/178° (21.5")
Backlight lifetime / hrs 30,000 (10.1") • 50,000 (15.6"; 21.5")
Contrast ratio 800:1 (10.1") • 500:1 / 800:1 (15.6") • 1000:1 (21.5")
Operating temperature 0° to 50°C
Storage temperature -30° to 70°C
Storage humidity 10% to 90% @ 40°C, non-condensing
Certificate CE/FCC Class A
Weight / kg 1.8 (10.1") • 3.7 (15.6") • 6.3 (21.5")

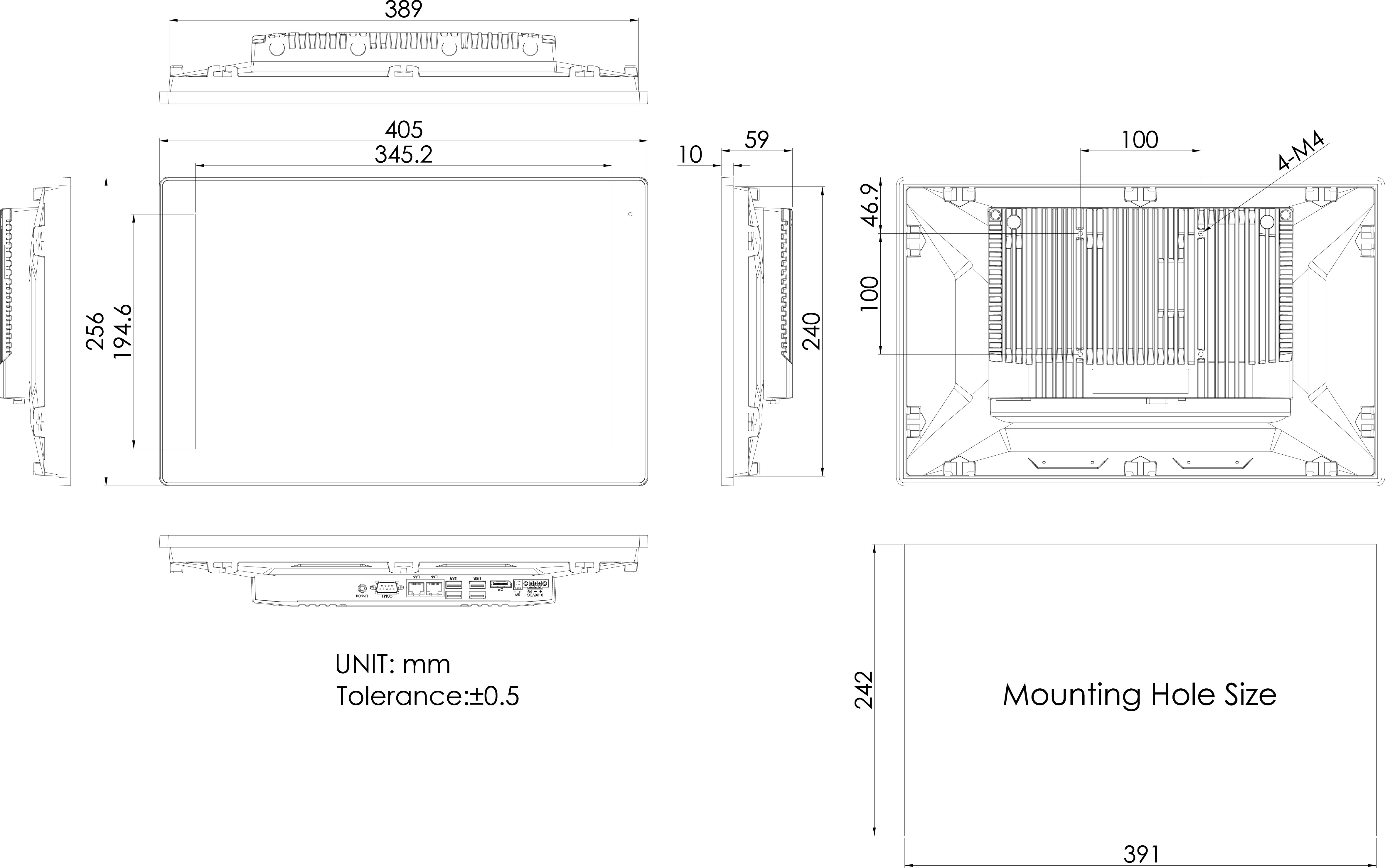

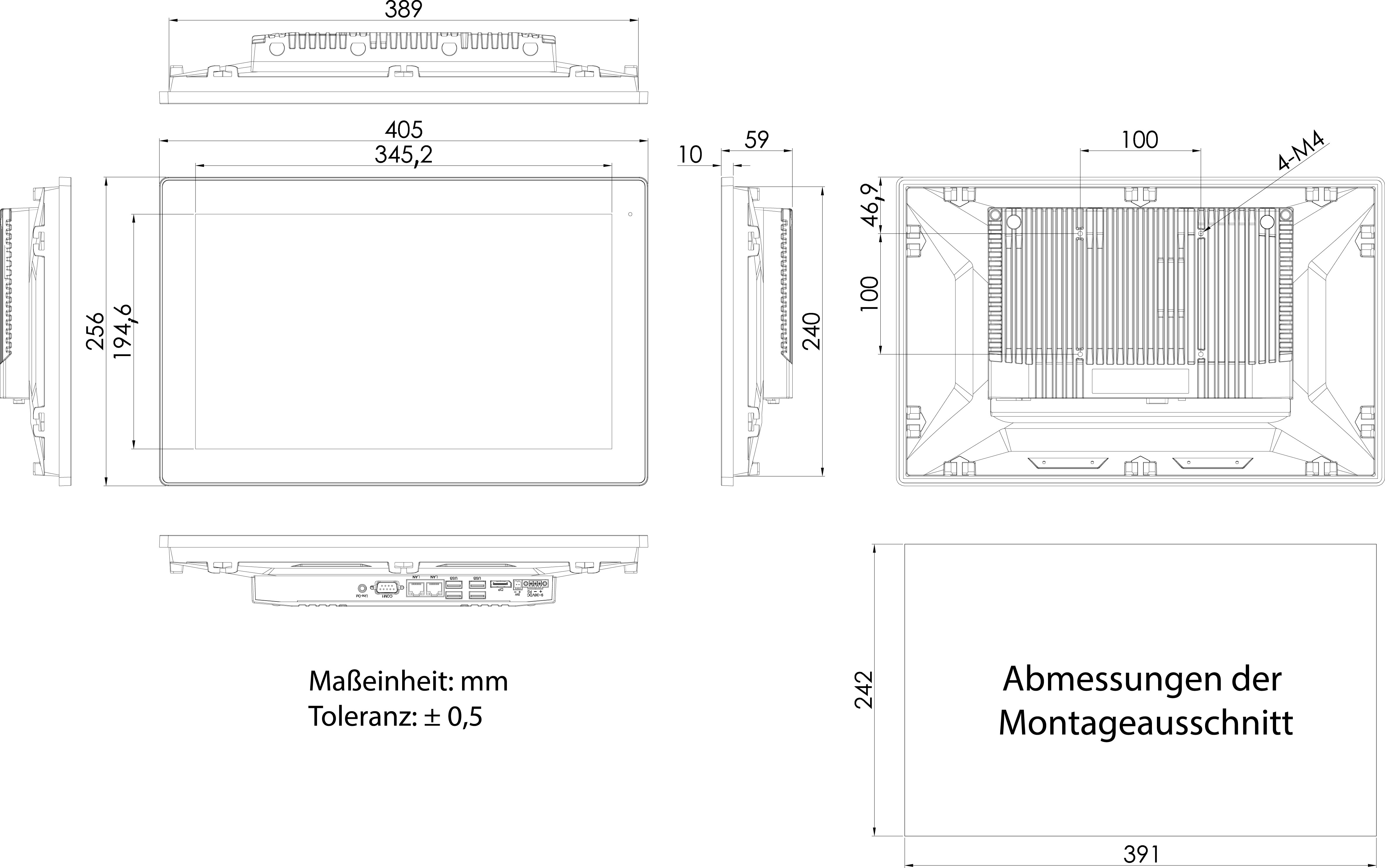

Dimensions / mm 269 x 189 x 51 (10.1") • 405 x 256 x 59 (15.6") • 541 x 333 x 59 (21.5")
Scope of delivery Power supply, 60W • IP65 cable set (LAN; USB-Y; COM cable) • driver CD
