GOLUB 9002LP | Barebone [1x 2.5GigE, 1x GigE]

High-Performance Rugged PC with low-profile chassis • 13th Gen. Intel® Core™ i9/i7/i5/i3/Celeron

GOLUB 9000 series is the new rugged Industrial Box-PC based on Intel® 13th/12th-Gen platform. Benefiting from cutting-edge Intel® 7 photolithography, the latest Core™ desktop processor comes with up to 24 cores and 32 threads and presents an incredible boost of computational performance. Combining the increase of DDR5 memory bandwidth and PCIe Gen4 NVMe high-speed disk read/write, users can expect an overall system performance improvement of up to 2x when compared to previous 10th or 11th- Gen platforms.

GOLUB 9000 series inherits the patented expansion Cassette design to provide great versatility by allowing additional installation of PCIe or PCI add-on cards. There are three expansion Cassette options available for GOLUB 9000 series, the GOLUB 9000E features a single x16 Gen3 PCIe slot; GOLUB 9000DE has dual x16 PCIe slots, and GOLUB 9000P has a single PCI slot. For users who need more flexible storage, GOLUB 9000LP has a 2.5“ HDD tray instead of an expansion Cassette to support a hot-swappable 2.5” HDD/SSD.

I/O functions are also comprehensively enhanced. In addition to six 2,5G and Gigabit Ethernet ports with PoE+ PSE option, GOLUB 9000 series features a USB 3.2 Gen2x2 type-C port offering 20 Gbps bandwidth for data exchange with external devices, plus another six USB 3.2 type-A ports for USB3 camera connectivity. It also has an upgraded M.2 Gen4x4 slot to support the latest NVMe SSD to boost disk read/write speed up to 7000 MB/s. For unfulfilled I/O requirements, users can utilize the expansion Cassette to add on function-specific PCIe/ PCI card, the proprietary MezIO interface, and internal mini-PCIe/M.2 interfaces. With its field-proven thermal design, significant CPU and I/O upgrades, and multiple expansion methods, the GOLUB 9000 series fits your need for ruggedness, performance, and versatility for a variety of applications.

Key facts	• 13th Gen. Intel® Core™ i9/i7/i5/i3/Celeron • Up to 64GB DDR5 • Fanless • I/O Expansion slot • Option: Digital I/O, PoE+
Protection class	IP20
CPU	Supporting Intel® 13th/12th-Gen Alder Lake Core™ CPU (LGA1700 socket, 35W/ 65W TDP)
Chipset	Intel® Q670E platform controller hub
RAM	Up to 64GB DDR5 4800 SDRAM (two SODIMM slots)
Storage interface	1x hot-swappable 2.5” HDD tray (7mm HDD/ SSD) and 1x internal 2.5” SATA port • 1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD
Ports	1x 2.5G Ethernet by I226-IT and 1x Gigabit Ethernet by I219 with screw-lock • 5x 2.5G Ethernet by I226-IT and 1x Gigabit Ethernet by I219 with screw-lock; Option: IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 (2.5GbE) 100 W total power budget • 1x USB 3.2 Gen2x2 (20 Gbps) port in type-C connector with screw-lock • 4x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors • 2x USB 3.2 Gen1x1 (5 Gbps) ports in type-A connectors • 2x USB 2.0 ports • 2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2) • 2x RS-232 ports (COM3/ COM4) • 1x VGA, supporting 1920 x 1200 resolution • 1x DVI-D, supporting 1920 x 1200 resolution • 1x DisplayPort, supporting 4096 x 2304 resolution • 1x 3.5mm jack for mic-in and speaker-out
PCI / PCIe / mini-PCIe	1x full-size mini-PCIe • 1x M.2 2242/3052 B key socket with SIM slot for • M.2 5G/ 4G module
MezIO™-interfaces	1x MezIO® expansion port
Cooling System	Passive, fanless • included fan when PCI/PCIe card is installed (recommended)

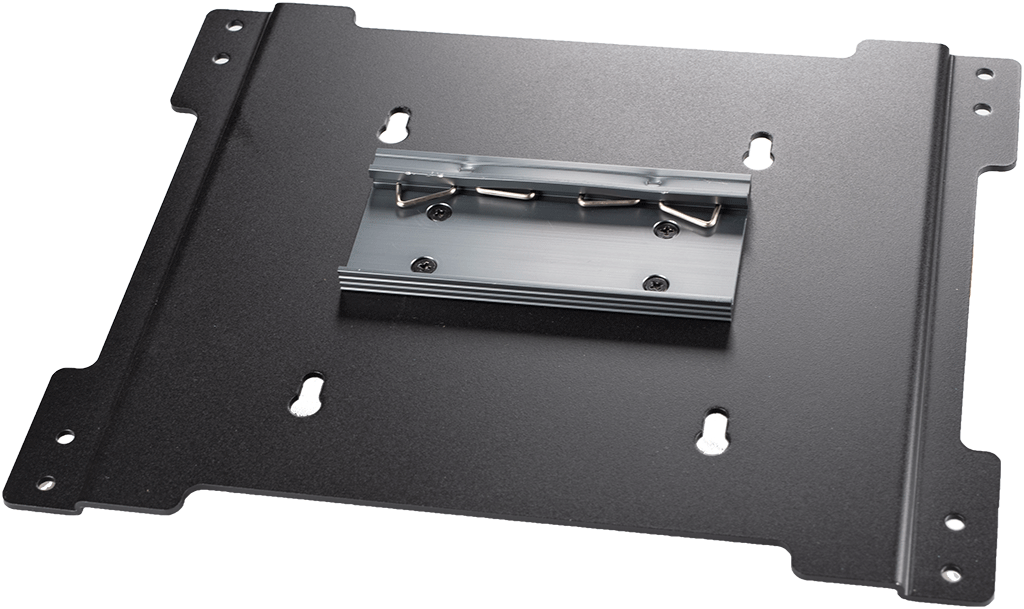

Mounting	Wall-mount • DIN-Rail mounting
Power input	1x 3-pin pluggable terminal block for 8V to 48V DC input • 1x 3-pin pluggable terminal block for remote control and PWR LED output (Ctrl_In/ GND/ LED_Out) • 1x 3-pin pluggable terminal block for 24V DC input (UL series)
Power consumption	TBA
Operating system	Option: Microsoft Windows® 10 • Fedora 29 • Ubuntu 16.04.5 LTS & Ubuntu 18.04.0 LTS
Operating temperature	with 35W CPU -25°C to 70°C • with 65W CPU -25°C to 70°C (configured as 35W TDP); -25°C to 50°C (configured as 65W TDP)
Storage temperature	-40° to 85°C
Storage humidity	10% bis 90%; non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
Certificate	CE/FCC Class A, according to EN55032 & EN55035 • UKCA • UL 62368-1, IEC62368-1 (UL series only - please specify when ordering)
Weight / kg	3.36
Dimensions / mm	240 x 225 x 79
Scope of delivery	Accessory Kit • DVI to VGA Adapter • Wall Mount Kit
