GOLUB 7501 | Barebone [4x COM]

Compact fanless Industrial-PC • 9th Gen. Intel® Core™ i7/i5/i3

Skip image gallery
Rugged Embedded: Essentials_Box-PC_GOLUB 7501 | Barebone [4x COM]
Rugged Embedded: Essentials_Box-PC_GOLUB 7501 | Barebone [4x COM]
Rugged Embedded: Essentials_Box-PC_GOLUB 7501 | Barebone [4x COM]
Rugged Embedded: Essentials_Box-PC_GOLUB 7501 | Barebone [4x COM]
Rugged Embedded: Essentials_Box-PC_GOLUB 7501 | Barebone [4x COM]
Rugged Embedded: Essentials_Box-PC_GOLUB 7501 | Barebone [4x COM]
Rugged Embedded: Essentials_Box-PC_GOLUB 7501 | Barebone [4x COM]
Rugged Embedded: Essentials_Box-PC_GOLUB 7501 | Barebone [4x COM]
Prices on request

Prices excl. VAT plus shipping costs

Available in 21 days, delivery time 1-2 weeks [incl. assembly & function test]

I/O-Port
Summary
CPU:
RAM:
Storage | M.2:
Storage | 2.5 Zoll:
WLAN | 4G:
Power Supply:
Accessories:
Operating System:
Operating System:
CPU:
Mandatory
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Core™ i3-9100T [4x 3.1/3.7GHz] - 35W TDP
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Core™ i5-9500T [6x 2.2/3.7GHz] - 35W TDP
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Core™ i7-9700T [8x 2.0/4.3GHz] - 35W TDP
RAM:
Mandatory
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4-3200, SO-DIMM [0°C ~ 85°C] - 4GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4-3200, SO-DIMM [0°C ~ 85°C] - 8GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4-3200, SO-DIMM [0°C ~ 85°C] - 16GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4-3200, SO-DIMM [0°C ~ 85°C] - 32GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4-2666, SO-DIMM [-40°C ~ 85°C] - 4GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4-2666, SO-DIMM [-40°C ~ 85°C] - 8GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4-2666, SO-DIMM [-40°C ~ 85°C] - 16GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4-2666, SO-DIMM [-40°C ~ 85°C] - 32GB
Storage | M.2:

Recommended for the installation of the operating system.

Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) SSD, TLC [PLP, 0°C ~ 70°C] - 128GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) SSD, TLC [PLP, 0°C ~ 70°C] - 256GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) SSD, TLC [PLP, 0°C ~ 70°C] - 512GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) SSD, TLC [PLP, 0°C ~ 70°C] - 1TB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) SSD, TLC [PLP, 0°C ~ 70°C] - 2TB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 128GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 256GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 512GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 1TB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 2TB
Reset choice
€0.00*
Storage | 2.5 Zoll:
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 240GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 480GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 960GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 1.92TB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 3.84TB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 7.68TB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 128GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 256GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 512GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 1TB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll W.T. SSD, TLC [PLP, -40°C ~ 85°C]
Reset choice
€0.00*
WLAN | 4G:
Systemkomponenten & Zubehör_Components_Accessories_4G_GPS - miniPCIe module [w/antenna]
Systemkomponenten & Zubehör_Components_Accessories_WLAN - M.2 2230 module, Intel® Wi-Fi 6 AX200 [802.11ac, Bluetooth 5.1]
Reset choice
€0.00*
Power Supply:
Systemkomponenten & Zubehör_Components_Accessories_Desktop power supply [Terminal Block] - 120W [24V/5A]
Systemkomponenten & Zubehör_Components_Accessories_Desktop power supply [Terminal Block] - 160W [24V/6.67A]
Systemkomponenten & Zubehör_Components_Accessories_Desktop power supply [Terminal Block] - 280W [24V/11.67A]
Systemkomponenten & Zubehör_Components_Accessories_Switching power supply [DIN-rail mount] - 120W [AC IN 100-240V, DC OUT 24V, 5A]
Systemkomponenten & Zubehör_Components_Accessories_Switching power supply [DIN-rail mount] - 240W [AC IN 100-240V, DC OUT 24V, 10A]
Systemkomponenten & Zubehör_Components_Accessories_Switching power supply [DIN-rail mount] - 480W [AC IN 100-240V, DC OUT 24V, 20A]
Reset choice
€0.00*
Accessories:

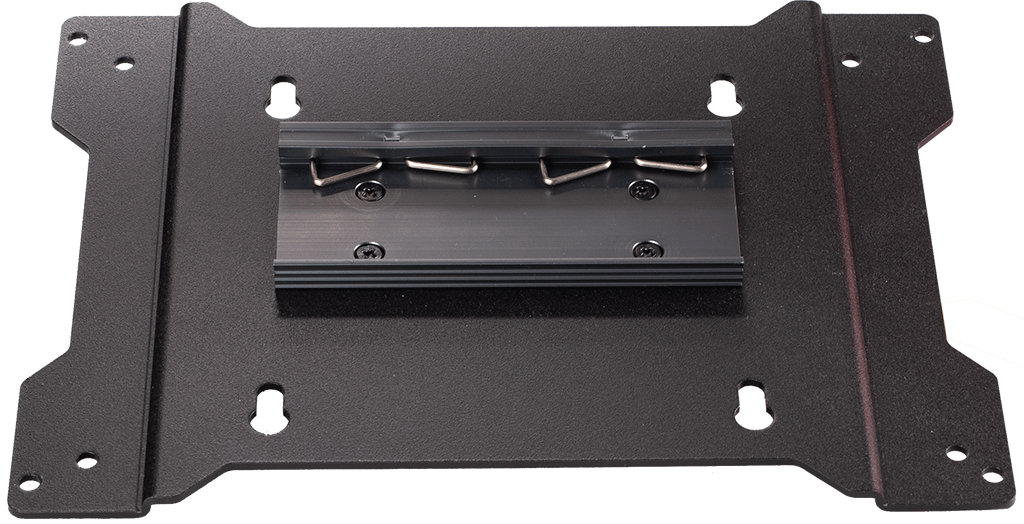

Zubehör [kein Direktverkauf]_Components_Accessories_Optionaler Montagesatz - DIN-Rail mounting kit [DINRAIL-31]
Reset choice
€0.00*
Operating System:
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 IoT Enterprise LTSC 2021 - #VALUE 64bit [For Intel Core i5, Core i3]
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 Professional - 64bit
Reset choice
€0.00*
Operating System:
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 IoT Enterprise LTSC 2021 - #HIGH END 64bit [For Intel Core i9, Core i7, Xeon]
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 Professional - 64bit
Reset choice
€0.00*
Quantity Unit price
To 1
€935.00*
From 1
€935.00*

Prices excl. VAT plus shipping costs

Product number: 650080.1
GOLUB 7501 and GOLUB 7505 are cost-effective, compact yet powerful fanless Industrial Box-PCs with a footprint of 255 x 173 x 76 mm. Powered by an Intel® 9th / 8th Gen Core™ Hexa/Octa-Core CPU, they offer more than 50% improved computing performance compared to the previous generation.

GOLUB 7501 and GOLUB 7505 have been designed to be simple and compact while retaining the essential elements of a robust fanless embedded solution. They feature I/Os such as 2x GbE, 4x USB 3.1 Gen1 and 4x COM ports (GOLUB 7501) or 6x COM ports (GOLUB 7505) for common industrial applications. In addition to the M.2 2280 SATA slot (SATA signal), they can also support a 2.5" SSD/HDD or a 3.5" HDD.

GOLUB 7501 and GOLUB 7505 maintain the quality materials, design flow and rigorous testing procedures they are required to undergo. It is a fanless embedded platform that has hit the sweet spot in terms of cost, size and performance. GOLUB 7501 and GOLUB 7505 are an ideal fanless embedded solution for various industrial applications.
Key facts • 9th Gen. Intel® Core™ i7/i5/i3
• Up to 32GB DDR4
• Fanless
• Optional: Digital I/O
Protection class IP20
CPU Supports Intel® 9th/8th-Gen CPU (LGA1151 socket)
Chipset Intel® H310
RAM Up to 32GB DDR4 2666/ 2400 SDRAM (one SODIMM slots)
Storage interface 1x internal SATA port for 3.5” HDD or 2.5” HDD/ SSD • 1x M.2 2280 SATA interface
Ports 2x GigE, 1x Intel® I219, 1x Intel® I210 • 4x USB 3.1 Gen1 (5 Gbps) • 1x VGA, supporting 1920 x 1200 resolution • 1x DVI-D, supporting 1920 x 1200 resolution • 1x 3.5 mm jack for mic-in and speaker-out • GOLUB 7501: 2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2) • 2x RS-232 ports (COM3/ COM4) • GOLUB 7505: 2x isolated software-programmable RS-232/ 422/ 485 ports (COM1/ COM2) • 2x isolated RS-232 ports (COM3/ COM4) • 2x RS-232 ports (COM5/ COM6)
PCI / PCIe / mini-PCIe 1x full-size mini-PCIe socket • 1x M.2 2242 B key socket with internal SIM socket
DIO GOLUB 7505: 8-CH isolated DI and 8-CH isolated DO
Cooling System Passive, fanless
Mounting Wall-mount mounting • option: Din-Rail mounting
Power input 1x 3-pin pluggable terminal block for 8V to 35V DC input • 1x 10-pin (2x5) pin header for remote on/off control and status LED output
Power consumption TBA
Operating system Option: Microsoft Windows® 10 • Fedora 29 • Ubuntu 16.04.5 LTS & Ubuntu 18.04.0 LTS
Operating temperature -25° to 60°C
Storage temperature -40° to 85°C
Storage humidity 10% to 90%; non-condensing
Vibration Operating, MIL-STD-810G, Method 514.6, Category 4
Shock Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
Certificate CE/FCC Class A, according to EN 55032 & EN 55024
Weight / kg 2.68
Dimensions / mm 255 x 173 x 76
Scope of delivery 3-pin terminal connector • Rubber absorber • Driver CD • Wall mounting kit
