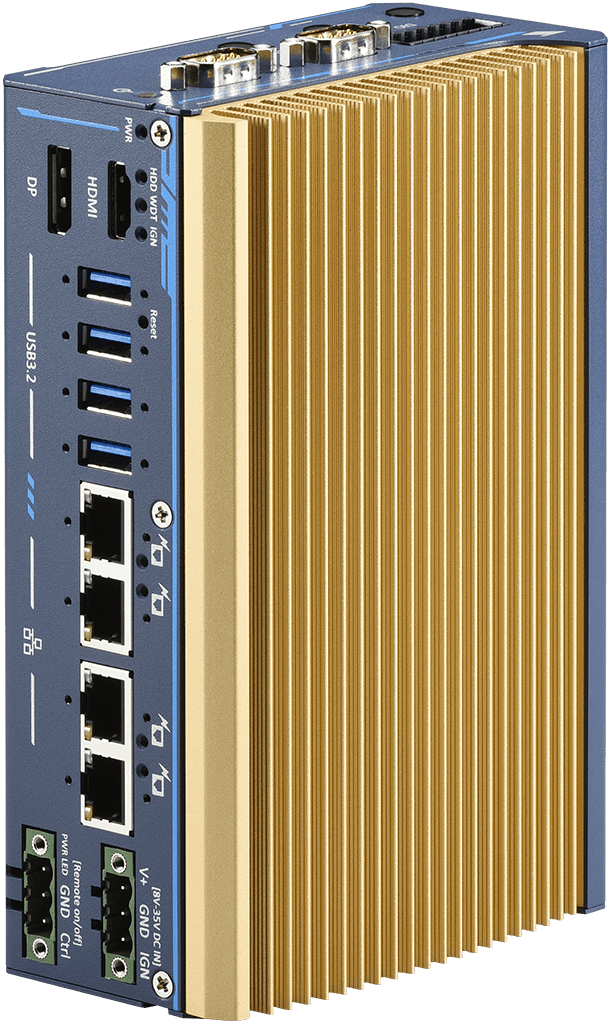

GOLUB 712 | Intel® Atom® x7425E

Ultra-compact Rugged PC with PoE+ • Intel® Atom® x7425E

GOLUB 700 is a next-generation ultra-compact Industrial Box-PC, with a choice of the latest Intel® Alder Lake i3-N305 or x7425E processor that is capable of delivering up to 1.3x the CPU performance when compared to previous GOLUB 4515 series.

GOLUB 700 is powered by Intel's Alder Lake i3-N305 featuring 8-core/ 8-thread processor with 32EUs UHD Graphics or Atom® x7425E featuring 4-core/ 4-thread with 24EUs UHD Graphics to support Intel OpenVINO™ for AI inference capabilities. The systems adopts DDR5-4800 to offer up to 1.8x the memory bandwidth over DDR4 to boost overall system performance. It also has four USB3.2 Gen2, and four GigE PoE+ ports with screw lock mechanisms to connect and secure industrial cameras for machine vision applications. Display output wise, there are HDMI and DP video outputs to support high-definition display devices. As for connections and expansions, GOLUB 700 features isolated DIO for device monitoring/control, M.2 2280 M key for SATA SSD and a mini-PCIe socket for wireless WiFi, LTE/5G or CAN bus device.

Measuring just 64 x 116 x 176mm, the ultra-compact GOLUB 700 can easily fit into confined spaces and is a seamless upgrade from GOLUB 4515 series with identical footprint. Benefiting from the performance gains of the latest Intel CPU, wide-temperature fanless design, and ample interfaces for industrial cameras and I/Os, GOLUB 700 is perfect for machine vision and smart city applications.

Key facts	• Intel® Alder Lake Atom® x7425E; i3-N305 • Up to 16GB DDR5 • Fanless
Protection class	IP20
CPU	Intel® Alder Lake Atom® x7425E processor (4C/4T, 1.5 /3.4 GHz, 12W TDP) (GOLUB 712) Intel® Alder Lake Core™ i3-N305 processor (8C/8T, 1.8/3.8 GHz, 15W TDP) (GOLUB 715)
Chipset	Intel® Q370

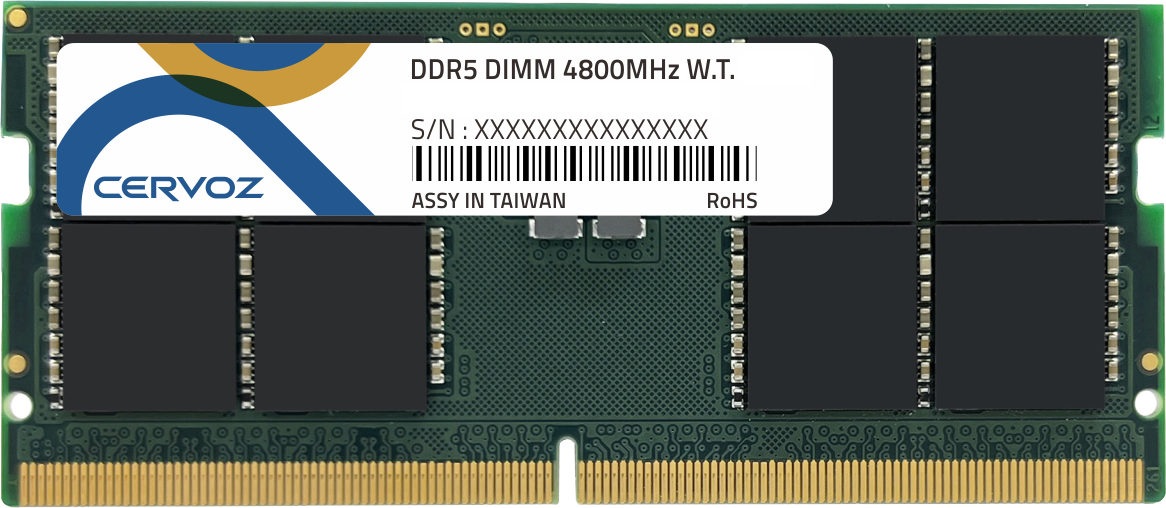

RAM	Up to 16GB DDR5-4800 SDRAM (one SODIMM socket)
Storage interface	1x M.2 2280 M key socket (PCIe Gen3 x1) for NVMe SSD storage (supports SATA signal)

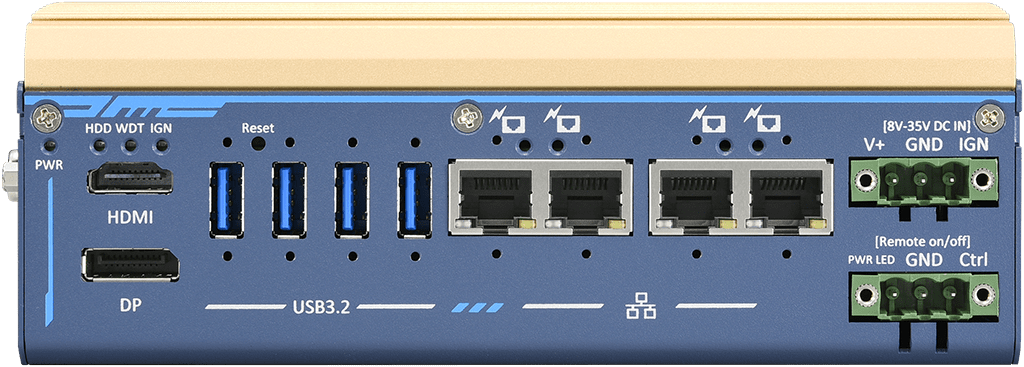

Ports	4x Gb Ethernet ports by Intel® I350-AM4 • IEEE 802.3at PoE+ on port #1~ 4 (GOLUB 715) • 4x USB 3.2 Gen2 ports with screw-lock • 1x Software-programmable RS-232/422/485 ports (COM1) • 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2) • 1x DP++, Supporting 4096 x 2160 resolution • 1x HDMI1.4b, Supporting 3840 x 2160 30Hz
PCI / PCIe / mini-PCIe	1x full-size mini-PCI Express socket with internal micro SIM socket

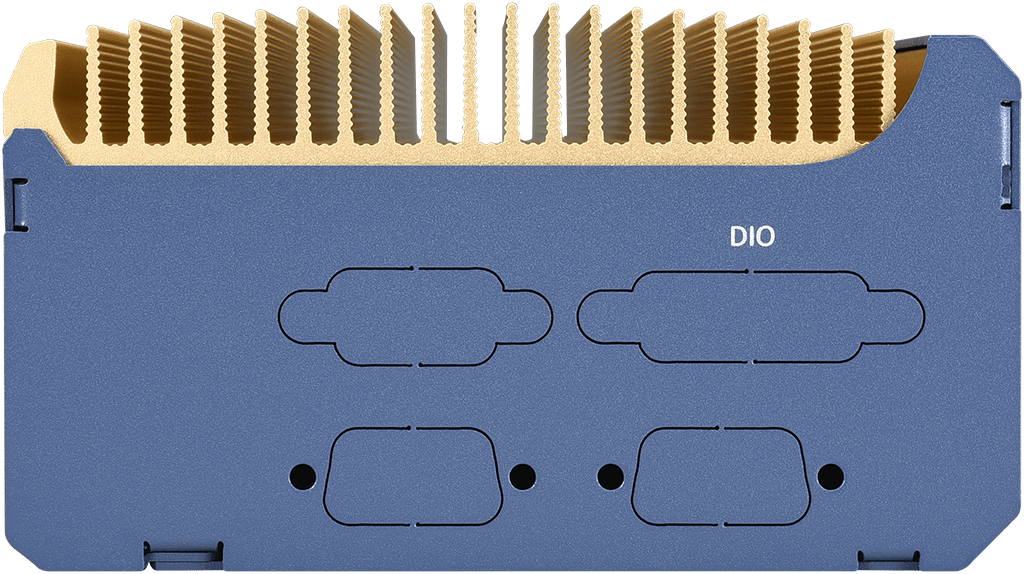

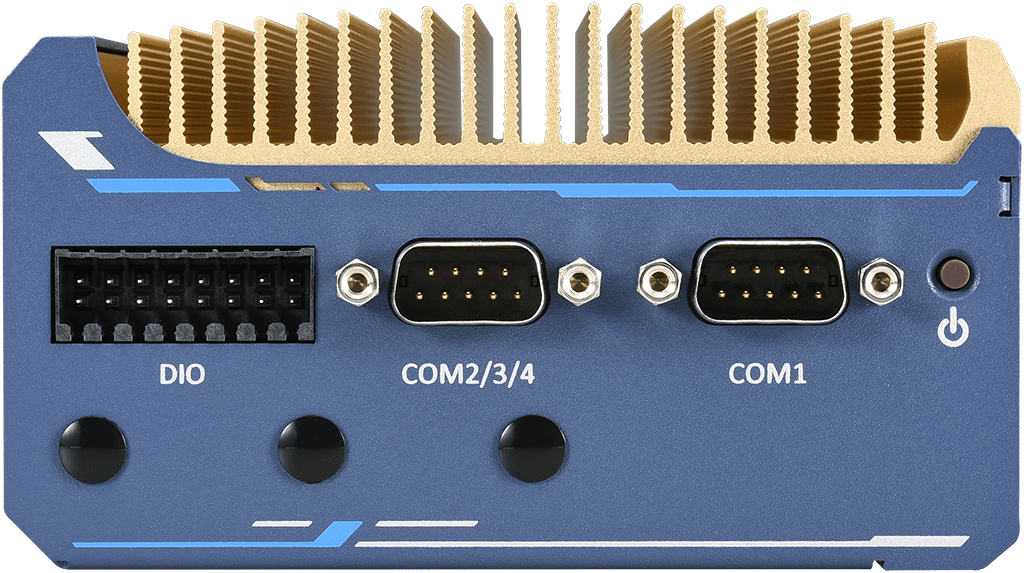

DIO	4-CH isolated DI and 4-CH isolated DO

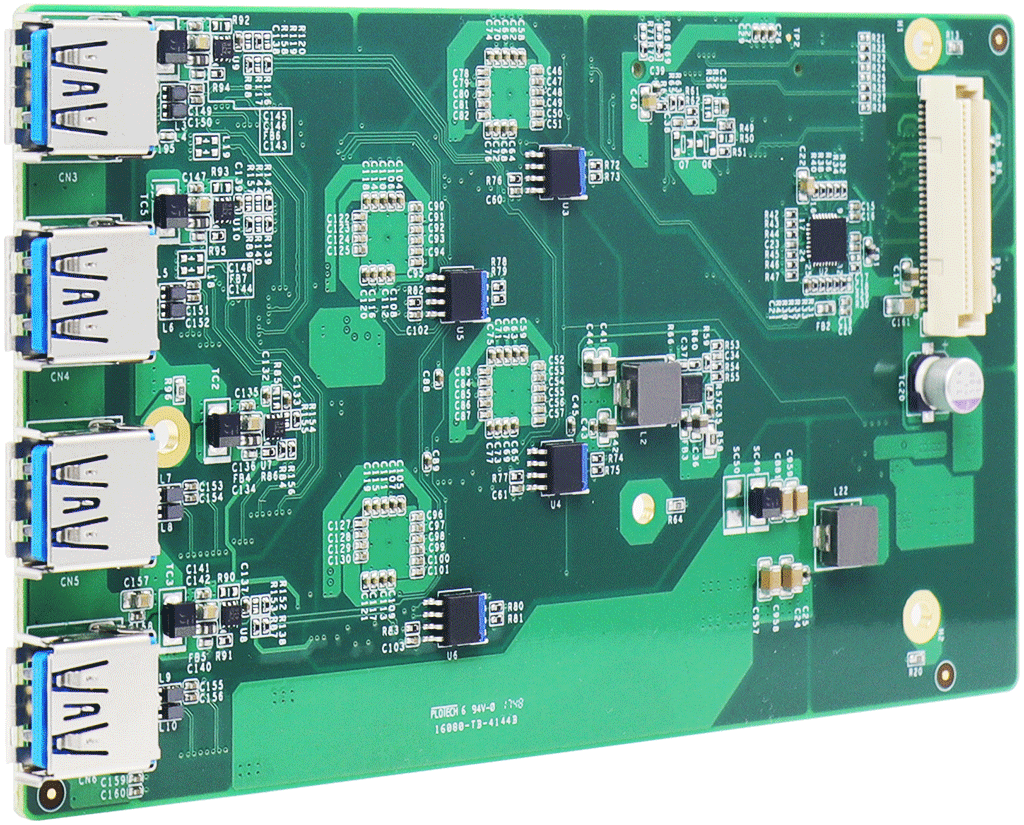

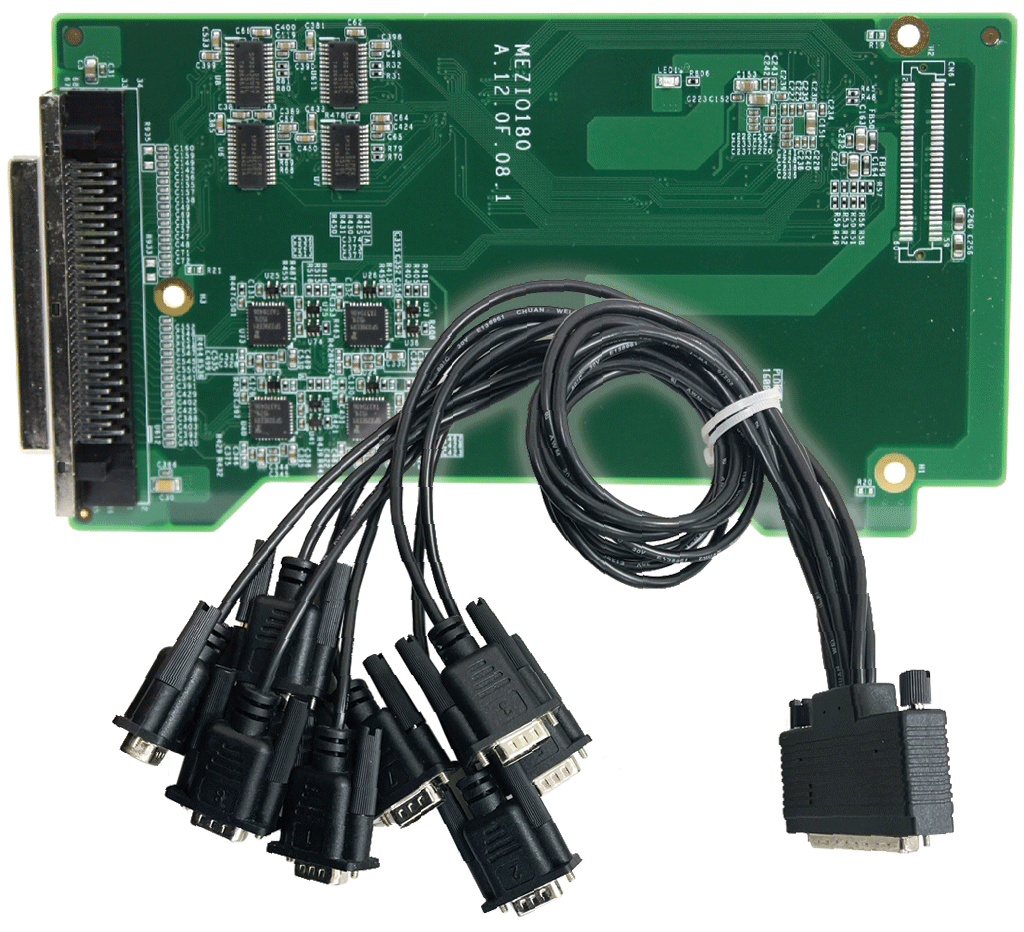

MezIO™-interfaces	1x MezIO® expansion interface for MezIO® modules

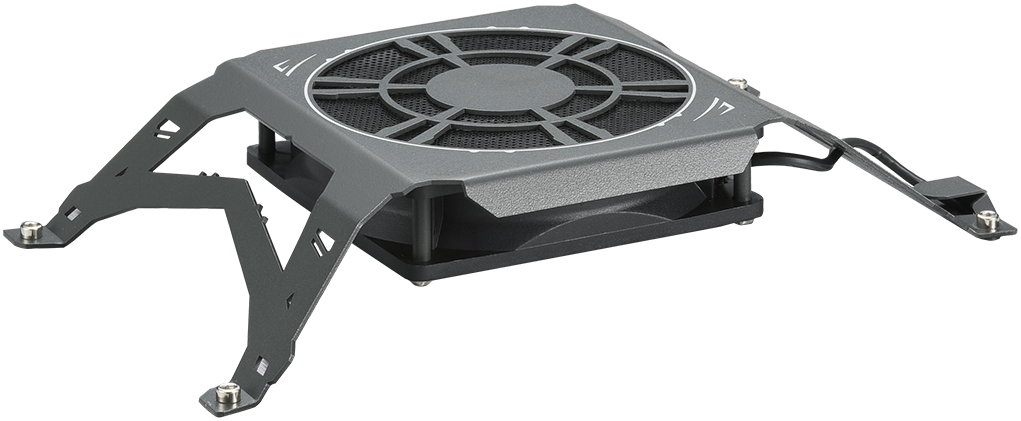

Cooling System	Passive, fanless • option: external-accessible 80mm x 80mm fan for system heat dissipation
Mounting	DIN-rail mount • option: wall-mount
Power input	1x 3-pin pluggable terminal block for 8V to 35V DC input • 1x 3-pin pluggable terminal block for 12 to 35V DC input (UL series)
Power consumption	TBA
Operating system	Option: Windows® 10 • LINUX 64Bit
Operating temperature	-25° to 70°C
Storage temperature	-40° to 85°C
Storage humidity	10% to 90%; non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
Certificate	CE/FCC Class A, according to EN 55032 & EN 55024
Weight / kg	1.2

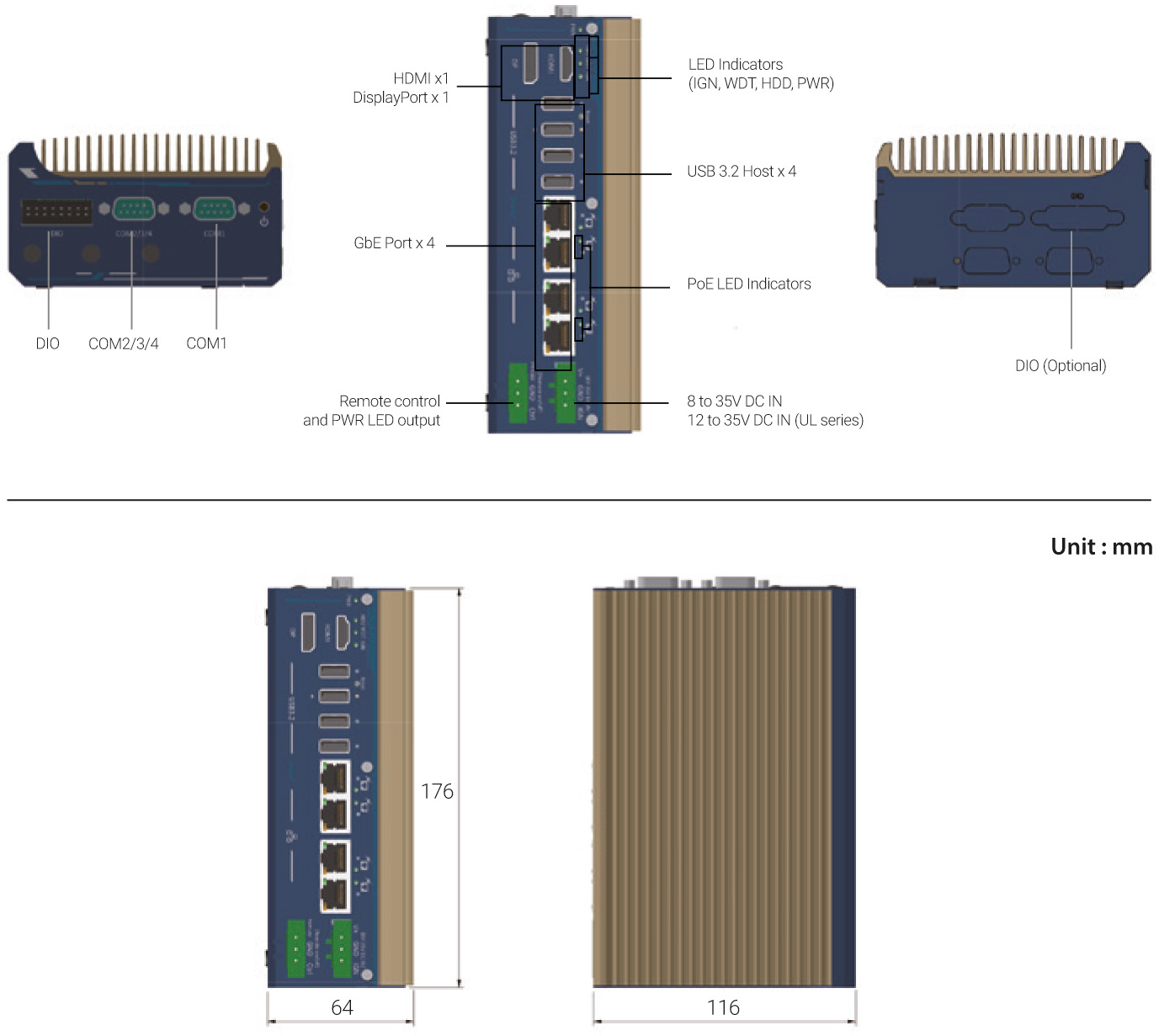

Dimensions / mm	64 x 116 x 176
Scope of delivery	2x 3-pin terminal connector • Driver CD • DIN-rail kit
