GOLUB 451VTC

Ultra-compact in-vehicle computer with PoE+ • Intel® Elkhart Lake Atom® x6425E

GOLUB 451VTC is an ultra-compact in-vehicle computer with E-Mark certificate for in-vehicle applications, such as a mobile gateway, mobile surveillance and passenger information system. Leveraging the Intel® Elkhart Lake Atom® x6425E CPU, it delivers 1.8x the CPU and 2x the GPU performance improvement when compared to the previous generationn,GOLUB 4300.

The Industrial Box-PC GOLUB 451VTC provides multiple M.2 and mPCIe slots to install 4G/5G, WiFi5/6, CAN bus, and edge TPU modules for modern in-vehicle applications. It can therefore extend WiFi and broadband wireless communications as well as provide AI inference functionality inside a compact footprint. To cope with the high-performance modules, GOLUB 451VTC has a dedicated conduction-cooled heat spreader to dissipate the heat generated by M.2/mPCIe modules to maintain optimal system performance in high-temperature environments.

Connectivity-wise, GOLUB 451VTC offers three 2.5GBASE-T Ethernet ports with PoE+ capability for powering PoE PD devices, such as IP and GigE cameras. The ports are backward-compatible with 1000/100 Mbps Ethernet to work with most existing Ethernet devices. The system also provides isolated DIO for sensor/ actuator control and 8V-35V wide range DC input with ignition power control for in-vehicle deployment.

With a significant performance boost, 2.5G PoE+ ports, superior thermal reliability for communication and inference, GOLUB 451VTC is an AI-capable, mobile gateway solution that opens the door to more possibilities for in-vehicle applications.

Key facts	• Intel® Elkhart Lake Atom® x6425E • Up to 32GB DDR4 • Fanless • PoE+, Digital I/O • In-Vehicle Computing
Protection class	IP20
CPU	Intel® Elkhart Lake Atom® x6425E quad-core 2GHz/3GHz, 12W processor
Chipset	Intel® Q370
RAM	Up to 32GB DDR4-3200 SDRAM by one SODIMM socket
Storage interface	2x M.2 2280 M key sockets for SATA SSD

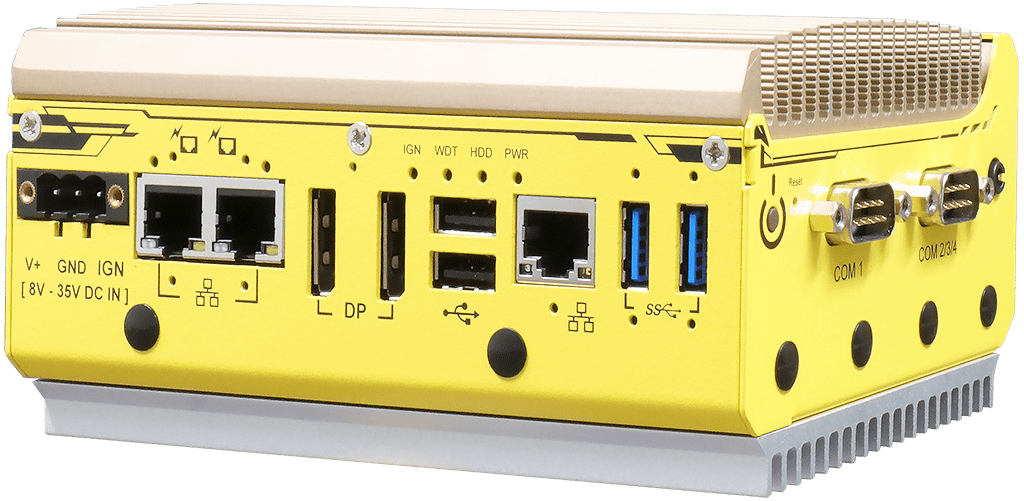

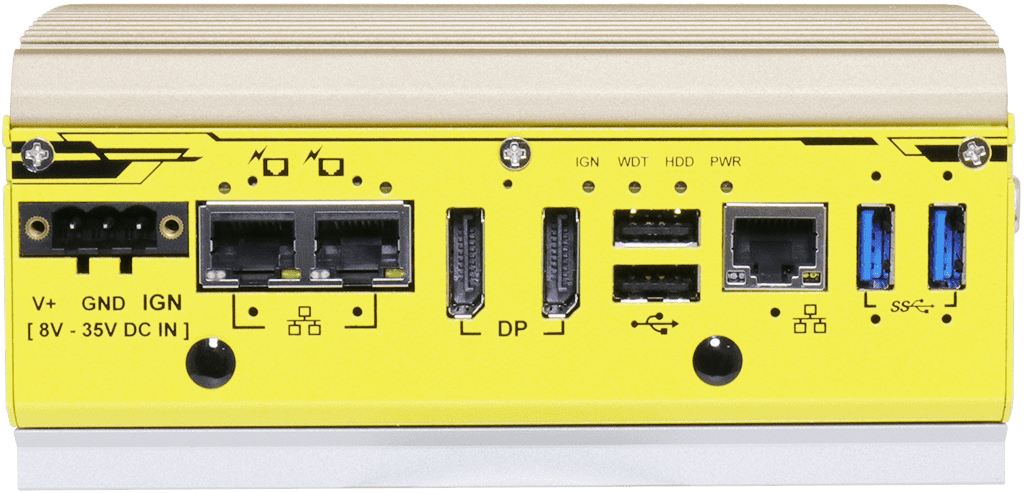

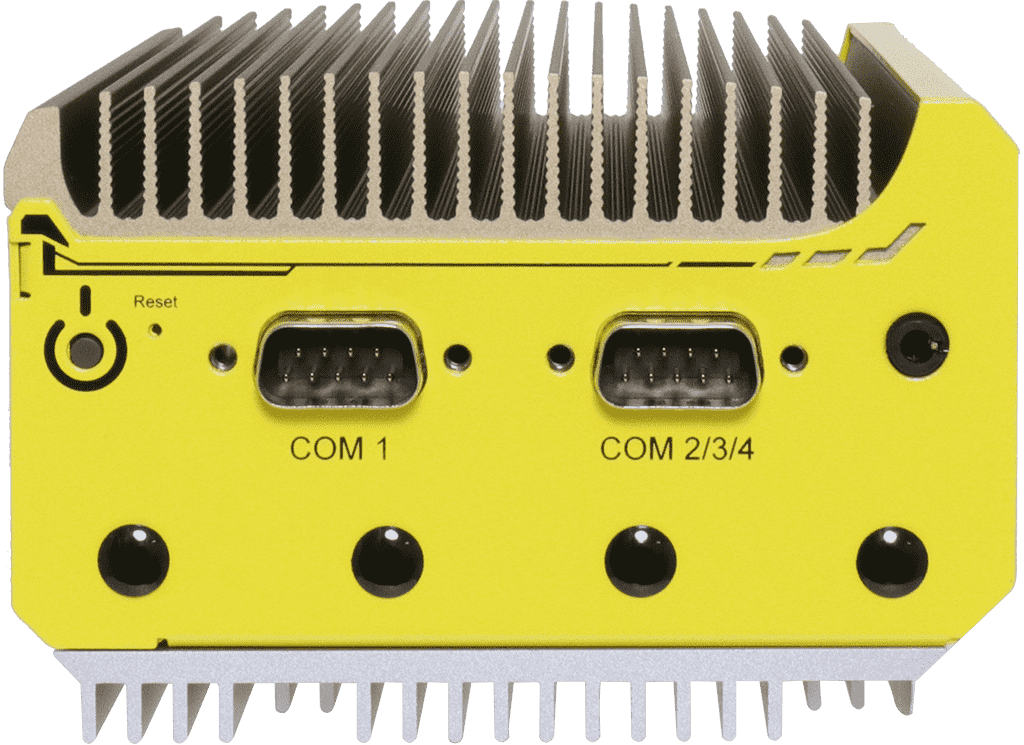

Ports	3x 2.5GBASE-T Ethernet ports by Intel® i226-IT GbE controllers; IEEE 802.3at PoE+ on port #2 and #3 • 2x DisplayPort connector, supporting 4096 x 2160 resolution @ 60Hz • 2x USB 3.1 Gen1 (5 Gbps) • 2x USB 2.0 ports • 1x software-programmable RS-232/422/485 ports (COM1) • 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2) • Option: 1x 3.5 mm jack for mic-in and speaker-out
PCI / PCIe / mini-PCIe	2x M.2 2230 E key socket for WiFi or Google edge TPU • 1x M.2 2242/ 3052 B key socket for 4G/5G module with dual SIM support • 1x full-size mini-PCIe socket (USB2 signal only)

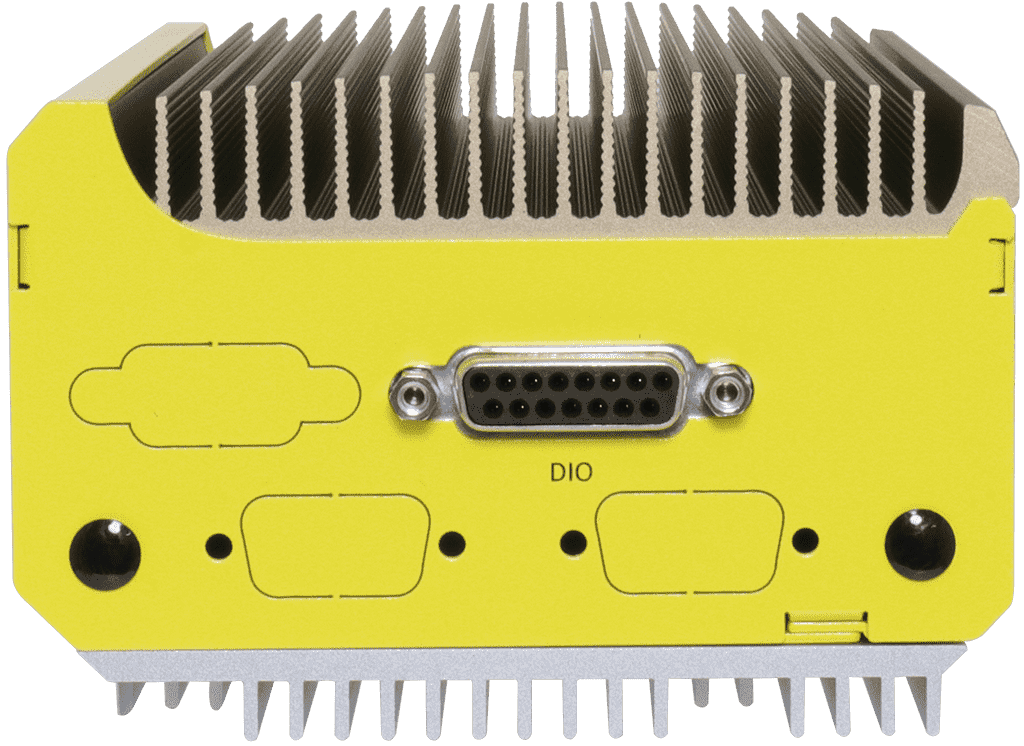

DIO	4x isolated DI and 4x isolated DO
Cooling System	Passive, fanless

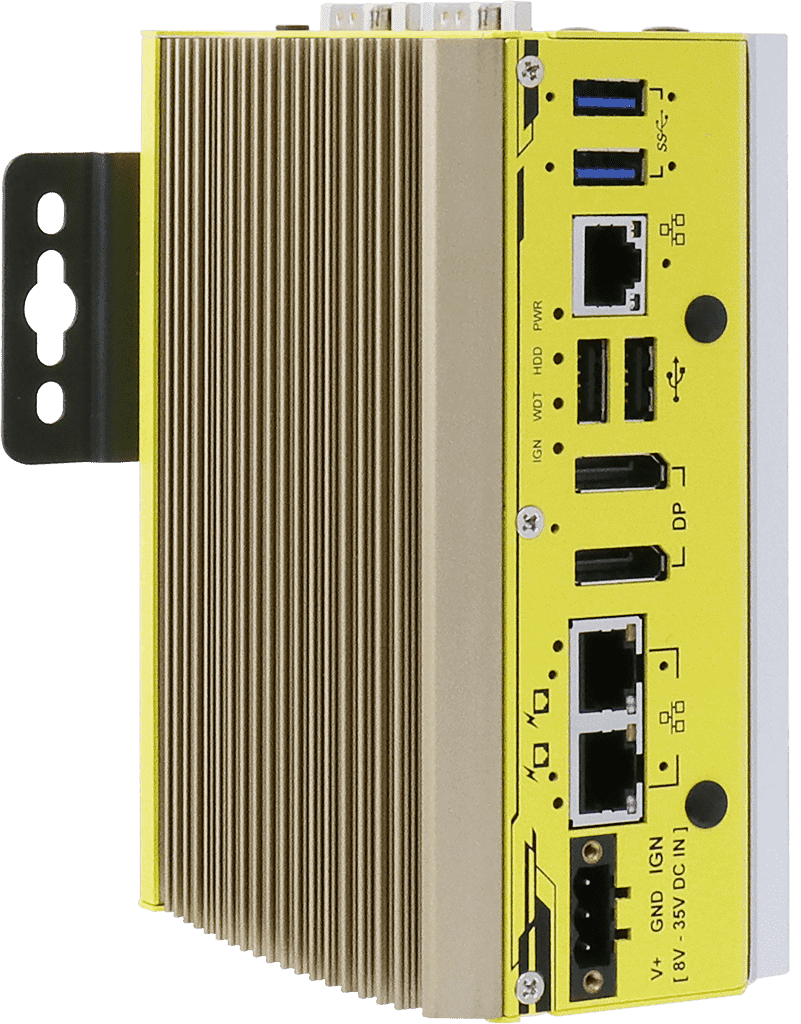

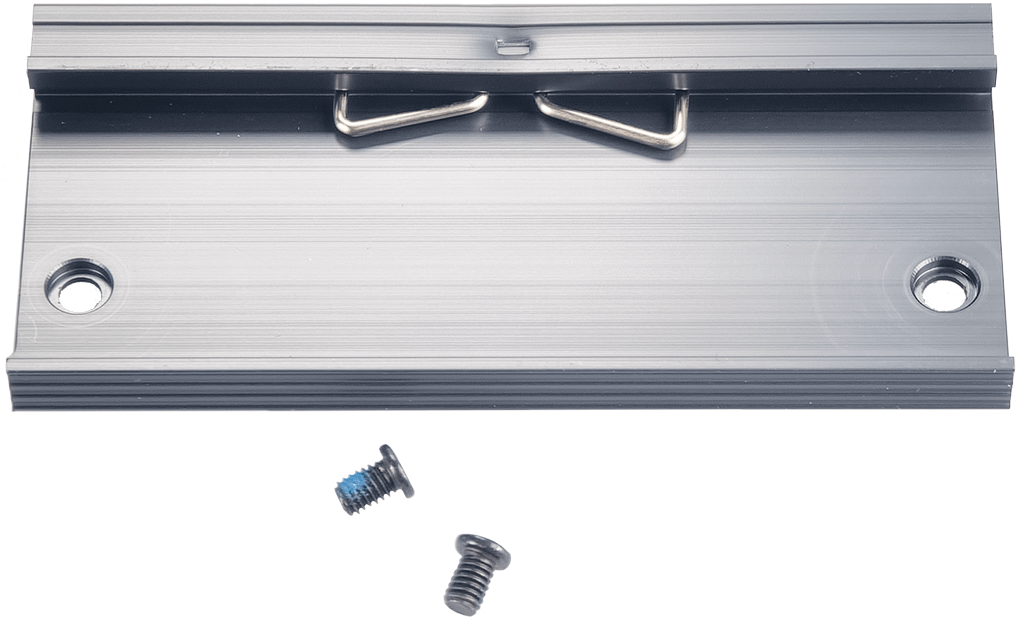

Mounting	Vertical-type wall-mount • option: DIN-rail mount
Power input	1x 3-pin pluggable terminal block for 8V to 35V DC input with built-in ignition power control (IGN/GND/V+)
Power consumption	TBA
Operating system	Option: Windows® 10 • LINUX 64Bit
Operating temperature	-25°C to 70°C
Storage temperature	-40° to 85°C
Storage humidity	10% to 90%; non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
Certificate	E-Mark; CE/FCC Class A, according to EN 55032 & EN 55035
Weight / kg	0.96

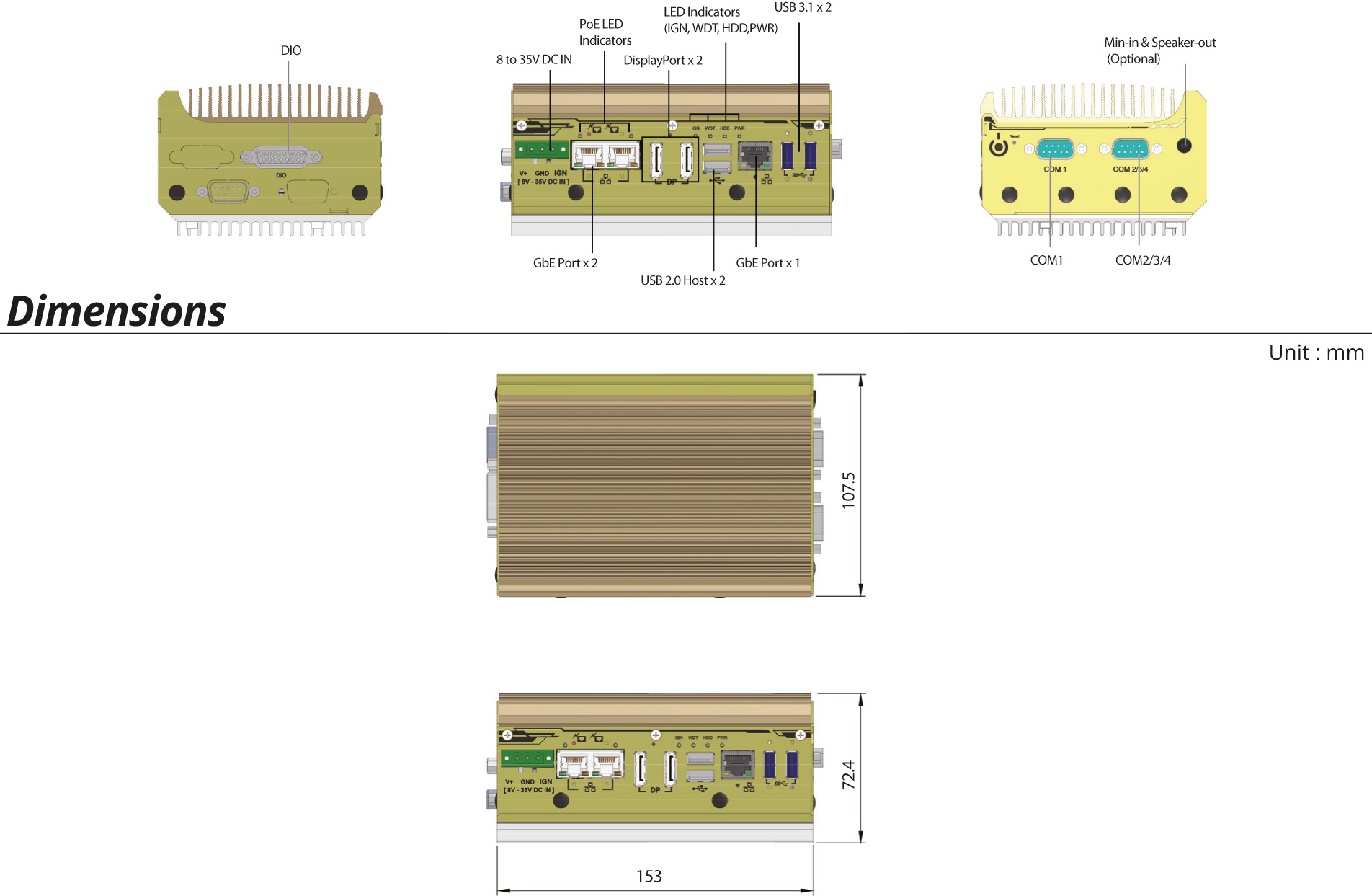

Dimensions / mm	153 x 108 x 72
Scope of delivery	3-pin terminal connector • driver CD • wall-mount kit
