GOLUB 4515, AMD Ryzen™ V1605B [4x GigE w/PoE+, MezIO®]

Ultra-compact Rugged PC with PoE+ • AMD Ryzen™ V1605B

GOLUB 45x5 series is the next generation ultra-compact embedded controller offering performances never-seen-before in this form factor. Featuring AMD Ryzen™ Embedded V1605B/ V1807B 4-core/ 8-thread processor, it delivers up to 3x times the CPU performance over previous GOLUB series. GPU performance wise, it delivers an unheard of 3.6 TFLOPS in FP16 for an ultra-compact form factor embedded controller. Another amazing feat is that it manages to incorporate an M.2 2280 NVMe SSD (PCIe Gen3 x2) to support 2x times the disk read/ write speed over typical 2.5“ SATA SSDs.

The Industrial Box-PC GOLUB 45x5 continues the GOLUB series ingenious DIN-rail mounting mechanical design and offers plenty of front-accessible I/Os. Measuring just 63 x 176 x 116 mm (2.5“ x 6.9“ x 4.6“), it has 4x PoE+ ports, 4x USB 3.1 Gen1 ports and 4x COM ports. And best of all, all data ports come with screw-lock mechanism so you can be rest assured that cables are always secured. GOLUB 45x5 series is available in two CPU variants, the V1807B (45W) variant is for high computing power demand and the V1605B (15W) variant is designed for rugged fanless operation.

The arrival of GOLUB 45x5 series signifies a new breed of ultra-compact embedded controller; one with better I/O design, extraordinary ruggedness and significantly more CPU/ GPU oomph for versatile applications.

Key facts	• AMD Ryzen™ V1605B/V1807B • Up to 32GB DDR4 • PoE+, I/O Expansion slot • Optional: Digital I/O
Protection class	IP20
CPU	AMD Ryzen™ V1605B, 4x 2GHz/3.6GHz (GOLUB 4515) • AMD Ryzen™ V1807B, 4x 3.35GHz/3.8GHz (GOLUB 4545)
Chipset	SoC
RAM	Up to 32GB DDR4-2400 SDRAM by one SODIMM socket
Storage interface	1x M.2 2280 M key NVMe socket (PCIe Gen3 x2) for NVMe SSD installation
Ports	4x IEEE 802.3at Gigabit PoE+, Intel® I350-AM4 • 4x USB 3.1 Gen1 (5 Gbps), with screw-lock • 1x software-programmable RS-232/ 422/ 485 ports (COM1) • 3x 3-wire RS-232 ports (COM2/ 3/ 4) or 1x RS-422/ 485 port (COM2) • 1x VGA, supporting 1920 x 1200 resolution • 1x DisplayPort, supporting 4096 x 2160 resolution • 1x 3.5mm jack for mic-in and speaker-out
PCI / PCIe / mini-PCIe	1x full-size mini-PCIe socket with internal SIM socket • 1x MezIO® expansion interface for MezIO® modules • 1x M.2 2280 M key NVMe socket (PCIe Gen3 x2) for NVMe SSD installation
Cooling System	Passive, fanless

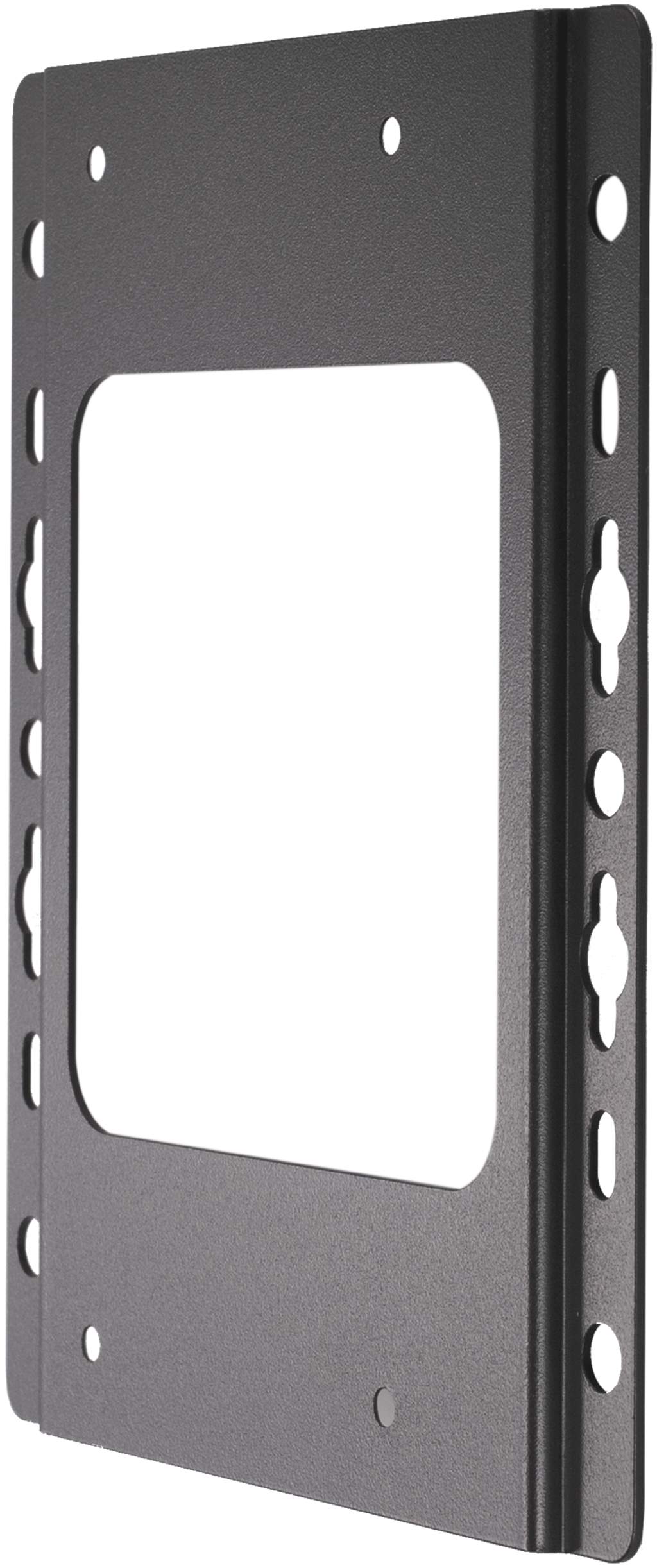

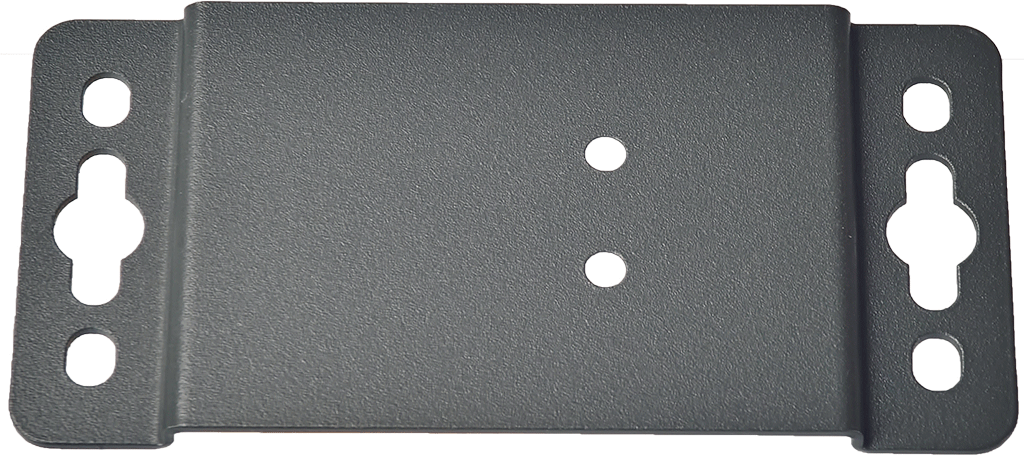

Mounting	DIN rail mounting • option: wall mounting
Power input	1x 3-poliger steckbarer Klemmenblock für 8V bis 35VDC DC-Eingang • 1x 3-poliger steckbarer Klemmenblock für Fernsteuerung und PWR-LED-Ausgang
Power consumption	AMD Ryzen™ V1605B, 4GB RAM and 1x SSD: max. ca. 20W (GOLUB 4515) • AMD Ryzen™ V1807B, 4GB RAM und 1x SSD: max. ca. 20W (GOLUB 4545)
Operating system	Windows® 10 • Ubuntu 18.04.1 LTS (4.10 kernel)
Operating temperature	-25° to 70°C
Storage temperature	-40° to 85°C
Storage humidity	10% to 90%, non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
Certificate	CE/ FCC Class A, according to EN 55032 & EN 55024
Weight / kg	1.2 (GOLUB 4515) • 1.4 (GOLUB 4545)
Dimensions / mm	64.4 x 115.5 x 175.8 (GOLUB 4515) • 81.7 x 117.9 x 175.8 (GOLUB 4545)
Scope of delivery	2x 3-pin terminal connector • DIN rail mounting kit • Driver CD
