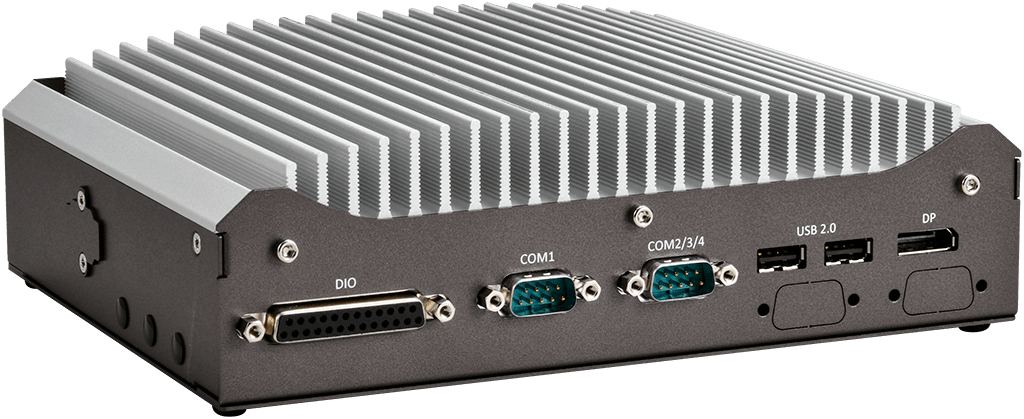

GOLUB 11531 | Barebone [4x 2.5GigE]

Fanless Industrial-PC with low-profile chassis • Intel® Core™ Ultra 200 series

The GOLUB 11500 is one of the most compact fanless embedded AI computers powered by the Intel® Core™ Ultra 200 series. Its low-profile 212 x 165 x 63 mm footprint makes it ideal for constrained spaces, including robotic arms, AMRs, machine vision systems, and roadside cabinets.

Despite its compact size, the GOLUB 11500 does not compromise on performance. Leveraging TSMC’s advanced 3nm process, Intel® Core™ Ultra 200 processors can offer nearly 120% the performance while consuming only 80% of the power. Furthermore, with the new NPU and integrated GPU, Intel® Core™ Ultra 200 processors deliver up to 36 TOPS, enhancing AI inspection capabilities for existing rule-based computer vision algorithms.

Designed for diverse edge applications—such as machine vision, AMRs, and smart automation—the GOLUB 11500 offers versatile sensor connections. It features four PoE+ 2.5GbE ports and four USB 3.2 Gen1 ports for industrial/ security cameras or LiDAR, along with multiple isolated DIO and dual COM ports for communication with external devices. Internally, it includes one M.2 E-key slot for Wi-Fi modules and two mPCIe slots for flexible I/O expansion, supporting 5G/4G modules, COM ports, CAN bus, or additional GbE ports. For data storage, it provides an internal Gen4x4 M.2 NVMe slot for the OS and an easy-swappable 2.5“ SSD tray for data logging. The wide DC input and optional ignition power control are ideal for battery-powered applications, such as robotics and in-vehicle usage.

As compact embedded computers, the GOLUB 11500 deliver exceptional computing performance and extensive I/O connectivity. They are well-suited for various industrial and edge applications, including smart factories, autonomous logistics, smart cities, and robotics—particularly where installation space is limited.

Key facts	• Supports Intel® Core™ Ultra 200 series • Max. 64GB DDR5 • Digital I/O • Option: PoE+, Ignition Power Control • Fanless
Protection class	IP20
CPU	Supports Intel® Core™ Ultra 200 series CPU (LGA 1851 socket), 35W and 65W TDP
Chipset	Intel® H810 platform controller hub
RAM	Up to 64GB DDR5 6400 memory via one SODIMM slot

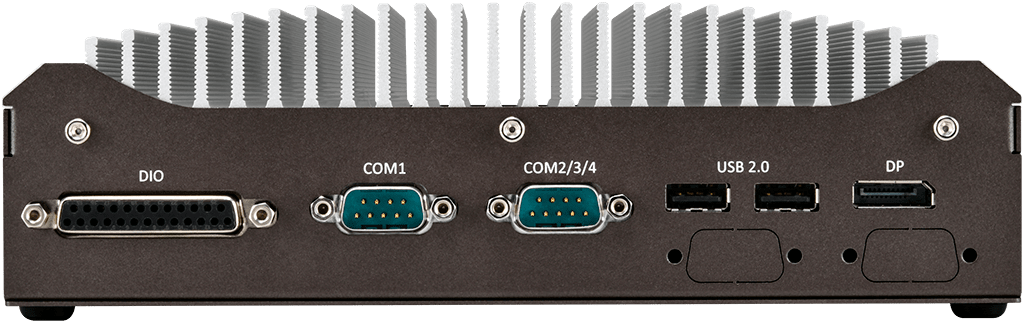

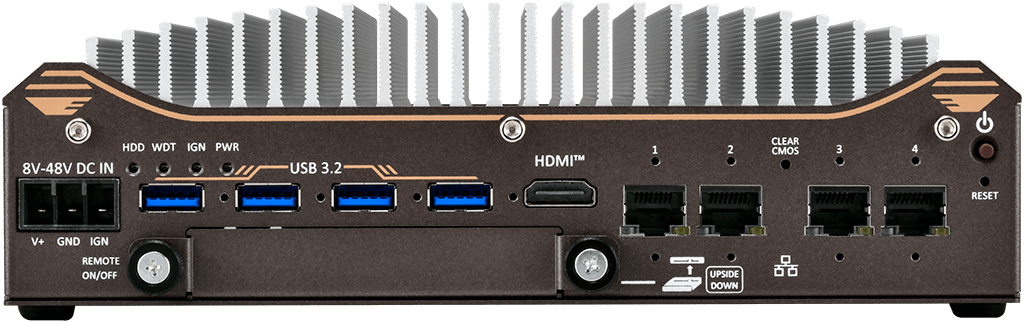

Storage interface	4x 2.5GBASE-T Ethernet ports with screw-lock by Intel® I226 GbE controllers.Port 4 supports Wake-on-LAN (WOL) • Optional IEEE 802.3at PoE+ PSE for 4x 2.5GbE ports (100W total power budget) • 4x USB 3.2 Gen1 (5 Gbps) ports with screw-lock • 2x USB 2.0 ports • 1x HDMI, supporting 3840 x 2160 resolution • 1x DisplayPort, supporting 3840 x 2160 resolution. (The DisplayPort does not support DP++. Use an active DP-to-HDMI adapter for HDMI output.) • 1x software-programmable RS-232/422/485 ports (COM1) • 3x 3-wire RS-232 ports (COM2/ 3/ 4) or 1x RS-422/ 485 port (COM2)
Ports	1x easy-swappable 2.5" HDD/ SSD tray for 7mm HDD/ SSD • 1x M.2 2280 M key socket (PCIe Gen4x4) for NVMe SSD
PCI / PCIe / mini-PCIe	2x full-size mini-PCI Express sockets with internal SIM sockets • 1x M.2 2230 E key socket for WiFi module
DIO	4-CH isolated DI and 4-CH isolated DO

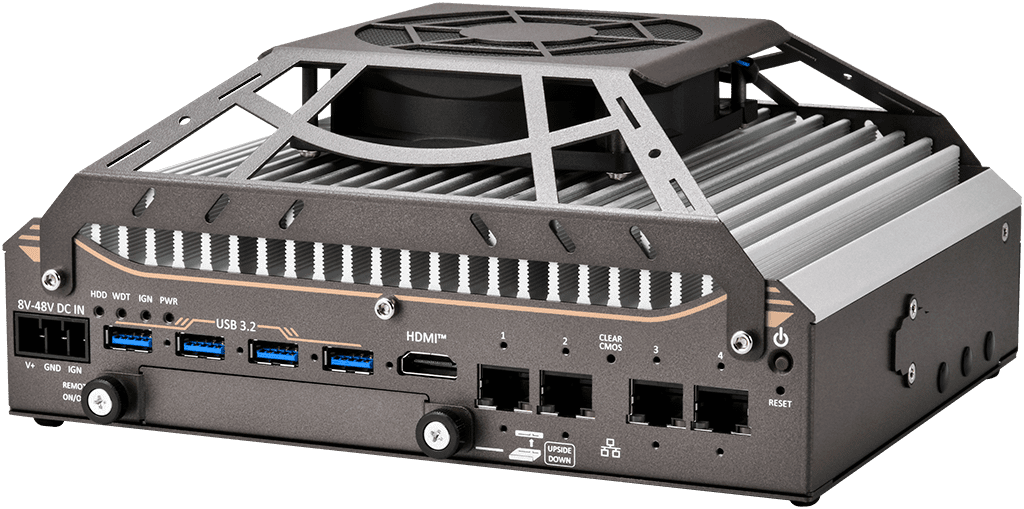

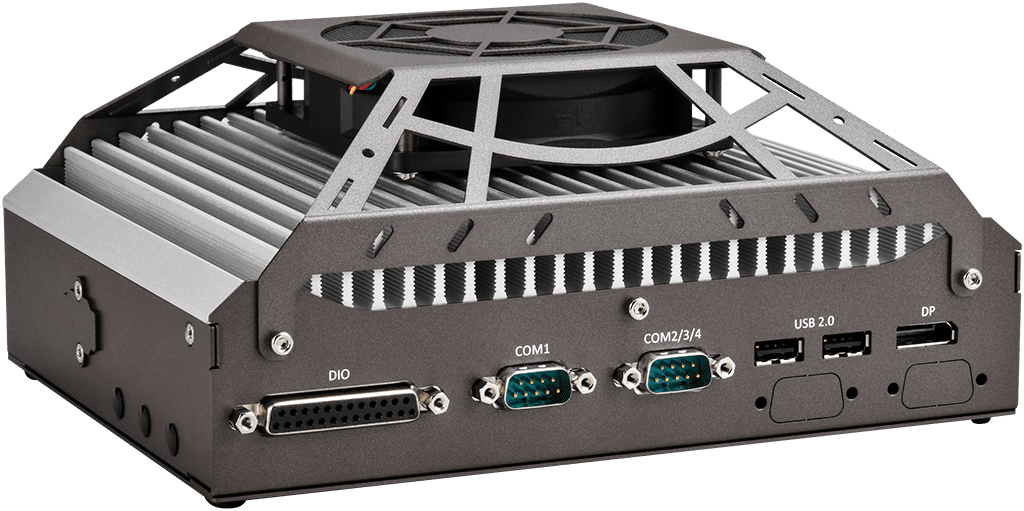

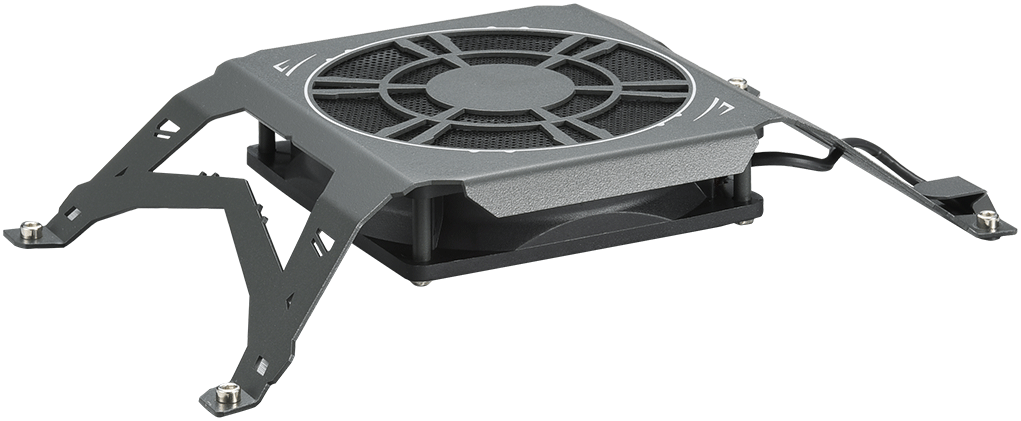

Cooling System	Passive, fanless; optional: fan kit
Mounting	Wall-mount • DIN-rail mount
Power input	1x 3-pin pluggable terminal block for 8V to 48V DC input with optional ignition powercontrol
Operating system	Option: Windows® 11 • LINUX 64Bit
Operating temperature	With 35W CPU -25°C to 60°C • With 65W CPU (installation of the optional fan kit is recommended) -25°C to 60°C
Storage temperature	-40° to 85°C
Storage humidity	10% to 90%; non-condensing
Vibration	MIL-STD-810H, Method 514.8, Category 4
Shock	MIL-STD-810H, Method 516.8, Procedure I
Certificate	CE/ FCC Class A, according to EN 55032 & EN 55035
Weight / kg	2.2 (excluding wall mount kits)

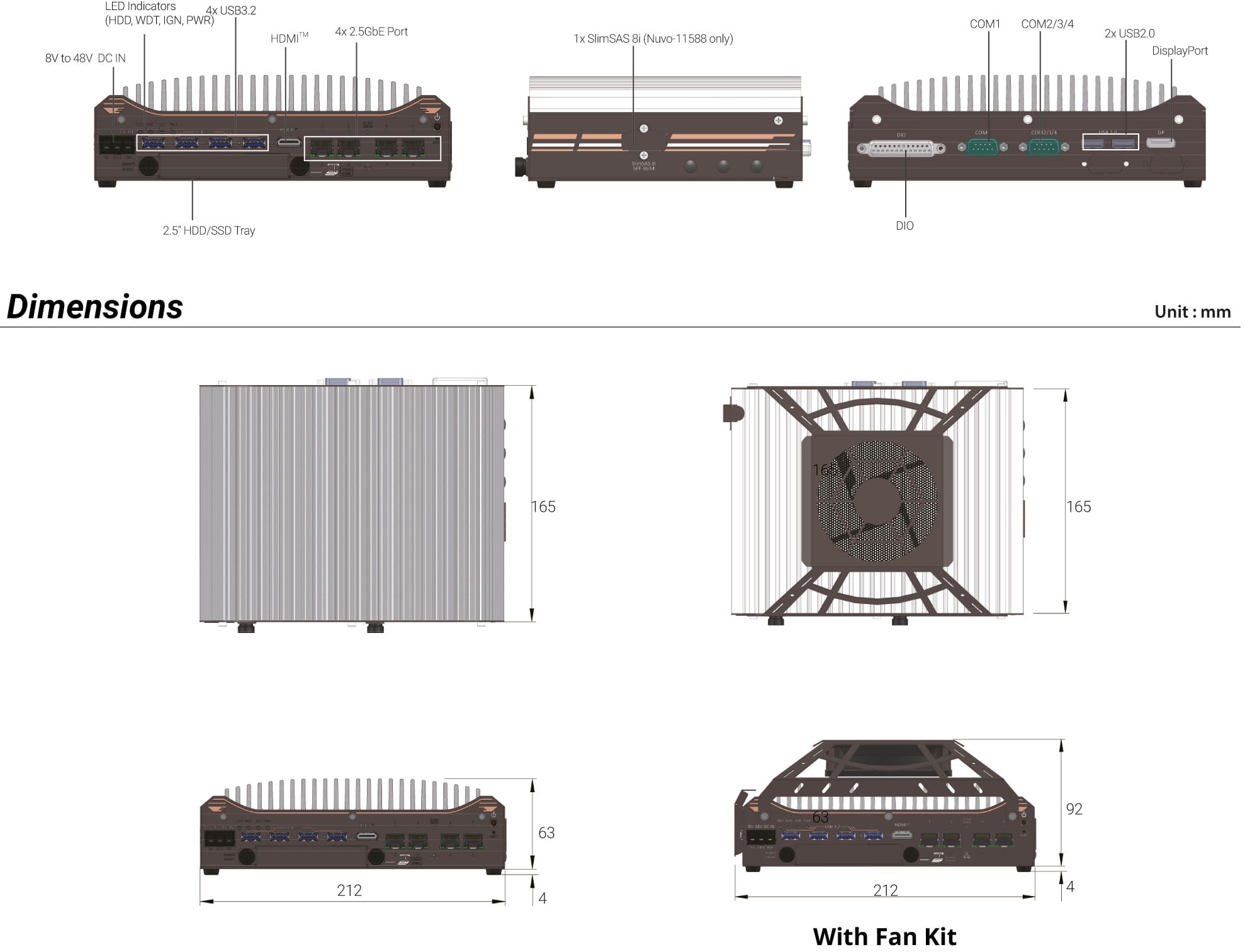

Dimensions / mm	212 x 165 x 63
Scope of delivery	Accessory Kit • DVI to VGA Adapter • Wall Mount Kit • Utility DVD Driver
