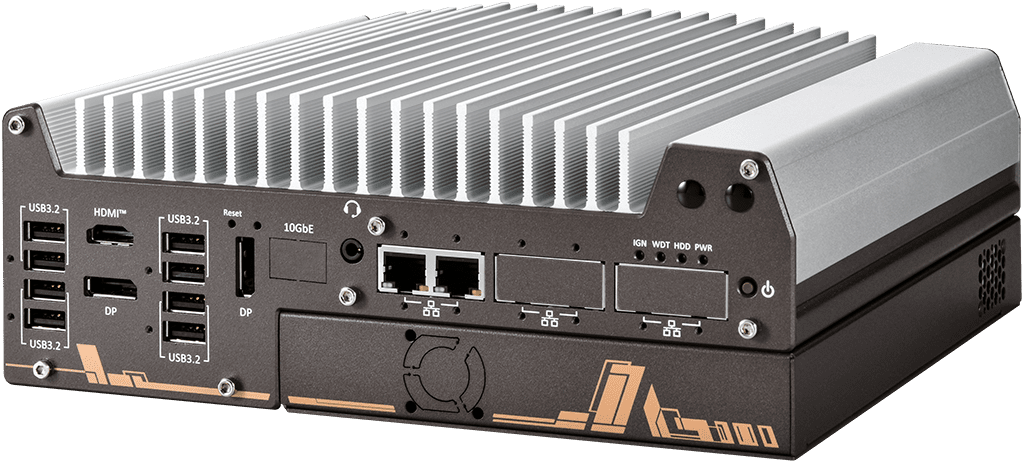

GOLUB 11002E | Barebone [PCIe, 1x 2.5GigE, 1x GigE]

High-Performance Rugged PC with PCIe • Intel® Core™ Ultra 200 series

GOLUB 11000E series is the flagship rugged embedded computer built on the Intel® Core™ Ultra 200 series platform. Powered by TSMC's advanced 3nm photolithography, the latest Core™ Ultra 200 processors offer up to 24 cores/ 24 threads with higher CPU clock rates, and an integrated neural processing unit (NPU) for AI acceleration. This results in a 1.2x boost in CPU performance and AI computing capabilities of up to 36 TOPs. Combined with DDR5-6400 memory and PCIe Gen5 support, it delivers a significant improvement in computing power, enhancing performance across diverse industrial applications.

GOLUB 11000E series provides comprehensive I/O capabilities for industrial applications. It includes five 2.5Gb and a 1Gb Ethernet ports with optional PoE+ capability, one optional 10GbE port for high-speed data transfer or 10Gb industrial camera, and eight USB 3.2 Gen2 ports for USB3 cameras. Additionally, an upgraded M.2 Gen5x4 slot supports the latest NVMe SSDs, achieving read/ write speeds over 11,000 MB/s and the system also features 4x isolated DI and 4x isolated DO for automation and machine vision applications.

For extended functionality, the series supports add-on cards via its expansion Cassette, proprietary MezIO® interface, and internal mini-PCIe slots, ensuring adaptability to diverse application requirements.

The advanced Intel® Core™ Ultra 200 processors also bring better energy efficiency to the 11000E platform. Compared to the previous generation, they can deliver nearly 120% the performance while consuming only 80% of the power*. Combing a proven thermal design with versatile I/O functions, GOLUB 11000E offers a rugged, high-performance embedded computing solution tailored for a wide range of industrial applications.

* Benchmarked using PassMark PerformanceTest.

Key facts	• Supports Intel® Core™ Ultra 200 series • Max. 128GB DDR5 • dTPM 2.0 • PCIe slot, Digital I/O • Option: PoE+, 10GigE • Fanless
Protection class	IP20
CPU	Supports Intel® Core™ Ultra 200 series CPU (LGA 1851 socket), 35W and 65W TDP
Chipset	Intel® H810 (GOLUB 11002E) / Intel® Q870 (GOLUB 11006E) Platform Controller Hub
RAM	Up to 128GB non-ECC DDR5 6400 SDRAM (Dual SODIMM slots)

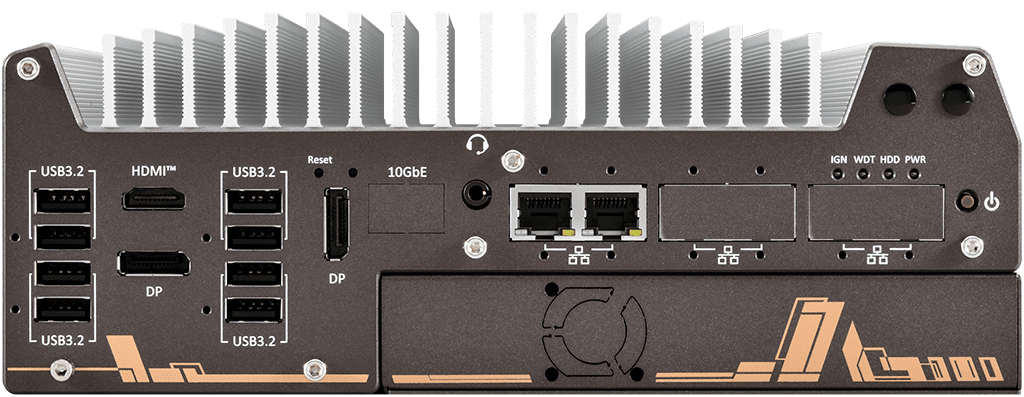

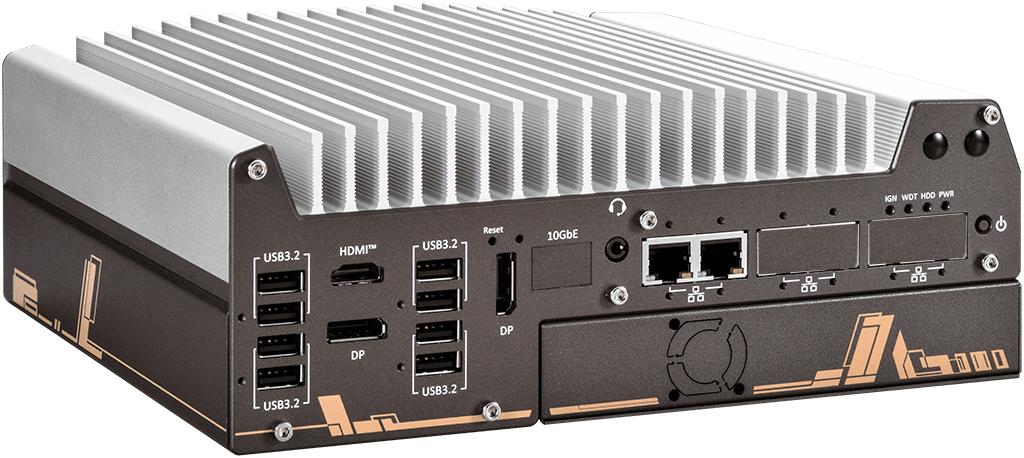

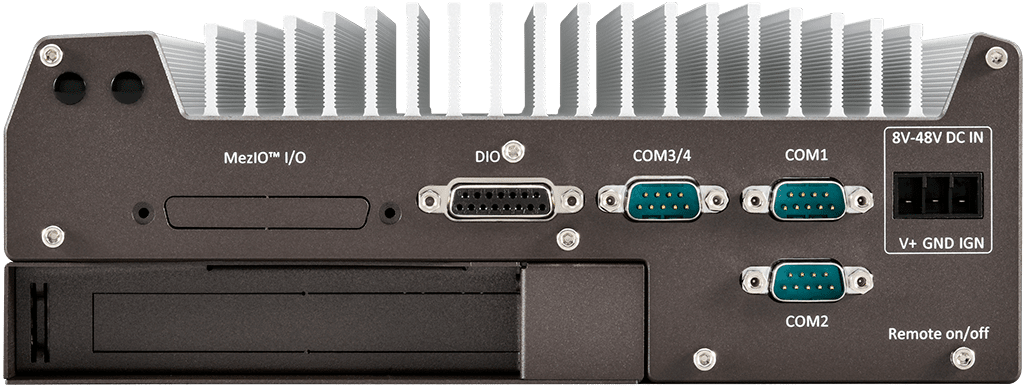

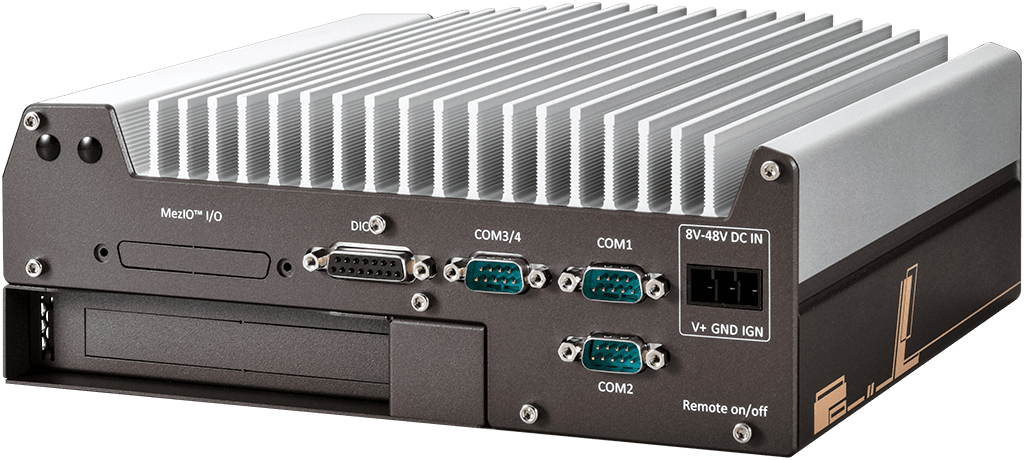

Storage interface	1x 2.5G Ethernet by I226-IT and 1x Gigabit Ethernet by I219-LM with screw-lock • 5x 2.5G Ethernet by I226-IT and 1x Gigabit Ethernet by I219-LM with screw-lock • 1x optional 10GBASE-T Ethernet • Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 100W total power budget • 8x USB 3.2 Gen2 ports • 2x USB 3.2 Gen2, 2x USB3.2 Gen1 and 4x USB2.0 ports • 2x software-programmable RS-232/ 422/ 485 ports (COM1/ 2) • 2x 3-wire RS-232 ports (COM3/ 4) • 1x HDMI™, supporting 3840 x 2160 resolution • 2x DisplayPort, supporting 3840 x 2160 resolution • 1x 3.5 mm jack for mic-in and speaker-out
Ports	1x M.2 2280 M key NVMe socket (PCIe Gen5x4) for NVMe SSD • 2x internal SATA port for 2.5” HDD/ SSD installation, supporting RAID 0/ 1
PCI / PCIe / mini-PCIe	1x PCIe x16 slot@Gen4, 16-lanes PCIe signals in Cassette for installingan NVIDIA® graphics card up to 145W TDP • 2x full-size mini-PCI Express socke • 1x USB 2.0 port with Type-A connector, internal
DIO	4-CH isolated DI and 4-CH isolated DO

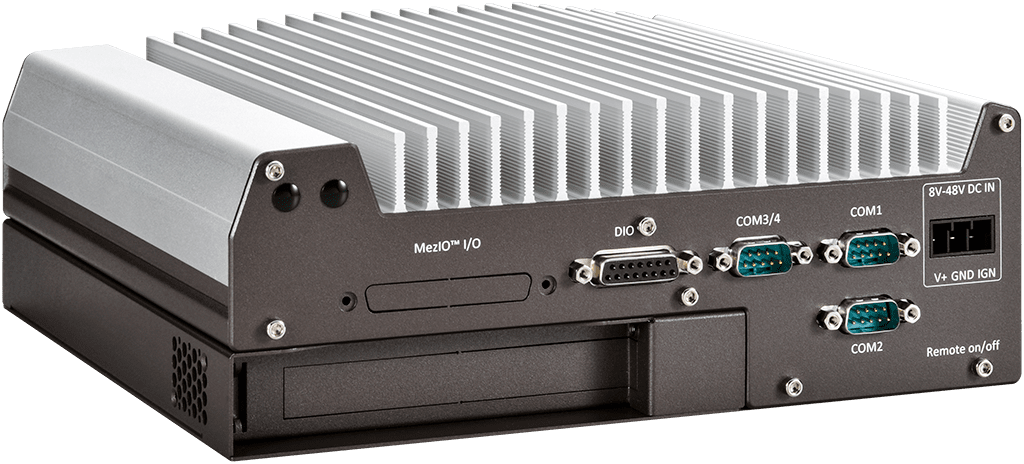

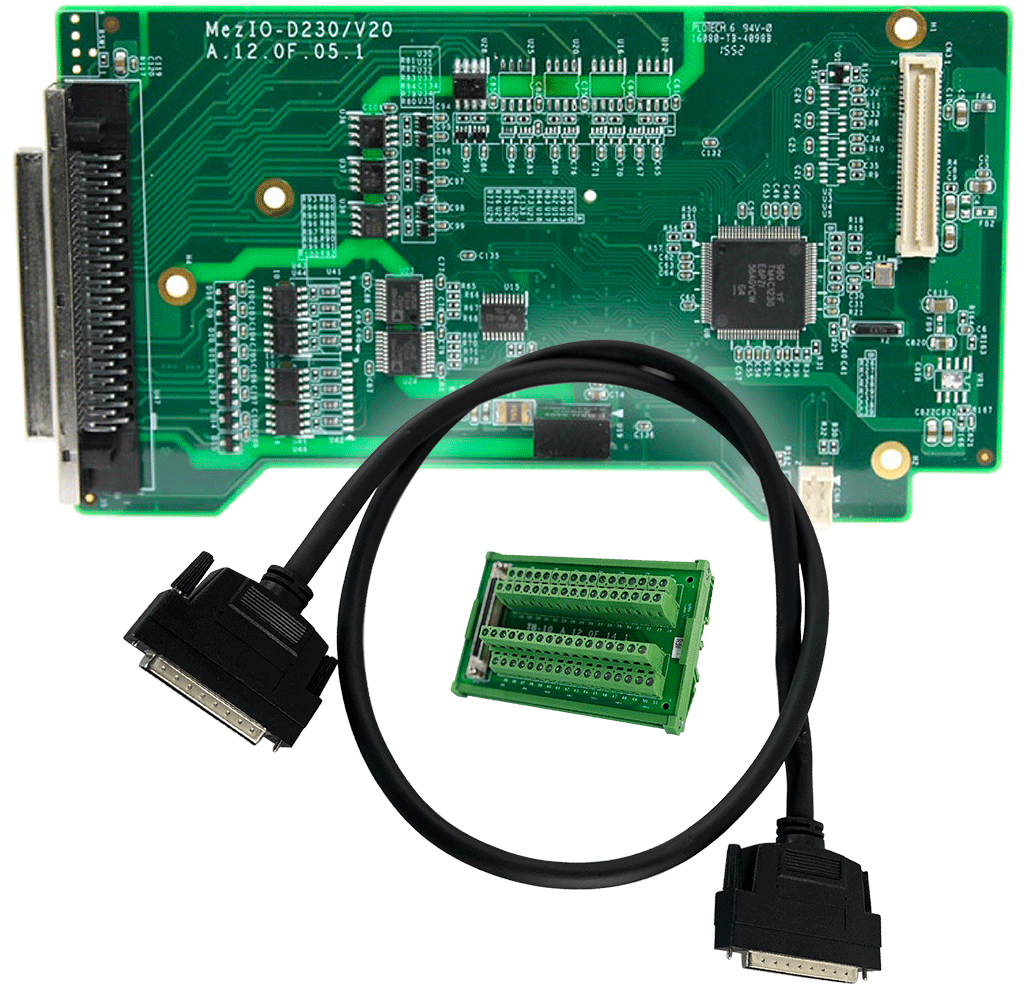

MezIO™-interfaces	1x MezIO® expansion port
Cooling System	Passive, fanless
Mounting	Wall-mount • DIN-rail mount
Power input	1x 3-pin pluggable terminal block for 8V to 48VDC DC input with optional ignition power control • 1x 10-pin (2x5) wafer connector for remote on/off control and status LED output
Operating system	Option: Windows® 11 • LINUX 64Bit
Operating temperature	With 35W CPU -25°C to 70°C • With 65W CPU -25°C to 70°C (configured as 35W TDP); -25°C to 50°C (configured as 65W TDP)
Storage temperature	-40° to 85°C
Storage humidity	10% to 90%; non-condensing
Vibration	MIL-STD-810H, Method 514.8, Category 4
Shock	MIL-STD-810H, Method 516.8, Procedure I
Certificate	CE/ FCC Class A, according to EN 55032 & EN 55035
Weight / kg	3.58

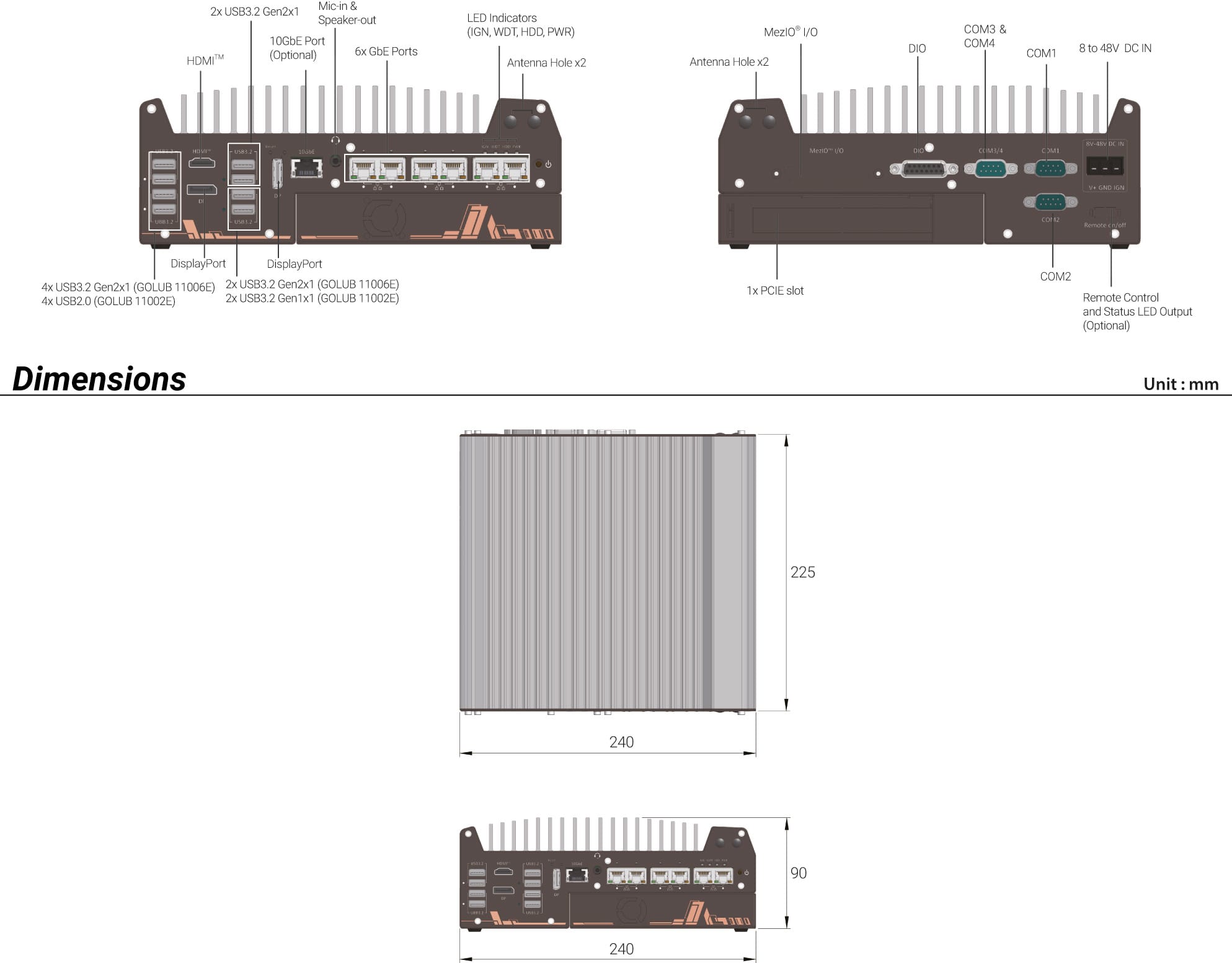

Dimensions / mm	240 x 225 x 90
Scope of delivery	Accessory Kit • DVI to VGA Adapter • Wall Mount Kit • Utility DVD Driver Accessory Kit • DVI to VGA Adapter • Wall Mount Kit • Utility DVD Driver
