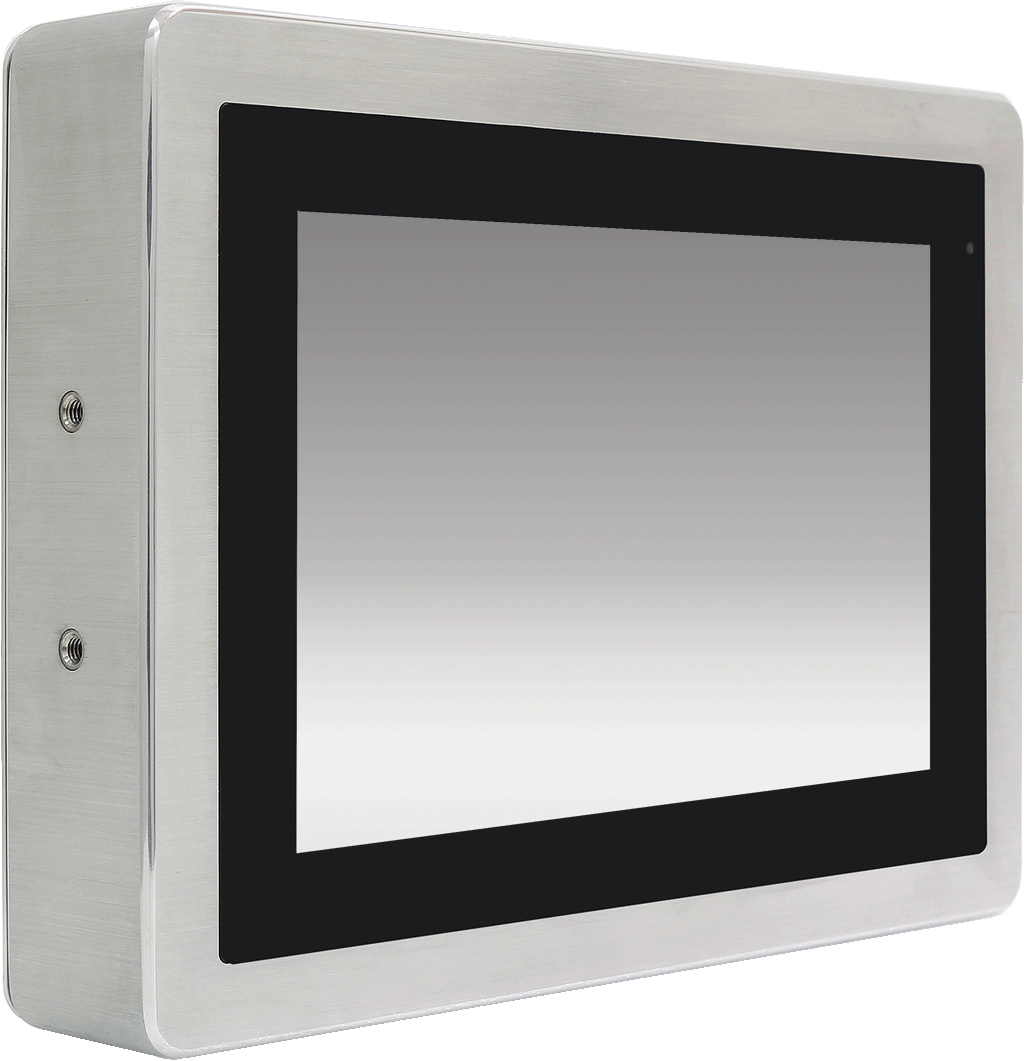

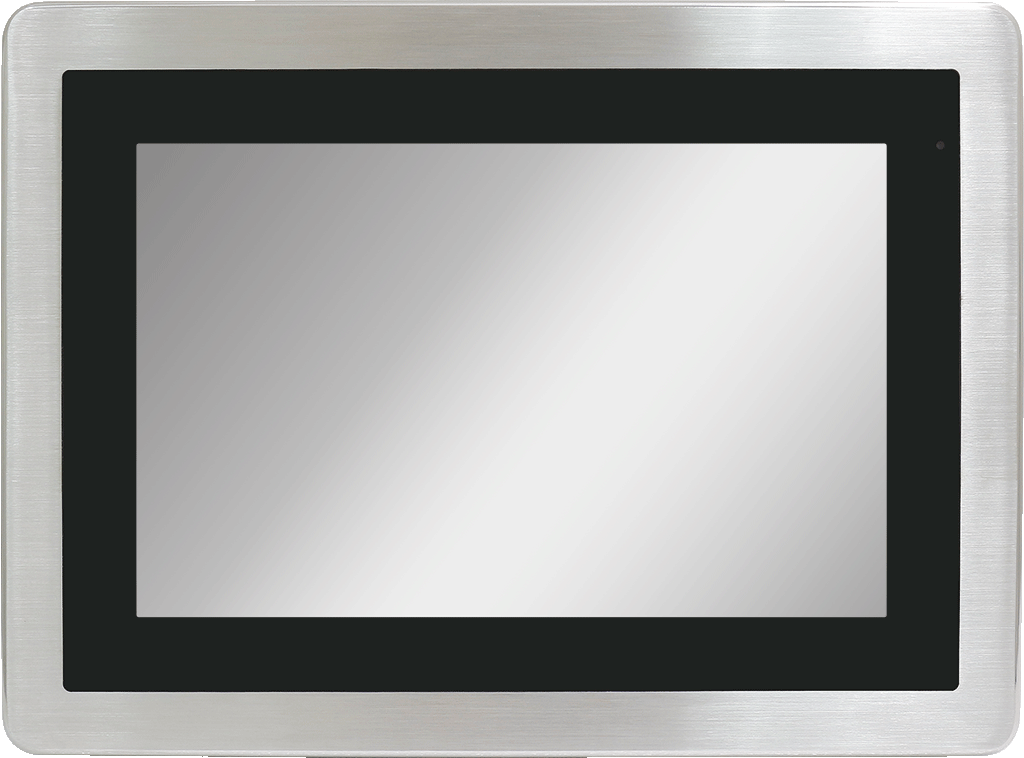

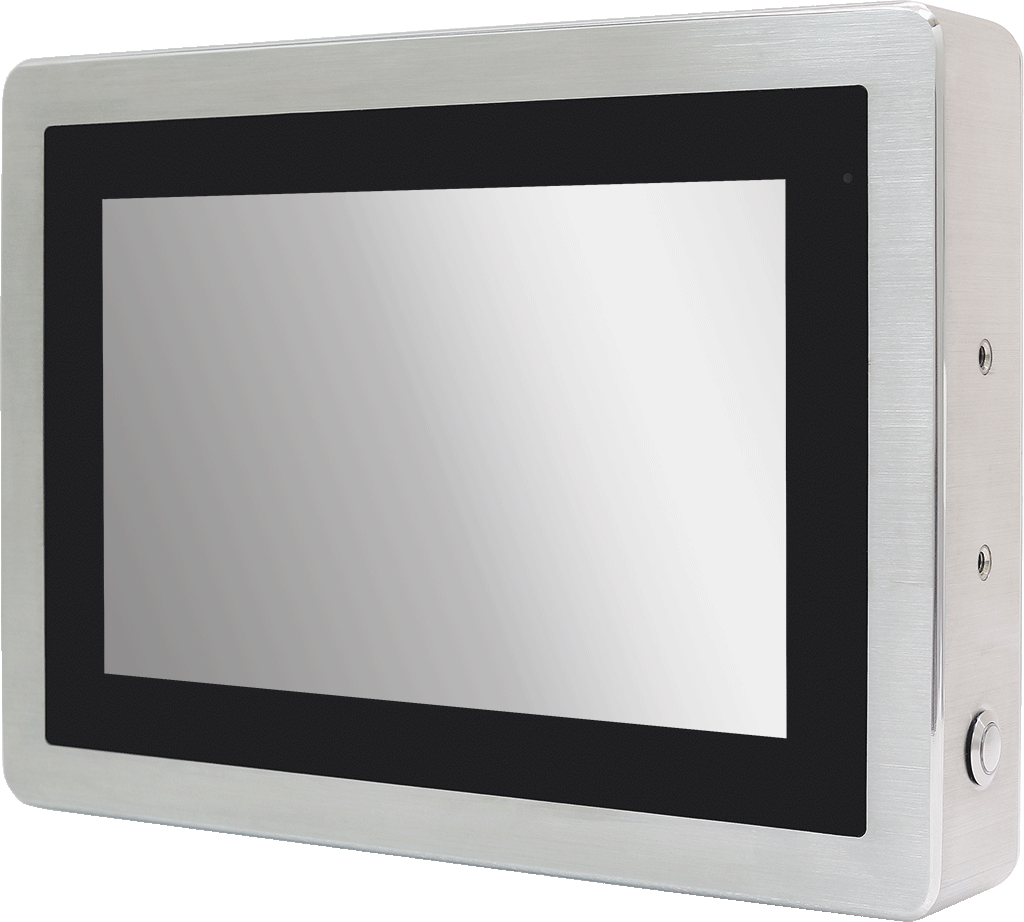

EAGLE AP 10-EC-WT | 4GB RAM [Stainless Steel 304, PCT]

10.1" (Widescreen) Stainless steel Panel-PC IP66/IP69K full sealed for operating in wide temperatures

Prices on request

No longer available

Product number: 620016.21

Key facts	• 10.1" ~ 17" • Intel® Celeron® N2930 • 4GB DDR3L • IP66/IP69K full sealed • Wide Temperature • Stainless Steel • Capacitive, resistive • Fanless
Display Size	10.1“ • 12.1“ • 15“ • 17“
Aspect ratio / resolution	16:10 / 1280 x 800 (10.1“) • 4:3 / 1024 x 768 (12.1“) • 4:3 / 1024 x 768 (15“) • 5:4 / 1280 x 1024 (17“)
Touch	Capacitive (PCT) • Resistive (RTW)
Protection class	IP66/IP69K, total
Front	Stainless Steel 304 • Stainless Steel 316L
CPU	Intel® Celeron® N2930, 4x 1.83GHz/2.16GHz
Chipset	Intel® Baytrail SoC - Embedded Long Life Chipset
RAM	Onboard 4GB DDR3L SDRAM
Storage interface	1x 2.5” SATA3 HDD

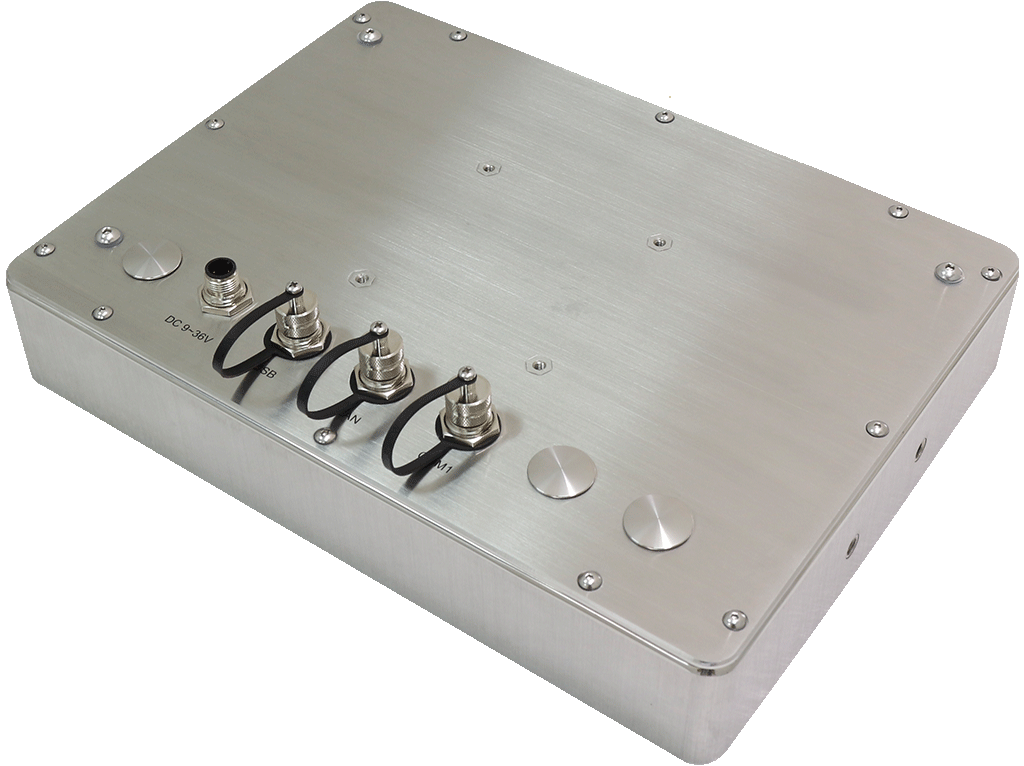

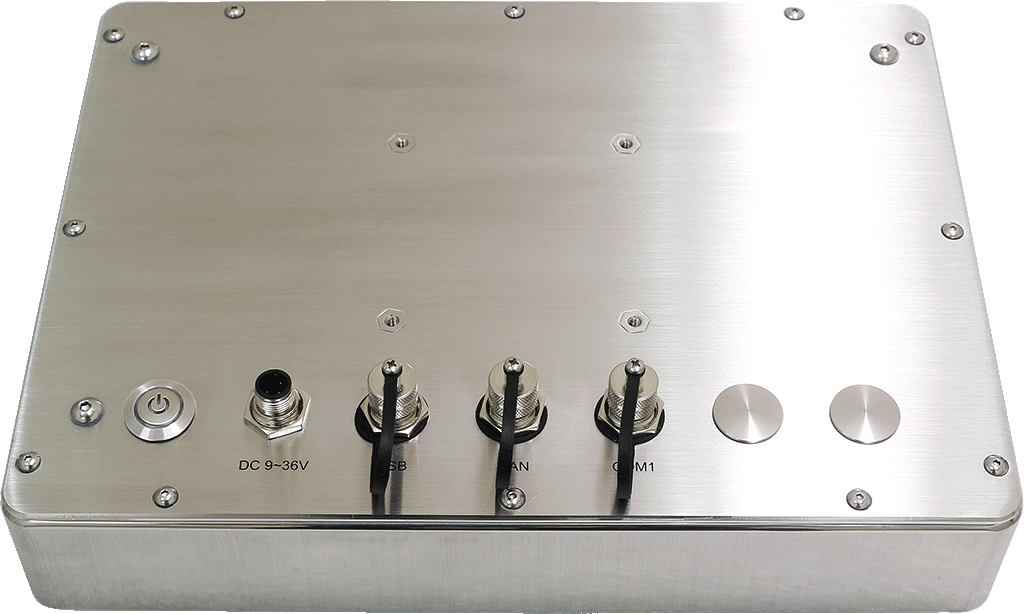

Ports	1x M12 8-pin for LAN with waterproof cover and chain • 1x M12 8-pin for USB 2.0 with waterproof cover and chain • 1x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover and chain • 1x Touch on/off button at the side
PCI / PCIe / mini-PCIe	Option: 1x Full-size mini-PCIe socket (PCIe + USB) for WIFI/BT/LTE • RFID module RFID module design on the front side
Cooling System	Passive, fanless
Mounting	Yoke mount • VESA mount 75 x 75
Power input	9V to 36V DC 1x M12 3-pin for DC power with waterproof cover and chain • 1x Power switch on the rear
Power consumption	17W (10.1“) • 21W (12.1“) • 19W (15“) • 29W (17“)
Operating system	Option: Windows Embedded 7 • Windows Embedded 8.1 • Windows 10 IoT ENT LTSB
Max. color	16.7M (10.1“; 15“; 17“) • 262K (12.1“)
Luminance /cd/m2	350 (10.1“; 17“) • 450 (12.1“) • 300 (15“)
View angle / H/V	170° / 170° (10.1“) • 160° / 150° (12.1“) • 176° / 176° (15“) • 160° / 140° (17“)
Backlight lifetime / hrs	25,000 (10.1“) • 50,000 (12.1“; 17“) • 70,000 (15“)
Contrast ratio	800:1 (10.1“; 17“) • 1500:1 (12.1“) • 2000:1 (15“)
Operating temperature	-20° to 60°C
Storage temperature	-30° to 70°C
Storage humidity	10% to 95% @ 40°C, non-condensing
Certificate	CE/FCC Class A
Weight / kg	4 (10.1“) • 5 (12.1“) • 7.4 (15“) • 7.1 (17“)

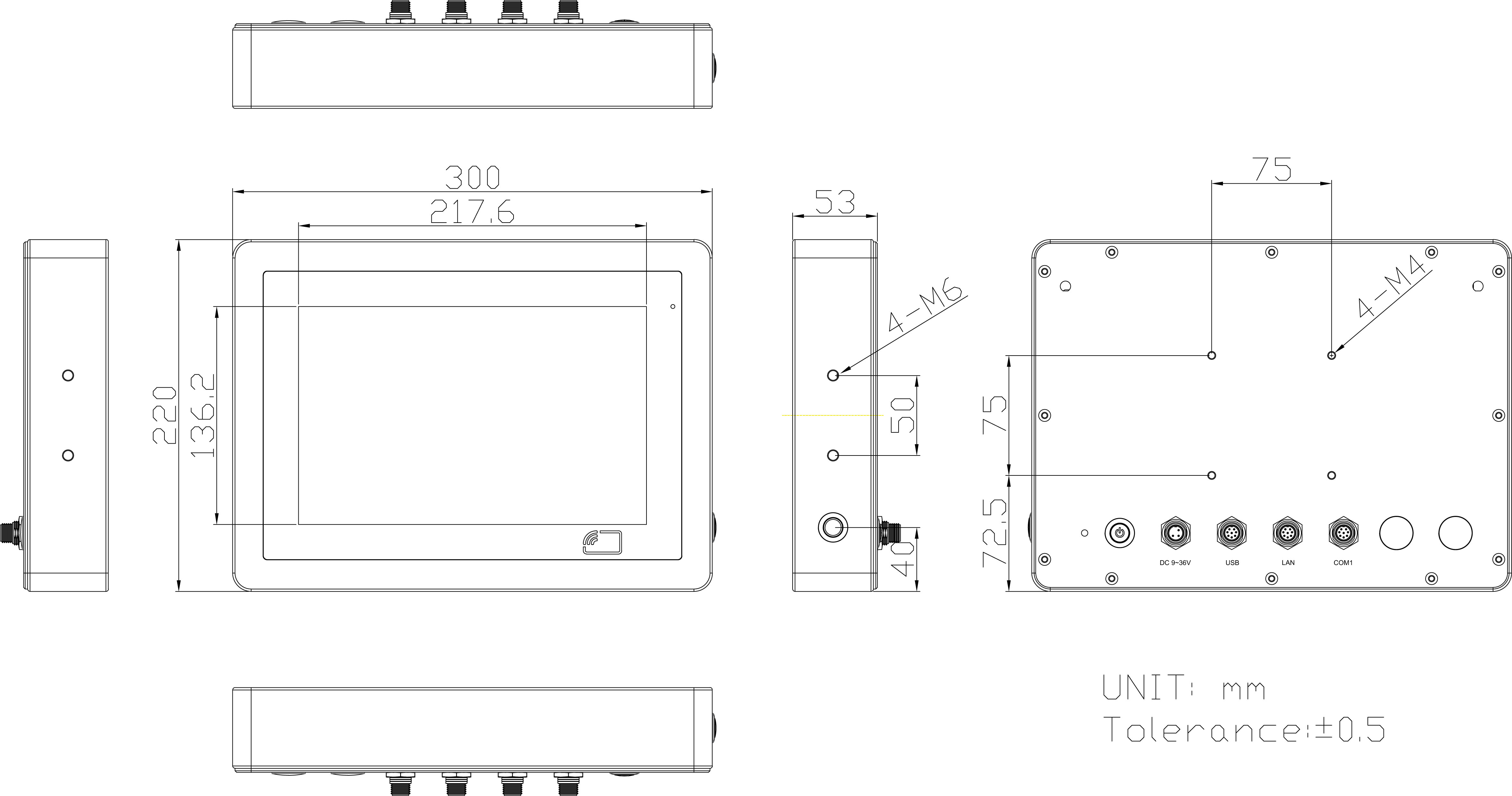

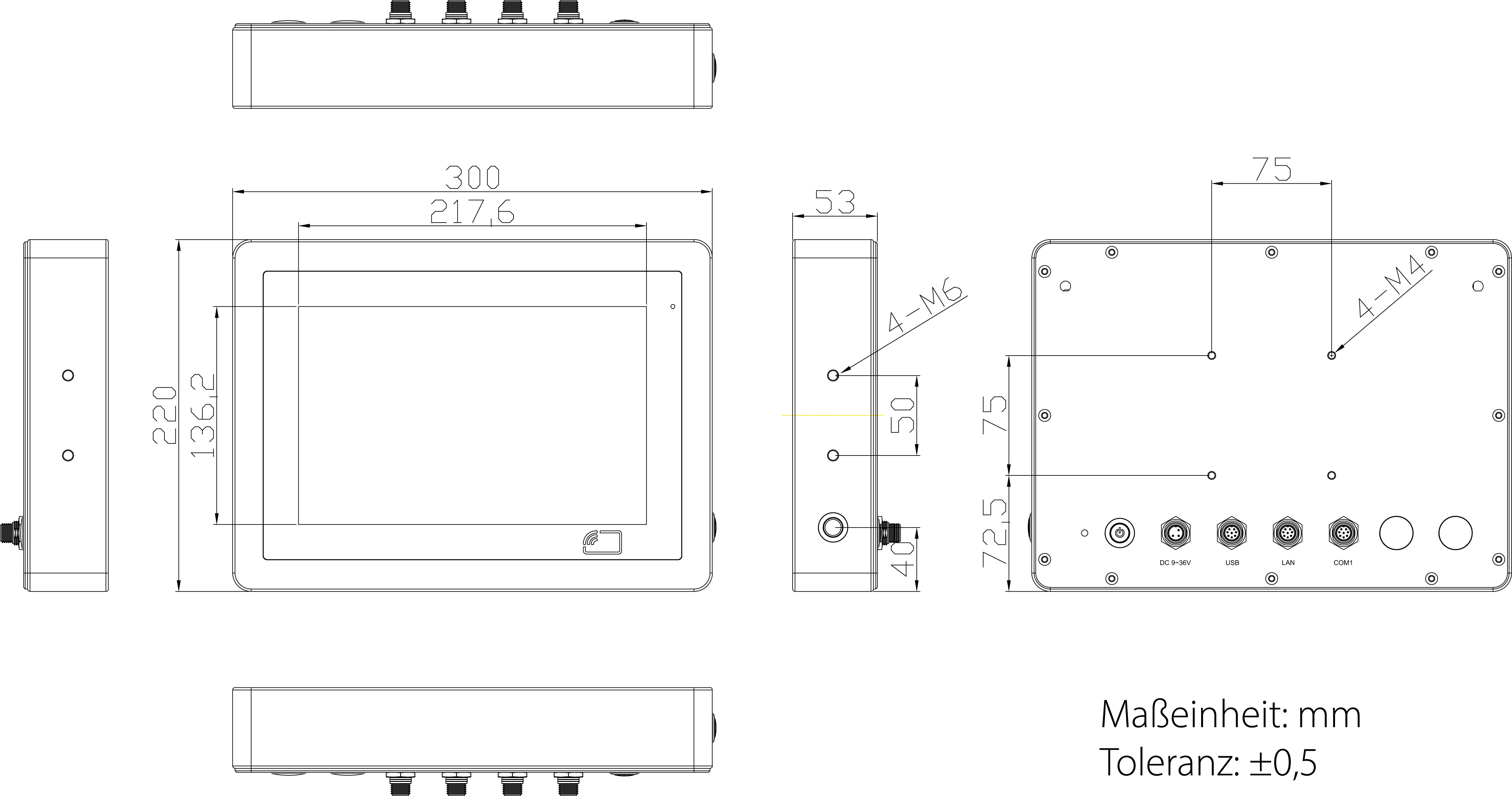

Dimensions / mm	300 x 220 x 53 (10.1“) • 335 x 265 x 53 (12.1“) • 399 x 324 x 53 (15“) • 432 x 358 x 55.3 (17“)
Scope of delivery	Power supply, 60W • IP65 cable set (LAN-; USB-Y; COM cable) • driver CD
