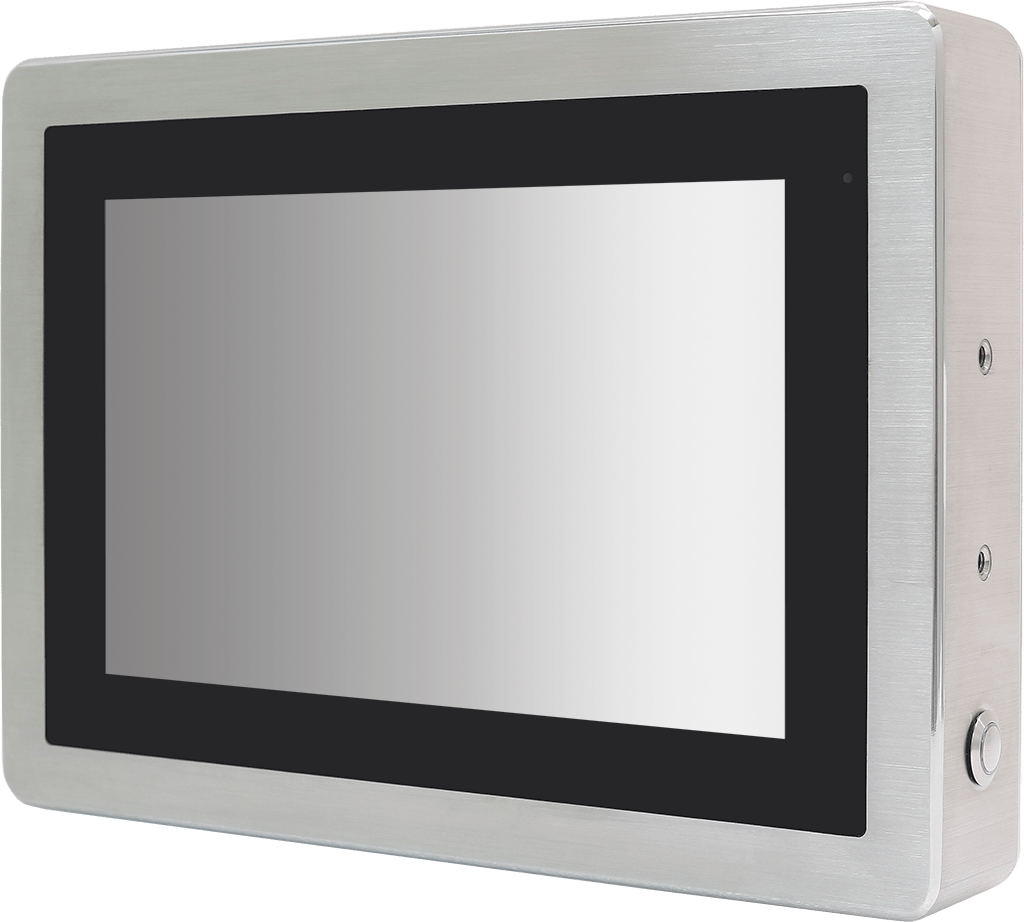

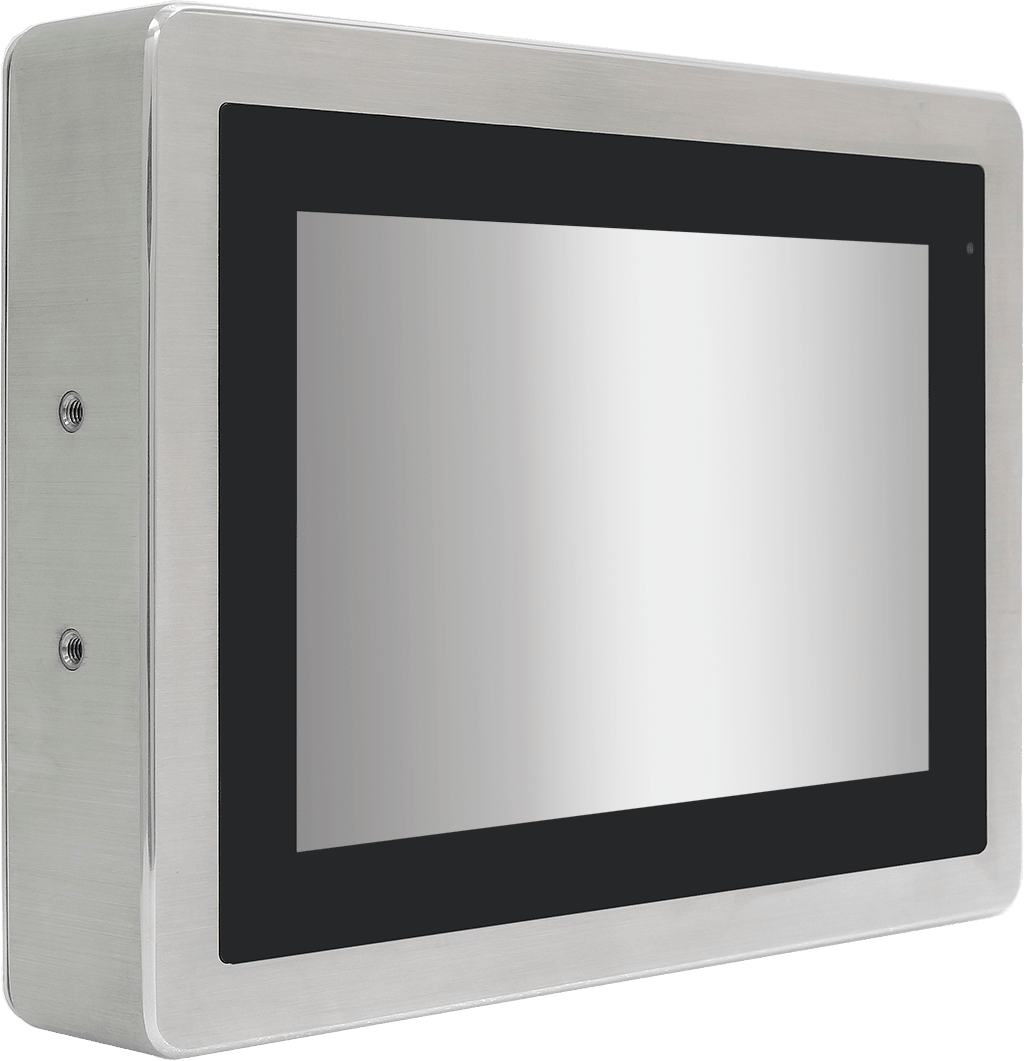

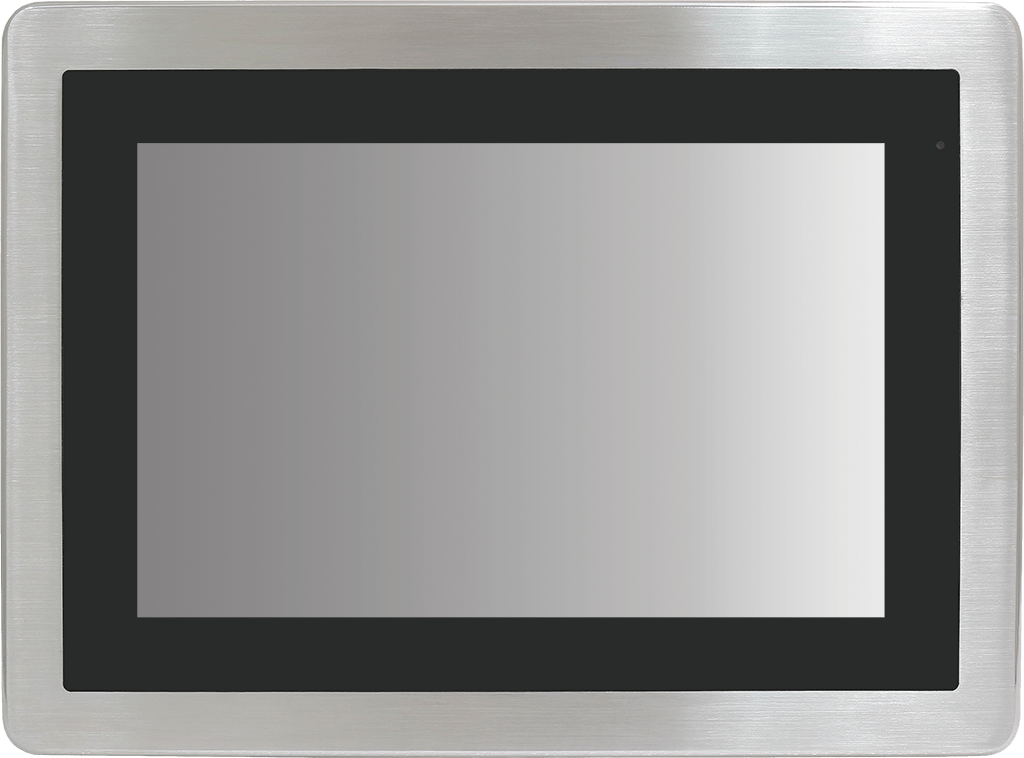

EAGLE AP 10-EL-WT | Intel® Celeron® J6412 [Stainless Steel 304, PCT]

10.1" (Widescreen) Stainless steel Panel-PC IP66/IP69K full sealed for operating in wide temperatures

Skip image gallery
_Panel-PC_EAGLE AP 10-EL-WT | Intel® Celeron® J6412 [Stainless Steel 304, PCT]
_Panel-PC_EAGLE AP 10-EL-WT | Intel® Celeron® J6412 [Stainless Steel 304, PCT]
_Panel-PC_EAGLE AP 10-EL-WT | Intel® Celeron® J6412 [Stainless Steel 304, PCT]
_Panel-PC_EAGLE AP 10-EL-WT | Intel® Celeron® J6412 [Stainless Steel 304, PCT]
_Panel-PC_EAGLE AP 10-EL-WT | Intel® Celeron® J6412 [Stainless Steel 304, PCT]
_Panel-PC_EAGLE AP 10-EL-WT | Intel® Celeron® J6412 [Stainless Steel 304, PCT]
_Panel-PC_EAGLE AP 10-EL-WT | Intel® Celeron® J6412 [Stainless Steel 304, PCT]
_Panel-PC_EAGLE AP 10-EL-WT | Intel® Celeron® J6412 [Stainless Steel 304, PCT]
_Panel-PC_EAGLE AP 10-EL-WT | Intel® Celeron® J6412 [Stainless Steel 304, PCT]
_Panel-PC_EAGLE AP 10-EL-WT | Intel® Celeron® J6412 [Stainless Steel 304, PCT]
_Panel-PC_EAGLE AP 10-EL-WT | Intel® Celeron® J6412 [Stainless Steel 304, PCT]
_Panel-PC_EAGLE AP 10-EL-WT | Intel® Celeron® J6412 [Stainless Steel 304, PCT]
Prices on request

Prices excl. VAT plus shipping costs

Available in 28 days, delivery time 1-2 weeks [incl. assembly & function test]

Screen | Size
Touch | Type
Construction
Summary
RAM:
Storage:
WLAN:
Mobile Network:
I/O-Expansion:
Operating System:
RAM:
Mandatory
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 4GB
W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 4GB RAM: 4GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 8GB
W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 8GB RAM: 8GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 16GB
W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 16GB RAM: 16GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 32GB
W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 32GB RAM: 32GB
Storage:
_Components_Accessories_M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 64GB
M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 64GB Storage | Size: 64GB
_Components_Accessories_M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 128GB
M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 128GB Storage | Size: 128GB
_Components_Accessories_M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 256GB
M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 256GB Storage | Size: 256GB
_Components_Accessories_M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 512GB
M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 512GB Storage | Size: 512GB
_Components_Accessories_M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 1TB
M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 1TB Storage | Size: 1TB
Reset choice
€0.00*
WLAN:
Systemkomponenten & Zubehör_Components_Accessories_WLAN - M.2 2230 module, Intel® Wi-Fi 6 AX200 [802.11ac, Bluetooth 5.1]
WLAN - M.2 2230 module, Intel® Wi-Fi 6 AX200 [802.11ac, Bluetooth 5.1]
Reset choice
€0.00*
Mobile Network:
Systemkomponenten & Zubehör_Components_Accessories_4G_GPS - miniPCIe module [w/antenna]
4G_GPS - miniPCIe module [w/antenna]
Systemkomponenten & Zubehör_Components_Accessories_5G/GPS M.2 3052 module Quectel RM520N-GL [w/2x antenna]
5G/GPS M.2 3052 module Quectel RM520N-GL [w/2x antenna]
Reset choice
€0.00*
I/O-Expansion:
Zubehör [kein Direktverkauf]_Components_Accessories_Expansion via M12 | 1x COM incl. M12 Cable
I/O-Port: 1x COM via M12 Cable
Zubehör [kein Direktverkauf]_Components_Accessories_Expansion via M12 | 1x LAN incl. M12 Cable
I/O-Port: 1x LAN via M12 Cable
Zubehör [kein Direktverkauf]_Components_Accessories_Expansion via M12 | 1x USB 3.2 incl. M12 Cable
I/O-Port: 1x USB 3.2 via M12 Cable
Zubehör [kein Direktverkauf]_Components_Accessories_Expansion via M12 | 2x USB 2.0 incl. M12 Y-Cable
I/O-Port: 2x USB 2.0 via M12 Y-Cable
Operating System:
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 Professional - 64bit
Windows® 10 Professional - 64bit OS | Variant: 64bit
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 IoT Enterprise LTSC 2021 - #ENTRY 64bit [For Intel Atom, Celeron, Pentium]
Windows® 10 IoT Enterprise LTSC 2021 - #ENTRY 64bit [For Intel Atom, Celeron, Pentium] OS | Variant: #ENTRY 64bit [For Intel Atom, Celeron, Pentium]
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 11 Professional OEM - 64bit
Windows® 11 Professional OEM - 64bit
_Components_Accessories_Windows® 11 IoT Enterprise 2024 LTSC - #ENTRY
Windows® 11 IoT Enterprise 2024 LTSC - #ENTRY OS | Variant: #ENTRY 64bit [For Intel Atom, Celeron, Pentium]
Reset choice
€0.00*

€1,883.00*

Prices excl. VAT plus shipping costs

Product number: 620031.16
Key facts• 10.1" ~ 17"
• Intel® Celeron® J6412
• Max. 32GB DDR4
• IP66/IP69K full sealed
• Capacitive, resistive
• Wide Temperature
• Fanless
Display Size 10.1“ • 12.1“ • 15“ • 15.6“ • 17“ • 21.5“
Aspect ratio / resolution 16:10 / 1280 x 800 (10.1“) • 4:3 / 1024 x 768 (12.1“) • 4:3 / 1024 x 768 (15“) • 16:9 / 1920 x 1080 (15.6“) • 5:4 / 1280 x 1024 (17“) • 16:9 / 1920 x 1080 (21.5“)
Touch Capacitive (PCT) • Resistive (RTW)
Protection class IP66/IP69K, total
Front Stainless Steel 304 • Stainless Steel 316L
CPU Intel® Celeron® J6412 (2.0 GHz) Processor
Chipset Intel® Baytrail SoC - Embedded Long Life Chipset
RAM 1x 260-pin SO-DIMM up to 32GB DDR4 3200MHz
Storage interface 1x M.2 B-Key (SATA 3), support 2242 at default

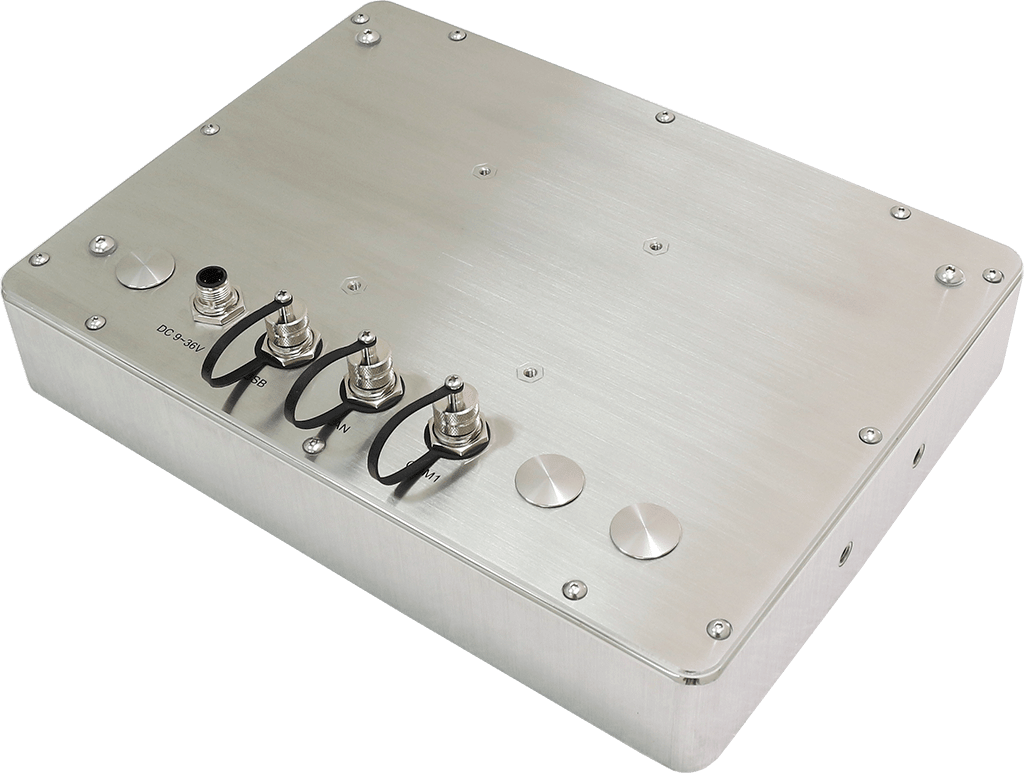

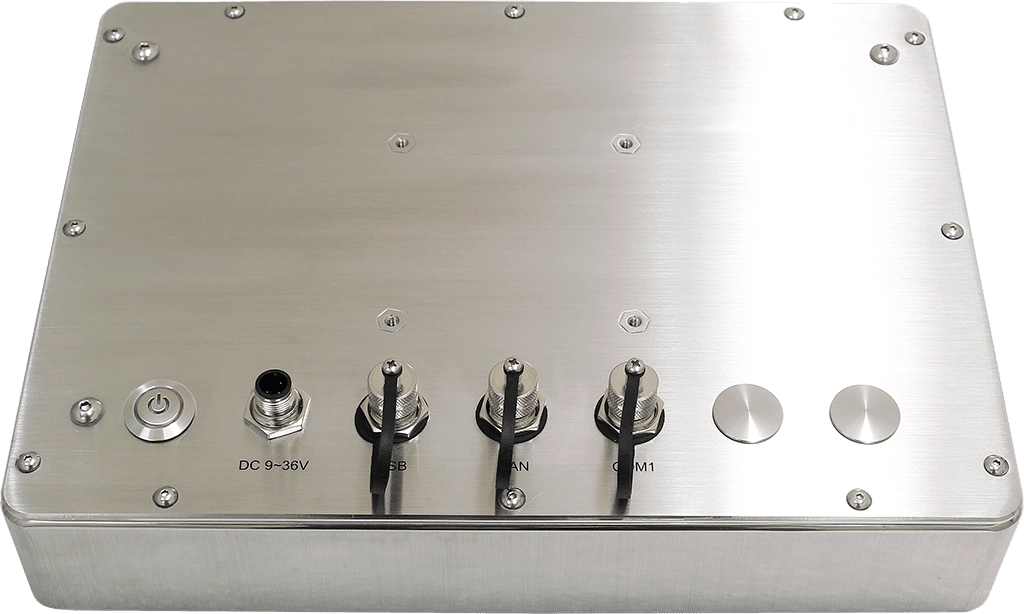

Ports 1x M12 8-pin for LAN with waterproof cover •1x M12 8-pin for USB 2.0 with waterproof cover • 1x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover • 1x M12 3-pin for DC power with waterproof cover • 1x Power switch on the rear • 1x Touch on/off button at the side • Option: 2x blank M12 connector with waterproof cover for selecting two from the following options: 2x USB 2.0 • 1x USB 3.0 • 1x LAN • 1x COM
PCI / PCIe / mini-PCIe 1x mini-PCIe slot for 4G/5G module • 1x M.2 E-Key 2230 for WiFi/BT module • 1x Nano SIM slot • Option: RFID Module Design on the Front Side
Cooling System Passive, fanless
Mounting VESA 75 x 75 (10.1“-17“); VESA 100 x 100 (21.5“) • Yoke mount
Power input 9V to 36V DC
Power consumption 31.46W (10.1“) • 34.14W (12.1“) • 37.52W (15“) • 32.48W (15.6“) • 45.18W (17“) • 39.34W (21.5“)
Operating system Option: Windows 10 • Windows 11 Option: Windows 10 • Windows 11
Max. color 16.7M
Luminance /cd/m2 350 (10.1“; 17“) • 450/500 (12.1“) • 300 (15“) • 400/500 (15.6“) • 250 (21.5“)
View angle / H/V 170° / 170° (10.1“) • 176°/176° / 178°/178° (12.1“) • 176° / 176° (15“) • 170°/160° / 178°/178° (15.6“) • 170°/160° (17“) • 178° / 178° (21.5“)
Backlight lifetime / hrs 30,000 (10.1“; 17“; 23.8“) • 50,000/30,000 (12.1“) • 70,000 (15“) • 50,000 (15.6“; 18“) • 30,000 (21.5“)
Contrast ratio 800:1 (10.1“) • 1000:1 (12.1“; 17“; 21.5“) • 2000:1 (15“) • 500:1 / 1000:1 (15.6“)
Operating temperature -20° to 60°C
Storage temperature -30° to 70°C
Storage humidity 10% to 95% @ 40°C, non-condensing
Certificate CE/FCC Class A
Weight / kg 3.94 (10.1“) • 4.83 (12.1“) • 6.85 (15“) • 6.83 (15.6“) • 8.01 (17“) • 10.05 (21.5“)

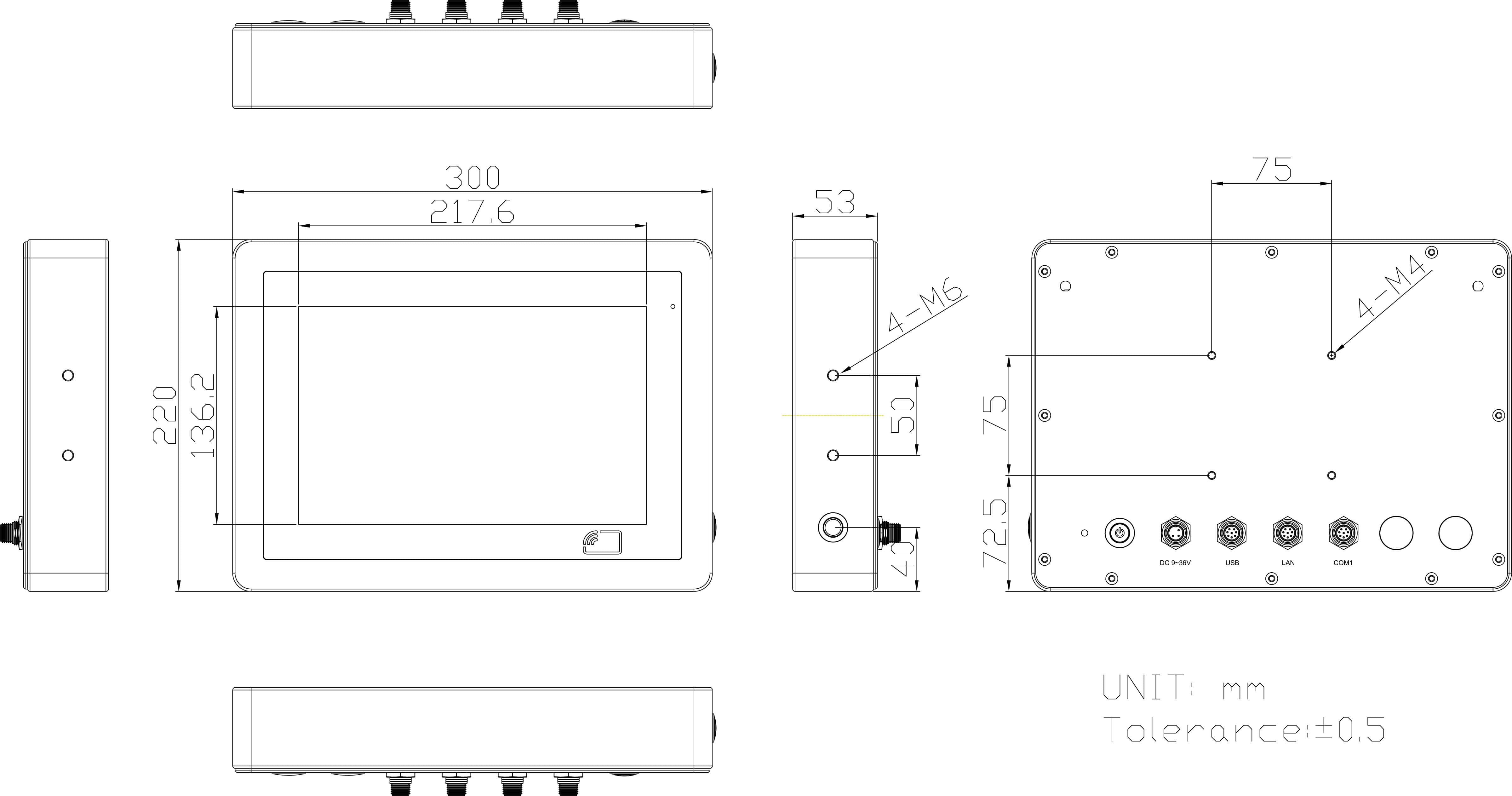

Dimensions / mm 300 x 220 x 53 (10.1“) • 335 x 265 x 53 (12.1“) • 399 x 324 x 53 (15“) • 440 x 290 x 55 (15.6“) • 432 x 358 x 55 (17“) • 571 x 362 x 55 (21.5“)
Scope of delivery Power supply, 60W • IP65 cable set (LAN; COM cable) • driver CD
Datasheet
Manual
Drivers
