CamCollect® 9650AWP | Barebone

Cost-effective IPC - IP66 Waterproof • 13th Gen. Intel® Core™ i9/i7/i5/i3/Celeron

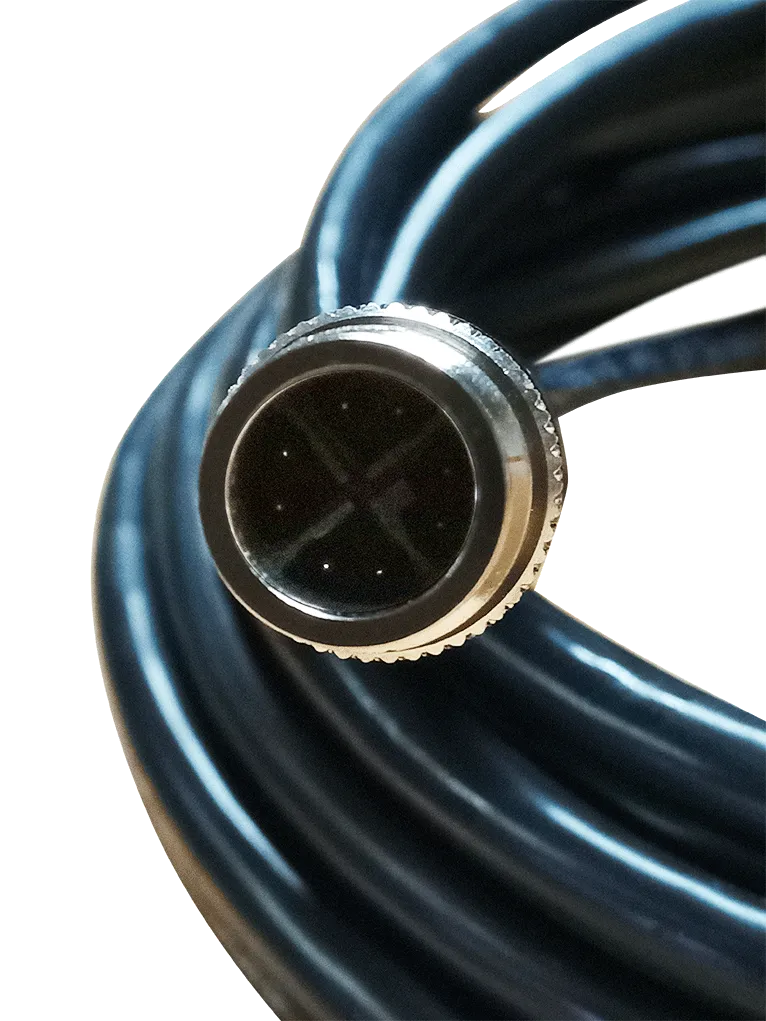

CamCollect® 9650AWP is a cost-effective IP66 waterproof computer with Intel® 14th/13th/12th-Gen Core™ processor designed for harsh and demanding environments. Thanks to its streamlined waterproof chassis and standardized cable kit, CamCollect® 9650AWP redefines affordable total cost of ownership (TCO) for industrial computing with significant enhancements including ruggedness against extended operating temperature, intensive shock and vibration, dust, humidity and salinity.

CamCollect® 9650AWP offers abundant I/O functionality for generic application requirements, including multiple 2.5GbE/GbE, USB 2.0 and isolated RS-232 and RS-422/485 ports, all through waterproof M12 connectors. It also has a specialized waterproof type-C connector supporting Type-C alternative mode, or it can enable both 5Gbps USB3 data transmission speed and 4K DisplayPort video output via a Type-C hub. Moreover, CamCollect® 9650AWP is equipped with 8V-48V wide-range DC input with ignition power control, and is compliant with MIL-STD-810H shock/ vibration certification for invehicle installation, such as mining trucks and farming vehicles.

The integration of IP66 waterproof capability with embedded computer eliminates environmental limitations where exposure to dust or liquids may be of concern. Its affordable waterproof design further reduces the gap in TCO for budget-conscious projects which is defining a new category of embedded computer that strikes a sweetspot between ruggedness performance and cost.

Key facts	• 13th Gen. Intel® Core™ i9/i7/i5/i3/Celeron • Max. 96GB DDR5 • Fanless • IP66, -25°C ~ 70°C
Protection class	IP66
CPU	Supporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) • Supporting Intel® 12th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP)
Chipset	Intel® H610E platform controller hub
RAM	Up to 96GB DDR5 4800 SDRAM (two SODIMM slots)
Storage interface	2x Internal SATA port for 2.5” HDD/ SSD installation • 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD
Ports	1x Gigabit Ethernet port by Intel® I219-LM (M12 X-coded) • 3x 2.5G Ethernet ports by Intel® I226-IT (M12 X-coded) • Option: IEEE 802.3at PoE+ PSE for 4x 2.5GbE/GbE ports 100 W total power budget • 1x USB 3.2 Gen1 (5 Gbps) port in type-C waterproof connector • 1x reserved USB 3.2 Gen1 type-A connector (rear side) • 2x USB 2.0 (M12 A-coded) • 1x USB 2.0 (internal) • 1x DisplayPort in type-C waterproof connector, supporting 4096 x 2304 resolution • 1x VGA (M12 A-coded), supporting 1920 x 1200 resolution • 1x reserved DisplayPort, supporting 4096 x 2304 resolution (rear side) • 1x isolated RS-232 port (COM1) • 1x isolated RS-422/485 ports (COM2) via M12 A-coded, 8-pin connector
PCI / PCIe / mini-PCIe	2x full-size mini-PCI Express socket (PCIe + USB2) • 1x M.2 2242/3052 B key socket with SIM slot for M.2 5G/ 4G module
Cooling System	Passive, fanless
Mounting	Option: Wall-mounting
Power input	8V to 48V DC input with built-in ignition power control
Operating system	Option: Windows® 10 • Windows® 10 IoT LTSB and LTSC • Windows 11
Operating temperature	Operating Temperature with 35W CPU: -25°C ~ 70°C with 65W CPU: -25°C ~ 70°C (configured as 35W TDP mode) • -25°C ~ 50°C (configured as 65W TDP mode)
Storage temperature	-40°C to 85°C
Storage humidity	10% to 90%; non-condensing
Vibration	MIL-STD-810H, Method 514.8, Category 4
Shock	MIL-STD-810H, Method 516.8, Procedure I
Certificate	CE/FCC Class A, according to EN 55032 & EN 55035
Weight / kg	5.25
Dimensions / mm	225 x 286 x 90
Scope of delivery	Driver CD
