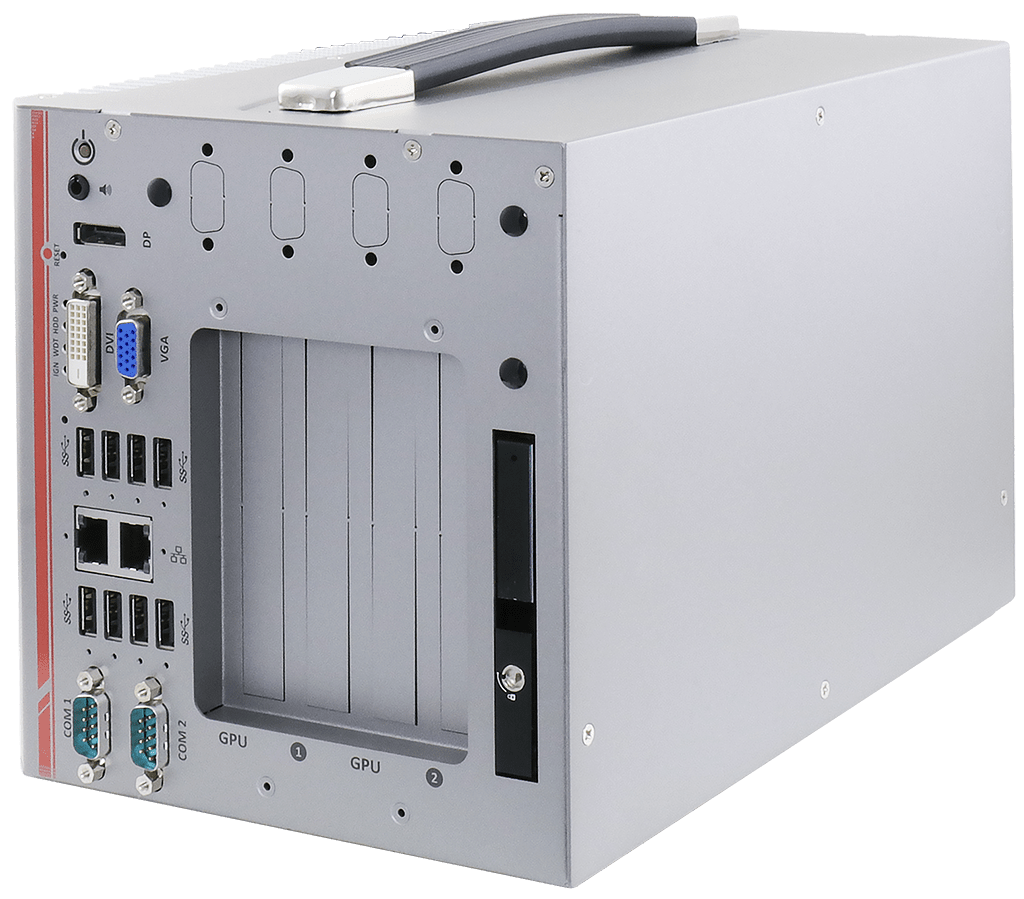

CamCollect® 8240

Edge AI Computer for NVIDIA® L4/ T4/ A2-GPU • 9th Gen. Intel® Core™ i7/i5/i3

CamCollect® 8240 is a rugged edge AI GPU computing platform designed specifically to support dual NVIDIA® L4/ T4/ A2 GPUs for advanced inference acceleration applications.

It features NVIDIA® multi-precision NVIDIA® Ada Lovelace Cores while offering tremendous GPU power up to 484 TFLOPS in FP16 and 970 TOPS in INT8 for emerging GPU-accelerated edge computing and advanced AI inference. In addition, CamCollect® 8240 is powered by Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU up to 8-core/ 16-thread coupled with workstation-grade Intel® C246 chipset to support up to 128GB ECC or non-ECC DDR4 memory.

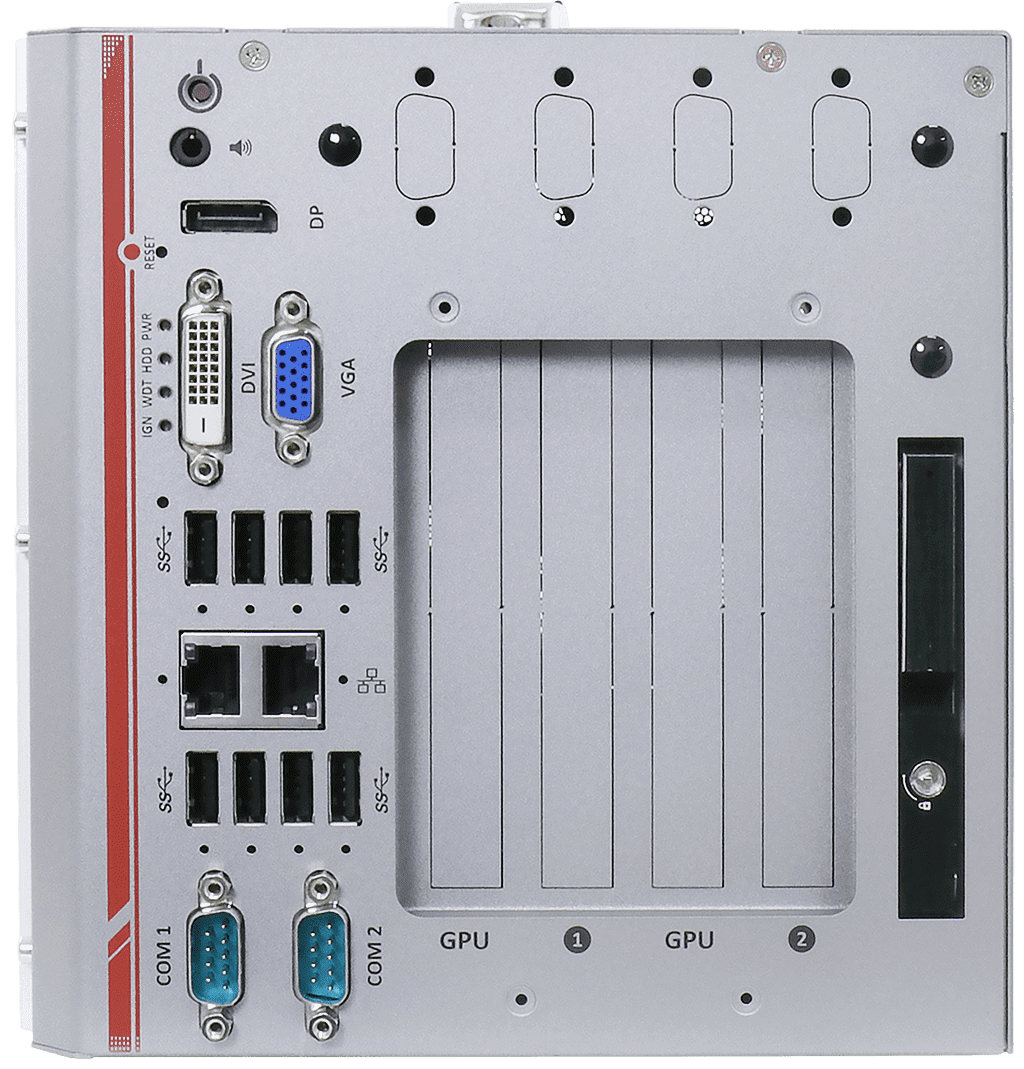

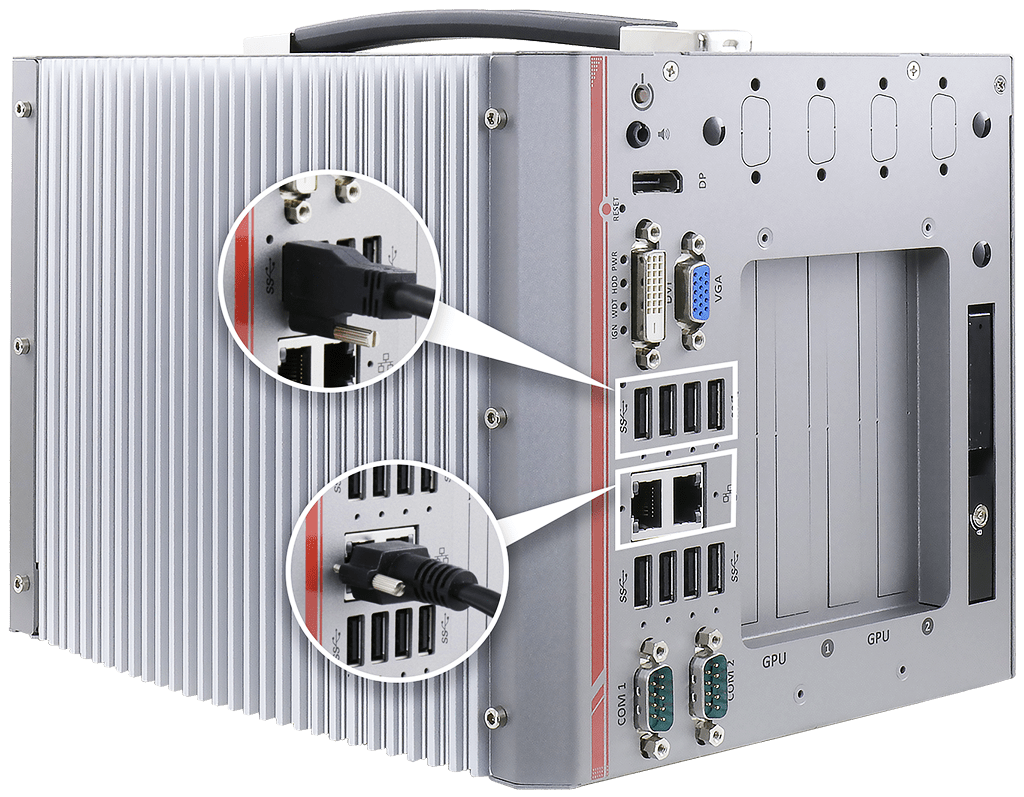

The Industrial Box-PC incorporates one internal 2.5“ SATA HDD/ SSD slot and one hot-swappable 2.5“ tray for easy HDD/ SSD replacement. There is also an M.2 2280 socket for the ultimate PCIe NVMe SSD. Its front-accessible GbE and USB 3.1 Gen1/ Gen2 ports feature screw-lock mechanisms for secure cable connections. In addition to the dual x16 PCIe slots (8-lanes) for NVIDIA L4/ T4/ A2 installation, CamCollect® 8240 has other two x8 PCIe slots (4-lanes)for expansion cards to extend function sets, making it that much more flexible for specific applications such as data collection, analytics and communication.

CamCollect® 8240 has a brand new power delivery design to accept 8V~48V wide-range DC input with built-in ignition control. Mechanical wise, CamCollect® 8240 incorporates the proven heat dissipation design, damping brackets for withstanding 3 Grms vibration, making it steady and rocksolid in various conditions. The CamCollect® 8240 is the response to the never-ending performance demand in industrial edge AI platforms and now with double the inference power, CamCollect® 8240 is ready to take it to the next level.

Key facts	• 9th Gen. Intel® Core™ i7/i5/i3 • Up to 128GB DDR4 • 4x PCIe • Option: PoE+, 10GigE • Supports 2x NVIDIA® Tesla T4
Protection class	IP20
CPU	Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket)
Chipset	Intel® C246 Platform Controller Hub
RAM	Up to 128GB ECC/ non-ECC DDR4 2133 SDRAM (four SODIMM slots)
Storage interface	1x hot-swappable HDD tray for 2.5” HDD/ SSD installation • 1x Internal SATA port for 2.5” HDD/ SSD installation, supporting RAID 0/ 1 • 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation • 2x full-size mSATA port (mux with mini-PCIe)
RAID	0/ 1
Ports	2x GigE, 1x Intel® I219-LM; 1x Intel® I210-IT • 4x USB 3.1 Gen2 (10 Gbps) • 4x USB 3.1 Gen1 (5 Gbps) • 1x USB 2.0, internal • 2x software-programmable RS-232/ 422/ 485 ports (COM1/COM2) • 1x VGA, supporting 1920 x 1200 resolution • 1x DVI-D, supporting 1920 x 1200 resolution • 1x DisplayPort, supporting 4096 x 2304 resolution • 1x 3.5mm jack for mic-in and speaker-out

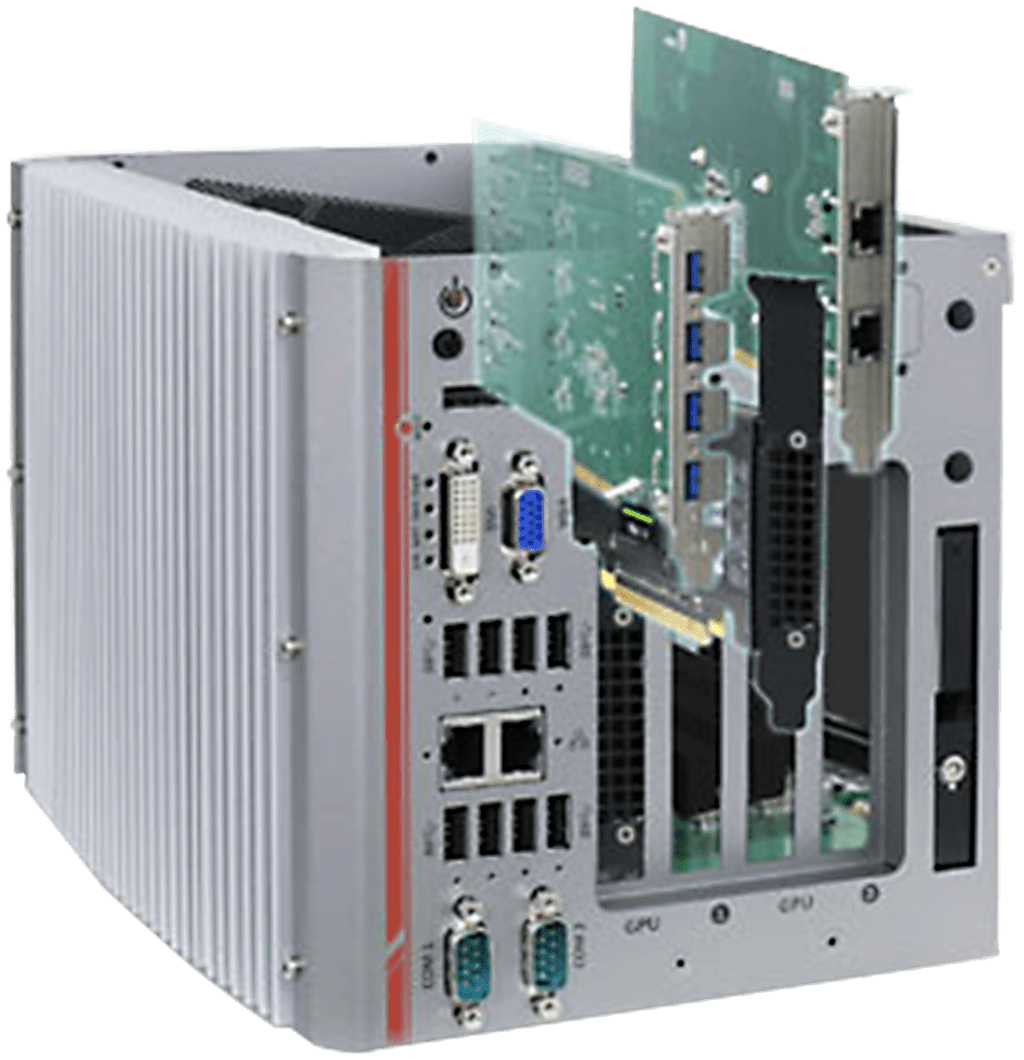

PCI / PCIe / mini-PCIe	2x PCIe x16 slot@Gen3, 8-lanes • 2x PCIe x8 slots@Gen3, 4-lanes • 1x M.2 2242 B key socket supporting dual SIM mode with selected M.2 LTE module • 2x full-size mini-PCIe socket
Cooling System	Active, fan
Mounting	Wall mounting with damping bracket

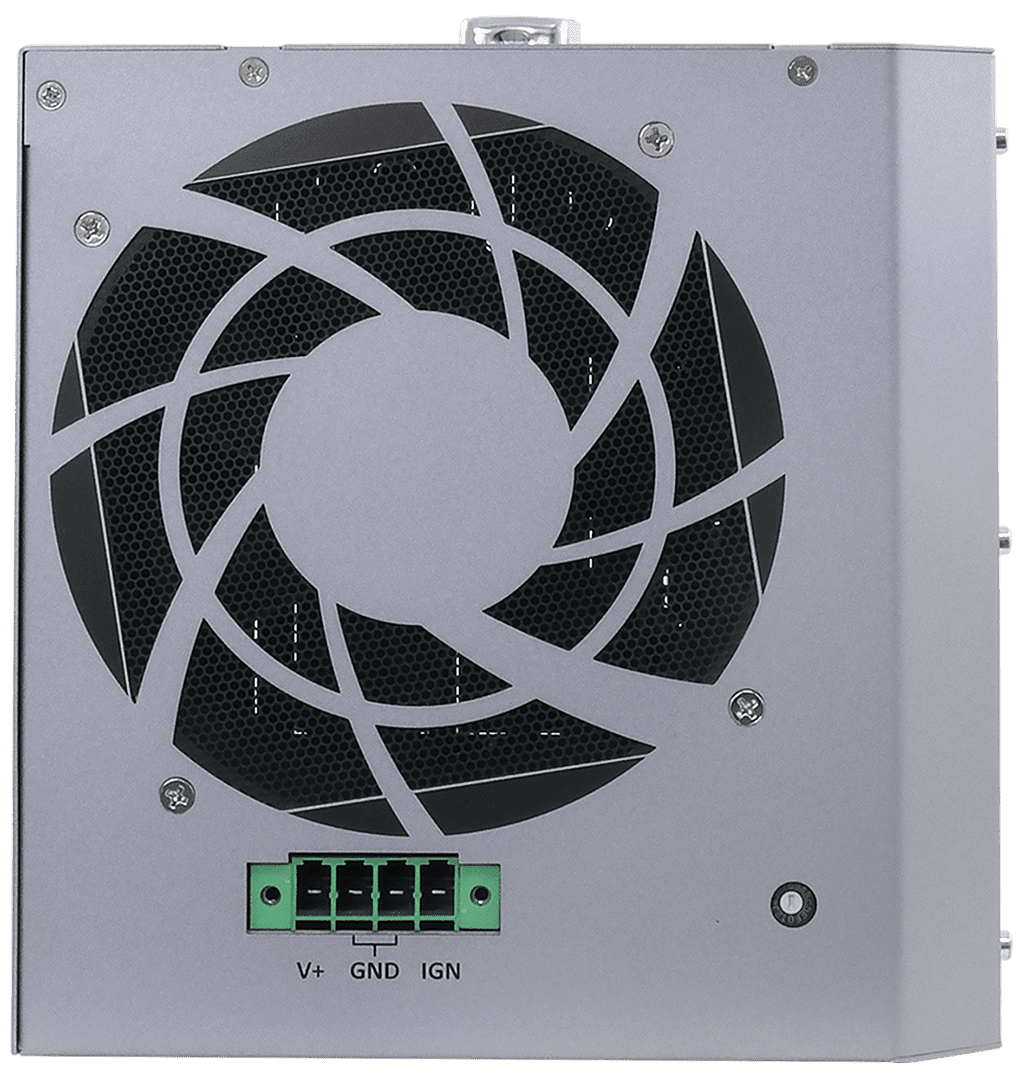

Power input	1x 4-pin pluggable terminal block for 8V to 48V DC input with ignition control
Power consumption	TBA
Operating system	Option: Windows® 10 • LINUX 64Bit
Operating temperature	With 35W CPU -25°C to 60°C with 65W CPU -25°C to 60°C (configured as 35W TDP mode) • -25°C to 50°C (configured as 65W TDP mode) In compliance with NVIDIA® Tesla T4 warranty policy, an operating temperature of 0°C to 50°C is required for systems with Tesla T4 installed
Storage temperature	-40° to 85°C
Storage humidity	10% to 90% @ 40°C; non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4 and 3Grms
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
Certificate	CE/FCC Class A, EN 55024 & EN 55032
Weight / kg	5

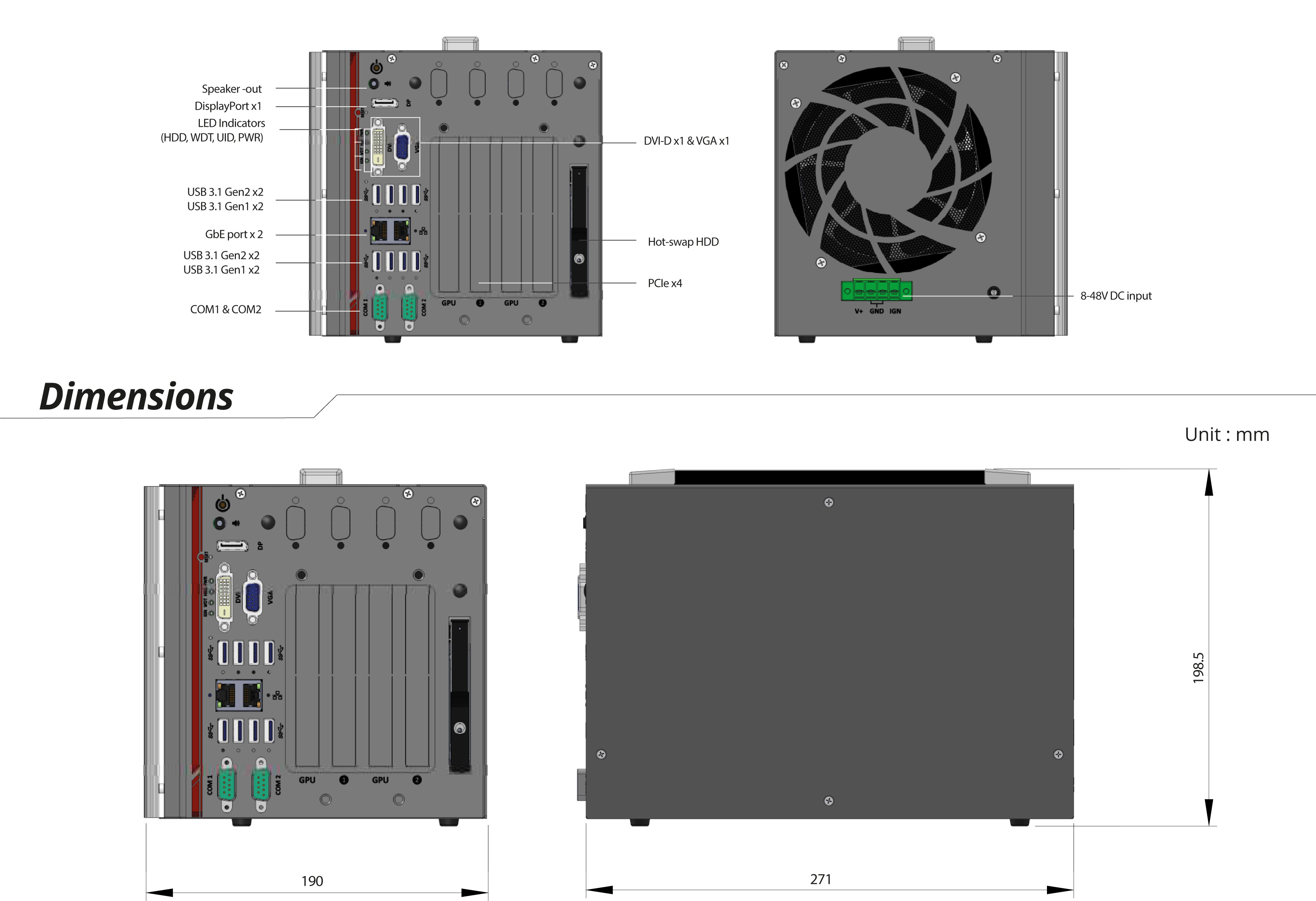

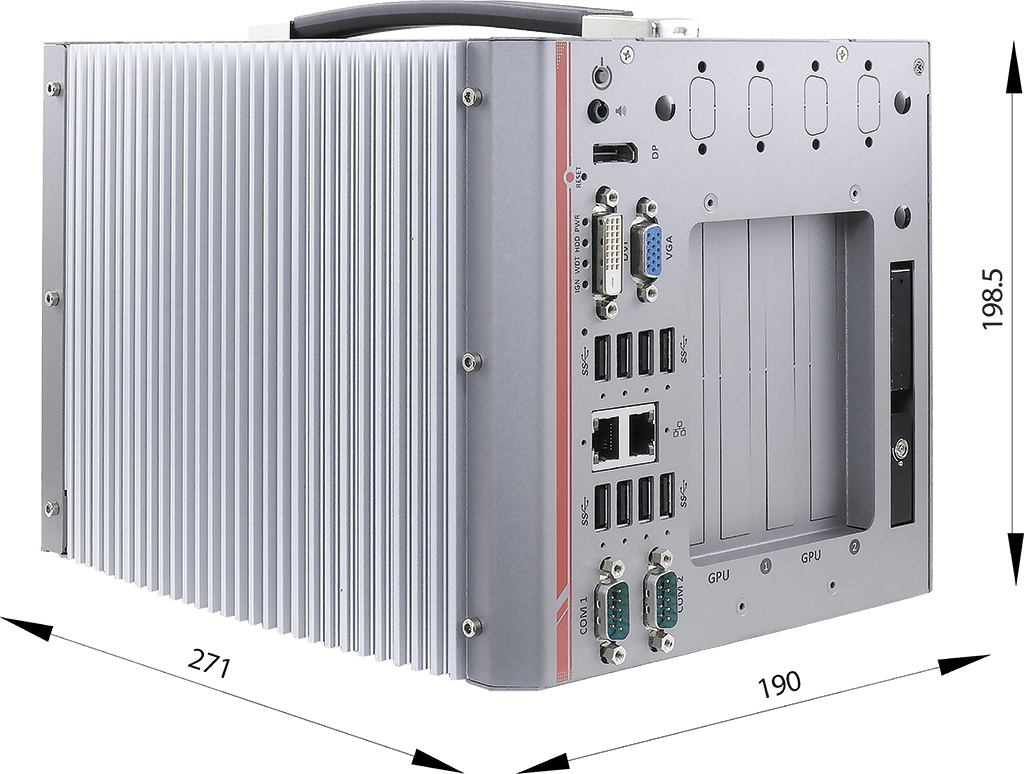

Dimensions / mm	190 x 271 x 198.5
Scope of delivery	4-pin terminal connector • Rubber absorber • Wall mounting kit • Driver CD
