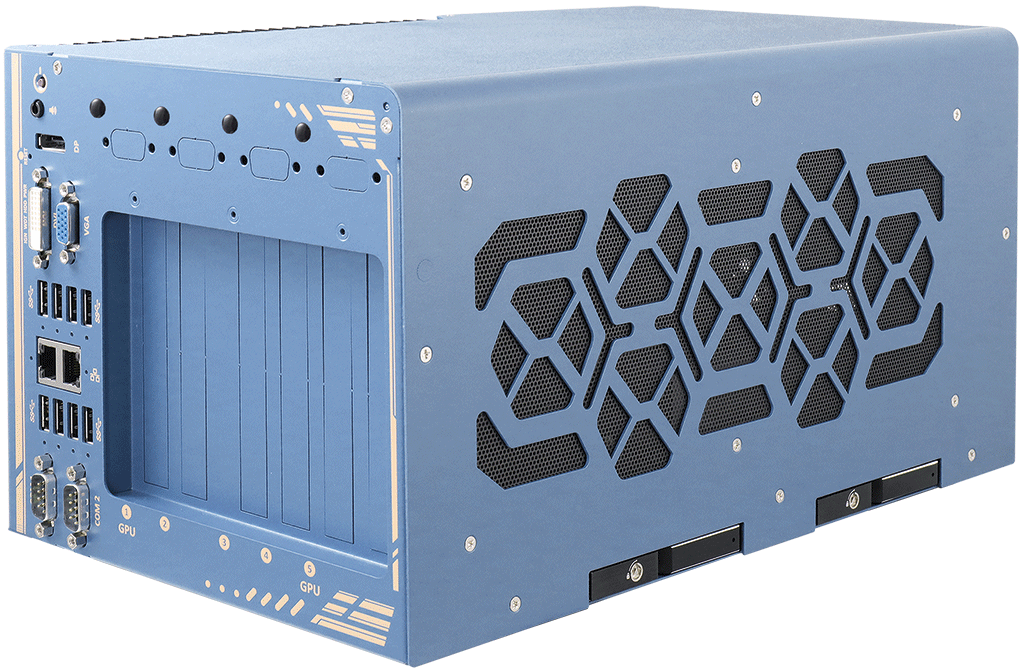

CamCollect® 8208

Edge AI Computer for NVIDIA® RTX 30 (Dual) • 9th Gen. Intel® Core™ i7/i5/i3

CamCollect® 8208 is the world‘s first dual GPU edge ai platform with industrial-grade design and in-vehicle features. Designed specifically to support dual NVIDIA RTX 30 series graphics cards, it offers tremendous GPU power up to 28 TFLOPS in FP32 for emerging GPU-accelerated edge computing, such as autonomous driving, vision inspection and surveillance/ security.

CamCollect® 8208 edge AI computing platform is powered by Intel® Xeon® E or 9th/ 8th-Gen Core™ 8-core/ 16-thread CPUs coupled with workstation-grade Intel® C246 chipset to support up to 128GB ECC or non-ECC DDR4 memory. The system incorporates two hot-swappable 2.5“ trays for easy HDD/ SSD replacement and an M.2 2280 NVMe socket for the ultimate disk performance. Its front-accessible GbE and USB 3.1 Gen1/ Gen2 ports feature screw-lock mechanisms for securing cable connections. In addition to the dual x16 PCIe slots for GPU installation, CamCollect® 8208 has two other x8 PCIe slots and one x4 PCIe slot for expansion cards to extend function sets like data collection, analytics and communication.

CamCollect® 8208 has a brand new power delivery design to accept 8V ~ 35V wide-range DC input and to handle heavy power requirements from dual 250W GPUs. Along with built-in ignition control, it‘s feasible to deploy it on a vehicle and directly power it via the car‘s power system. Mechanical wise, CamCollect® 8208 incorporates the patented heat dissipation design, damping brackets and patent-pending GPU press bar, making it steady and rock-solid in various conditions.

The Industrial Box-PC CamCollect® 8208 is the response to the never-ending demand of TFLOPS in industrial GPU platforms. With industrial-grade power, thermal and mechanical design, it pushes versatile edge AI inference applications from laboratories to field applications, where reliability matters.

Key facts	• 9th Gen. Intel® Core™ i7/i5/i3 • Up to 128GB DDR4 • 5x PCIe • Option: PoE+, 10GigE • Supports 2x NVIDIA® RTX 30 GPUs
Protection class	IP20
CPU	Supporting Intel® Xeon® E and 9th/8th-Gen CPU (LGA1151 socket)
Chipset	Intel® C246 Platform Controller Hub
RAM	Up to 128GB ECC/ non-ECC DDR4 2133 SDRAM (four SODIMM slots)
Storage interface	2x hot-swappable HDD trays for 2.5” HDD/ SSD installation • 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation • 2x full-size mSATA port (mux with mini-PCIe)

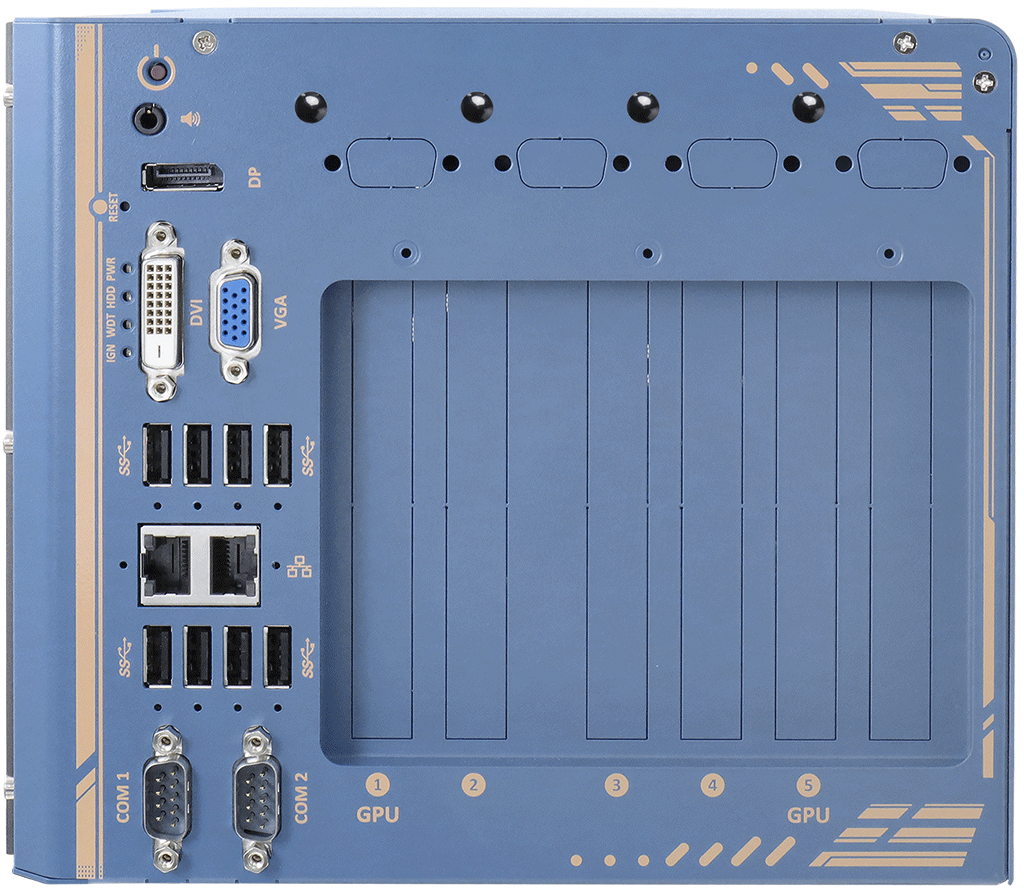

Ports	2x GigE, 1x Intel® I219-LM, 1x Intel® I210-IT • 4x USB 3.1 Gen2 (10 Gbps) • 4x USB 3.1 Gen1 (5 Gbps) • 1x USB 2.0 (internal for dongle use) • 2x software-programmable RS-232/ 422/ 485 ports (COM1/COM2) • 1x VGA connector, supporting 1920 x 1200 resolution • 1x DVI-D connector, supporting 1920 x 1200 resolution • 1x DisplayPort connector, supporting 4096 x 2304 resolution • 1x Speaker-out
PCI / PCIe / mini-PCIe	2x PCIe x16, Gen3, 8-lanes • 2x PCIe x8, Gen3, 4-lanes • 1x PCIe x4, Gen3, 1-lane • 2x full-size mini-PCIe socket • 1x M.2 2242 B key socket supporting dual SIM mode with selected M.2 LTE modul
Cooling System	Active, fan
Mounting	Wall mounting with Rubber absorber

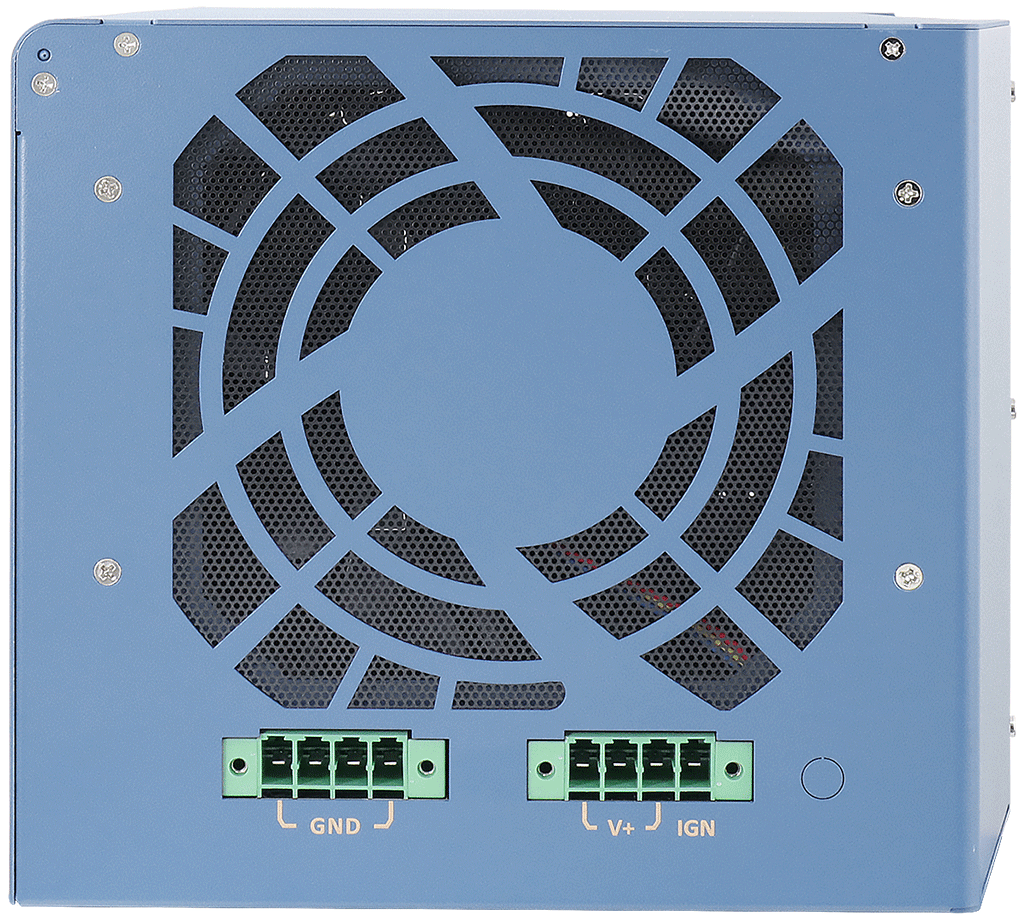

Power input	2x 4-pin pluggable terminal block for 8V to 35V DC input and 1x 3-pin ignition control
Power consumption	TBA
Operating system	Option: Windows® 10 • LINUX 64Bit
Operating temperature	-25°C to 60°C with 100% CPU/ GPU loading
Storage temperature	-40° to 85°C
Storage humidity	10% to 90% @ 40°C; non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
Certificate	CE/ FCC Class A, according to EN 55024 & EN 55032
Weight / kg	8.6

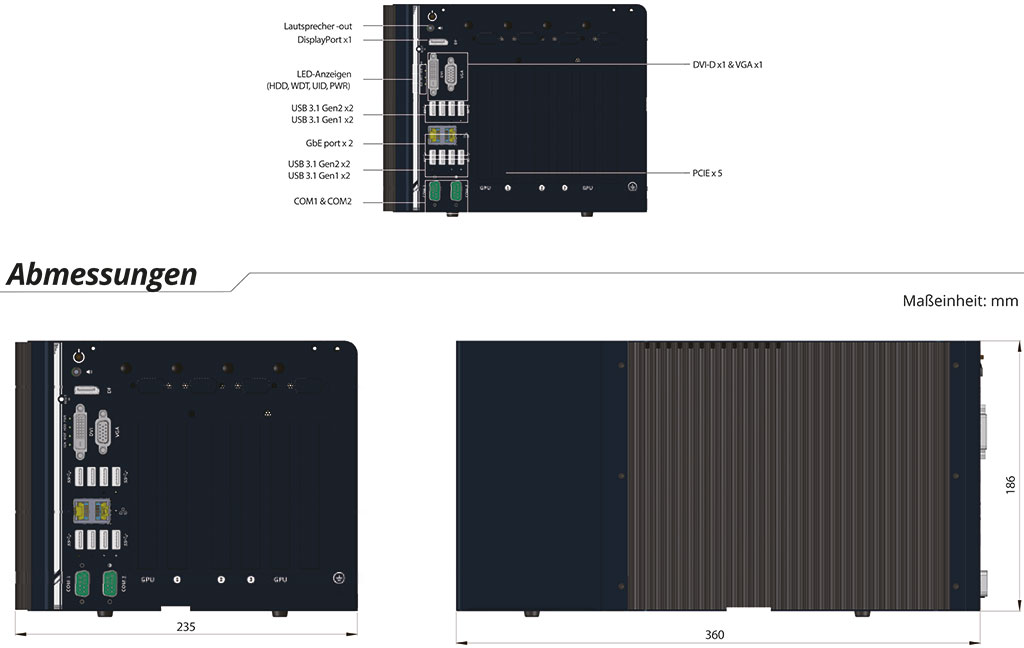

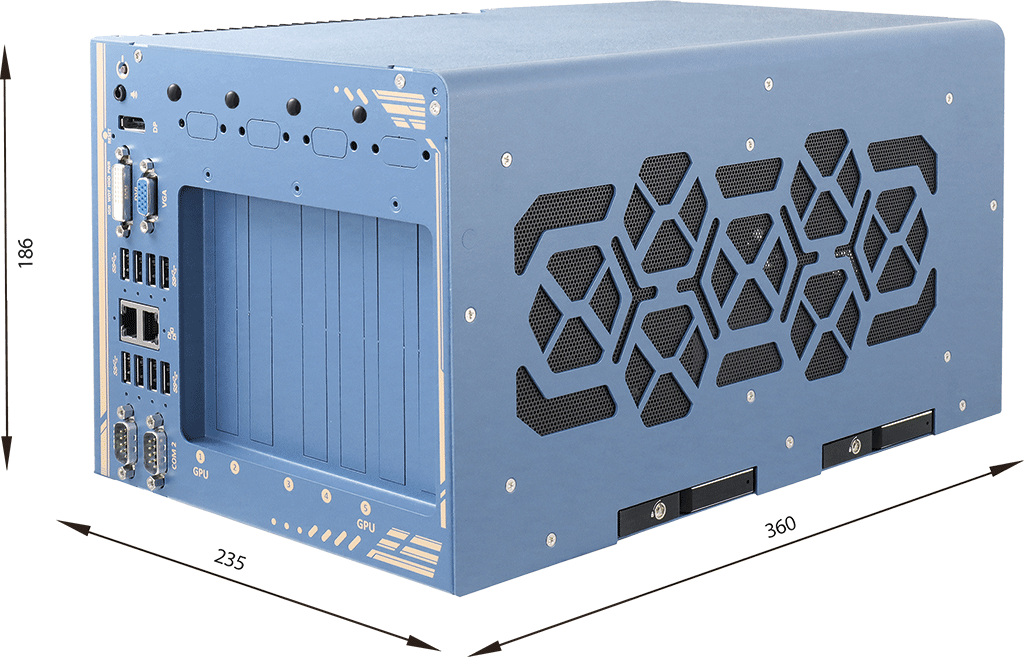

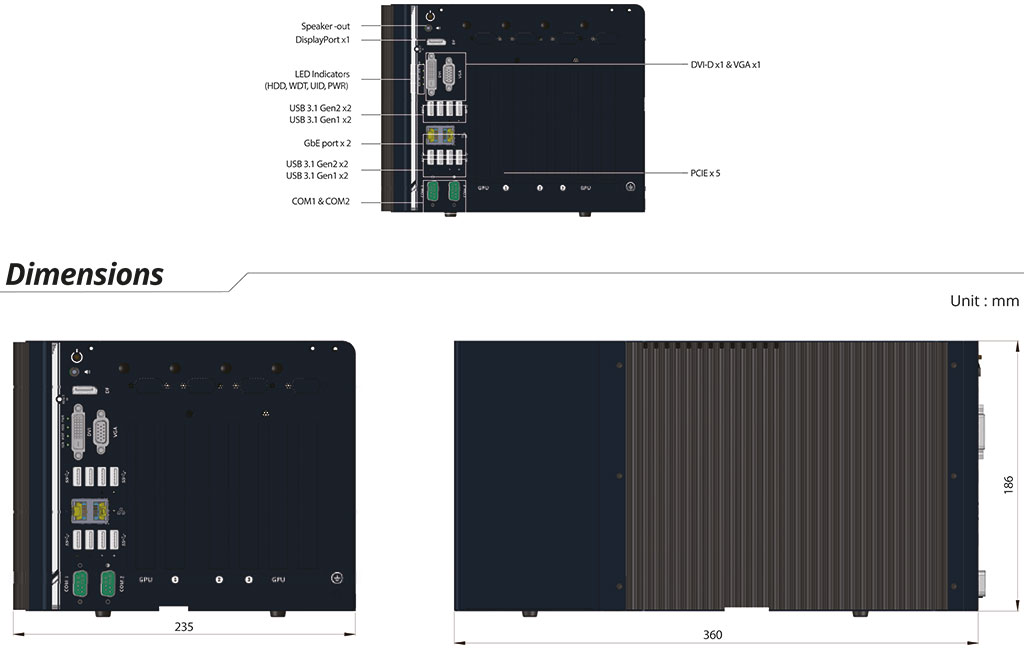

Dimensions / mm	235 x 360 x 186
Scope of delivery	3-pin terminal connector • Rubber absorber • wall mounting kit • driver CD
