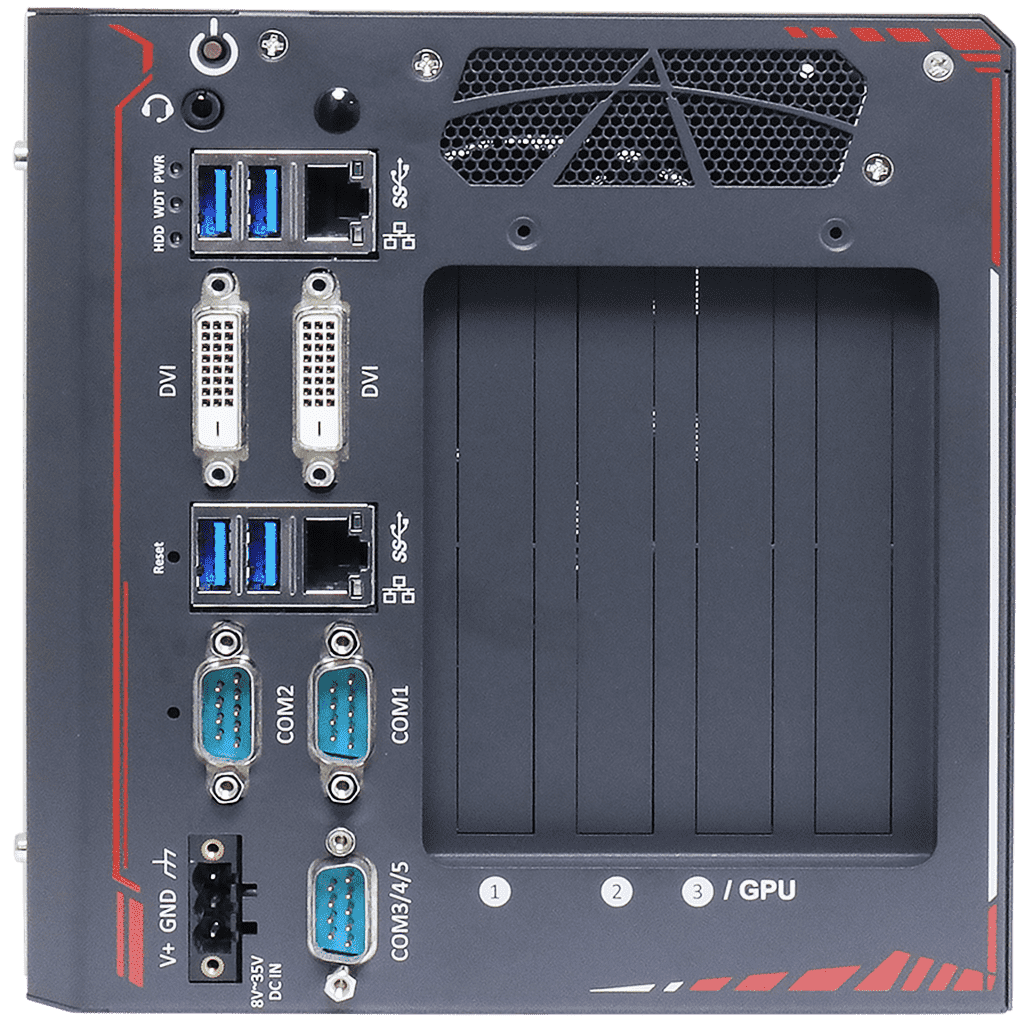

CamCollect® 8111

Cost-effective AI Computer supports NVIDIA® GPU • 9th Gen. Intel® Core™ i7/i5/i3

CamCollect® 8111 series is a cost-effective Industrial Box-PC with 3 expansion slots designed specifically to support an advanced mid to high-end 200W NVIDIA® graphics card, such as an RTX 3060/ 3060 Ti, to offer stunning edge AI performance. Offering tremendous GPU power up to 20 TFLOPS in FP32 for emerging GPU-accelerated applications, they boost the performance and efficiency of factory automation, image recognition, product inspection, pick and place robots, etc.

CamCollect® 8111 series leverages an Intel® 9th/ 8th-Gen Core™ processor with H310 chipset. It has one x16 Gen3 PCIe slot for accommodating a GPU card, and an additional x4 PCIe and a PCI slot for industrial I/O cards such as DIO, AIO, communication or motion control card. It features front-accessible I/Os including two GbE, four USB 3.1 Gen1 and five COM ports for easy access when it is rack-mounted or placed inside a cabinet. Storage-wise, the system supports two 2.5” SATA SSDs/ HDDs plus one mSATA socket to house an mSATA SSD.

As edge AI demand continues to grow for traditional production and factory automation, the CamCollect® 8111 seeks to fulfill this need. With mid to high-end GPU support, expansion capability, compact and rugged design that plays an important role in bringing artificial intelligence to the edge and factory floors, the CamCollect® 8111 is no doubt the most cost-effective AI platform for automation in its class!

Key facts	• 9th Gen. Intel® Core™ i7/i5/i3 • Up to 32GB DDR4 • 2x PCIe/1x PCI • Option: PoE+, 10GigE • Supports NVIDIA® 200W GPUs
Protection class	IP20
CPU	Supporting Intel® 9th/ 8th-Gen Core™ CPU (LGA1151 socket)
Chipset	Intel® H310 platform controller hub
RAM	Up to 32GB DDR4 2666 SDRAM (one SODIMM slots)
Storage interface	2x internal SATA ports for 2.5” HDD/ SSD installation • 1x full-size mSATA port (SATA + USB 2.0 + USIM)
Ports	2x GigE, 1x Intel® I219-LM; 1x Intel® I210-IT • 1x USB 2.0 port with Type-A connector (internal) • 2x USB 2.0 port with 2x8 pins box header (internal) • 4x USB 3.1 Gen1 (5 Gbps) ports • 2x DVI-D connector, supporting 1920 x 1200 resolution • 1x software-programmable RS-232/ 422/ 485 port (COM1) • 1x software-programmable RS-422/ 485 port (COM2) • 3x 3-wire RS-232 ports (COM3/ COM4/ COM5) • 1x 3.5 mm jack for mic-in and speaker-out
PCI / PCIe / mini-PCIe	1x PCIe x16 slot @Gen3, 16-lane (for GPU installation) • 1x PCIe x4 slot @Gen2, 4-lane signal 1x 33MHz/ 32-bit 5V PCI slot
Cooling System	Active, fan

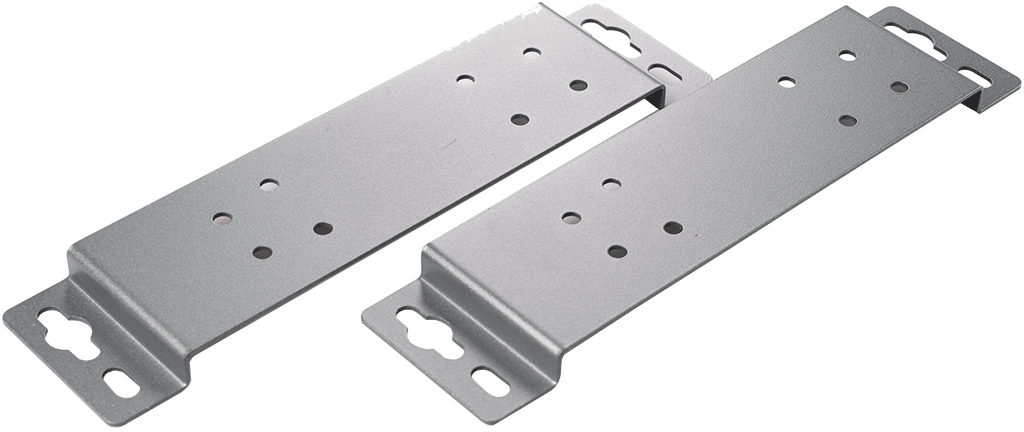

Mounting	Option: wall-mount bracket
Power input	1x 3-pin pluggable terminal block for 24V DC input
Power consumption	TBA
Operating system	Option: Windows® 10 • LINUX 64Bit
Operating temperature	-25° to 60°C
Storage temperature	-40° to 85°C
Storage humidity	10% to 90%; non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
Certificate	CE/FCC Class A, according to EN 55032 & EN 55035
Weight / kg	4.5

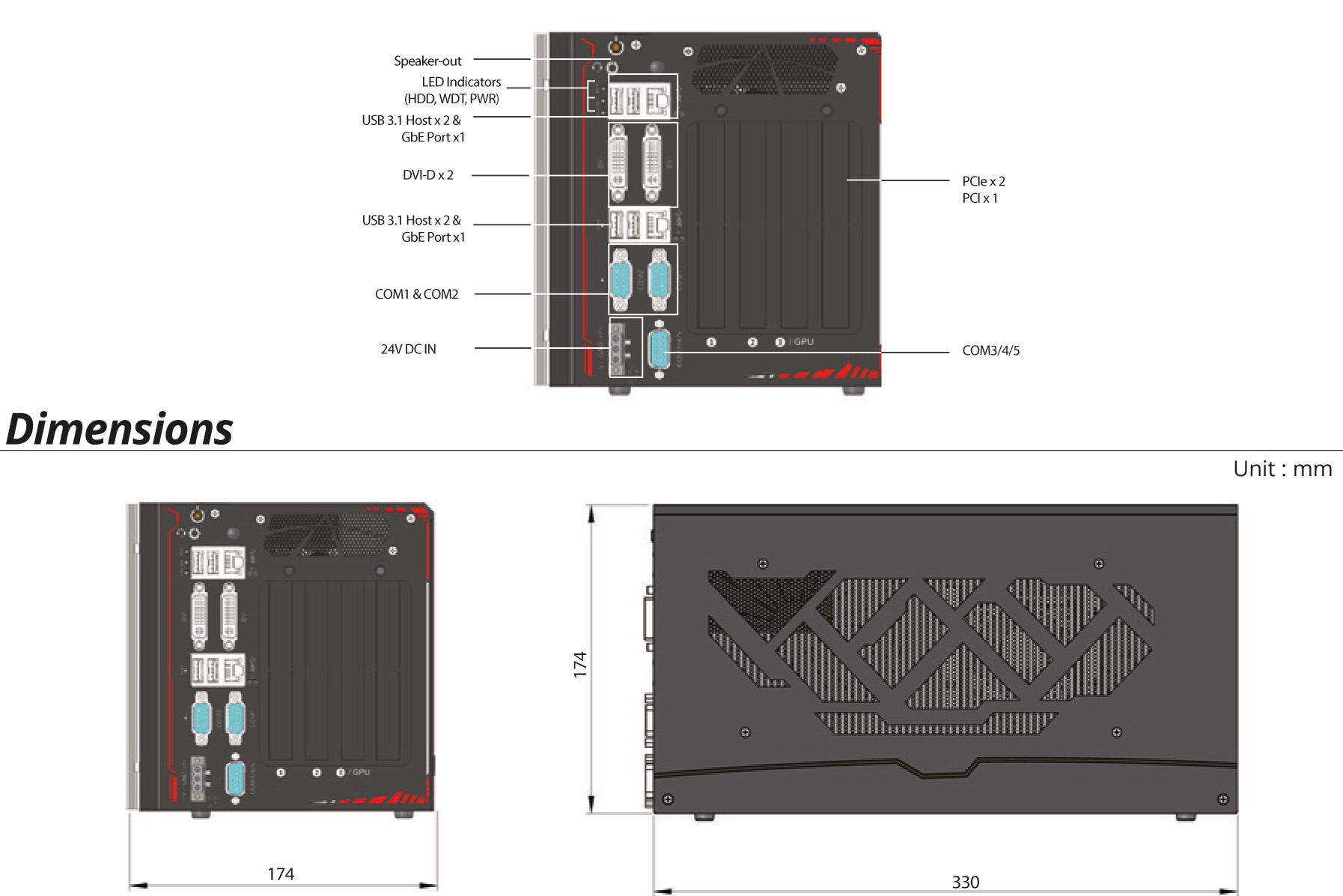

Dimensions / mm	174 x 330 x 174
Scope of delivery	1x 3-pin pluggable terminal block • driver CD
