CamCollect® 8108GC-QD

Edge AI Computer for NVIDIA® RTX A6000/ A4500 • 9th Gen. Intel® Core™ i7/i5/i3

CamCollect® 8108GC-QD, the latest member of the well-received CamCollect® 8108GC series, is a rugged edge AI platform specially designed for NVIDIA® RTX A6000 and RTX A4500 Ampere GPU cards. The GPUs offer tremendous computing power and product longevity, to take GPU-accelerated edge AI applications such as autonomous driving, vision inspection and intelligent video analytics to the next level of reliability and availability.

Powered by an Intel® Xeon® E or 9th/ 8th-Gen Core™ (up to 8-core/ 16-thread) CPU with workstation-grade Intel® C246 chipset to support up to 128 GB ECC or non-ECC DDR4 memory, it has a strong foundation for building a powerful AI edge computing platform. The Industrial Box-PC has a refined thermal dissipation design to optimize GPU performance in high-temperature environments. Additionally, CamCollect® 8108GC-QD comes with a dedicated mounting bracket for RTX A6000/ A4500 to keep the GPU card firmly secured in the PCIe slot. Along with the patented damping brackets, it ensures rock-solid operation in intensive shock and vibration conditions.

The addition of RTX A6000/ A4500 to GPU computer portfolio realizes an edge AI platform with system-level longevity and up to 38.7 TFLOPS FP32 or 309.7 TFLOPS tensor performance. Combining proven power design, guaranteed thermal efficiency, and superior mechanical ruggedness, CamCollect® 8108GC-QD brings unprecedented longevity, computing power, flexibility and reliability to edge AI computing.

Key facts	• 9th Gen. Intel® Core™ i7/i5/i3 • Up to 128GB DDR4 • 4x PCIe • Option: PoE+, 10GigE • Supports NVIDIA® RTX A6000/A4500
Protection class	IP20
CPU	Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket)
Chipset	Intel® C246 Platform Controller Hub
RAM	Up to 128GB ECC/ non-ECC DDR4 2133 SDRAM (four SODIMM slots)
Storage interface	1x hot-swappable HDD tray for 2.5” HDD/ SSD installation • 1x Internal SATA port for 2.5” HDD/ SSD installation, supporting RAID 0/ 1 • 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation • 2x full-size mSATA port (mux with mini-PCIe)
RAID	0/ 1

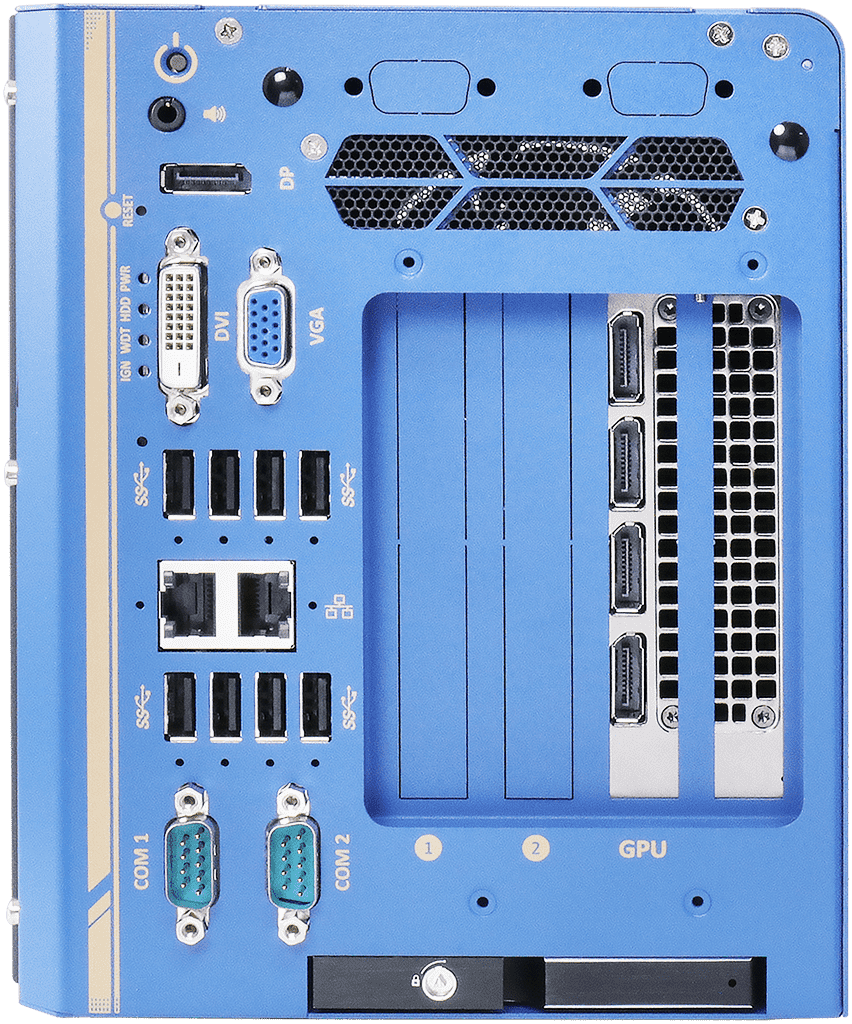

Ports	2x GigE, 1x Intel® I219-LM; 1x Intel® I210-IT • 4x USB 3.1 Gen2 (10 Gbps) • 4x USB 3.1 Gen1 (5 Gbps) • 1x USB 2.0 (internal for dongle use) • 2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2) • 1x VGA, supporting 1920 x 1200 resolution • 1x DVI-D, supporting 1920 x 1200 resolution • 1x DisplayPort, supporting 4096 x 2304 resolution • 1x 3.5mm jack for mic-in and speaker-out
PCI / PCIe / mini-PCIe	2x PCIe x16 slot@Gen3, 8-lanes • 2x PCIe x8 slots@Gen3, 4-lanes • 1x M.2 2242 B key socket supporting dual SIM mode with selected M.2 LTE module • 2x full-size mini-PCIe socket
Cooling System	Active, fan
Mounting	Wall-mount with damping brackets
Power input	8V to 48V DC • 2x 4-pin pluggable terminal block input with ignition control
Power consumption	Intel® Xeon® Processor E-2176G, 4GB RAM and 1x SSD: max. ca. 95W • Intel® Xeon® Processor E-2278GEL / Intel® Core™ i 8x00T, 4GB RAM and 1x SSD: max. ca. 85W
Operating system	Option: Windows® 10 • LINUX 64Bit
Operating temperature	With 35W CPU and one NVIDIA® RTX A6000/ A4500 GPU: -25° to 60°C • with >= 65W CPU and one NVIDIA® RTX A6000/ A4500 GPU: -25°C to 60°C (configured as 35W TDP mode); -25°C to 50°C (configured as 65W TDP mode)
Storage temperature	-40° to 85°C
Storage humidity	10% to 90%; non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
Certificate	CE/ FCC Class A, according to EN 55024 & EN 55032
Weight / kg	5.8

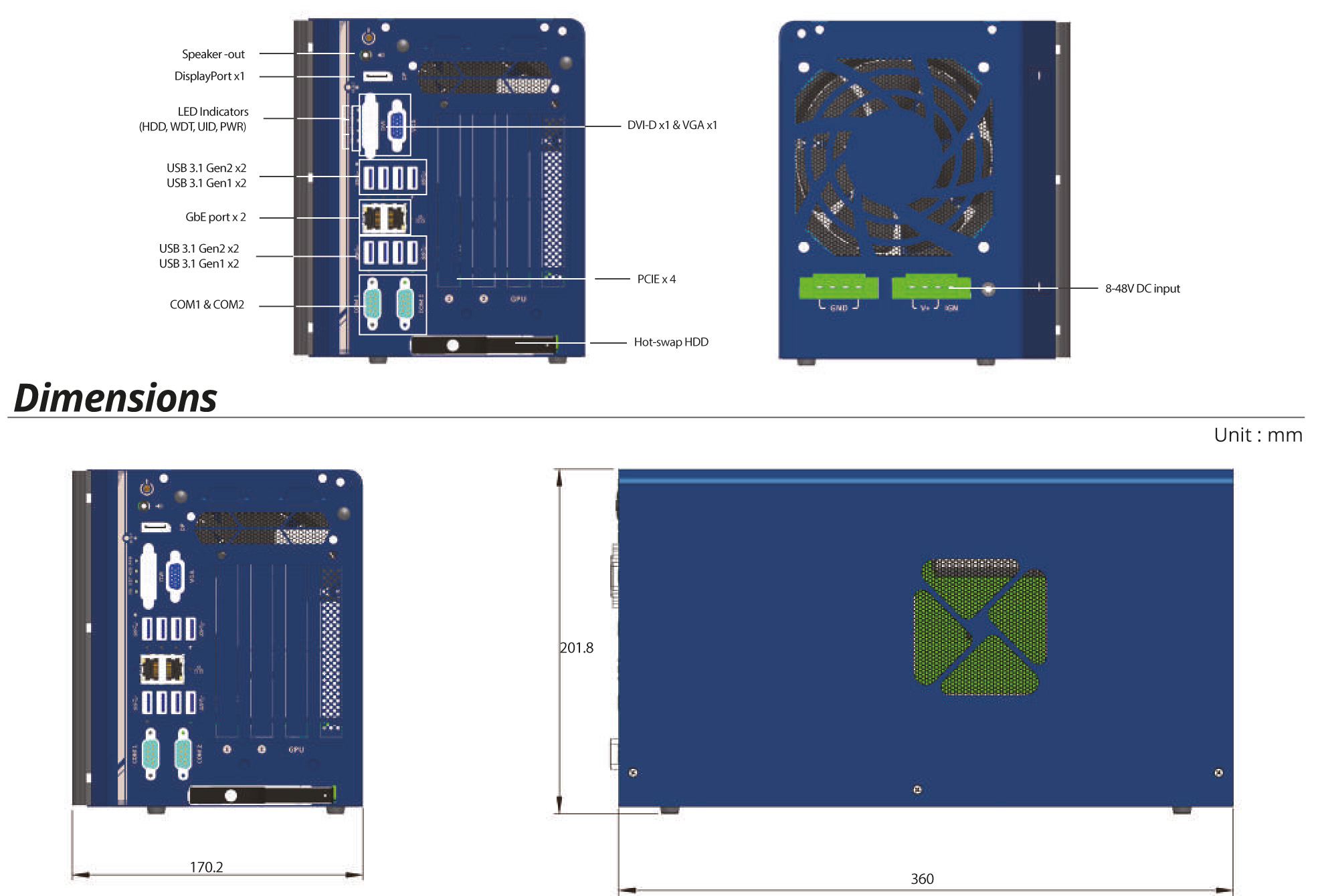

Dimensions / mm	170.2 x 360 x 201.8
Scope of delivery	Rubber absorber • wall mounting kit • driver CD
