CamCollect® 8108

Edge AI Computer for NVIDIA® RTX 30 • 9th Gen. Intel® Core™ i7/i5/i3

CamCollect® 8108 is a rugged GPU Computing edge AI platform with industrial-grade design and in-vehicle features. Designed specifically to support a high-end 250W NVIDIA® graphics card, it offers tremendous GPU power up to 14 TFLOPS in FP32 for emerging GPU-accelerated edge computing, such as autonomous driving, vision inspection and surveillance/ security.

CamCollect® 8108 is powered by Intel® Xeon® E or 9th/ 8th-Gen Core™ (up to 8-core/ 16-thread) CPUs coupled with workstation-grade Intel® C246 chipset to support up to 128GB ECC or non-ECC DDR4 memory. The system incorporates an internal 2.5“ HDD/ SSD tray and one hot-swappable 2.5“ HDD/ SSD tray for easy replacement. There is also an M.2 2280 NVMe socket for the fast read/ write performance. Its front-accessible GbE and USB 3.1 Gen1/ Gen2 ports feature screw-lock mechanisms for securing cable connections. In addition to the x16 PCIe slot (8-lanes) for GPU installation, CamCollect® 8108 has other two x8 PCIe slots (4-lanes) and one x16 PCIe slot (8-lanes) for expansion cards to extend function sets like data collection,analytics and communication.

CamCollect® 8108 has a brand new power delivery design to accept 8V~48V wide-range DC input and to handle heavy power requirements from 250W GPU. Along with built-in ignition control, it‘s feasible to deploy it on a vehicle and directly power it via the car‘s power system. Mechanical wise, CamCollect® 8108 incorporates the patented heat dissipation design, damping brackets* and patent-pending GPU press bar, making it steady and rock-solid in various conditions. The Industrial Box-PC CamCollect® 8108 is response to the never-ending demand of TFLOPS in industrial GPU platforms. With industrial-grade power, thermal and mechanical design, it pushes versatile AI inference applications from laboratories to field applications, where reliability matters.

Key facts	• 9th Gen. Intel® Core™ i7/i5/i3 • Up to 128GB DDR4 • 4x PCIe • Option: PoE+, 10GigE • Supports NVIDIA® RTX 30 GPUs
Protection class	IP20
CPU	Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket)
Chipset	Intel® C246 Platform Controller Hub
RAM	Up to 128GB ECC/ non-ECC DDR4 2133 SDRAM (four SODIMM slots)
Storage interface	1x hot-swappable HDD tray for 2.5” HDD/ SSD installation • 1x Internal SATA port for 2.5” HDD/ SSD installation, supporting RAID 0/ 1 • 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation • 2x full-size mSATA port (mux with mini-PCIe)
RAID	0/ 1

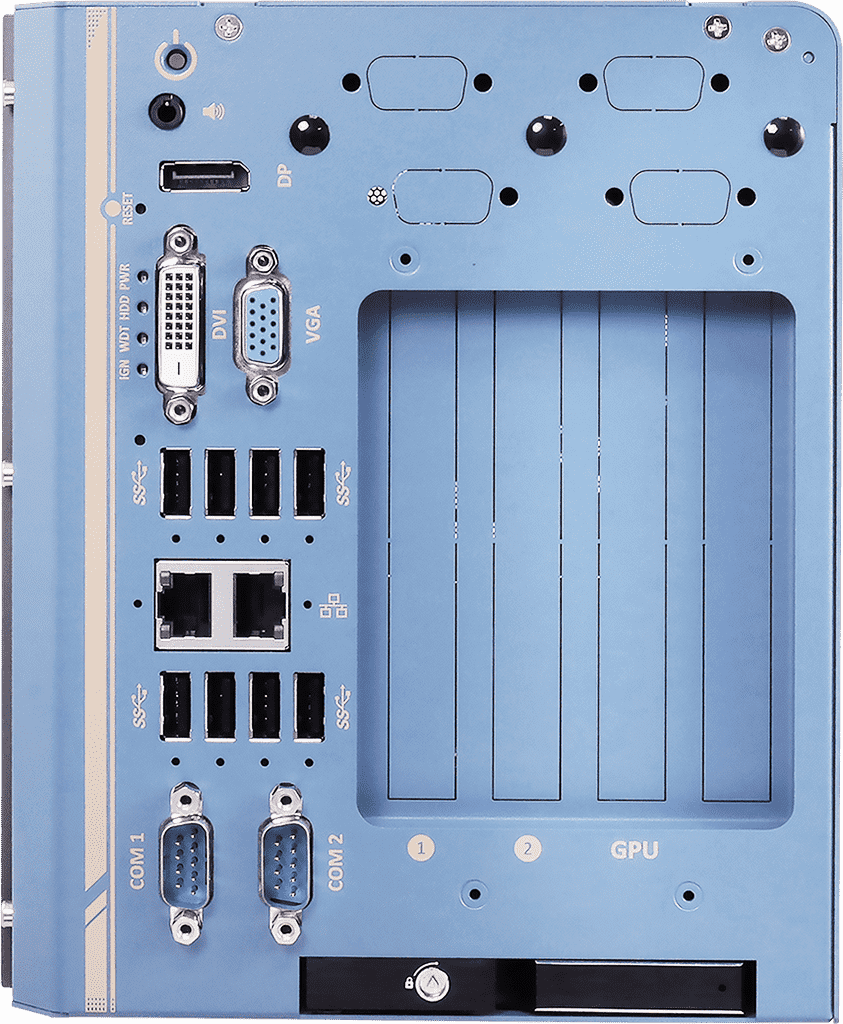

Ports	2x GigE, 1x Intel® I219-LM; 1x Intel® I210-IT • 4x USB 3.1 Gen2 (10 Gbps) • 4x USB 3.1 Gen1 (5 Gbps) • 1x USB 2.0 (internal for dongle use) • 2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2) • 1x VGA, supporting 1920 x 1200 resolution • 1x DVI-D, supporting 1920 x 1200 resolution • 1x DisplayPort, supporting 4096 x 2304 resolution • 1x 3.5mm jack for mic-in and speaker-out
PCI / PCIe / mini-PCIe	2x PCIe x16 slot@Gen3, 8-lanes • 2x PCIe x8 slots@Gen3, 4-lanes • 1x M.2 2242 B key socket supporting dual SIM mode with selected M.2 LTE module • 2x full-size mini-PCIe socket
DIO	2x full-size mSATA port (mux with mini-PCIe)
Cooling System	Active, fan
Mounting	Wall-mount with damping brackets

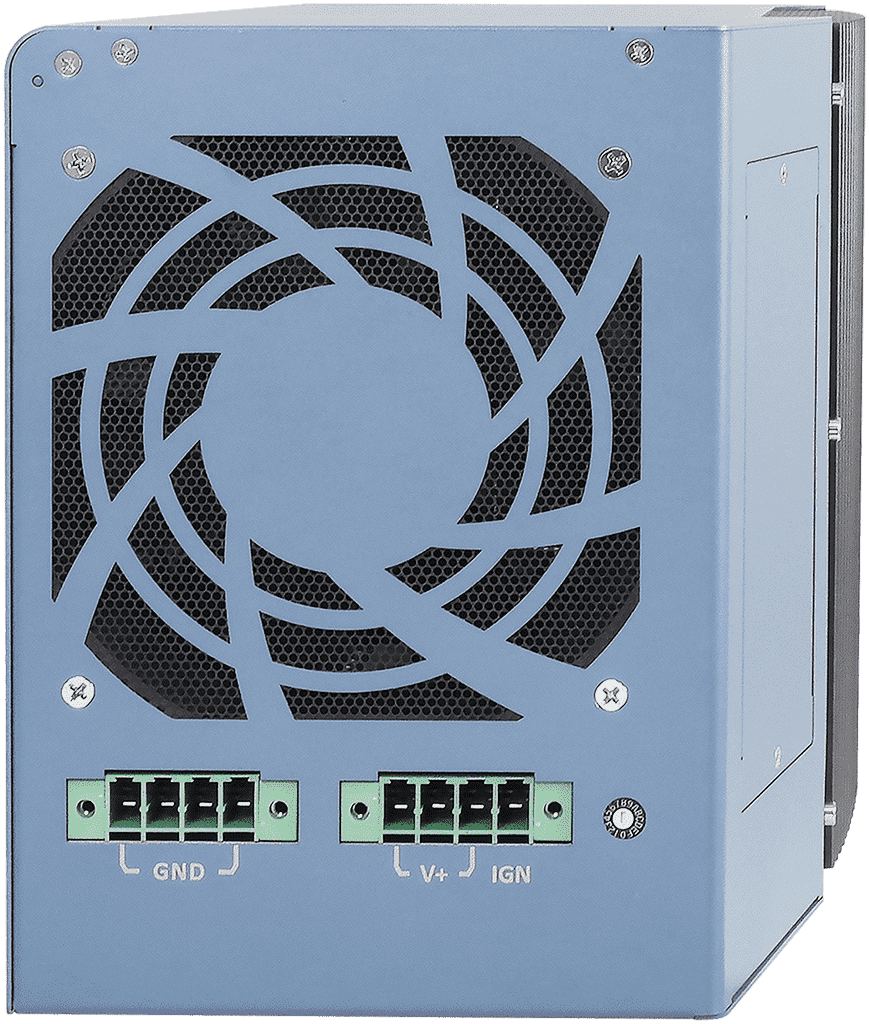

Power input	8V to 48V DC • 2x 4-pin pluggable terminal block input with ignition control
Power consumption	Intel® Xeon® Processor E-2176G, 4GB RAM and 1x SSD: max. ca. 95W • Intel® Xeon® Processor E-2278GEL / Intel® Core™ i 8x00T, 4GB RAM and 1x SSD: max. ca. 85W
Operating system	Option: Windows® 10 • LINUX 64Bit
Operating temperature	With 35W CPU and one NVIDIA® 250W GPU -25°C bis 60°C • with >= 65W CPU and one NVIDIA® 250W GPU -25°C bis 60°C (configured as 35W TDP mode); -25°C bis 50°C (configured as 65W TDP mode)
Storage temperature	-40° to 85°C
Storage humidity	10% to 90%; non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4 and 3 Grms, 5-500 Hz, 3 Axes
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
Certificate	CE/ FCC Class A, according to EN 55024 & EN 55032
Weight / kg	5

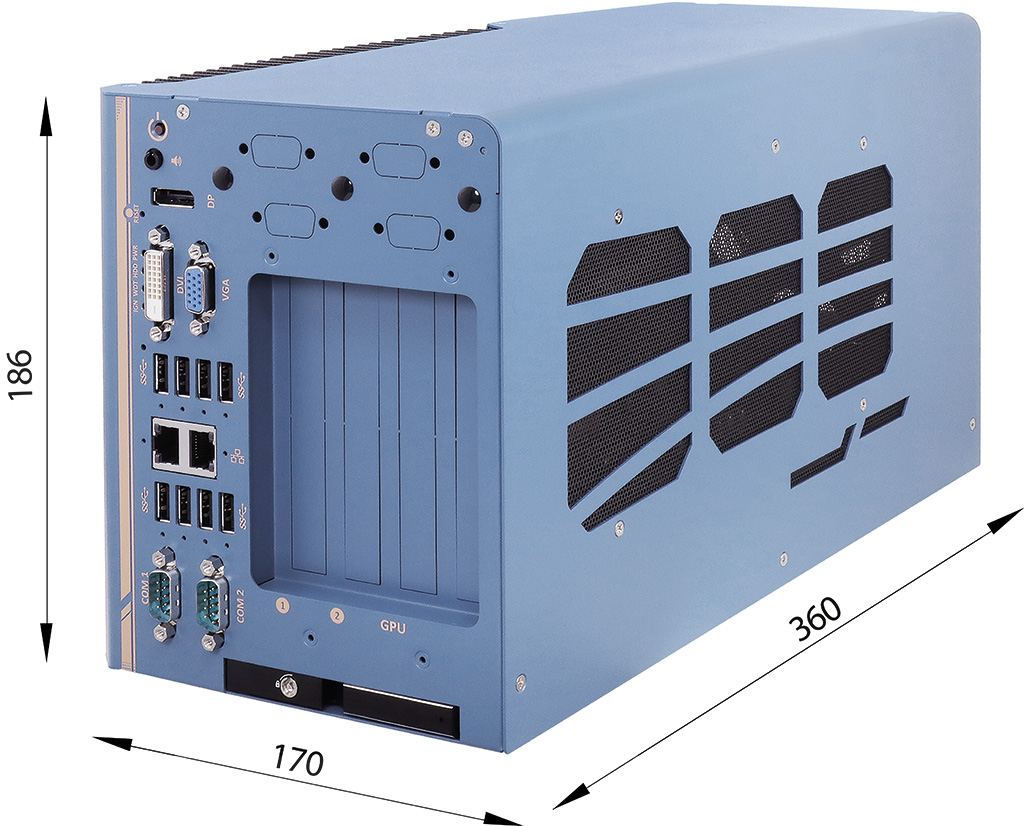

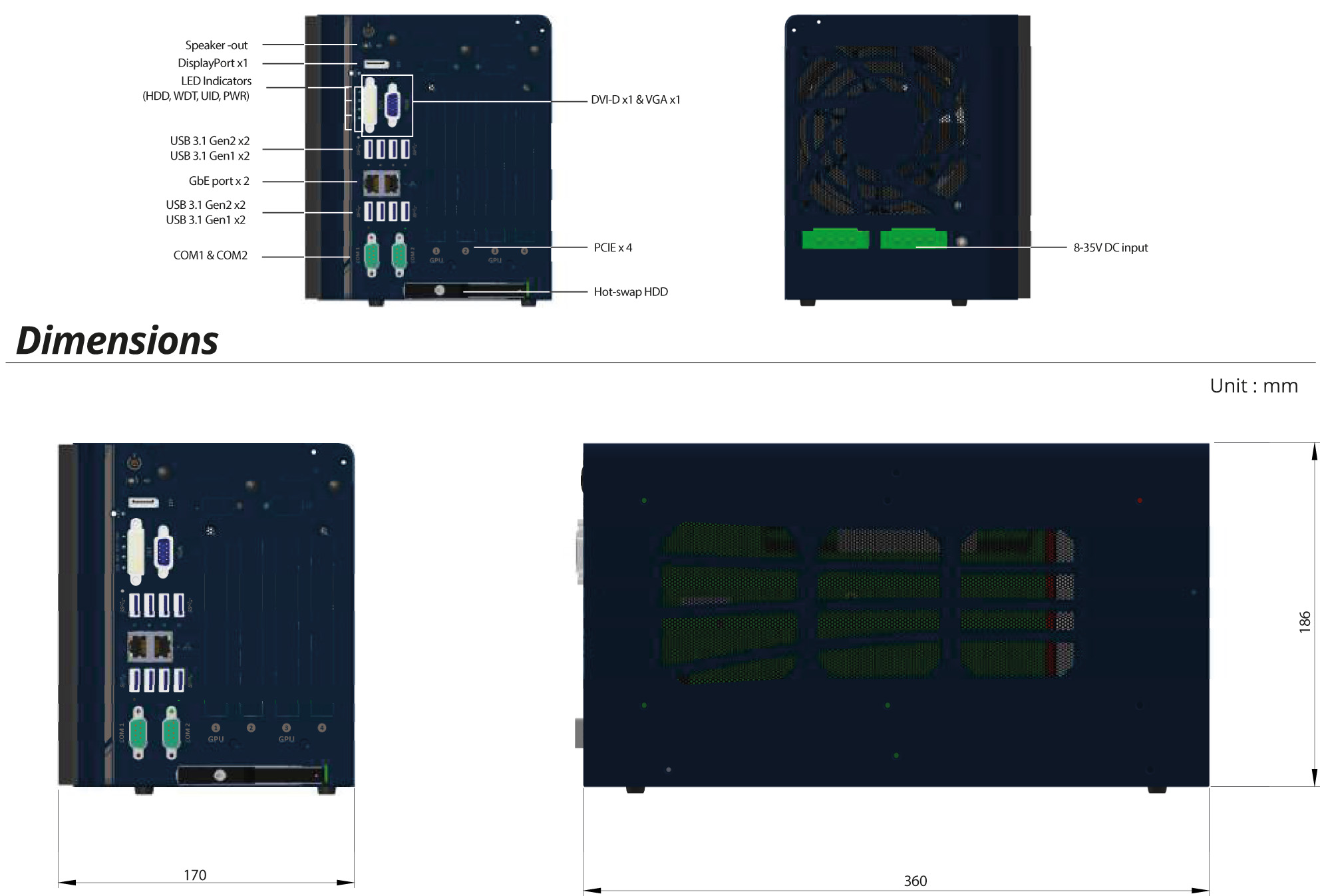

Dimensions / mm	170 x 360 x 186
Scope of delivery	Rubber absorber • wall mounting kit • driver CD
