CamCollect® 8003

Expansion Industrial PC with 3x PCIe • 9th Gen. Intel® Core™ i7/i5/i3/Celeron

CamCollect® 8003 series systems are cost-effective Industrial Box-PCs with up to 5 expansion slots that can perfectly replace your bulky rack-mount or wall-mount IPC systems. Leveraging Intel® 9th/ 8th-Gen Core™ i desktop processor with H310 chipset, it delivers the same computing power as traditional IPCs but in a much more compact footprint with a budgetary price.

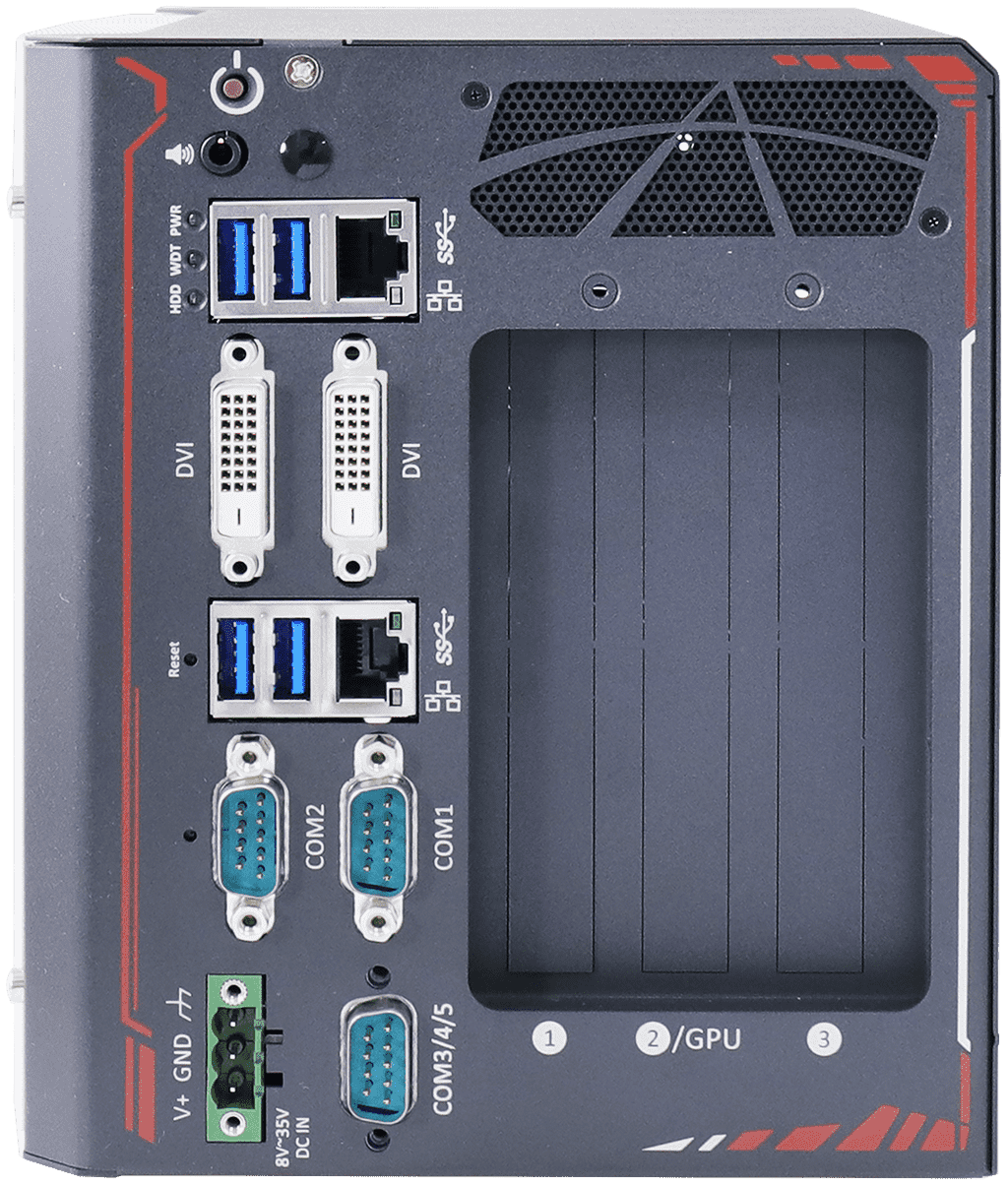

There are four models in the CamCollect® 8003 series with various expansion configurations. Customers can choose from a compact 3-slot PCIe system to a 5-slot system with up to three PCIe slots or up to four PCI slots, that best suit their industrial automation or machine vision application needs. It features front-accessible I/Os including two GbE, four USB 3.1 Gen1 and five COM ports that make it easier to access when it is rack-mounted or placed inside a cabinet. Storage wise, CamCollect® 8003 series systems have two 2.5” SATA SSD/ HDD and one mSATA socket to support various storage devices. The system can also support a 125W NVIDIA® GPU to offer TFLOPS computing power for modern deep-learning applications.

CamCollect® 8003 series systems are designed with satisfying industrial demands in mind. Retaining traditional IPC expansion capabilities and fulfilling diverse application requirements in an extremely compact form-factor with industrial-grade reliability.

Key facts	• 9th Gen. Intel® Core™ i7/i5/i3/Celeron • Up to 32GB DDR4 • Fanless • 3x PCIe • Option: PoE+, 10GigE
Protection class	IP20
CPU	Supporting Intel® 9th/ 8th-Gen Core™ CPU (LGA1151 socket) Intel® Core™ i7/ i5 / i3 • Intel® Pentium® & Intel® Celeron®
Chipset	Intel® H310
RAM	max. 32GB DDR4 2666 SDRAM (one SODIMM slot)
Storage interface	2x internal SATA ports for 2.5” HDD/ SSD installation • 1x full-size mSATA port
Ports	2x GigE, 1x Intel® I219-LM; 1x Intel® I210-AT • 4x USB 3.1, Gen 1 (5 Gbps) • 2x USB 2.0 Header, internal • 1x USB 2.0 with Type-A connectors, internal • 2x USB 2.0 with 2x8 pins box header, internal • 1x software-programmable RS-232/ 422/ 485 ports (COM1) • 1x software-programmable RS-422/ 485 ports (COM2) • 3x 3-wire RS-232 ports (COM3/ COM4/ COM5) • 2x DVI-D connectors, each supporting 1920 x 1200 resolution • 1x 3.5mm jack for mic-in and speaker-out
PCI / PCIe / mini-PCIe	1x PCIe x16 slot @Gen3, 16-lanes • 1x PCIe x8 slot @Gen2, 4-lanes • 1x PCIe x4 slot @Gen2, 1-lane • 1x full-size mSATA socket (mux with USB 2.0 signals)
Cooling System	Passive, fanless

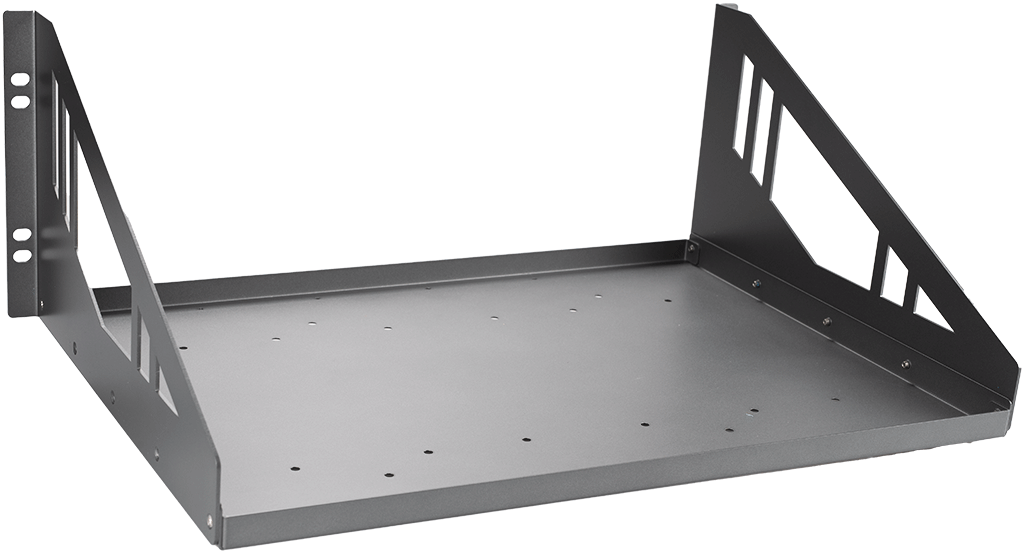

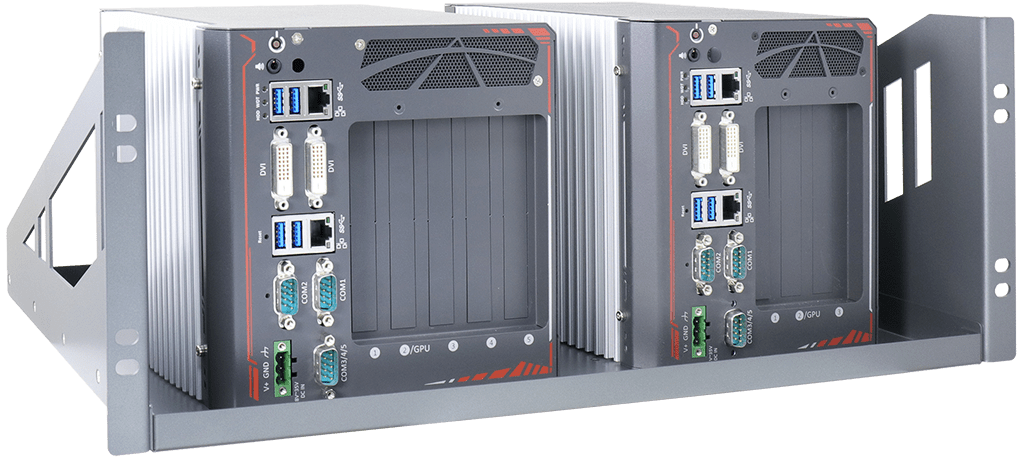

Mounting	Wall-mount • Option: DIN-Rail mounting; Rack-mount
Power input	8V to 35VDC • 1x 3-pin pluggable terminal block
Power consumption	TBA
Operating system	Option: Microsoft Windows® 10 • Fedora 29 • Ubuntu 16.04.5 LTS & Ubuntu18.04.0 LTS
Operating temperature	-25° to 60°C
Storage temperature	-40° to 85°C
Storage humidity	10% to 90%; non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
Certificate	CE/FCC Class A, EN55032 & EN55035
Weight / kg	3

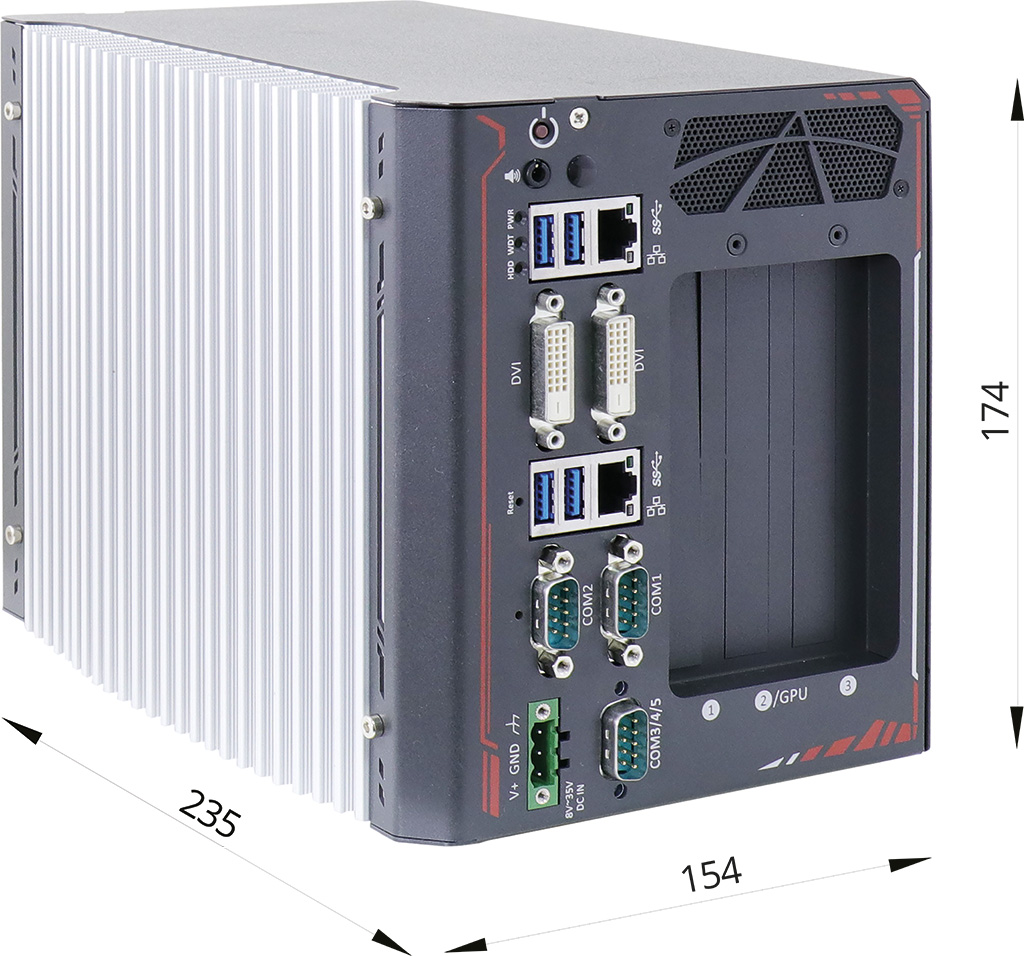

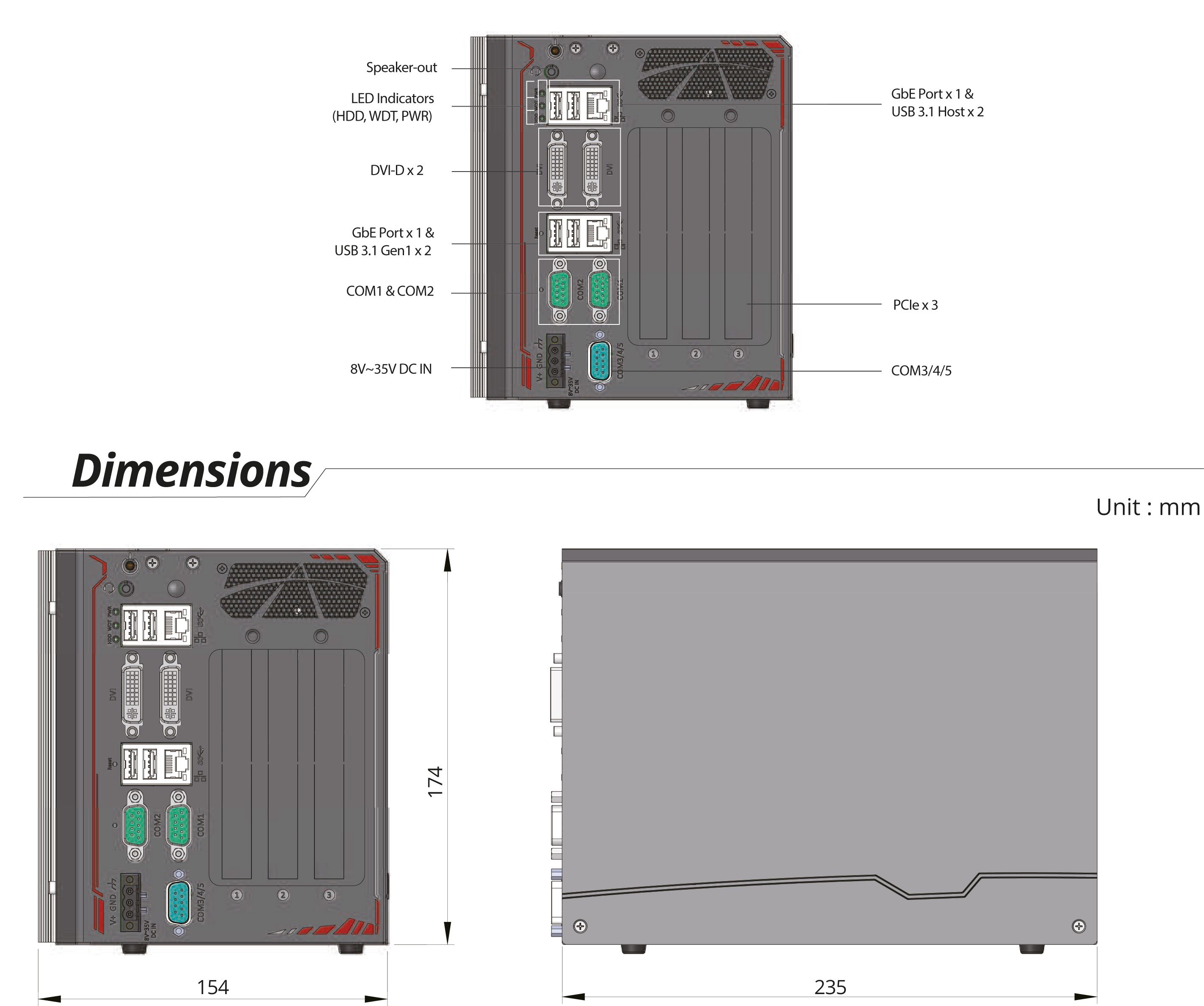

Dimensions / mm	154 x 235 x 174
Scope of delivery	3-pin terminal connector • wall mounting kit • driver CD
