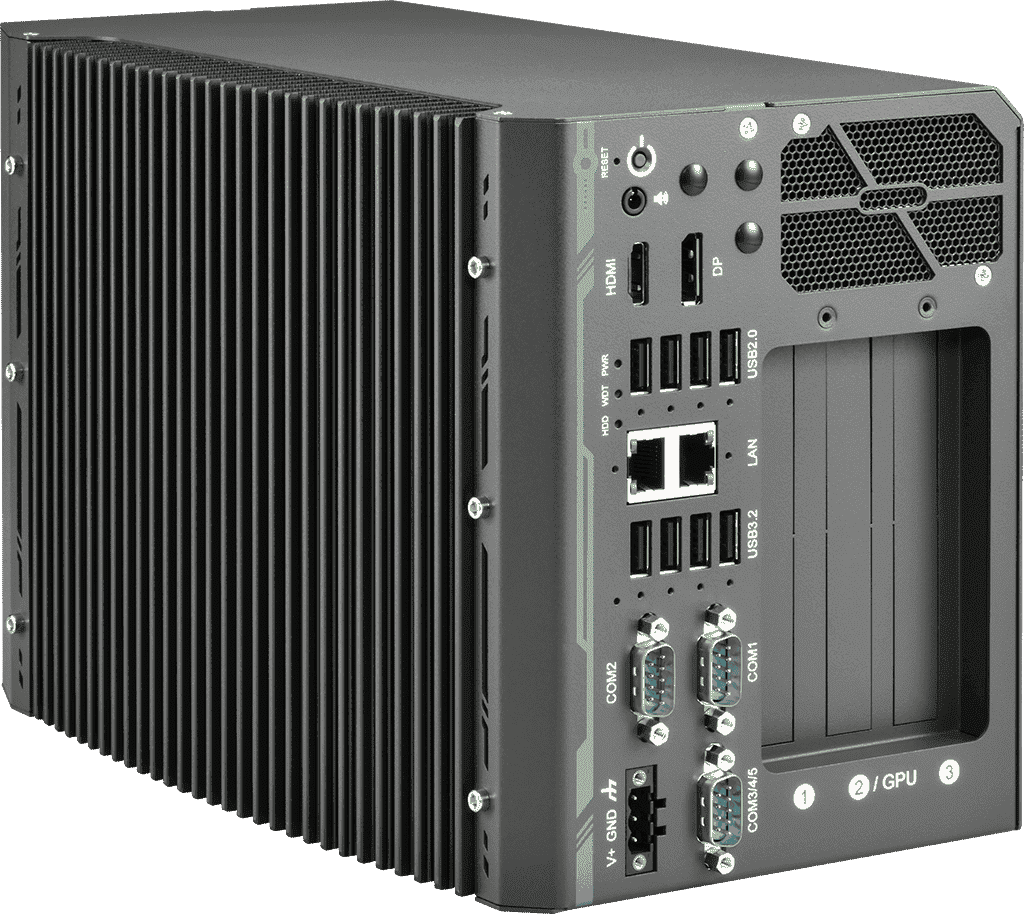

CamCollect® 10003 | Barebone [3x PCIe]

Expansion Industrial PC with 3x PCIe • 13th Gen. Intel® Core™ i9/i7/i5/i3/Celeron

CamCollect® 10003 series is the ideal choice to replace your bulky rack-mount or wall-mount IPC systems. The system offers three PCIe slots in its compact chassis to deliver the same level of expandability as off-the-shelf 4U 19“ IPCs. Users can install a wide variety of AIO, DIO, communication, image capture, and motion control cards for versatile applications.

Leveraging Intel® 14th/ 13th/ 12th-Gen Alder Lake Core™ i desktop processors with Q670 chipset, CamCollect® 10003 series delivers exceptional computing power over traditional IPCs in a comparatively compact size with a competitive price. It features eight USB 3.2 ports with screw-lock mechanism for USB3 cameras. There is one GbE, one 2.5 GbE, 5 COM ports, and accommodates two 2.5“ HDDs/ SSDs with the addition of an internal SATA port for a third HDD/SSD. The system can also support a 115W NVIDIA® GPU to offer significant AI computing power for modern deep-learning applications.

Driven by the increasing demand for industrial IoT, vision inspection and machine automation, CamCollect® 10003 series is a flexible all-around rugged solution that can satisfy various industrial applications. With an assortment of I/O ports and flexible 3-slot PCIe expandability, CamCollect® 10003 series is geared for the fifth industrial revolution.

Key facts	• 13th Gen Intel® Core™ i9/i7/i5/i3/Celeron • Up to 64 GB DDR5 • 3x PCIe • Supports NVIDIA® 115W GPU
Protection class	IP20
CPU	Supports Intel® 14th/ 13th/ 12th-Gen Core™ i9/ i7/ i5/ i3 • Pentium® and Celeron® LGA 1700 CPU
Chipset	Intel® Q670E platform controller hub
RAM	Up to 64GB DDR5 4800 SDRAM (two SODIMM slots)
Storage interface	2x SATA ports for internal 2.5” HDD/ SSD installation (support RAID 0/ 1) • 1x M.2 2280 SATA interface

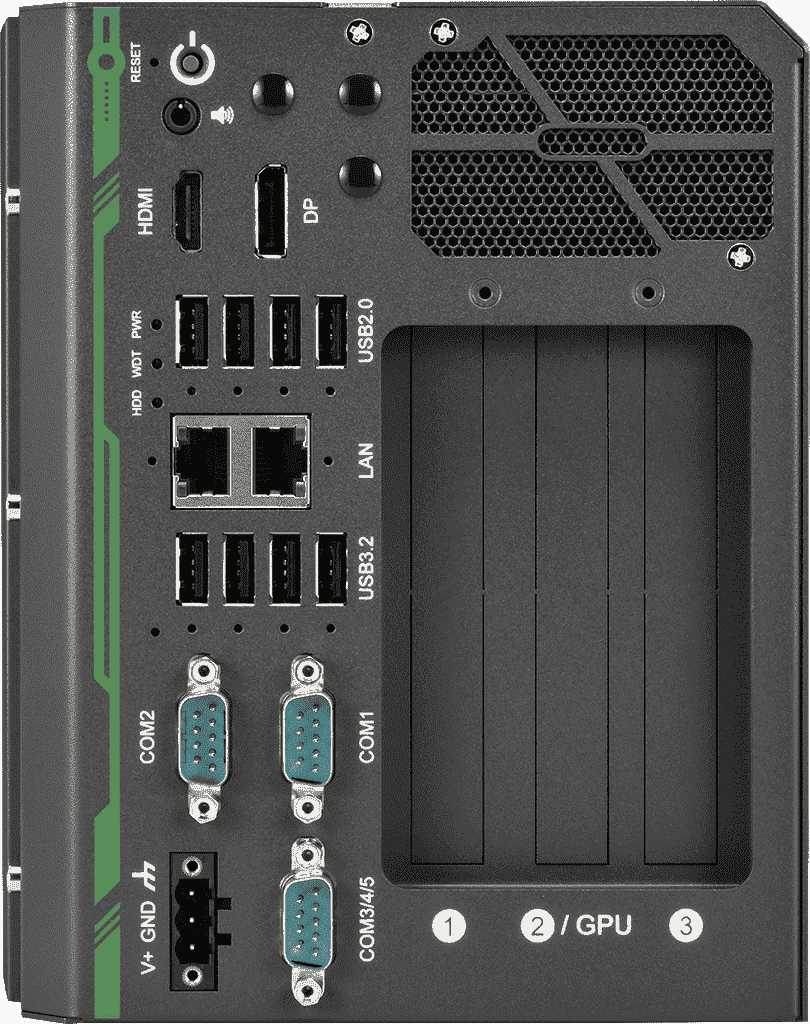

Ports	1x 2.5G Ethernet port by I226-IT; 1x Gigabit Ethernet port by I219-LM • 4x USB 3.2 Gen2 (10 Gbps) ports; 4x USB 3.2 Gen1 (5 Gbps) ports • 1x USB 2.0 port with Type-A connector (internal) • 2x software-programmable RS-232/422/485 ports (COM1/ COM2) • 3x 3-wire RS-232 ports (COM3/ COM4/ COM5) • 1x HDMI 1.4b, supporting 3840 x 2160 resolution • 1x DisplayPort, supporting 4096 x 2304 resolution • 1x 3.5 mm jack for mic-in and speaker-out
PCI / PCIe / mini-PCIe	1x PCIe x16 slot @Gen3, 16-lanes • 2x PCIe x8 slot @ Gen3, 4-lanes • 2x full-size mini-PCI Express socket with internal micro SIM socket

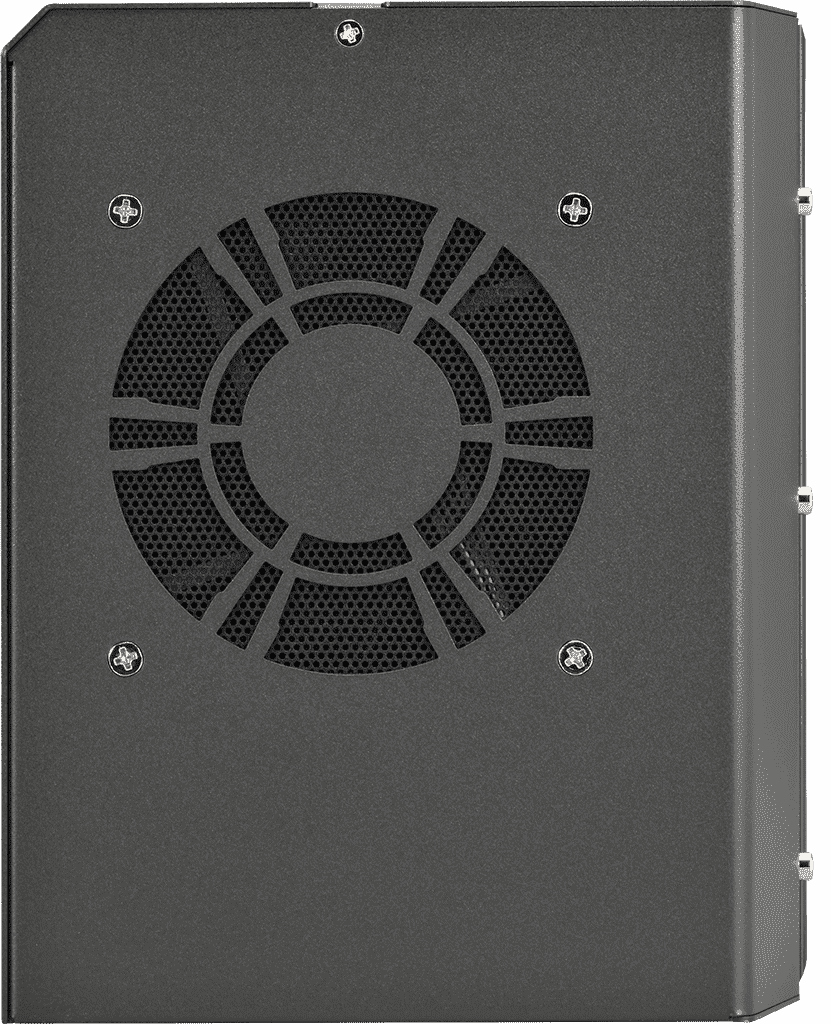

Cooling System	Active, fan
Mounting	Wall-mount
Power input	1x 3-pin pluggable terminal block for 12V to 35V DC input • 1x 10-pin (2x5) wafer connector for remote on/off control and status LED output
Power consumption	TBA
Operating system	Option: Windows® 10 • LINUX 64Bit
Operating temperature	-25°C to 60°C
Storage temperature	-40°C to 85°C
Storage humidity	10% to 90%; non-condensing
Vibration	Operating, MIL-STD-810H, Method 514.8, Category 4
Shock	Operating, MIL-STD-810H, Method 516.8, Procedure I
Certificate	CE/FCC Class A, according to EN 55032 & EN 55035
Weight / kg	4.2

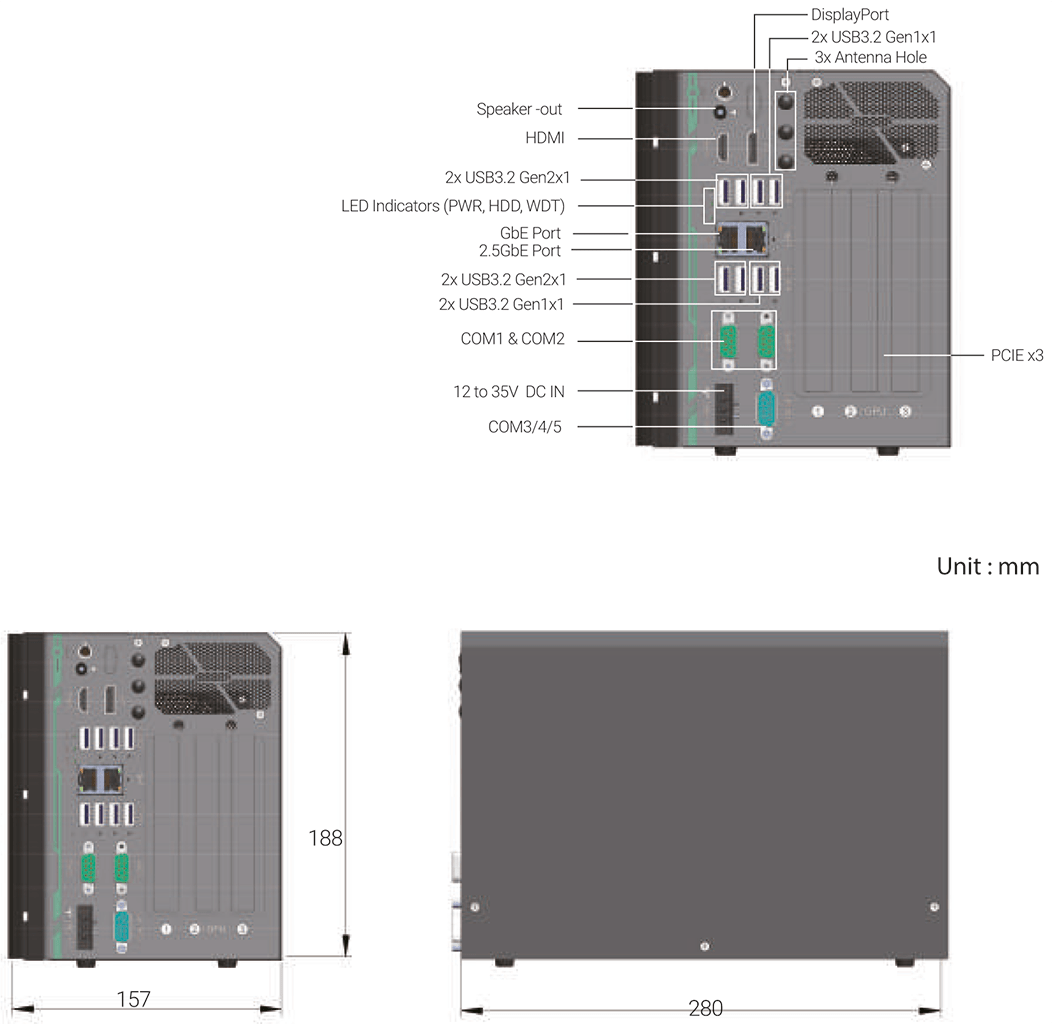

Dimensions / mm	157 x 280 x 188
Scope of delivery	3-pin Terminal connector • Driver CD • Wall mounting kit
