CamCollect® 7306RT

Machine Vision PC with DTIO V2 supports NVIDIA® GPU • 9th Gen. Intel® Core™ i7/i5/i3

CamCollect® 7306RT series is an all-in-one powerful machine vision computer incorporating every function needed for machine vision applications. Powered by Intel® 9th/ 8th-Gen Core™ i7/i5, CamCollect® 7306RT brings tremendous computing power for image processing.

CamCollect® 7306RT integrates constant-current lighting controller, isolated 12V camera trigger output, encoder input for position information and DIO to connect sensors/ actuators. Thanks to the patented MCU-based architecture and DTIO/ NuMCU firmware, CamCollect® 7306RT is able to overcome latencies between sensor input and trigger output. It offers microsecond-scale real-time I/O control that guarantees in-time or in-position image capture.

For deep learning vision applications, CamCollect® 7306RT can accommodate an NVIDIA® 120W TDP GPU to leverage state-of-the-art object detection/ classification neural network models. Built-in vision-oriented I/O along with remarkable performance makes the Industrial Box-PC CamCollect® 7306RT the most exceptional vision controller that fits right into the modern vision industry.

Key facts	• 9th Gen. Intel® Core™ i7/i5/i3 • Up to 64GB DDR4 • Fanless • 2x PCIe, PoE+, DTIO V2 • Option: 10GigE • Real-time Vision I/O
Protection class	IP20
CPU	Supporting Intel® 9th/ 8th-Gen Coffee Lake CPU (LGA1151 socket, 65W/ 35W TDP)
Chipset	Intel® Q370
RAM	Up to 64GB DDR4 2666/ 2400 SDRAM (two SODIMM slots)
Storage interface	2x internal SATA port for 2.5” HDD/ SSD installation, supporting RAID 0/ 1 • 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation • 1x full-size mSATA port (mux with mini-PCIe)
RAID	0/ 1
Ports	6x GigE, 3x Intel® I219; 3x Intel® I210-IT • 4x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 with RJ45 connector • 4x USB 3.1 Gen2 (10 Gbps) ports; 4x USB 3.1 Gen1 (5 Gbps) ports • 1x USB 2.0 port (internal use) • 2x software-programmable RS-232/422/485 ports (COM1/ COM2) • 2x RS-232 ports (COM3/ COM4) • 1x VGA, supporting 1920x1200 resolution • 1x DVI-D, supporting 1920x1200 resolution • 1x DisplayPort, supporting 4096x2304 resolution • 1x 3.5 mm jack for mic-in and speaker-out • 4-CH LED lighting controller output, supporting; - Constant current mode (up to 2A per channel, 100kHz dimming control); - Constant voltage mode (24 V DC, 100kHz dimming control) • 4-CH camera trigger output (Isolated 12V DC output) • 1-CH quadrature encoder input (A/B/Z) • 4-CH isolated high-speed digital output (
PCI / PCIe / mini-PCIe	2x PCIe x16 slot @ Gen3, 8-lane PCIe signals in Cassette, supporting; - 120W NVIDIA® GPU card; - COTS CameraLink and CoaXPress camera interface card • 1x full-size mini-PCIe socket with internal SIM socket (mux with mSATA) • 1x M.2 2242 B key socket with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module
Cooling System	Passive, fanless
Mounting	Wall-mount
Power input	1x 3-pin pluggable terminal block for 8V to 35V DC input • 1x 3-pin pluggable terminal block for remote control and PWR LED output
Power consumption	TBA
Operating system	Option: Windows® 10 • LINUX 64Bit
Operating temperature	With 35W CPU and NVIDIA® 120W GPU -25°C to 60°C with 65W CPU and NVIDIA® 120W GPU -25°C to 60°C (configured as 35W TDP mode) • -25°C to 50°C (configured as 65W TDP mode)
Storage temperature	-40° to 85°C
Storage humidity	10% to 90%; non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
Certificate	CE/FCC Class A, EN 55032 & EN 55024
Weight / kg	3.7

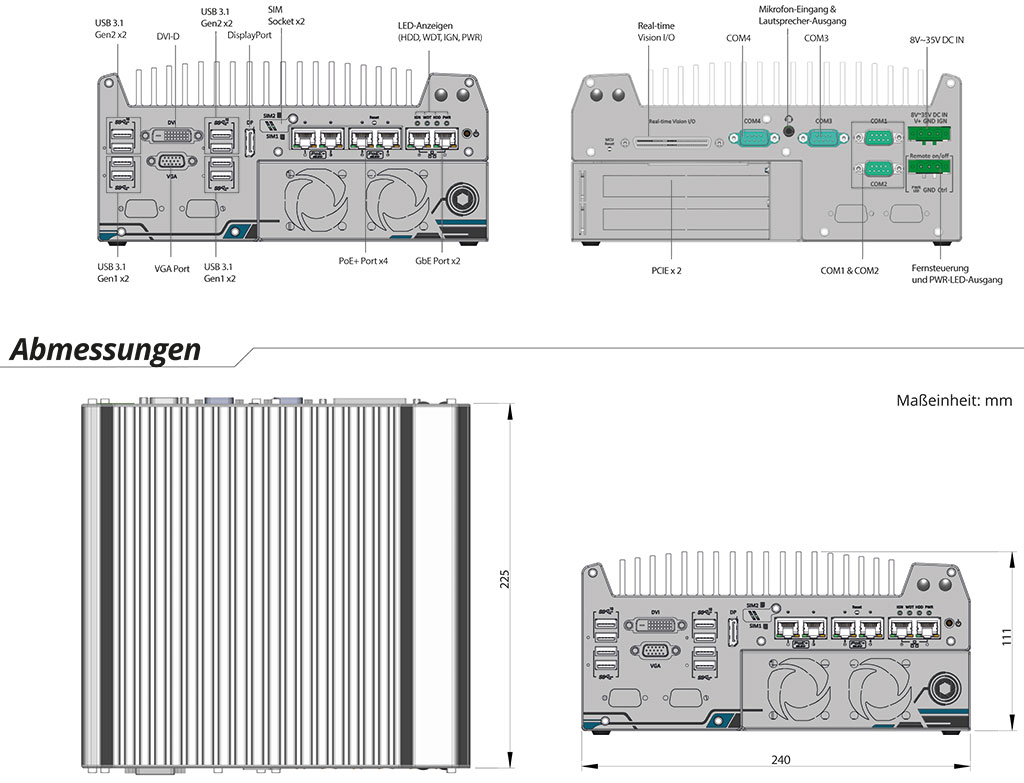

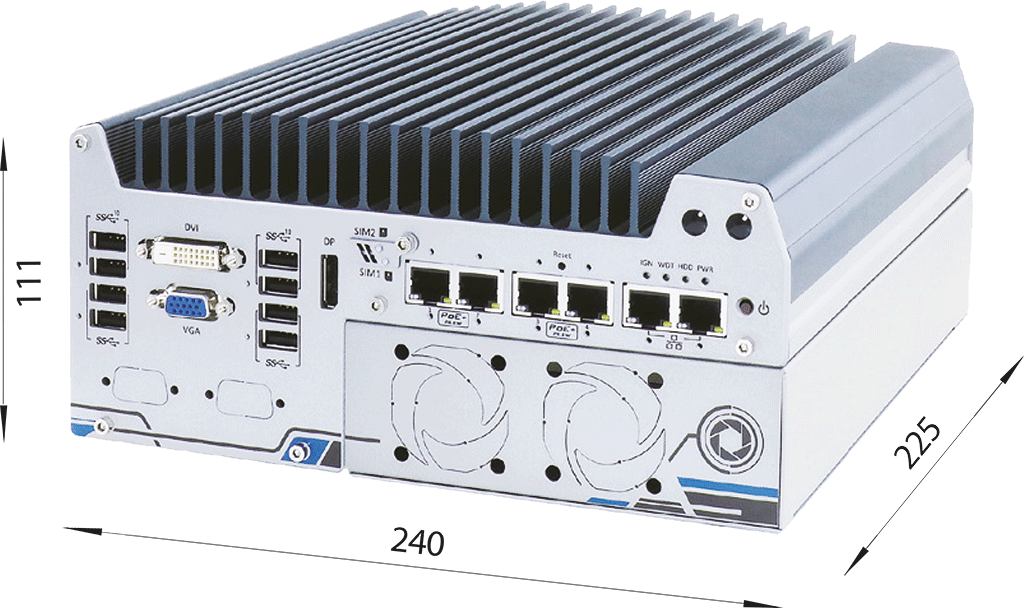

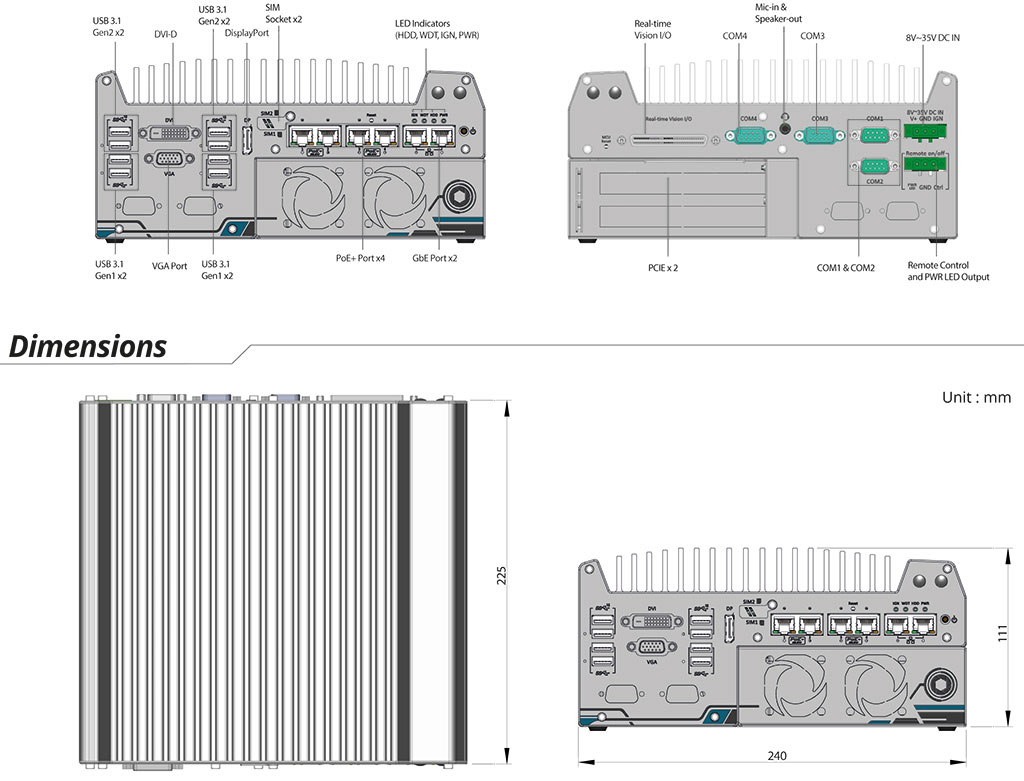

Dimensions / mm	240 x 225 x 111
Scope of delivery	3-pin terminal connector • wall mounting kit • driver CD
