CamCollect® 52S+-JON8 | NVIDIA® Jetson Orin™

NVIDIA® Jetson Orin™ AI-Computer for video analytics • NVIDIA® Jetson Orin™

Prices on request

Available in 21 days, delivery time 1-2 weeks [incl. assembly & function test]

Product number: 660013.1

CamCollect® 52S series is a rugged, wide temperature, fanless edge AI computer delivering up to 100 TOPS for AI-based video analytics applications requiring H.264/H.265 video decoding and real-time inference. Power by an NVIDIA® Jetson Orin™ NX/ Xavier™ NX system on module (SoM), it comprises of NVIDIA® Ampere GPUs (Orin NX), CUDA cores, Tensor cores, and NVDLA (NVIDIA® Deep Learning Accelerator).

Benefiting from the power-efficiency of NVIDIA® Jetson Orin™ NX, which consumes only 25W of power, CamCollect® 52S+ can decode up to 18 streams of 1080p video at 30 FPS, and also offer 100 TOPS inference performance. The high AI performance per watt makes CamCollect® 52S+ ideal for applications with a limited power source, such as in a robot, vehicle, or rolling stock. Also, with industrial-grade thermal design, CamCollect® 52S+ is ideal for edge deployments that require fanless wide temperature operations, such as at roadside, wayside, construction site, agriculture, or in a dusty factory.

The Industrial Box-PC CamCollect® 52S+ offers four IEEE 802.3bt PoE++ ports, each port can supply up to 90W to IP cameras or PTZ speed dome cameras for AI-based detection, tracking, and recognition applications. CamCollect® 52S+ also offers flexible expansions with two mPCIe sockets for NVMe storage, WIFI, GNSS, or V2X module; one M.2 B key for 4G LTE or 5G NR module with dedicated passive thermal design, and a total of five antenna holes for mobile broadband.It also has one hardware configurable RS232/RS422/RS485, 1x GPS PPS input, 3-CH isolated DI, and 4-CH isolated DO for communication with external devices.

By integrating PoE++ connectivity, 100 TOPS inference performance, a vast of NVIDIA AI JetPack toolkits, CamCollect® 52S+ can enable more possibilities for real-time video analytics such as autonomous machines, security alerts, law enforcement, and V2X applications. With its -25°C to 70°C fanless operation, wide-range DC input, ignition control, and 4G/ 5G connectivity, CamCollect® 52S+ is not only for indoor/ stationary installations but also ideal for harsh edge deployments.

Key facts	• NVIDIA® Jetson Orin™ • Up to 16GB LPDDR5 • PoE++, Digital I/O, CAN • JetPack 5.1.1
Protection class	IP20
CPU	NVIDIA® Jetson Orin™ NX system-onmodule (SOM), comprising NVIDIA® Ampere GPU and ARM Cortex CPU
Chipset	SoC
RAM	8GB/ 16GB LPDDR5 @ 3200 MHz on SOM
Ports	4x Gigabit ports with screw-lock, share 1 Gbps total bandwidth, in compliant with IEEE 802.3bt PoE++ Type 3 and Type 4 PSE, maximum 90W output on single PoE++ port • Compatible with 802.3at (PoE+) and 802.3af (PoE) PD • 2x USB 3.1 Gen1 ports (total 5 Gbps shared with M.2 B key) • 1x micro USB (OTG) • 1x DisplayPort, supporting 3840 x 2160 at 60Hz • 1x hardware configurable RS-232/ 422/ 485 port • 1x isolated CAN 2.0 port • 1x GPS PPS input, 3-CH isolated DI and 4-CH isolated DO • 1x M4 ground terminal for chassis ESD shielding
PCI / PCIe / mini-PCIe	With Orin NX 1x full-size mini-PCI Express socket (PCIe + USB 2.0) for M.2 M 2242 NVMe with adapter for storage • 1x full-size mini-PCI Express socket (PCIe + USB 2.0) for GNSS, V2X, or CAN
DIO	3-CH isolated DI and 4-CH isolated DO

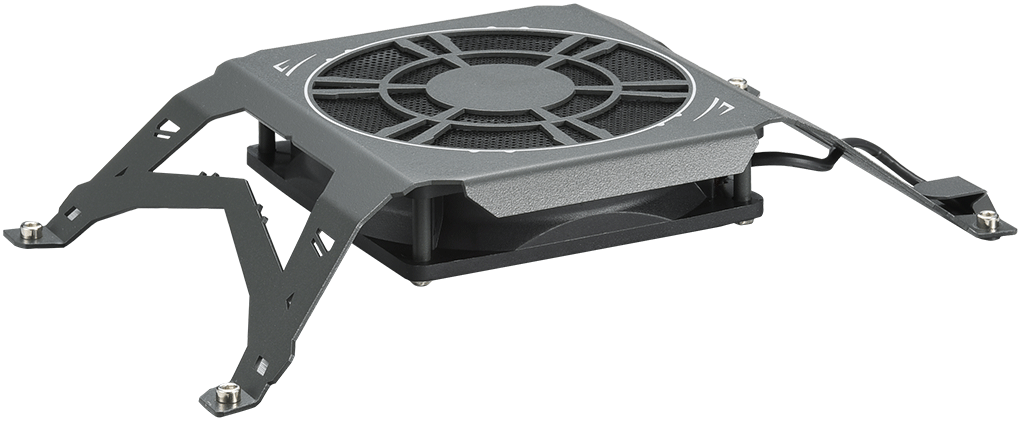

Cooling System	Passive, fanless • option: fan kit

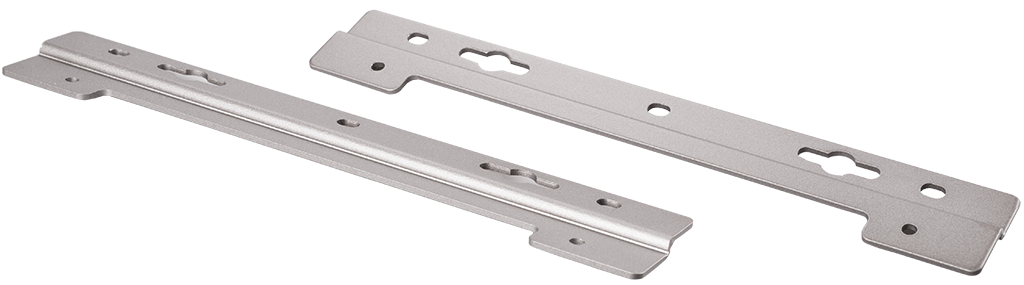

Mounting	Option: Wall-mount bracket
Power input	1x 3-pin pluggable terminal block for 8V to 35V DC input and ignition power control (V+/ GND/ IGN)
Power consumption	TBA
Operating system	Option: Windows® 10 • LINUX 64Bit
Operating temperature	-25°C to 70°C with passive cooling (15W TDP mode with 50W PoE++ power supply) • -25°C to 70°C with optional fan kit (15W TDP mode with 144W PoE++ power supply)
Storage temperature	-40° to 85°C
Storage humidity	10% to 90%, non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.7, Category 4
Shock	Operating, MIL-STD-810G, Method 516.7, Procedure I
Certificate	CE/FCC Class A, according to EN 55032 & EN 55035 • EN 50121-3 (EN 50155:2017, Clause 13.4.8)
Weight / kg	1.4
Dimensions / mm	173.1 x 143.6 x 59
Scope of delivery	3-pin terminal connector • Driver CD
