CamCollect® 465AWP | Intel® Atom® x6425E

Cost-effective IP66 Extreme Rugged PC • Intel® Atom® x6425E

CamCollect® 465AWP is a new segment of fanless Industrial Box-PCs featuring an IP66 rating based on Intel® Elkhart Lake Atom. The acronym AWP stands for affordability, waterproof, and protection. In short, the CamCollect® 465AWP is designed to solve your everyday environmental challenges. With IP66 waterproof protection in a stainless steel and aluminum chassis, the air-tight system prevents internal PCBA corrosion in high salinity or humidity situations. Secondly, the hermetic enclosure can be deployed into grimy or dusty air-polluted environments such as a farm or mining site without being affected. The system also features -25°C to 70°C wide operating temperature capability and an efficient heat dissipation design to minimize thermal throttling.

Connection-wise, CamCollect® 465AWP comes with M12 connectors to ensure connection in demanding, shock, and vibration environments. The system has two 2.5G Ethernet ports, one isolated RS-232, and one isolated RS-422/485. The isolated design protects the motherboard from voltage spikes that may damage internal components. It also has a VGA, two USB2.0, an M.2 M key to support SATA SSD, and a mini-PCIe for wireless WiFi/ LTE, CAN bus, etc.

Combining IP66, M12 and great thermal design, CamCollect® 465AWP is reliable and highly tolerant to challenging conditions to fulfill versatile applications. Its ultra-compact size fits easily into confined spaces, and its waterproof capability makes it suitable for outdoor applications like wildfire detection, unmanned vehicle; or harsh environments like food / beverage manufacturing and pharmaceutical processing. The IP66 rating is an additional function that can enhance a product‘s value and quality, and such is the case with CamCollect® 465AWP.

Key facts	• Intel® Atom® x6425E • Up to 32GB DDR4 • Fanless • IP65, -25°C ~ 70°C
Protection class	IP66
CPU	Intel® Elkhart Lake Atom® x6425E quad-core 2.0GHz/ 3.0GHz 12W processor
Chipset	Integrated Intel® HD Graphics

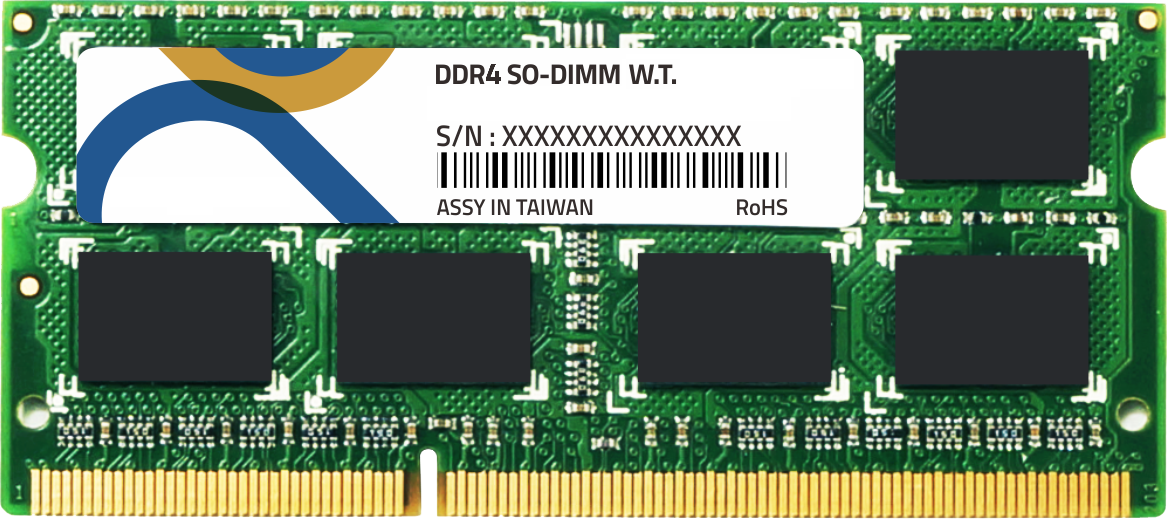

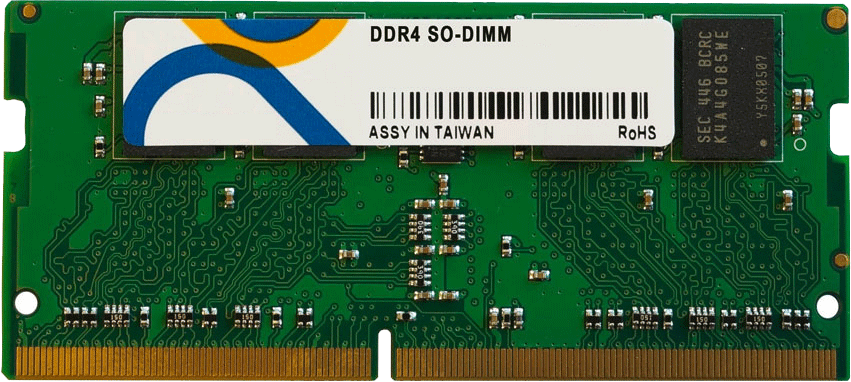

RAM	Up to 32GB DDR4-3200 SDRAM by one SODIMM socket
Storage interface	1x M.2 2280 M key socket for SATA SSD

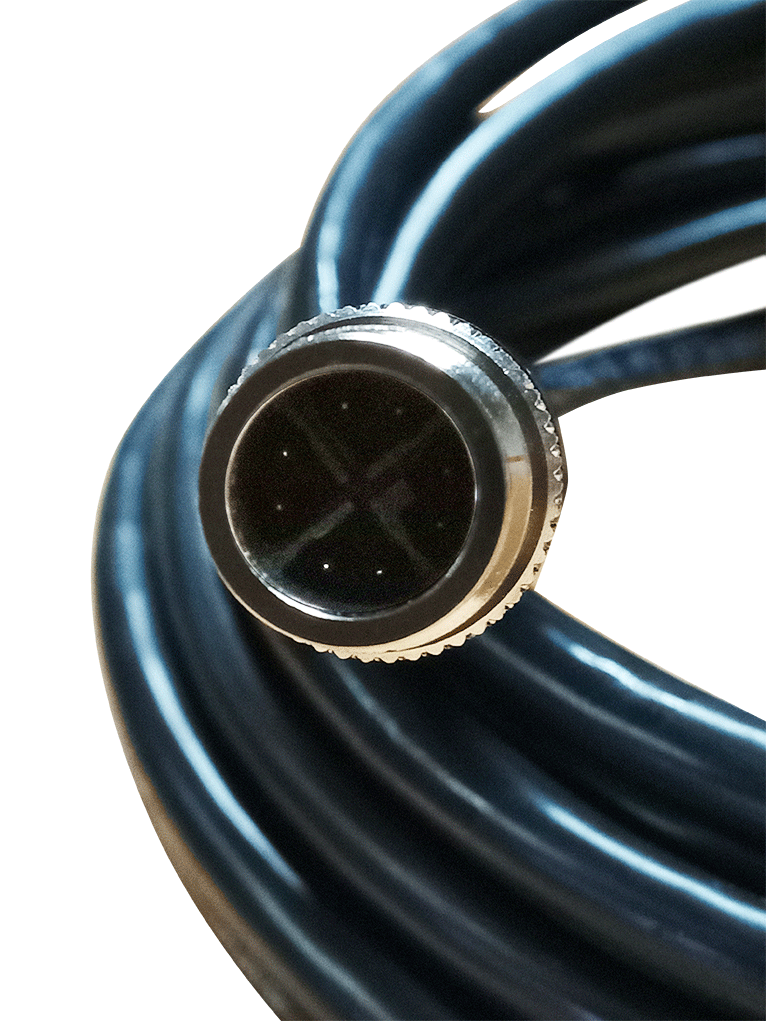

Ports	2x 2.5G Ethernet ports by Intel® I225-IT / I226-IT via M12 X-coded, 8-pin connector • 2x USB 2.0 ports via M12 A-coded, 8-pin connector • 1x isolated RS-232 port (COM1) and 1x isolated RS-422/485 ports (COM2) via M12 A-coded, 8-pin connector • 1x VGA connector, supporting 1920 x 1200 resolution, via M12 A-coded, 17-pin connector
PCI / PCIe / mini-PCIe	1x full-size mini-PCI Express socket with internal micro SIM socket
MezIO™-interfaces	1x MezIO™-Erweiterungsport für MezIO™-Module
Cooling System	Passive, fanless

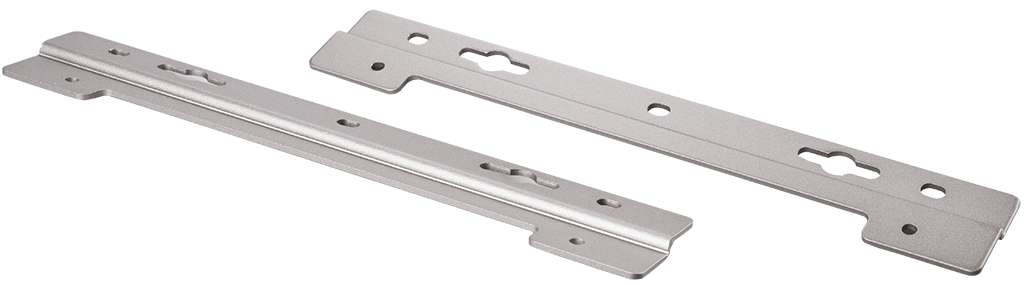

Mounting	Option: Wandhalterung
Power input	8V to 35V DC input with ignition power control input via M12 A-coded, 5-pin connector
Power consumption	TBA
Operating system	Option: Windows® 10 • LINUX 64Bit
Operating temperature	-25°C to 70°C
Storage temperature	-40° to 85°C
Storage humidity	10% to 90%, non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
Certificate	CE/FCC Class A, according to EN 55032 & EN 55035
Weight / kg	1.45
Dimensions / mm	106 x 159.7 x 79
Scope of delivery	5-pin terminal connector • Driver CD
