CamCollect® 2700DS

Digital Signage-System for Video-Wall applications • Quad 4K

Skip image gallery
Box-PCs_Box-PC_CamCollect® 2700DS
Box-PCs_Box-PC_CamCollect® 2700DS
Box-PCs_Box-PC_CamCollect® 2700DS
Box-PCs_Box-PC_CamCollect® 2700DS
Box-PCs_Box-PC_CamCollect® 2700DS
Box-PCs_Box-PC_CamCollect® 2700DS
Box-PCs_Box-PC_CamCollect® 2700DS
Box-PCs_Box-PC_CamCollect® 2700DS
Box-PCs_Box-PC_CamCollect® 2700DS
Box-PCs_Box-PC_CamCollect® 2700DS
Box-PCs_Box-PC_CamCollect® 2700DS
Box-PCs_Box-PC_CamCollect® 2700DS
Prices on request

Prices excl. VAT plus shipping costs

Available in 21 days, delivery time 1-2 weeks [incl. assembly & function test]

Summary
RAM:
Storage | M.2:
WLAN | 4G:
Power Supply:
Accessories:
Operating System:
RAM:

2 slots available - max. 64GB DDR4 SODIMM (max. 32GB per slot)

Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4-3200, SO-DIMM [0°C ~ 85°C] - 4GB
DDR4-3200, SO-DIMM [0°C ~ 85°C] - 4GB RAM: 4GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4-3200, SO-DIMM [0°C ~ 85°C] - 8GB
DDR4-3200, SO-DIMM [0°C ~ 85°C] - 8GB RAM: 8GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4-3200, SO-DIMM [0°C ~ 85°C] - 16GB
DDR4-3200, SO-DIMM [0°C ~ 85°C] - 16GB RAM: 16GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4-3200, SO-DIMM [0°C ~ 85°C] - 32GB
DDR4-3200, SO-DIMM [0°C ~ 85°C] - 32GB RAM: 32GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4-2666, SO-DIMM [-40°C ~ 85°C] - 4GB
W.T. | DDR4-2666, SO-DIMM [-40°C ~ 85°C] - 4GB RAM: 4GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4-2666, SO-DIMM [-40°C ~ 85°C] - 8GB
W.T. | DDR4-2666, SO-DIMM [-40°C ~ 85°C] - 8GB RAM: 8GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4-2666, SO-DIMM [-40°C ~ 85°C] - 16GB
W.T. | DDR4-2666, SO-DIMM [-40°C ~ 85°C] - 16GB RAM: 16GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4-2666, SO-DIMM [-40°C ~ 85°C] - 32GB
W.T. | DDR4-2666, SO-DIMM [-40°C ~ 85°C] - 32GB RAM: 32GB
Storage | M.2:
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) SSD, TLC [PLP, 0°C ~ 70°C] - 128GB
M.2 2280 (SATA III) SSD, TLC [PLP, 0°C ~ 70°C] - 128GB Storage | Size: 128GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) SSD, TLC [PLP, 0°C ~ 70°C] - 256GB
M.2 2280 (SATA III) SSD, TLC [PLP, 0°C ~ 70°C] - 256GB Storage | Size: 256GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) SSD, TLC [PLP, 0°C ~ 70°C] - 512GB
M.2 2280 (SATA III) SSD, TLC [PLP, 0°C ~ 70°C] - 512GB Storage | Size: 512GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) SSD, TLC [PLP, 0°C ~ 70°C] - 1TB
M.2 2280 (SATA III) SSD, TLC [PLP, 0°C ~ 70°C] - 1TB Storage | Size: 1TB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) SSD, TLC [PLP, 0°C ~ 70°C] - 2TB
M.2 2280 (SATA III) SSD, TLC [PLP, 0°C ~ 70°C] - 2TB Storage | Size: 2TB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 128GB
M.2 2280 (SATA III) W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 128GB Storage | Size: 128GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 256GB
M.2 2280 (SATA III) W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 256GB Storage | Size: 256GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 512GB
M.2 2280 (SATA III) W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 512GB Storage | Size: 512GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 1TB
M.2 2280 (SATA III) W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 1TB Storage | Size: 1TB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (SATA III) W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 2TB
M.2 2280 (SATA III) W.T. SSD, TLC [PLP, -40°C ~ 85°C] - 2TB Storage | Size: 2TB
Reset choice
€0.00*
WLAN | 4G:
Systemkomponenten & Zubehör_Components_Accessories_4G_GPS - miniPCIe module [w/antenna]
4G_GPS - miniPCIe module [w/antenna]
Systemkomponenten & Zubehör_Components_Accessories_WLAN - M.2 2230 module, Intel® Wi-Fi 6 AX200 [802.11ac, Bluetooth 5.1]
WLAN - M.2 2230 module, Intel® Wi-Fi 6 AX200 [802.11ac, Bluetooth 5.1]
Power Supply:
Systemkomponenten & Zubehör_Components_Accessories_Desktop power supply [Terminal Block] - 60W [24V/2.5A]
Desktop power supply [Terminal Block] - 60W [24V/2.5A] Power adaptor | Output: 60W [24V/2.5A, Terminal Block]
Systemkomponenten & Zubehör_Components_Accessories_Desktop power supply [Terminal Block] - 90W [24V/3.75A]
Desktop power supply [Terminal Block] - 90W [24V/3.75A] Power adaptor | Output: 90W [24V/3.75A, Terminal Block]
Systemkomponenten & Zubehör_Components_Accessories_Desktop power supply [Terminal Block] - 120W [24V/5A]
Desktop power supply [Terminal Block] - 120W [24V/5A] Power adaptor | Output: 120W [24V/5A, Terminal Block]
Systemkomponenten & Zubehör_Components_Accessories_Desktop power supply [Terminal Block] - 160W [24V/6.67A]
Desktop power supply [Terminal Block] - 160W [24V/6.67A] Power adaptor | Output: 160W [24V/6.67A, Terminal Block]
Systemkomponenten & Zubehör_Components_Accessories_Desktop power supply [Terminal Block] - 280W [24V/11.67A]
Desktop power supply [Terminal Block] - 280W [24V/11.67A] Power adaptor | Output: 280W [24V/11.67A, Terminal Block]
Systemkomponenten & Zubehör_Components_Accessories_Switching power supply [DIN-rail mount] - 120W [AC IN 100-240V, DC OUT 24V, 5A]
Switching power supply [DIN-rail mount] - 120W [AC IN 100-240V, DC OUT 24V, 5A] Power adaptor | Output: 120W [AC IN 100-230V, DC OUT 24V, 5A]
Systemkomponenten & Zubehör_Components_Accessories_Switching power supply [DIN-rail mount] - 240W [AC IN 100-240V, DC OUT 24V, 10A]
Switching power supply [DIN-rail mount] - 240W [AC IN 100-240V, DC OUT 24V, 10A] Power adaptor | Output: 240W [AC IN 100-230V, DC OUT 24V, 10A]
Systemkomponenten & Zubehör_Components_Accessories_Switching power supply [DIN-rail mount] - 480W [AC IN 100-240V, DC OUT 24V, 20A]
Switching power supply [DIN-rail mount] - 480W [AC IN 100-240V, DC OUT 24V, 20A] Power adaptor | Output: 480W [AC IN 100-230V, DC OUT 24V, 20A]
Reset choice
€0.00*
Accessories:
Zubehör [kein Direktverkauf]_Components_Accessories_Optionaler Montagesatz - Vertical wall-mount kit [CamCollect® 2700DS]
Mounting Kits: Vertical wall-mount kit [CamCollect® 2700DS]

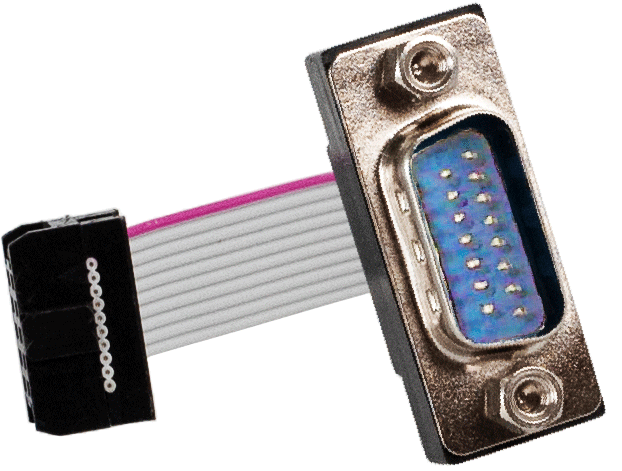

Zubehör [kein Direktverkauf]_Components_Accessories_Kabel-Set - Cable [DIO Flat Cable to DB15 male cable, 4.5cm]
Cable-Kit: Cable [DIO Flat Cable to DB15 male cable, 4.5cm]
Operating System:
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 IoT Enterprise LTSC 2021 - #VALUE 64bit [For Intel Core i5, Core i3]
Windows® 10 IoT Enterprise LTSC 2021 - #VALUE 64bit [For Intel Core i5, Core i3] OS | Variant: #VALUE 64bit [For Intel Core i5, Core i3]
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 Professional - 64bit
Windows® 10 Professional - 64bit OS | Variant: 64bit
Reset choice
€0.00*

€1,272.00*

Prices excl. VAT plus shipping costs

Product number: 660096.1
CamCollect® 2700DS series is a rugged digital signage system with AI inference capability for personalized user experience and audience measurement. Powered by AMD Ryzen™ Embedded V1605B, it can output to four 4K displays and playback 4K H.265 videos at 60fps. By supporting two Google Edge TPUs, it delivers a total of 8 TOPS AI inference performance in a fanless compact form factor.

The wide operating temperature and fanless design make it ideal for 24/7 applications in harsh indoor and outdoor environments, such as flight information display system (FIDS) or train schedule board. Furthermore, CamCollect® 2700DS can also be deployed for mobile applications due to the inclusion of ignition power control and full bandwidth support of WIFI 6, 4G LTE, and 5G network modules.

The support of two Google Edge TPUs empower CamCollect® 2700DS as a smart digital signage player to leverage real-time camera input and AI computer vision models (e.g., YOLO-lite or PoseNet) to offer audiences an interactive and personalized experience. Besides, it can get to know its audience by collecting anonymous data from people counting, body gesture recognition, facial recognition, attention measurement, and emotion analysis.

The CamCollect® 2700DS series signifies a new age of AI enabled digital signage player for harsh environments and mobile applications. You can utilize the Industrial Box-PC CamCollect® 2700DS as a video wall player to playback to 4K ultra high definition visual displays or deploy CamCollect® 2700DS as a low power fanless Edge AI platform for emerging AI applications. With AI inference from Google Edge TPUs, CamCollect® 2700DS creates an interactive and personalized experience, but moreover, it can quantify offline campaign like never before and offer insight data.
Key facts• AMD Ryzen™ V1605B
• Up to 64B DDR4
• Fanless
• Quad 4K Display
Protection class IP20
CPU AMD Ryzen™ V1605B, 4x 2GHz/3.6GHz
Chipset SOC
RAM 4GB DDR4, 2666/2400 SDRAM (2x SO-DIMM) • max. 64GB DDR4
Storage interface 1x M.2 2280 M key (SATA signal only) socket for SATA SSD installation

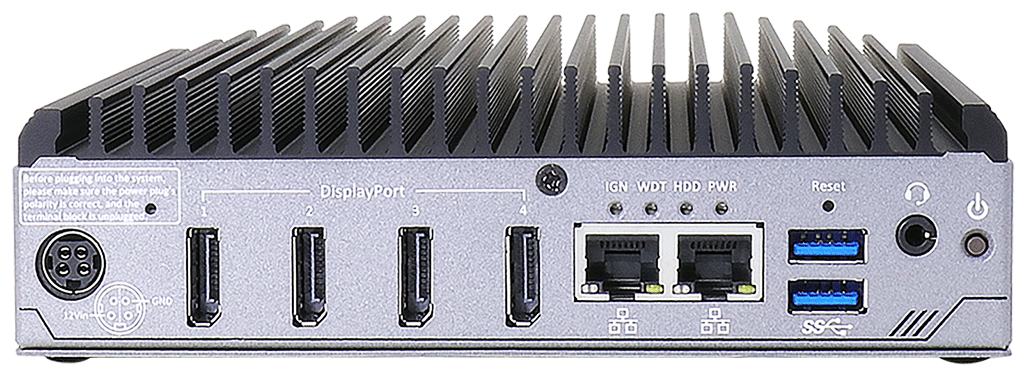

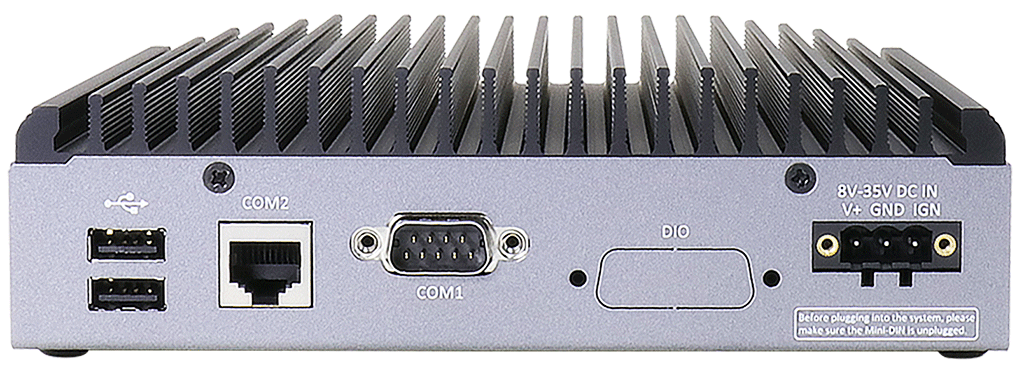

Ports 2x GigE, Intel I210® • 2x USB 3.1 Gen1 (5 Gbps) • 2x USB 2.0 • 2x RS-232 (COM1 in DB9, COM2 in RJ50) • 4x DisplayPort, supporting 4K UHD resolution • 1x 3.5mm jack for mic-in and line-out
PCI / PCIe / mini-PCIe 2x half-size mini-PCIe socket for Google Edge TPU • 1x M.2 3042/ 3052 B key (USB 3.1 Gen 1 + USB 2.0) for 4G/ 5G module with Micro SIM card slot • 1x M.2 2230 E key (PCIe Gen3 x1 + USB 2.0) for WIFI module
DIO Option: 4-CH isolated DI and 4-CH isolated DO
Cooling System Passive, fanless
Mounting Option: Wall mounting
Power input 1x mini-DIN for 12V DC input or 1x 3-pin pluggable terminal block for 8V to 35V DC input (IGN/ GND/ V+)
Power consumption TBA
Operating system Option: Windows® 10 • Windows® 10 IoT LTSB und LTSC
Operating temperature -25°C to 70°C
Storage temperature -40°C to 85°C
Storage humidity 10% to 90%; non-condensing
Vibration MIL-STD-810G, Method 514.6, Category 4
Shock MIL-STD-810G, Method 516.7, Procedure I
Certificate CE / FCC Class A, EN 55032 & EN 55035
Weight / kg 1.6

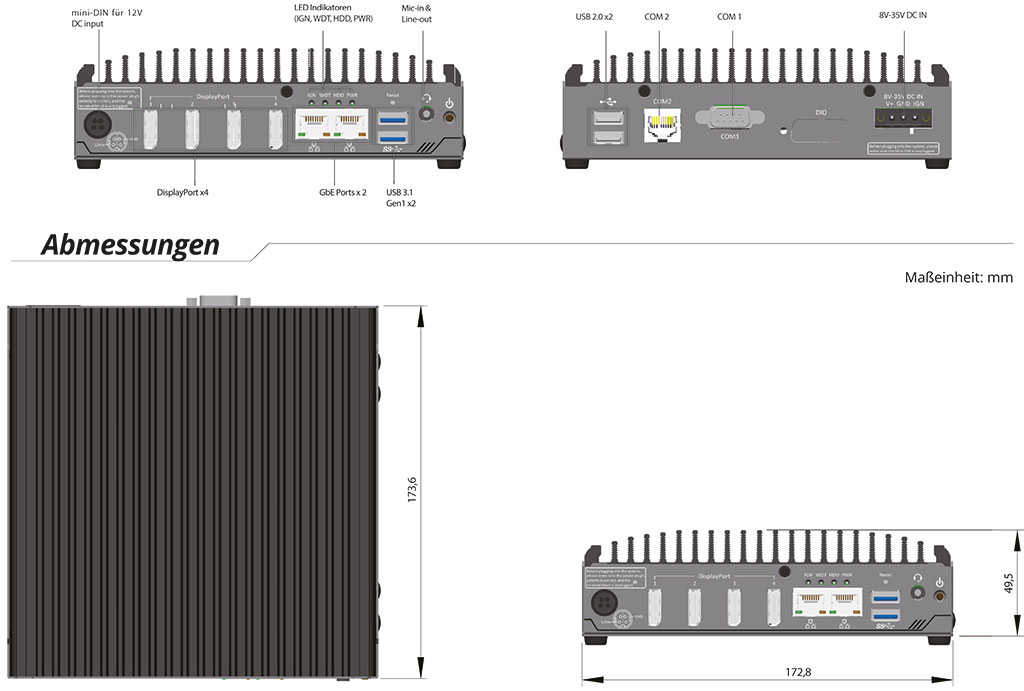

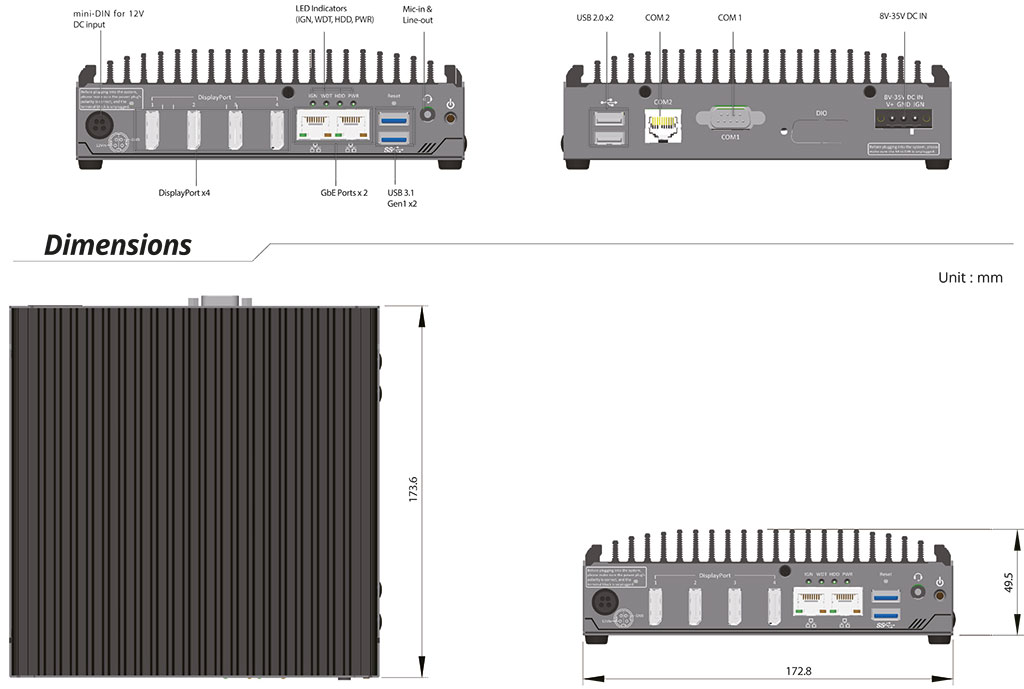

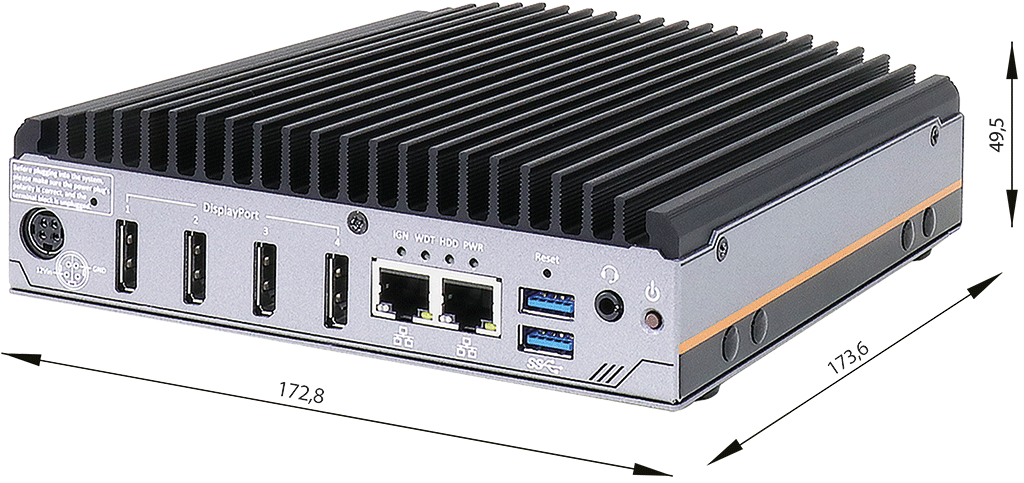

Dimensions / mm 173 x 174 x 50
Scope of delivery Driver CD
