CamCollect® 1704 | Barebone [4x M12 PoE+]

IP67 Extreme Rugged PC • 9th Gen. Intel® Core™ i7/i5/i3

CamCollect® 1700 series is an extremely rugged 2U half-rack computer with an IP67-rated waterproof and dustproof design. Powered by Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU and coupled with workstation-grade Intel® C246 chipset, it can support up to 64 GB ECC/ non-ECC DDR4 memory. The 2U half-rack form-factor CamCollect® 1700 series incorporates best-in-class thermal design and offers mounting flexibility where you can wall or rack-mount up to two CamCollect® side by side.

CamCollect® 1700 adopts a corrosion-proof chassis made of stainless steel and aluminum to counteract against moisture and salinity. Offering a variety of I/O connectivities that utilize M12 connectors to guarantee extremely rugged connections in shock and vibration environments, it has up to eight 802.3at PoE+ ports to supply 25W of power to connected devices. Internal expansion wise, it has an M.2 M-key socket to support NVMe SSD and mini-PCIe sockets for extending feature sets. Additionally, CamCollect® 1700 features two 2.5“ SATA SDD/ HDD accommodation, 8V-48V wide-range DC input with ignition power control and complies with MIL-STD-810G and EN 50155.

To top it off, the Industrial Box-PC CamCollect® 1710J is equipped with innovative SuperCAP-based UPS* containing 2500 watt-second stored energy to sustain or safely shut down the system during unforeseen power outages. Protected against water, dust, high/ low temperature, shock/ vibration and power interruption, APROtech`s CamCollect® 1700 series is set to redefine edge application computing, where ruggedness matter.

Key facts	• Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (Sockel LGA1151) • Up to 64GB ECC/non ECC DDR4-2666/2400 SDRAM (two SODIMM slot) • IP67 waterproof • Fanless
Protection class	IP67
CPU	upporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket)
Chipset	Intel® C246 platform controller hub
RAM	Up to 64GB ECC/ non ECC DDR4-2666/ 2400 SDRAM (two SODIMM sockets)
Storage interface	2x Internal SATA port for 2.5” HDD/ SSD installation, supporting RAID 0/ 1 • 2x full-size mSATA port (mux with mini-PCIe) • 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation
RAID	0/ 1

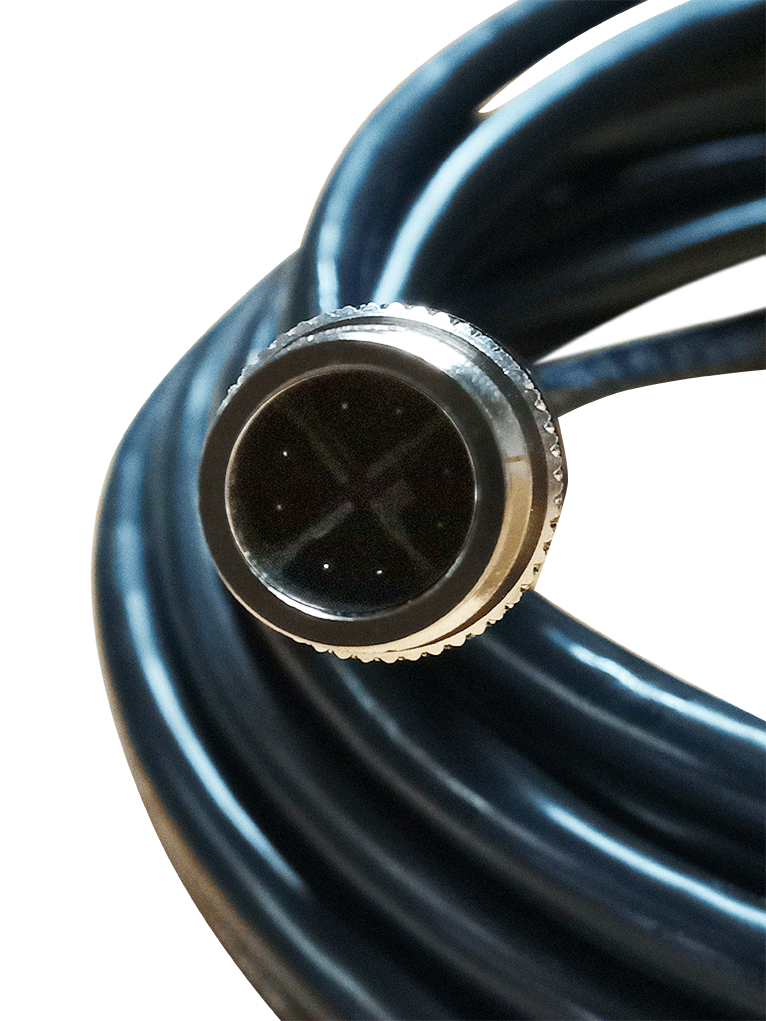

Ports	1x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I219 (M12 X-coded) • 3x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded) • 1x VGA (M12 A-coded), supporting 1920 x 1200 resolution • 2x 3-wires RS-232 ports COM1 & COM2 (M12 A-coded) • 2x USB 2.0 (M12 A-coded); 1x USB 2.0 (internal)
PCI / PCIe / mini-PCIe	2x full-size mini-PCI Express socket (mux with mSATA)
Cooling System	Passive, fanless
Mounting	Rack-mounting and wall-mounting
Power input	8V to 48V DC input (M12 S-coded) • Built-in ignition power control (IGN/ GND signal via M12 serial port connector)
Power consumption	TBA
Operating system	Option: Windows® 10
Operating temperature	With 35W CPU: -40°C to 70°C with 65W CPU: -40°C to 70°C (configured as 35W TDP mode) • -40°C to 50°C (configured as 65W TDP mode)
Storage temperature	-40° to 85°C
Storage humidity	10% to 90% @ 40°C; non-condensing
Vibration	MIL-STD-810G, Method 514.7, Category 4
Shock	MIL-STD-810G, Method 516.7, Procedure I
Certificate	EN-50155, CE/FCC Class A, according to EN 55032 & EN 55035
Weight / kg	5.8
Dimensions / mm	220 x 310 x 90.5
Scope of delivery	Wall mounting kit • Driver CD
