CamCollect® 1301 | Barebone

Extreme Rugged PC for railway applications • 9th Gen. Intel® Core™ i7/i5/i3

CamCollect® 1300 series is a rugged fanless computer with robust M12 I/O connectors in a standard 2U 19“ half-rack form factor enclosure. Powered by Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU and coupled with workstation-grade Intel® C246 chipset, it supports up to 64 GB DDR4 ECC/non-ECC memory and offers flexible mounting options to wall or rack-mount up to two CamCollect®s side by side.

CamCollect® 1300 series incorporates best-in-class passive thermal design for proven -40 °C to 70 °C fanless operation. It offers a variety of I/O connectivities utilizing M12 connectors that are reliably robust, cost-effective and can be obtained off-the-shelf. There are also generic I/Os with screw-lock mechanisms to guarantee an extreme-rugged connection in shock and vibration environments. It has four 802.3at PoE+ ports, each supplying 25W of power to the connected device such as an IP or GigE camera. CamCollect® 1300 is designed with 4G/5G and WiFi5/WiFi6 wireless connectivity in mind and it supports 8V-48V wide-range DC input with ignition power control for in-vehicle use while complying with EN 50155.

In addition, the Industrial Box-PC CamCollect® 1311 is equipped with the patented SuperCAP-based UPS containing 2500 watt-second stored energy to sustain and safely shut down the system during unforeseen power outages. It is the perfect solution for data protection and applications in unstable power environments. With a standard half-rack design, proven wide temperature operation capability, protected against shock/ vibration and power interruption, CamCollect® 1300 series is the ideal robust solution for extreme-rugged deployment.

Key facts	• 9th Gen. Intel® Core™ i7/i5/i3 • Up to 64GB DDR4 • Fanless, PoE+ • Option: 10GigE, 2500Ws UPS • -40°C ~ 70°C
Protection class	IP20
CPU	Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket)
Chipset	Intel® C246
RAM	Up to 64GB ECC/ non ECC DDR4-2666/ 2400 SDRAM (two SODIMM sockets)
Storage interface	2x Internal SATA port for 2.5” HDD/ SSD installation, supporting RAID 0/ 1 • 2x full-size mSATA port (mux with mini-PCIe) • 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation
RAID	0/ 1
Ports	4x GigE, 1x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I219 (M12 X-coded) • 3x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded); Option: 1x 10GbE port by Intel® X550AT controller (M12 X-coded) • 3x USB 3.1 Gen1 • 2x USB 2.0 (M12 A-codiert) • 1x USB 2.0 (intern) • 2x 3-wires RS-232 (M12 A-coded) • 1x RS-232/ 422/ 485 (COM3, DB9), software-programmable • 1x RS-232 (COM4, DB9) • 1x VGA (M12 A-coded), supporting 1920 x 1200 resolution • 1x DisplayPort connector, supporting 4096 x 2304 resolution • 1x 3.5mm jack for mic-in and speaker-out
PCI / PCIe / mini-PCIe	2x full-size mini-PCI Express sockets (mux with mSATA) • 1x M.2 3042/ 3052 B key socket for selected M.2 4G/ 5G module • 1x M.2 2242/ 2252 E key for selected WiFi module
Cooling System	Passive, fanless
Mounting	Rack-mounting and wall-mounting
Power input	8V to 48V DC • Built-in ignition power control
Power consumption	TBA
Operating system	Option: Windows® 10
Operating temperature	With 35W CPU: -40°C to 70°C with 65W CPU: -40°C to 70°C (configured as 35W TDP mode) • -40°C to 50°C (configured as 65W TDP mode)
Storage temperature	-40° to 85°C
Storage humidity	10% to 90% @ 40°C; non-condensing
Vibration	MIL-STD-810G, Method 514.7, Category 4
Shock	MIL-STD-810G, Method 516.7, Procedure I
Certificate	EN-50155, CE/FCC Class A, according to EN 55032 & EN 55035
Weight / kg	5.8 (CamCollect® 1301) • 6 (CamCollect® 1311)
Dimensions / mm	220 x 310 x 86.5 (excl. rack-mount bracket)

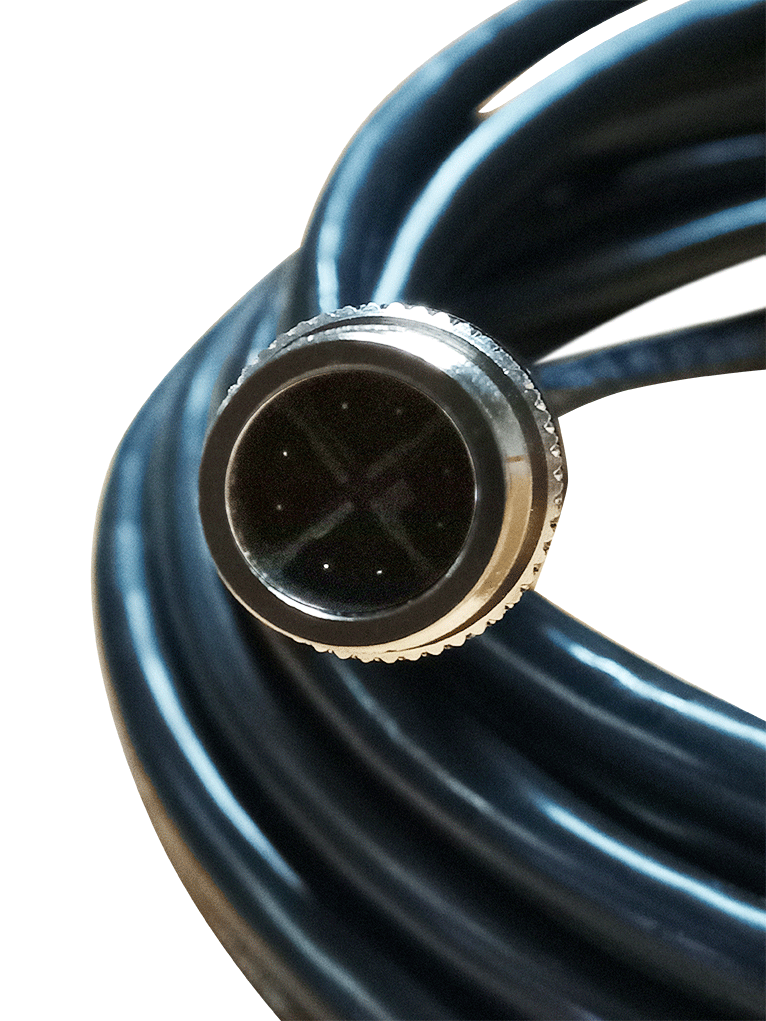

Scope of delivery	M12-Cable-Kit (4x PoE+, VGA, 2x USB2.0 by Y-cable, 2x COM by Y-cable and DC power cables) • Wall mounting kit • Driver CD
