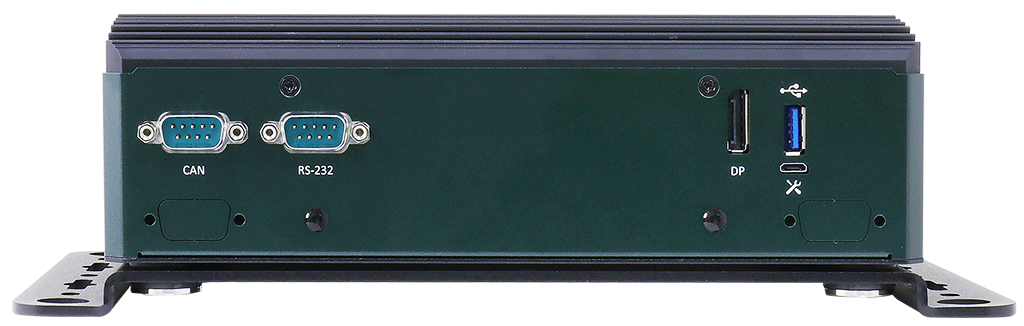

CamCollect® 120S | NVIDIA® Jetson AGX Xavier™

NVIDIA® Jetson AGX Xavier™ AI NVR Computer • NVIDIA® Jetson Xavier™

CamCollect® 120S series is a new rugged edge AI-based video analytics solution capable of video recording, transcoding, real-time inference, etc. Powered by NVIDIA® Jetson AGX Xavier™ system-on-module (SOM), it comprises of an 8-core ARM CPU and NVIDIA® Volta GPU with 512 CUDA cores and 64 Tensor cores that offer 11 TFLOPS FP16 or 22 TOPS INT8 computing power.

Benefiting from the low-power design of NVIDIA® Jetson AGX Xavier™, CamCollect® 120S fanless Industrial PC offers significant inference performance while consuming only 30W of power. The efficient power design and the compact form factor make it the perfect edge AI solution for both stationary and mobile applications. CamCollect® 120S offers four 802.3at Gigabit PoE+ ports; each port can supply up to 25.5W of power to PD devices such as IP cameras and industrial cameras. In addition to 32GB eMMC on the Xavier module, CamCollect® 120S further incorporates two front-accessible 2.5“ HDD/ SSD trays for expanding storage capacity and an M.2 2280 NVMe socket for fast SSD read/write performance. It also has one mini-PCIe socket for WIFI and 4G module, as well as 1 GPS PPS input, 3-CH isolated DI and 4-CH isolated DO for communication with external devices.

By integrating PoE+ connectivity, a wide range of NVIDIA® AI tools, and modern deep learning frameworks, CamCollect® 120S pushes real-time image and video inference to the edge. It is a one-stop AI-based video analytics solution that offers 802.3at PoE+ camera connections, video decoding, video streaming, video recording, and edge AI inference. With the unique damping bracket design, ignition power control, and wide voltage power supply, the Industrial Box-PC CamCollect® 120S is an ideal video inference fanless computer for autonomous machines, predictive maintenance, law enforcement, and smart city applications.

Key facts	• NVIDIA® Jetson Xavier™ • 32GB LPDDR4x • PoE+, Digital I/O, CAN • JetPack 4.4
Protection class	IP20
CPU	NVIDIA® Jetson AGX Xavier™ system-on-module, comprising of NVIDIA® Volta GPU and Carmel CPU with JetPack 4.4
Chipset	SOM
RAM	On board 32GB LPDDR4x on SOM
Storage interface	32GB eMMC 5.1 on SOM • 2x hot-swappable HDD tray for 2.5” HDD/SSD installation (up to 9.5mm height) • 1x M.2 2280 M key socket (PCIe Gen3 x2) for NVMe SSD

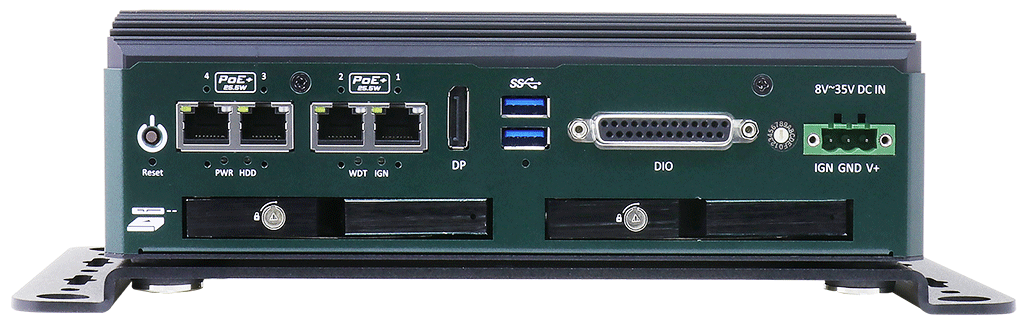

Ports	4x IEEE 802.3at (25.5W) Gigabit PoE+, Intel® I350 • 3x USB 3.1 Gen1 (5 Gbps) • 1x RS-232 • 1x isolated CAN 2.0 port • 2x DisplayPort
PCI / PCIe / mini-PCIe	1x full-size mini-PCIe socket with internal SIM socket
DIO	1x GPS PPS input. 3-CH isolated DI and 4-CH isolated DO
Cooling System	Passive, fanless • active, with fan
Mounting	Wall mounting with Shock-absorbing grommet
Power input	1x 3-pin pluggable terminal block for 8V to 35V DC input (IGN/ GND/ V+)
Power consumption	TBA
Operating system	Ubuntu 18.04.02 LTS with NVIDIA SDK manager with JetPack 4.4 for Xavier
Operating temperature	-25°C to 50°C with passive cooling (MAX TDP mode) • -25°C to 70°C with passive cooling (30W TDP mode) • -25°C to 70°C with optional fan kit (all modes)
Storage temperature	-40°C to 85°C
Storage humidity	10% to 90%; non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
Certificate	CE / FCC Class A, EN 55032 & EN 55024
Weight / kg	2.7 (excluding damping bracket)

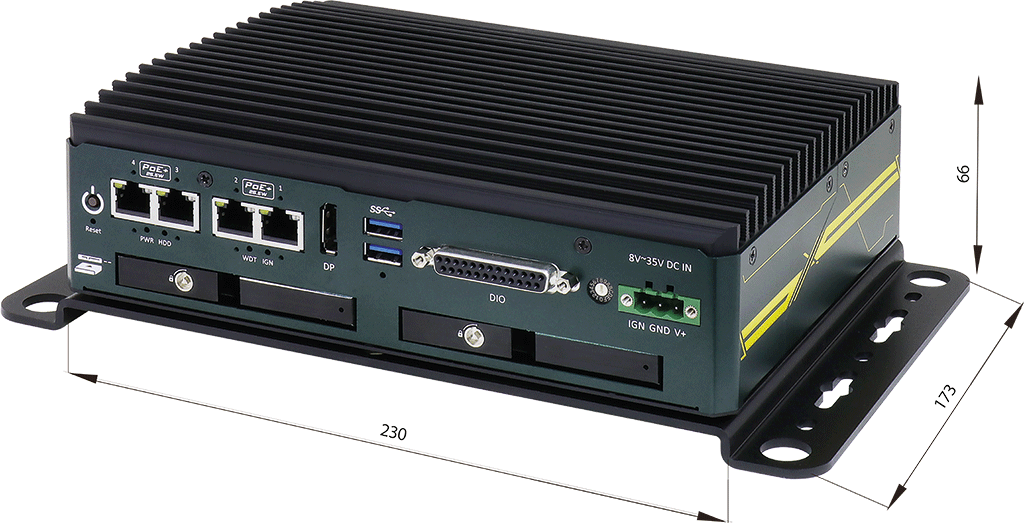

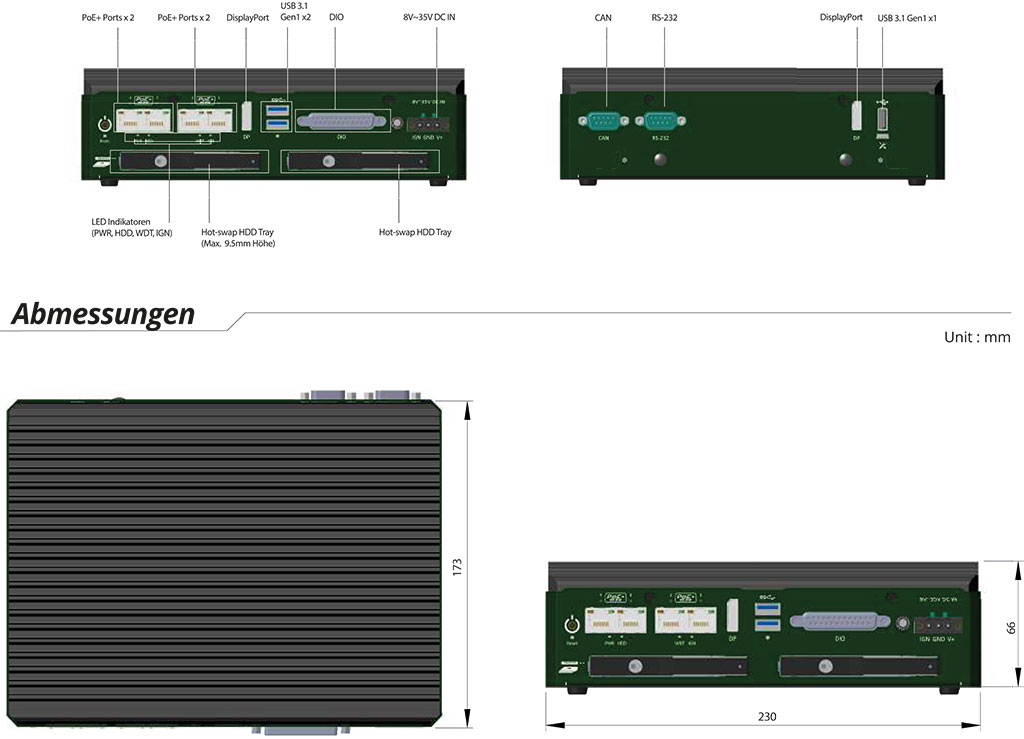

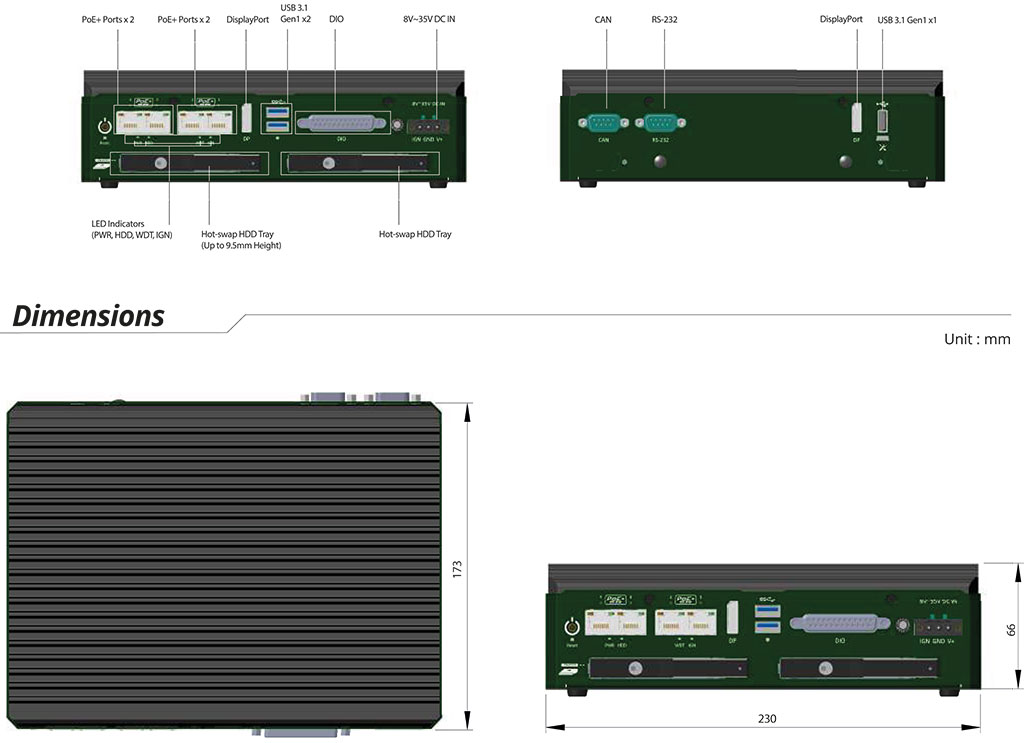

Dimensions / mm	230 x 173 x 66
Scope of delivery	NRU damping bracket for mobile deployment • Shock-absorbing grommet • 3-pin power terminal block • Screw pack
