HAWK SL 15-AL [Optical Bonding]

15" Slim-Line IP65 Panel-PC with capacitive touch (PCT) and Optical Bonding

Key facts	• 15" ~ 21.5" • Intel® Alder Lake-N97 • Max. 32GB DDR5 • IP65 • Optical Bonding • Aluminium • Capacitive • Fanless
Display Size	15" • 15.6” • 17” • 18.5” • 21.5”
Aspect ratio / resolution	4:3 / 1024 x 768 (15") • 16:9 / 1920 x 1080 (15.6"; 18.5"; 21.5") • 5:4 / 1280 x 1024 (17")
Touch	PCT (Capacitive)
Protection class	IP65, front
Case	Aluminium silver
CPU	Intel® Alder Lake-N SoC Processors (N97, QC, Max Speed Up to 3.6GHz, 12W)
Chipset	SOC
RAM	1x 262-pin SO-DIMM 32GB Single Channel DDR5 4800 MHz
Storage interface	1x M.2 (Key M, 2242/2280) with PCIe Gen3 x1 and SATA3 for SSD • 1x SATA3 (6Gb/s)

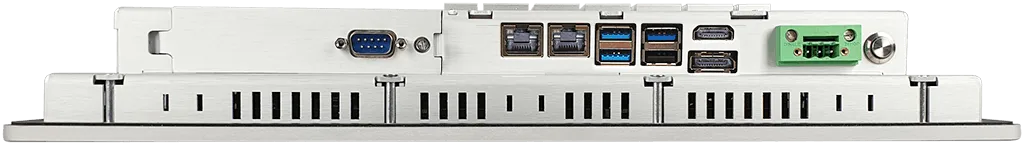

Ports	2x 1 Gigabit LAN; Intel® I210AT with 10/100/1000 Mbps • 3x USB 3.2 Gen2 • 1x USB 2.0 • 1x HDMI 2.0b • 1x DP 1.4b
PCI / PCIe / mini-PCIe	1x M.2 (Key E, 2230) with PCIe Gen3 x1, USB 2.0 and CNVi for Wireless • 1x M.2 (Key B, 3042/3052) with PCIe Gen3 x1, USB 2.0 and SIM for 4G/5G • 1x SIM socket connected to M.2 key B
Cooling System	Passive, fanless
Mounting	Panel mounting • VESA 75 x 75
Power input	9V to 36V DC
Power consumption	TBA
Operating system	Option: Windows® 10 IoT Enterprise LTSC • Windows® 11 Pro/IoT • LINUX
Max. color	16.7M
Luminance /cd/m2	400 (15"; 15.6") • 350 (17"; 18.5") • 300 (21.5")
View angle / H/V	160° / 160° (15"; 15.6") • 170° / 160° (17") • 178° / 178° (18.5") • 170° / 170° (21.5")
Backlight lifetime / hrs	50,000 (15"; 15.6"; 17") • 30,000 (21")
Contrast ratio	500:1 (15"; 15.6") • 800:1 (17") • 1000:1 (18.5") • 5000:1 (21.5")
Operating temperature	0°C to 60°C
Storage humidity	5% bis 90%
Certificate	CE
Weight / kg	3.1 (15") • 3.4 (15.6") • 4.3 (17") • TBA (18.5") • 5.1 (21.5")

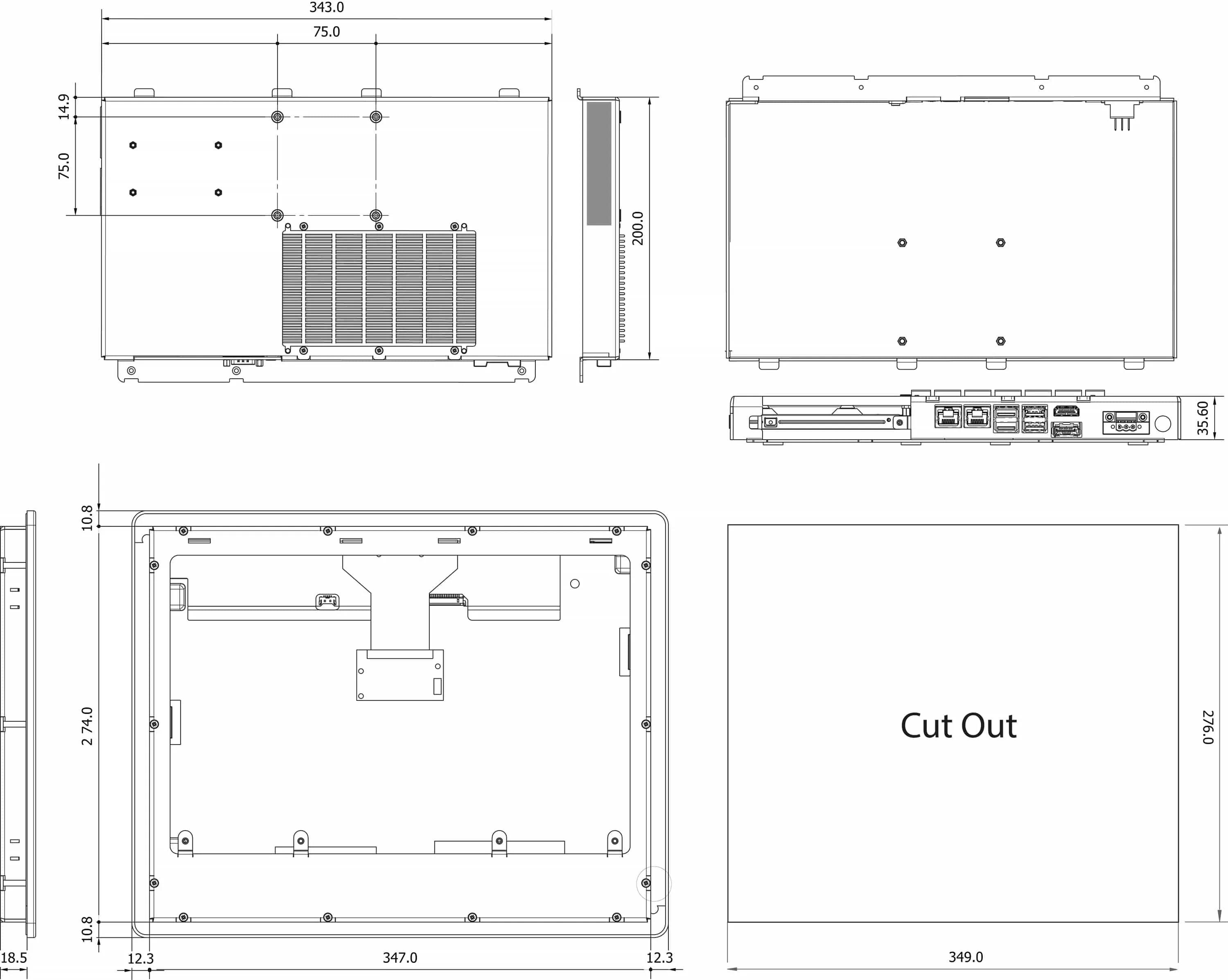

Dimensions / mm	371.6 x 295.6 x 62.6 (15") • 415.2 x 262.2 x 67.6 (15.6") • 423.5 x 358.8 x 68.6 (17") • 505 x 350 x 103.1 (18.5") • 562 x 399 x 67.6 (21.5")
Scope of delivery	3-pin Terminal-Stecker • Montageclips • Touchstift • Ein-/Aus-Taster • Treiber-CD
