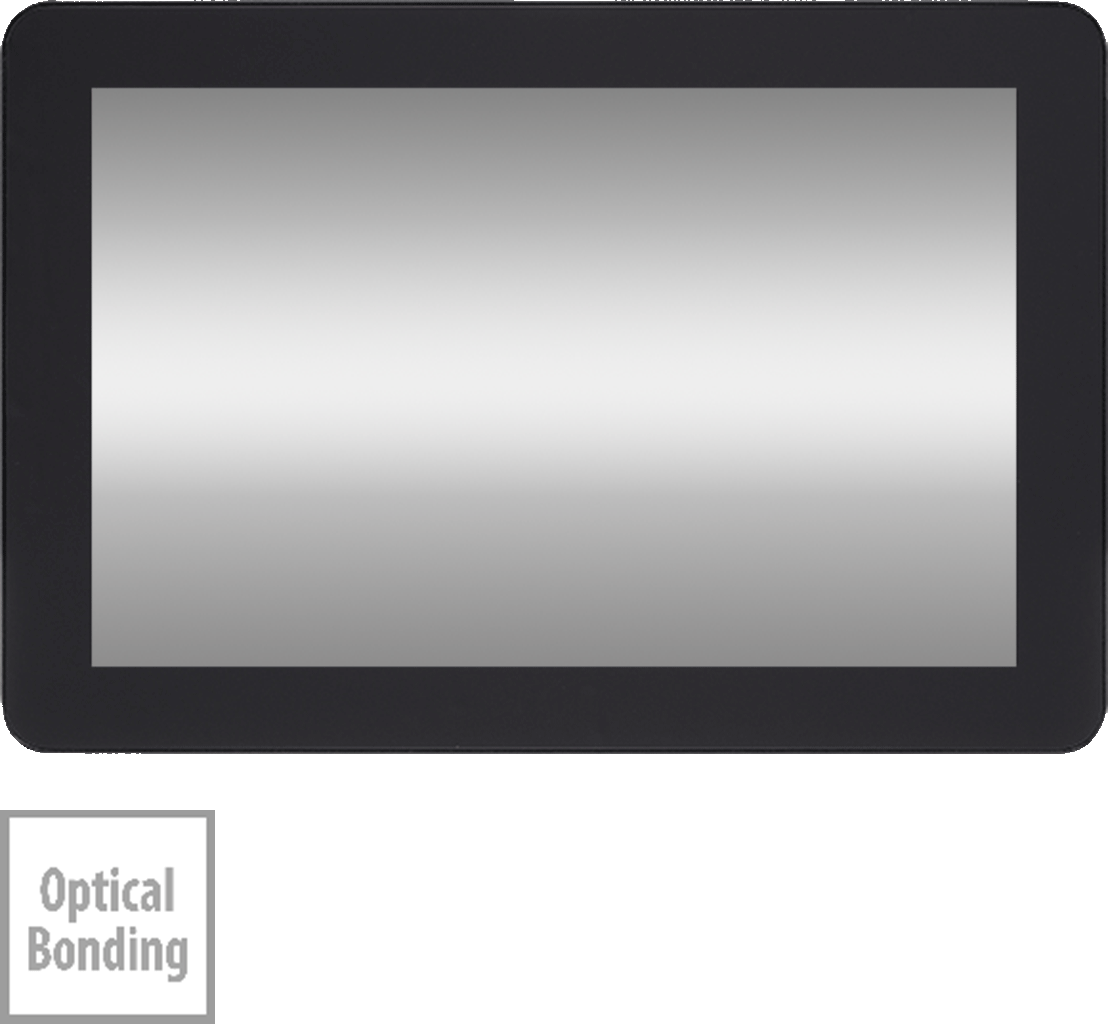

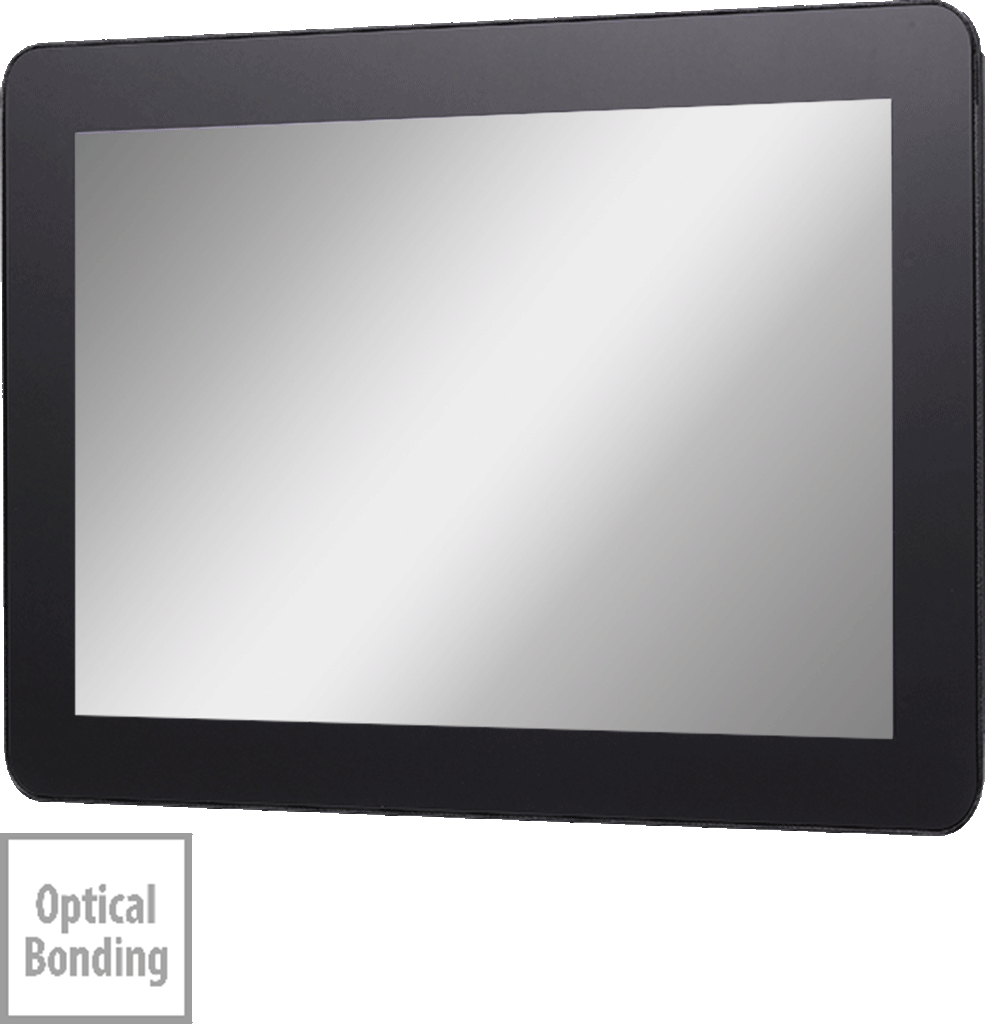

HAWK NC 10-TC [Optical Bonding]

10.1" (Widescreen) Entry level IP 65 Panel-PC for web applications

Skip image gallery
PPCs: Panel Mount_Panel-PC_HAWK NC 10-TC [Optical Bonding]
PPCs: Panel Mount_Panel-PC_HAWK NC 10-TC [Optical Bonding]
PPCs: Panel Mount_Panel-PC_HAWK NC 10-TC [Optical Bonding]
PPCs: Panel Mount_Panel-PC_HAWK NC 10-TC [Optical Bonding]
PPCs: Panel Mount_Panel-PC_HAWK NC 10-TC [Optical Bonding]
PPCs: Panel Mount_Panel-PC_HAWK NC 10-TC [Optical Bonding]
PPCs: Panel Mount_Panel-PC_HAWK NC 10-TC [Optical Bonding]
PPCs: Panel Mount_Panel-PC_HAWK NC 10-TC [Optical Bonding]
PPCs: Panel Mount_Panel-PC_HAWK NC 10-TC [Optical Bonding]
PPCs: Panel Mount_Panel-PC_HAWK NC 10-TC [Optical Bonding]
Prices on request

Prices excl. VAT plus shipping costs

Available in 21 days, delivery time 1-2 weeks [incl. assembly & function test]

Screen | Size
Summary
RAM:
Storage | M.2
WLAN | 4G:
Operating System:
RAM:
Mandatory
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR3, SO-DIMM - 4GB
DDR3, SO-DIMM - 4GB RAM: 4GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR3, SO-DIMM - 8GB
DDR3, SO-DIMM - 8GB RAM: 8GB
Storage | M.2
Systemkomponenten & Zubehör_Components_Accessories_M.2 2242 (SATA III) SSD, TLC [0°C ~ 70°C] - 64GB
M.2 2242 (SATA III) SSD, TLC [0°C ~ 70°C] - 64GB Storage | Size: 64GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2242 (SATA III) SSD, TLC [0°C ~ 70°C] - 128GB
M.2 2242 (SATA III) SSD, TLC [0°C ~ 70°C] - 128GB Storage | Size: 128GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2242 (SATA III) SSD, TLC [0°C ~ 70°C] - 256GB
M.2 2242 (SATA III) SSD, TLC [0°C ~ 70°C] - 256GB Storage | Size: 256GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2242 (SATA III) SSD, TLC [0°C ~ 70°C] - 512GB
M.2 2242 (SATA III) SSD, TLC [0°C ~ 70°C] - 512GB Storage | Size: 512GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2242 (SATA III) SSD, TLC [0°C ~ 70°C] - 1TB
M.2 2242 (SATA III) SSD, TLC [0°C ~ 70°C] - 1TB Storage | Size: 1TB
Reset choice
€0.00*
WLAN | 4G:
Systemkomponenten & Zubehör_Components_Accessories_4G_GPS - miniPCIe module [w/antenna]
4G_GPS - miniPCIe module [w/antenna]
Systemkomponenten & Zubehör_Components_Accessories_WLAN - M.2 2230 module, Intel® Wi-Fi 6 AX200 [802.11ac, Bluetooth 5.1]
WLAN - M.2 2230 module, Intel® Wi-Fi 6 AX200 [802.11ac, Bluetooth 5.1]
Reset choice
€0.00*
Operating System:
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 IoT Enterprise LTSC 2021 - #ENTRY 64bit [For Intel Atom, Celeron, Pentium]
Windows® 10 IoT Enterprise LTSC 2021 - #ENTRY 64bit [For Intel Atom, Celeron, Pentium] OS | Variant: #ENTRY 64bit [For Intel Atom, Celeron, Pentium]
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 Professional - 64bit
Windows® 10 Professional - 64bit OS | Variant: 64bit
Reset choice
€0.00*

€998.00*

Prices excl. VAT plus shipping costs

Product number: 610015.1
Key facts• 10.1" ~ 24"
• Intel® Celeron® J3455
• Up to 8GB DDR3L
• IP65
• Optical Bonding (10.1" and 15.6")
• Capacitive
• Fanless
Display Size 10.1" • 15.6" • 21.5" • 23.8"
Aspect ratio / resolution 16:10 / 1280 x 800 (10.1") • 16:9 / 1366 x 768 (15.6") • 16:9 / 1920 x 1080 (21.5") • 16:9 / 1920 x 1080 (23.8")
Touch Optical Bonding • PCT, 10 points P-cap • Glass surface treatment: AS (Anti-Smudge Coating for easy cleaning) (10.1"-15.6")>div> Air Bonding • 10 points P-Cap (projected capacitive touch) • Glass surface treatment: AS + AG (21.5"-23.8")
Protection class IP65, front
Front Aluminium black
CPU Onboard Intel® Celeron® processor J3455, 1.50GHz, 2M cache
Chipset SoC
RAM 1x SO-DIMM socket support up to 8GB DDR3L 1866 MHz, non-ECC and un-buffered memory (10.1"-15.6") 1x SO-DIMM socket support up to 8GB DDR3L 1600MHz, non-ECC and un-buffered memory (21.5"-23.8")
Storage interface 1x M.2 2242 Key M SSD (support SATA 3.0)

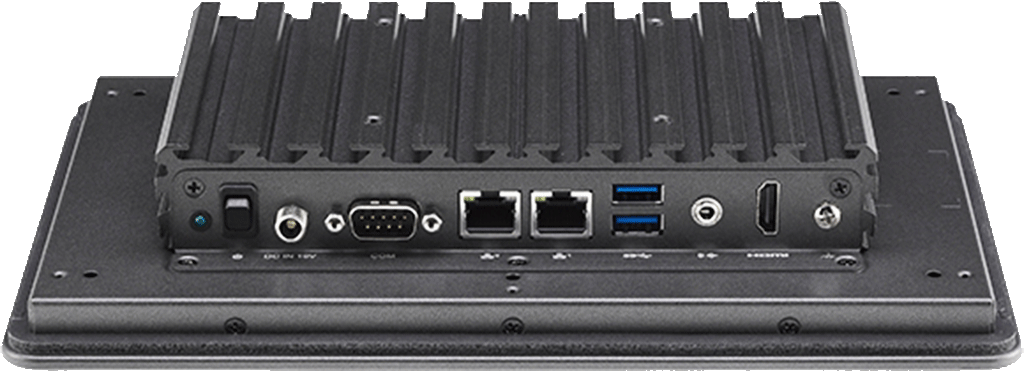

Ports 2x RJ45 with LEDs for Gigabit LAN • 2x USB 3.0 • 1x HDMI 2.0, resolution 4096 x 2160, 60Hz • 1x RS232/422/485 • 1x Line-out • 19V DC-in power jack lock type • LED, Power On/Off • Power switch • 2x Antenna hole
PCI / PCIe / mini-PCIe 1x mini-PCIe full-size connector with SIM slot (full-size) on board, support Wi-Fi/LTE module
Cooling System Passive, fanless
Mounting Panel mounting; VESA 100 x 100; open frame
Power input 1x External 90W AC/DC power adapter with lock (power adapter is included in accessory) Input: 100VAC to 240VAC • Output: DC+19VDC
Power consumption TBA
Operating system Option: Windows® 10, 64-bit; Linux 4.1
Max. color 16.7M
Luminance /cd/m2 400 (10.1") • 500 (15.6") • 250 (21.5") • 350 (23.8")
View angle / H/V 178° / 178° (10.1"; 21.5"; 23.8") • 160° / 150° (15.6")
Contrast ratio 800:1 (10.1") • 600:1 (15.6") • 1000:1 (21.5"; 23.8")) •
Operating temperature 0° to 50°C (21.5"-23.8" with 0.7 m/s air flow)
Storage temperature -20° to 60°C
Storage humidity Operating humidity: 10% to 90% relative humidity, non-condensing, limits to be at 90%
Vibration IEC 60068-2-64 • 2Grms @ sine, 5 to 500Hz, 1hr/axis • 2.2Grms @ random condition, 5 to 500Hz, 0.5hr/axis (non-operating)
Shock IEC 60068-2-27 • 50g peak acceleration (11 msec. duration)
Certificate CE (EN55035 + EN55032) • FCC Class A (EMI part 15B) • LVD (EN62368-1)
Weight / kg 2 (10.1") • 3 (15.6") • 5 (21.5") • 6 (23.8")

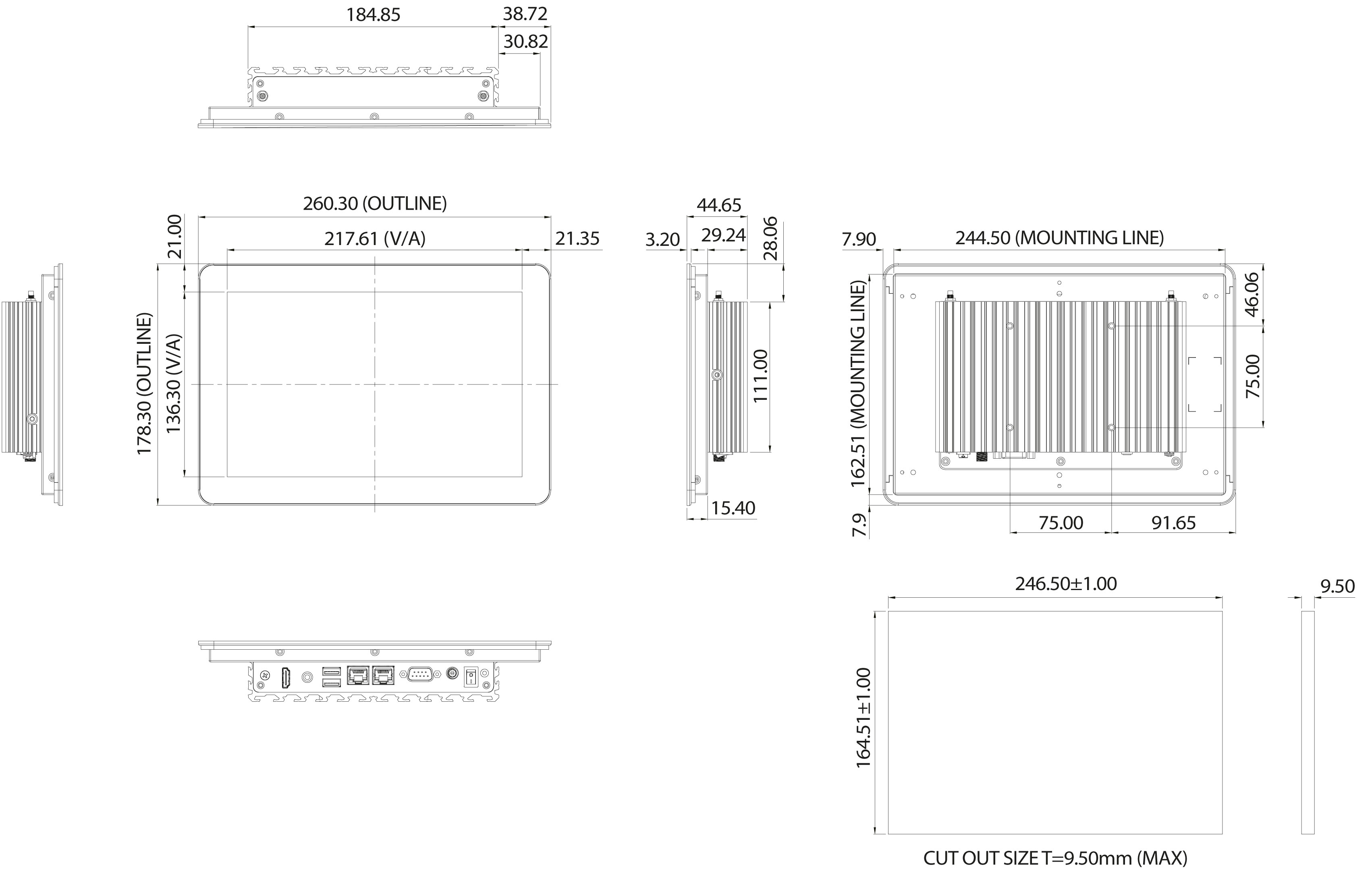

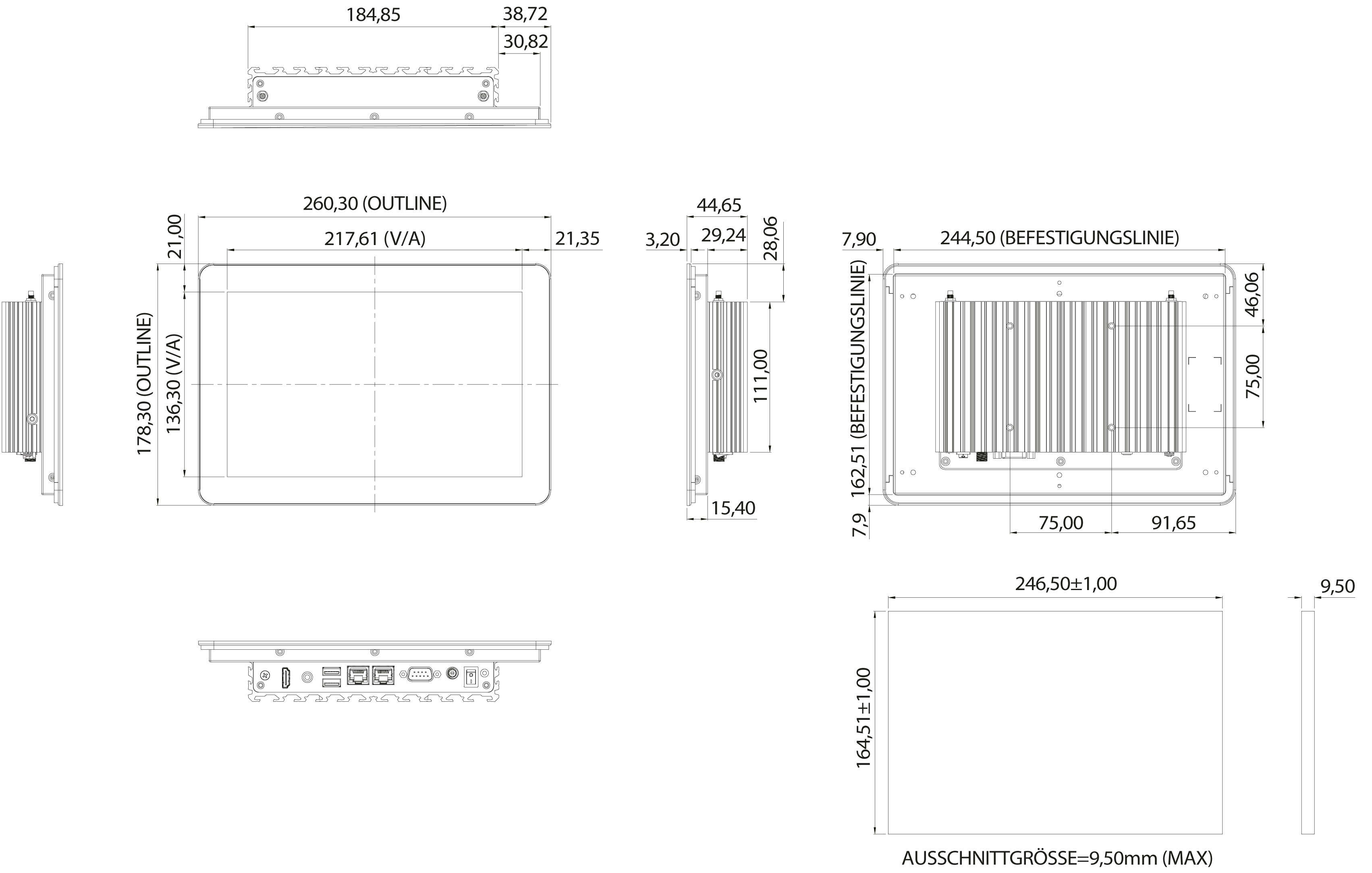

Dimensions / mm 260.3 x 178.3 x 44.65 (10.1") • 382.2 x 251.4 x 51.9 (15.6") • 520.6 x 315.6 x 55.7 (21.5") • 557 x 336.7 x 55 (23.8")
Scope of delivery Power supply, 90W • screwable plug • retaining clip • touch pen • driver CD
