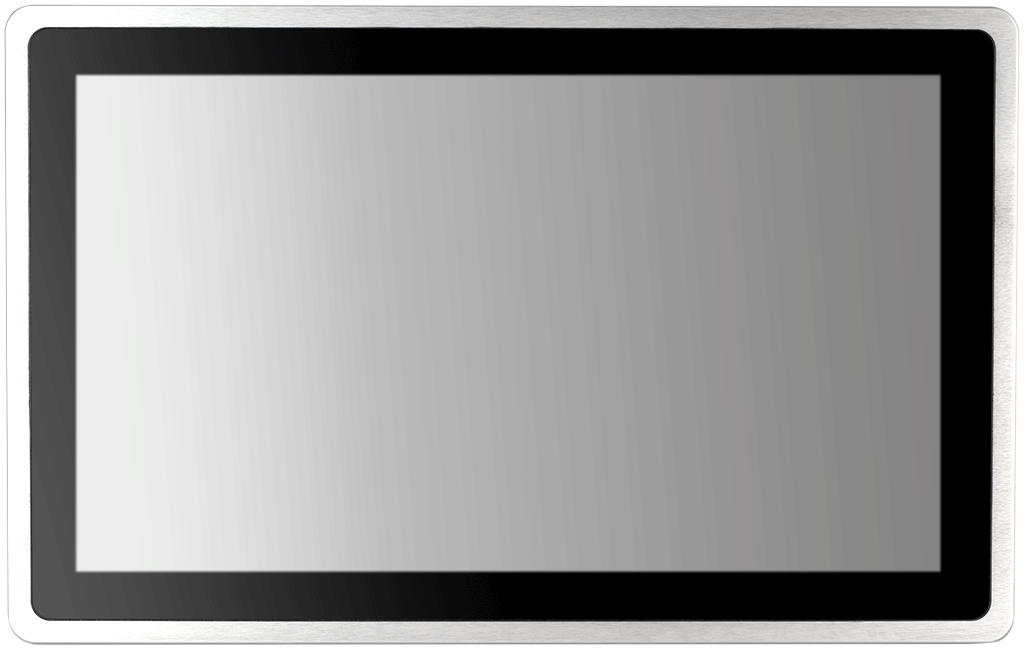

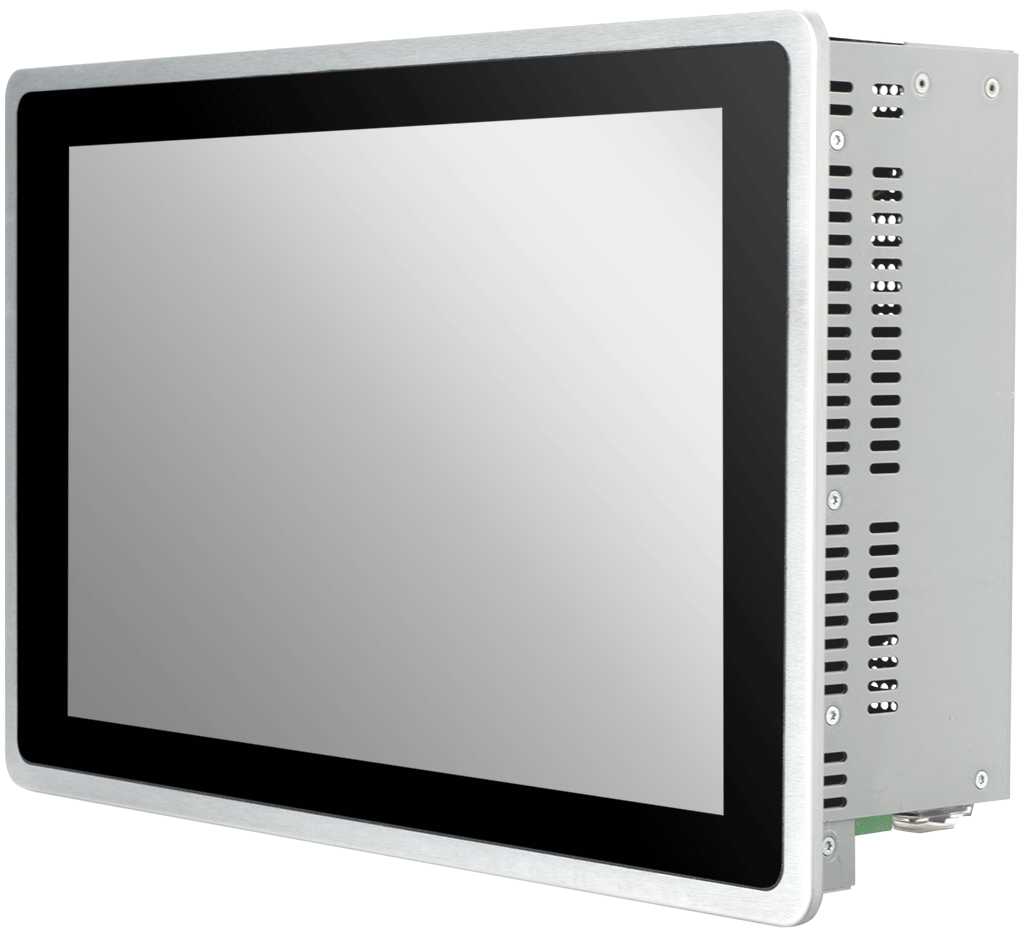

HAWK CF 16-RL [Optical Bonding]

15.6" (Widescreen) High-Performance IP65 Panel IPC with capacitive touch (PCT)

Skip image gallery
PPCs: Panel Mount_Panel-PC_HAWK CF 16-RL [Optical Bonding]
PPCs: Panel Mount_Panel-PC_HAWK CF 16-RL [Optical Bonding]
PPCs: Panel Mount_Panel-PC_HAWK CF 16-RL [Optical Bonding]
PPCs: Panel Mount_Panel-PC_HAWK CF 16-RL [Optical Bonding]
PPCs: Panel Mount_Panel-PC_HAWK CF 16-RL [Optical Bonding]
PPCs: Panel Mount_Panel-PC_HAWK CF 16-RL [Optical Bonding]
PPCs: Panel Mount_Panel-PC_HAWK CF 16-RL [Optical Bonding]
PPCs: Panel Mount_Panel-PC_HAWK CF 16-RL [Optical Bonding]
Prices on request

Prices excl. VAT plus shipping costs

Available, delivery time: 1-2 weeks [incl. assembly & function test]

Screen | Size
Summary
CPU:
RAM:
Storage | NVMe:
RAID | 2.5 Zoll:
Storage | 2.5 Zoll:
Storage | 2.5 Zoll:
WLAN:
Power Supply:
Operating System
Operating System:
Operating System:
CPU:
Mandatory
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Celeron® G6900 [2x 3.4GHz] - 46W TDP
CPU: Intel® Celeron® G6900 [2x 3.4GHz] - 46W TDP
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Celeron® G6900T [2x 2.8GHz] - 35W TDP
CPU: Intel® Celeron® G6900T [2x 2.8GHz] - 35W TDP
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Pentium® G7400 [2x 3.7GHz] - 46W TDP
CPU: Intel® Pentium® G7400 [2x 3.7GHz] - 46W TDP
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Pentium® G7400T [2x 3.1GHz] - 35W TDP
CPU: Intel® Pentium® G7400T [2x 3.1GHz] - 35W TDP
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Core™ i3-13100 [4x 3.4/4.5GHz] - 60W TDP
CPU: Intel® Core™ i3-13100 [4x 3.4/4.5GHz] - 60W TDP
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Core™ i3-13100T [4x 2.5/4.2GHz] - 35W TDP
CPU: Intel® Core™ i3-13100T [4x 2.5/4.2GHz] - 35W TDP
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Core™ i5-13500T [14x 1.6/4.6GHz] - 35W TDP
CPU: Intel® Core™ i5-13500T [14x 1.6/4.6GHz] - 35W TDP
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Core™ i5-13500 [14x 2.5/4.8GHz] - 65W TDP
CPU: Intel® Core™ i5-13500 [14x 2.5/4.8GHz] - 65W TDP
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Core™ i7-13700 [16x 2.1/5.2GHz] - 65W TDP
CPU: Intel® Core™ i7-13700 [16x 2.1/5.2GHz] - 65W TDP
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Core™ i7-13700T [16x 1.4/4.9GHz] - 35W TDP
CPU: Intel® Core™ i7-13700T [16x 1.4/4.9GHz] - 35W TDP
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Core™ i9-13900T [24x 1.1/5.3GHz] - 35W TDP
CPU: Intel® Core™ i9-13900T [24x 1.1/5.3GHz] - 35W TDP
RAM:

2 slots available - max. 64 GB DDR4 SODIMM (max. 32GB per slot)

Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4-3200, SO-DIMM [0°C ~ 85°C] - 4GB
DDR4-3200, SO-DIMM [0°C ~ 85°C] - 4GB RAM: 4GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4-3200, SO-DIMM [0°C ~ 85°C] - 8GB
DDR4-3200, SO-DIMM [0°C ~ 85°C] - 8GB RAM: 8GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4-3200, SO-DIMM [0°C ~ 85°C] - 16GB
DDR4-3200, SO-DIMM [0°C ~ 85°C] - 16GB RAM: 16GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4-3200, SO-DIMM [0°C ~ 85°C] - 32GB
DDR4-3200, SO-DIMM [0°C ~ 85°C] - 32GB RAM: 32GB
Storage | NVMe:

Recommended for the installation of the operating system.

Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 128GB
M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 128GB Storage | Size: 128GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 256GB
M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 256GB Storage | Size: 256GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 512GB
M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 512GB Storage | Size: 512GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 1TB
M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 1TB Storage | Size: 1TB
Reset choice
€0.00*
RAID | 2.5 Zoll:
Mandatory
RAID: -
Zubehör [kein Direktverkauf]_Components_Accessories_RAID - RAID 0
RAID: RAID 0
Zubehör [kein Direktverkauf]_Components_Accessories_RAID - RAID 1
RAID: RAID 1
Storage | 2.5 Zoll:
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 240GB
2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 240GB Storage | Size: 240GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 480GB
2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 480GB Storage | Size: 480GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 960GB
2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 960GB Storage | Size: 960GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 1.92TB
2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 1.92TB Storage | Size: 1,92TB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 3.84TB
2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 3.84TB Storage | Size: 3,84TB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 7.68TB
2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 7.68TB Storage | Size: 7,68TB
Reset choice
€0.00*
Storage | 2.5 Zoll:
Mandatory
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 240GB
2x 2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 240GB Storage | Size: 240GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 480GB
2x 2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 480GB Storage | Size: 480GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 960GB
2x 2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 960GB Storage | Size: 960GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 1.92TB
2x 2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 1.92TB Storage | Size: 1,92TB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 3.84TB
2x 2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 3.84TB Storage | Size: 3,84TB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 7.68TB
2x 2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 7.68TB Storage | Size: 7,68TB
WLAN:

Including antenna and cables.

Systemkomponenten & Zubehör_Components_Accessories_WLAN - M.2 2230 module, Intel® Wi-Fi 6 AX200 [802.11ac, Bluetooth 5.1]
WLAN - M.2 2230 module, Intel® Wi-Fi 6 AX200 [802.11ac, Bluetooth 5.1]
Reset choice
€0.00*
Power Supply:
Systemkomponenten & Zubehör_Components_Accessories_Desktop power supply [Terminal Block] - 160W [24V/6.67A]
Desktop power supply [Terminal Block] - 160W [24V/6.67A] Power adaptor | Output: 160W [24V/6.67A, Terminal Block]
Systemkomponenten & Zubehör_Components_Accessories_Desktop power supply [Terminal Block] - 280W [24V/11.67A]
Desktop power supply [Terminal Block] - 280W [24V/11.67A] Power adaptor | Output: 280W [24V/11.67A, Terminal Block]
Systemkomponenten & Zubehör_Components_Accessories_Switching power supply [DIN-rail mount] - 240W [AC IN 100-240V, DC OUT 24V, 10A]
Switching power supply [DIN-rail mount] - 240W [AC IN 100-240V, DC OUT 24V, 10A] Power adaptor | Output: 240W [AC IN 100-230V, DC OUT 24V, 10A]
Systemkomponenten & Zubehör_Components_Accessories_Switching power supply [DIN-rail mount] - 480W [AC IN 100-240V, DC OUT 24V, 20A]
Switching power supply [DIN-rail mount] - 480W [AC IN 100-240V, DC OUT 24V, 20A] Power adaptor | Output: 480W [AC IN 100-230V, DC OUT 24V, 20A]
Reset choice
€0.00*
Operating System

#HIGH END = For high performance processors: Intel Core i9, Core i7, Xeon #VALUE = For medium performance processors: Intel Core i5, Core i3 #ENTRY = for lower performance processors: Intel Atom, Celeron, Pentium

Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 Professional - 64bit
Windows® 10 Professional - 64bit OS | Variant: 64bit
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 IoT Enterprise LTSC 2021 - #ENTRY 64bit [For Intel Atom, Celeron, Pentium]
Windows® 10 IoT Enterprise LTSC 2021 - #ENTRY 64bit [For Intel Atom, Celeron, Pentium] OS | Variant: #ENTRY 64bit [For Intel Atom, Celeron, Pentium]
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 11 Professional OEM - 64bit
Windows® 11 Professional OEM - 64bit
_Components_Accessories_Windows® 11 IoT Enterprise 2024 LTSC - #ENTRY
Windows® 11 IoT Enterprise 2024 LTSC - #ENTRY OS | Variant: #ENTRY 64bit [For Intel Atom, Celeron, Pentium]
Reset choice
€0.00*
Operating System:
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 IoT Enterprise LTSC 2021 - #VALUE 64bit [For Intel Core i5, Core i3]
Windows® 10 IoT Enterprise LTSC 2021 - #VALUE 64bit [For Intel Core i5, Core i3] OS | Variant: #VALUE 64bit [For Intel Core i5, Core i3]
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 Professional - 64bit
Windows® 10 Professional - 64bit OS | Variant: 64bit
_Components_Accessories_Windows® 11 IoT Enterprise 2024 LTSC - #VALUE
Windows® 11 IoT Enterprise 2024 LTSC - #VALUE OS | Variant: #VALUE 64bit [For Intel Core i5, Core i3]
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 11 Professional OEM - 64bit
Windows® 11 Professional OEM - 64bit
Reset choice
€0.00*
Operating System:
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 IoT Enterprise LTSC 2021 - #HIGH END 64bit [For Intel Core i9, Core i7, Xeon]
Windows® 10 IoT Enterprise LTSC 2021 - #HIGH END 64bit [For Intel Core i9, Core i7, Xeon] OS | Variant: #HIGH END 64bit [For Intel Core i9, Core i7, Xeon]
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 Professional - 64bit
Windows® 10 Professional - 64bit OS | Variant: 64bit
_Components_Accessories_Windows® 11 IoT Enterprise 2024 LTSC - #HIGH END
Windows® 11 IoT Enterprise 2024 LTSC - #HIGH END OS | Variant: #HIGH END 64bit [For Intel Core i9, Core i7, Xeon]
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 11 Professional OEM - 64bit
Windows® 11 Professional OEM - 64bit
Reset choice
€0.00*

€1,885.00*

Prices excl. VAT plus shipping costs

Product number: 510205.1
Key facts• 15.6" ~ 21.5"
• 13th Gen. Intel® Core™ i9/ i7/ i5/ i3/Celeron
• Up to 64GB DDR4
• IP65
• Optical Bonding
• Aluminium
• Capacitive
• Fan cooling
Display Size 15.6" • 17" • 21.5"
Aspect ratio / resolution 16:9 / 1920 x 1080 (15.6"; 21.5") • 5:4 / 1280 x 1024 (17")
Touch Capacitive (PCT)
Protection class Front: IP65 • Rear: IP30
Front Aluminium silver, glass
CPU Intel® 13th/12th Gen (Raptor Lake-S/Alder Lake-S) Core™ Processor
Chipset Intel® Q670
RAM 2x 260-pin SO-DIMM DDR4 3200 MHz, max. 64GB (32GB per DIMM)
Storage interface 2x SATA3 (6Gb/s) • 1x M.2 (Key M, 2242/2260/2280) with PCIe Gen3 x4 for SSD • 1x M.2 (Key M, 2242) with PCIe Gen4 x4 and SATA3 for SSD
RAID 0/1

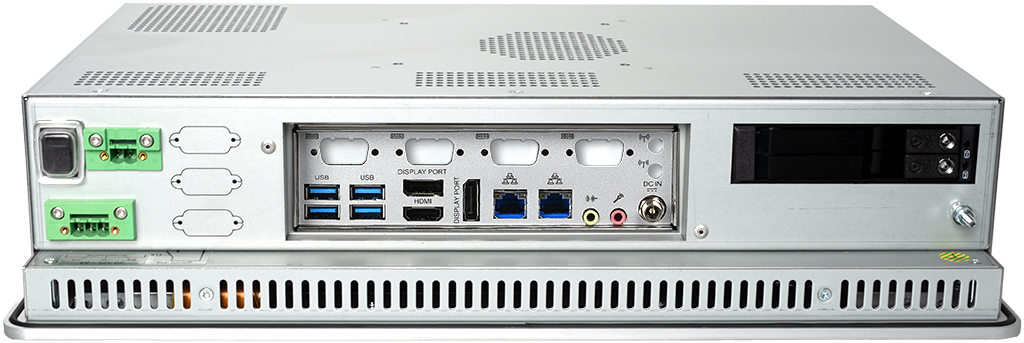

Ports 2x Intel® 2.5 Gigabit LAN; Intel® I225LM with 10/100/1000/2500 Mbps, supports vPro Intel® I225LM/I225V with 10/100/1000/2500 Mbps • 4x USB 3.2 Gen2; 2x USB 3.2 Gen1 • 4x USB 2.0 • 4x COM; COM1, COM2 (RS-232/422/485); COM3, COM4 (RS-232) • 2x DP1.4a • 1x VGA • 1x HDMI • 1x Displayport • 1x eDP1.4b • Intel® UHD Graphics
PCI / PCIe / mini-PCIe 1x PCIe x16 (Gen4) • 1x M.2 Key B
Cooling System Active, CPU fan
Mounting Panel mounting • VESA 100 x 100 (15.6"; 17") • VESA 200 x 200 (21.5")
Power input 12V to 28V DC
Operating system Option: Windows® 11 prof. • Windows® 10 prof. • Windows® 10 IoT • Linux
Max. color 16.7M
Luminance /cd/m2 400 (15.6") • 350 (17") • 300 (21.5")
View angle / H/V 160°/160° (15.6") • 170°/160° (17") • 170°/170° (21.5")
Backlight lifetime / hrs 50,000 (15.6"; 17") • 30,000 (21.5")
Contrast ratio 500:1 (15.6") • 800:1 (17") • 5000:1 (21.5")
Operating temperature 0° to 70°C
Certificate CE
Weight / kg 7.2 (15.6") • 7.4 (17") • 11.5 (21.5")

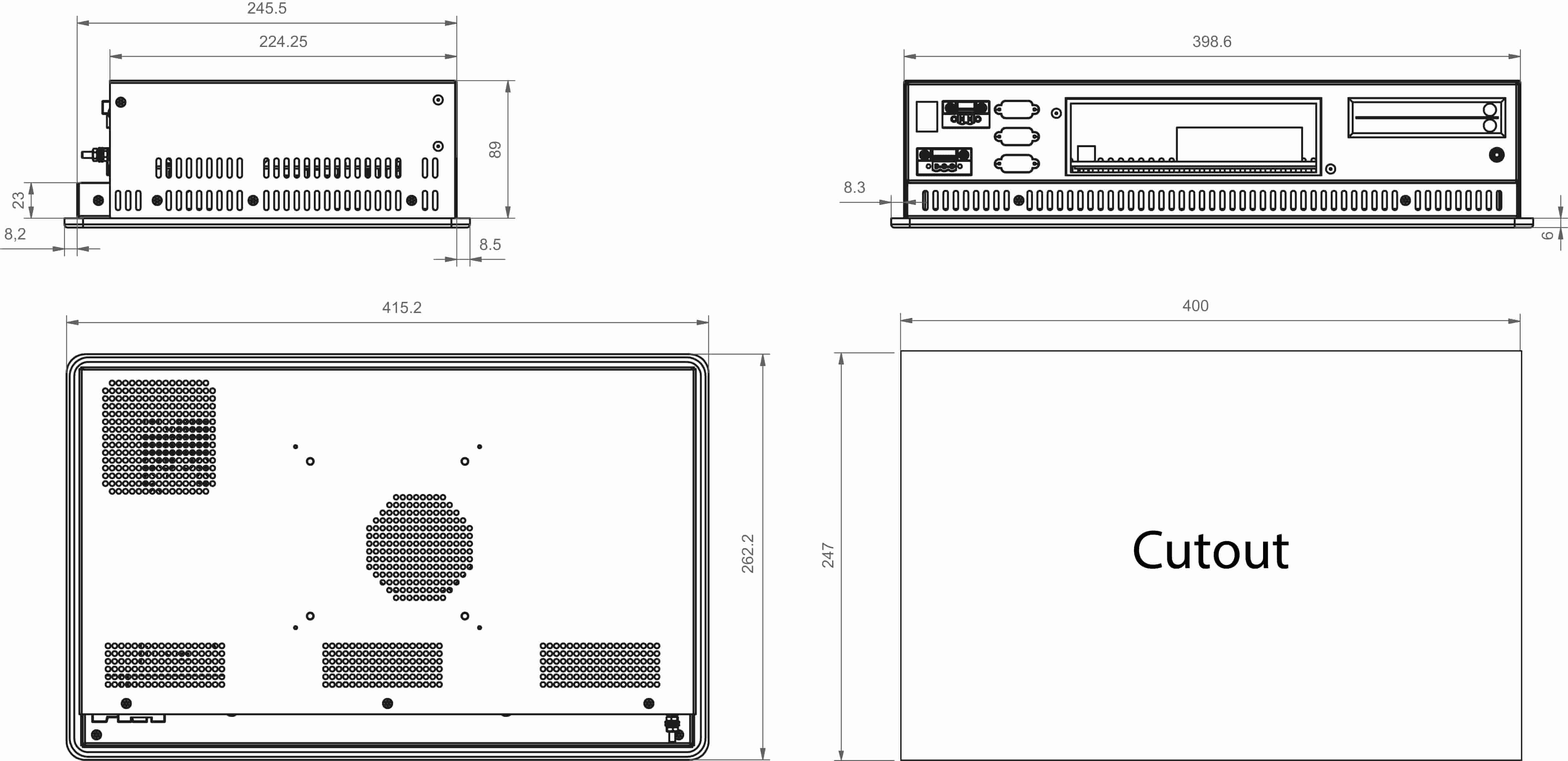

Dimensions / mm 415.2 x 262.2 x 95 (15.6") • 562 x 359 x 94.3 (21.5") • 423.5 x 358.8 x 94.8 (24")
Scope of delivery 3-pin terminal block connector • retaining clip • touch pen • on/off button • driver CD
