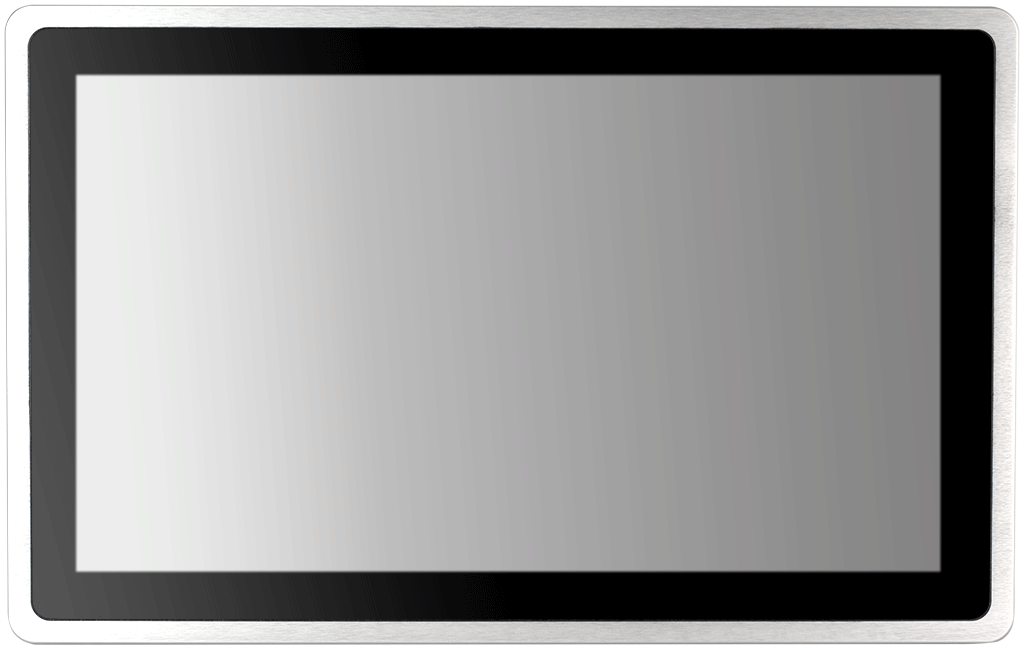

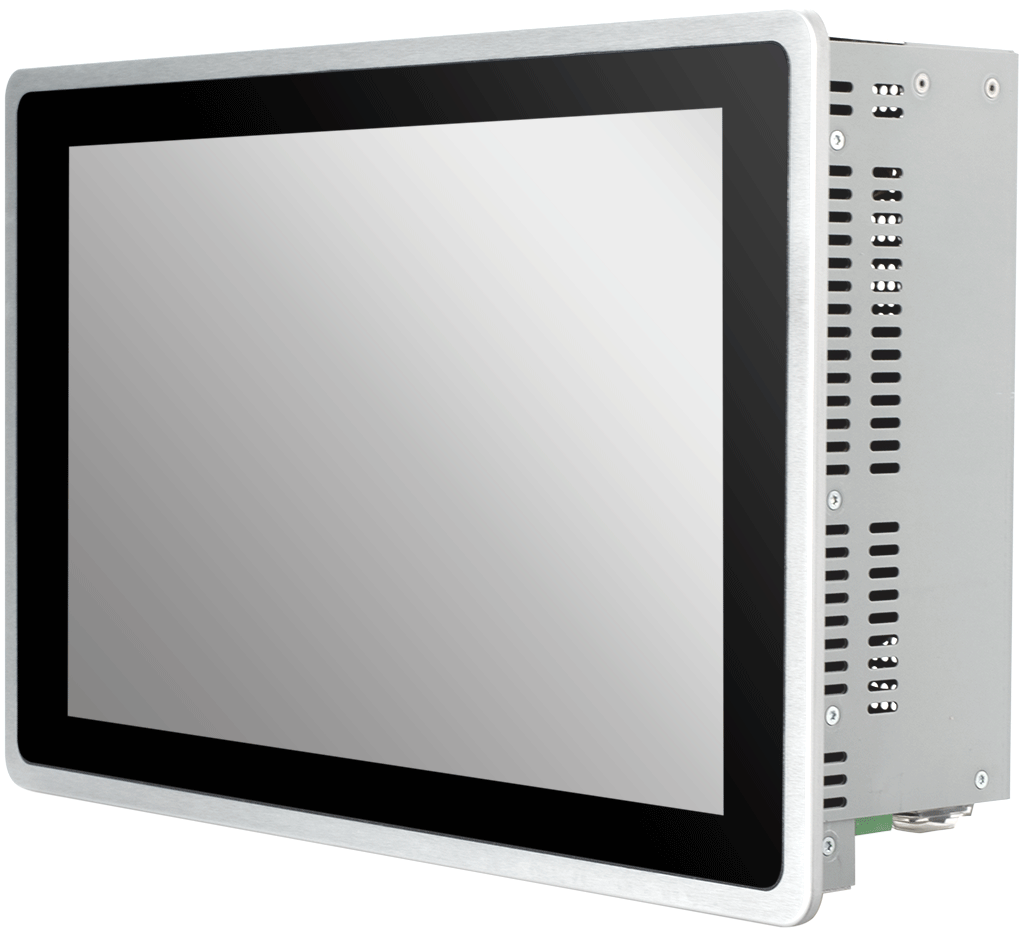

HAWK CF 16-CL [Optical Bonding]

15.6" (Widescreen) High-Performance IP65 Panel IPC with capacitive touch (PCT)

Skip image gallery
PPCs: Panel Mount_Panel-PC_HAWK CF 16-CL [Optical Bonding]
PPCs: Panel Mount_Panel-PC_HAWK CF 16-CL [Optical Bonding]
PPCs: Panel Mount_Panel-PC_HAWK CF 16-CL [Optical Bonding]
PPCs: Panel Mount_Panel-PC_HAWK CF 16-CL [Optical Bonding]
PPCs: Panel Mount_Panel-PC_HAWK CF 16-CL [Optical Bonding]
PPCs: Panel Mount_Panel-PC_HAWK CF 16-CL [Optical Bonding]
PPCs: Panel Mount_Panel-PC_HAWK CF 16-CL [Optical Bonding]
PPCs: Panel Mount_Panel-PC_HAWK CF 16-CL [Optical Bonding]
Prices on request

Available, delivery time: 1-2 weeks [incl. assembly & function test]

Screen | Size
Summary
CPU:
RAM:
Storage | NVMe:
Storage | 2.5 Zoll:
WLAN:
Power Supply:
Operating System:
Operating System:
CPU:
Mandatory
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Core™ i3-10100 [4x 3.6/4.3GHz] - 65W TDP
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Core™ i3-10100T [4x 3.0/3.8GHz] - 35W TDP
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Core™ i5-10500 [6x 3.1/4.5GHz] - 65W TDP
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Core™ i5-10500T [6x 2.3/3.8GHz] - 35W TDP
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Intel® Core™ i7-10700T [8x 2.0/4.5GHz] - 35W TDP
RAM:

2 slots available - max. 64 GB DDR4 SODIMM (max. 32GB per slot)

Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4-3200, SO-DIMM [0°C ~ 85°C] - 4GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4-3200, SO-DIMM [0°C ~ 85°C] - 8GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4-3200, SO-DIMM [0°C ~ 85°C] - 16GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4-3200, SO-DIMM [0°C ~ 85°C] - 32GB
Storage | NVMe:

Recommended for the installation of the operating system.

Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 128GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 256GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 512GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 1TB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (NVMe PCIe 4.0 x4) SAMSUNG, TLC [0°C ~ 70°C] - 1TB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (NVMe PCIe 4.0 x4) SAMSUNG, TLC [0°C ~ 70°C] - 2TB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (NVMe PCIe 4.0 x4) SAMSUNG, TLC [0°C ~ 70°C] - 4TB
Reset choice
€0.00
Storage | 2.5 Zoll:
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 240GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 480GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 960GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 1.92TB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 3.84TB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 7.68TB
WLAN:

Including antenna and cables.

Systemkomponenten & Zubehör_Components_Accessories_WLAN - M.2 2230 module, Intel® Wi-Fi 6 AX200 [802.11ac, Bluetooth 5.1]
Reset choice
€0.00
Power Supply:
Systemkomponenten & Zubehör_Components_Accessories_Desktop power supply [Terminal Block] - 160W [24V/6.67A]
Systemkomponenten & Zubehör_Components_Accessories_Desktop power supply [Terminal Block] - 280W [24V/11.67A]
Systemkomponenten & Zubehör_Components_Accessories_Switching power supply [DIN-rail mount] - 240W [AC IN 100-240V, DC OUT 24V, 10A]
Systemkomponenten & Zubehör_Components_Accessories_Switching power supply [DIN-rail mount] - 480W [AC IN 100-240V, DC OUT 24V, 20A]
Reset choice
€0.00
Operating System:
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 IoT Enterprise LTSC 2021 - #VALUE 64bit [For Intel Core i5, Core i3]
_Components_Accessories_Windows® 11 IoT Enterprise 2024 LTSC - #VALUE
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 11 Professional OEM - 64bit
Reset choice
€0.00
Operating System:
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 IoT Enterprise LTSC 2021 - #HIGH END 64bit [For Intel Core i9, Core i7, Xeon]
_Components_Accessories_Windows® 11 IoT Enterprise 2024 LTSC - #HIGH END
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 11 Professional OEM - 64bit
Reset choice
€0.00

Prices on request

Prices excl. VAT plus shipping costs

Product number: 510105.3
Key facts • 15.6" ~ 21.5"
• 10th Gen. Intel® Core™ i9/ i7/ i5/ i3
• Up to 64GB DDR4
• IP65
• Optical Bonding
• Aluminium
• Capacitive
• Fan cooling
Display Size 15.6" • 17" • 21.5"
Aspect ratio / resolution 16:9 / 1920 x 1080 (15.6”; 21.5”) • 5:4 / 1280 x 1024 (17”)
Touch Capacitive (PCT)
Protection class Front: IP65 • Rear: IP30
Front Aluminium silver • glass
CPU Intel® Core™ i9/ i7/ i5/ i3, 10th Gen. (Comet Lake S) • Intel® Pentium® & Intel® Celeron®
Chipset Intel® H410
RAM Max. 64GB DDR4
Storage interface 4x SATA3 HDD/SSD (6GB/s) • 1x M2 Key M (2242/2260/2280) with PCIe x4

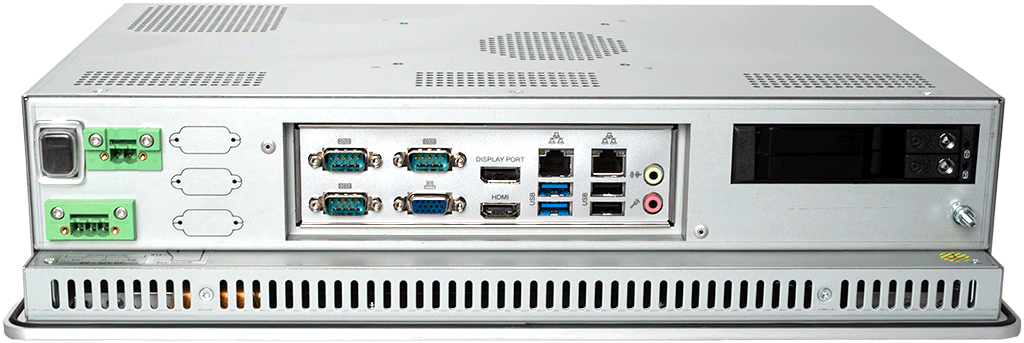

Ports 2x GigE, 1x Intel® I219V; 1x Intel® I210 • 4x USB 3.2, Gen1, (2x external, 2x internal); 4x USB 2.0, (2x external, 2x internal), thereof 1x for touch • 2x RS232/422/485; 4x RS232, (1x external, 3x internal) • 1x In (Mic); 1x Out (LS) • 1x VGA • 1x HDMI • 1x Displayport • Intel® UHD Graphics
PCI / PCIe / mini-PCIe 1x M.2 Key E 2230 with PCIe x1
Cooling System Active, CPU fan
Mounting Panel mounting • Housing on swivel arm • VESA 100 x 100 • VESA 200 x 200
Power input 6V to 36V DC
Power consumption *i5-10500T: max. 100W, APROtech recommends using a 24V/120W power supply, *i7-10700T: max. 150W, APROtech recommends to use a power supply 24V/160W, *i9-10900T: max. 190W, APROtech recommends setting the boost mode in the BIOS to “Disabled”. Without boost mode, a maximum of 90W is consumed. APROtech therefore recommends using a 24V/120W power supply.
Operating system Option: Windows® 11 prof. • Windows® 10 prof. • Windows® 10 IoT • Linux
Max. color 16.7M
Luminance /cd/m2 400 (15.6") • 350 (17") • 300 (21.5")
View angle / H/V 160° / 160° (15.6") • 170° / 160° (17") • 170° / 170° (21.5")
Backlight lifetime / hrs 50.000 • 30.000 (21.5")
Contrast ratio 500:1 (15.6"); 800:1 (17"); 5000:1 (21.5")
Operating temperature 0° to 60°C
Certificate CE
Weight / kg 7.2 (15.6") • 7.4 (17") • 11.5 (21.5")

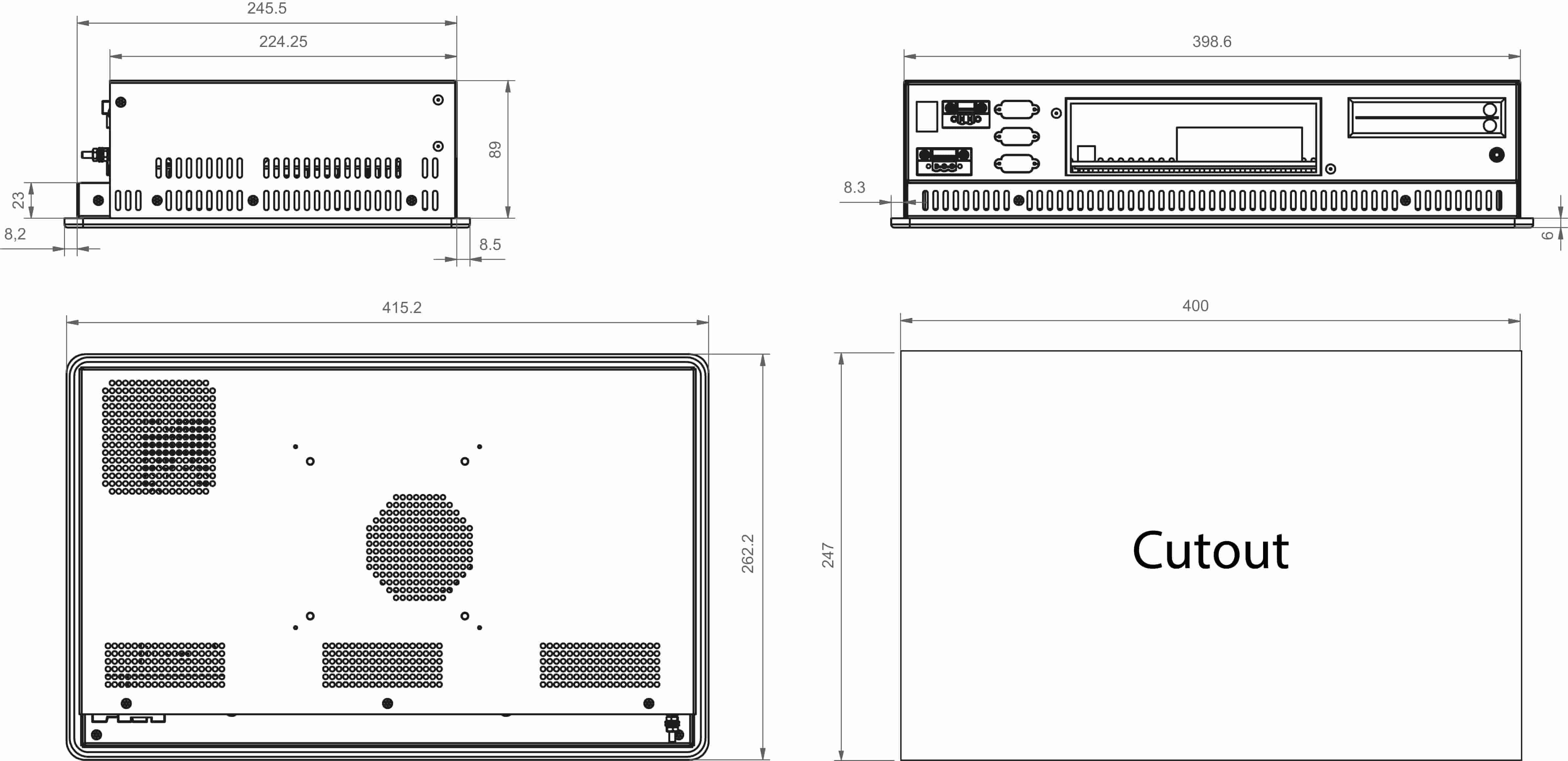

Dimensions / mm 415.2 x 262.2 x 95 (15.6") • 423.5 x 358.8 x 94.8 (17") • 562 x 359 x 94.3 (21.5")
Scope of delivery 3-pin terminal block connector • retaining clip • touch pen • on/off button • driver CD
