HAWK CF 16-AL [Optical Bonding]

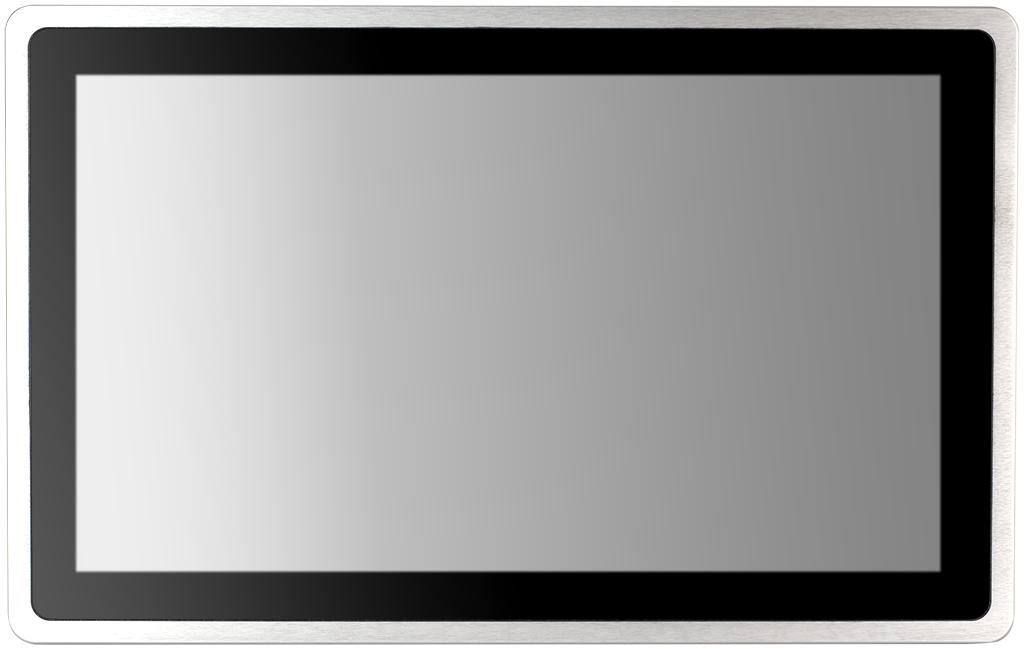

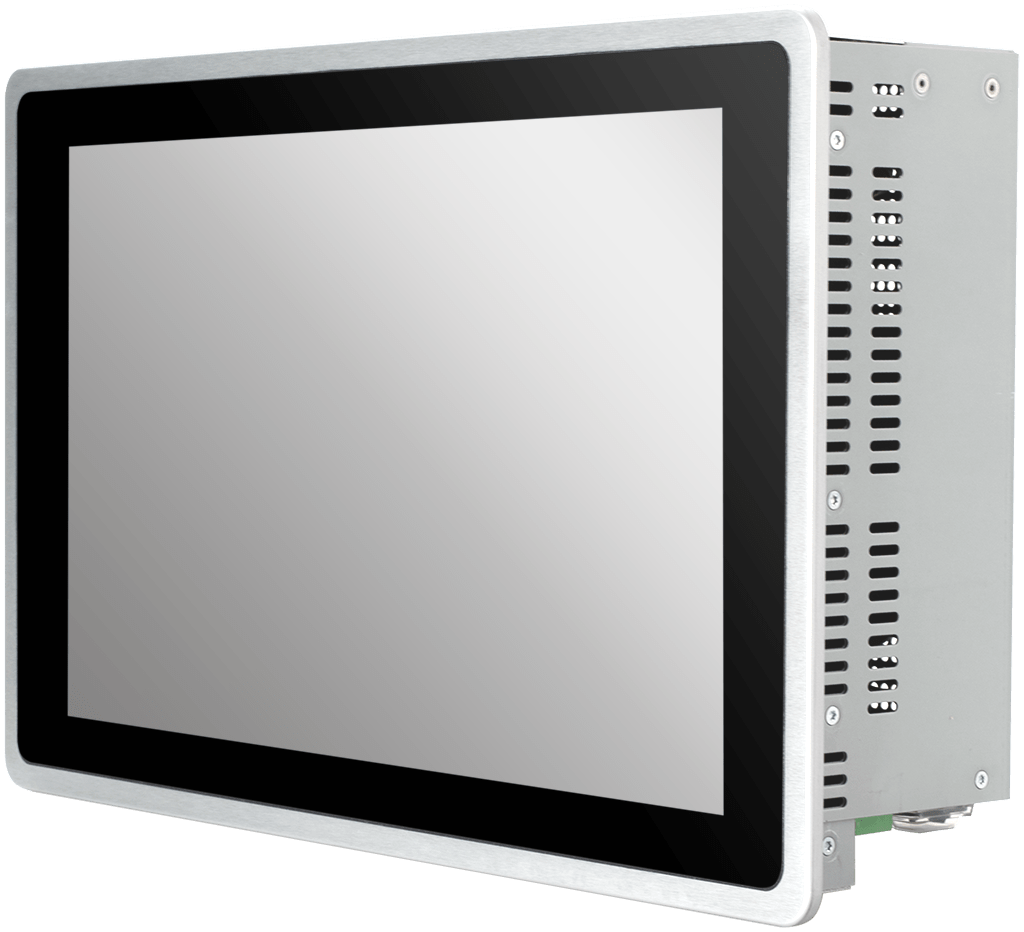

15.6" (Widescreen) Cost-effective IP65 Panel IPC with capacitive touch (PCT)

Skip image gallery

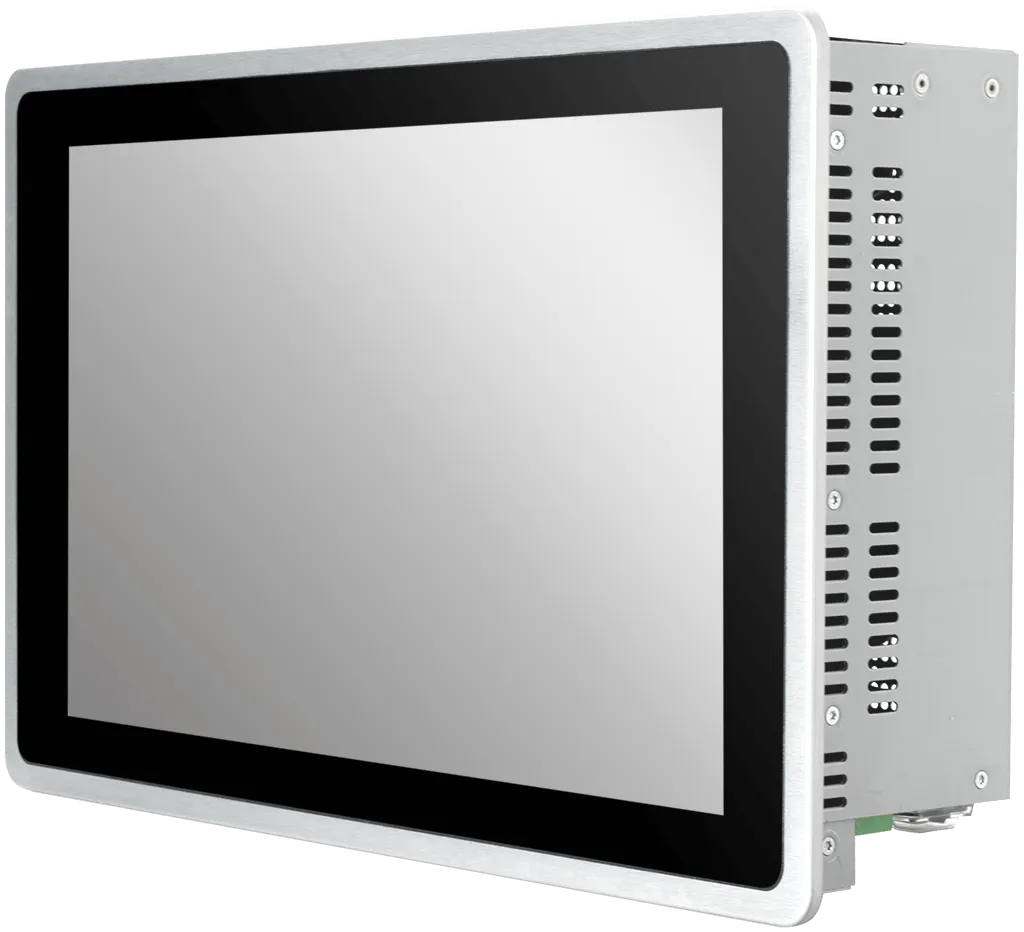

_Panel-PC_HAWK CF 16-AL [Optical Bonding]
_Panel-PC_HAWK CF 16-AL [Optical Bonding]
_Panel-PC_HAWK CF 16-AL [Optical Bonding]
_Panel-PC_HAWK CF 16-AL [Optical Bonding]
_Panel-PC_HAWK CF 16-AL [Optical Bonding]
_Panel-PC_HAWK CF 16-AL [Optical Bonding]
_Panel-PC_HAWK CF 16-AL [Optical Bonding]
_Panel-PC_HAWK CF 16-AL [Optical Bonding]
Prices on request

Prices excl. VAT plus shipping costs

Available, delivery time: 1-2 weeks [incl. assembly & function test]

Screen | Size
Summary
RAM:
Storage | NVMe:
Storage | 2.5" SSD:
WLAN | Mobile Network:
Power Supply:
Operating System:
RAM:
Mandatory
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4-3200, SO-DIMM [0°C ~ 85°C] - 4GB
DDR4-3200, SO-DIMM [0°C ~ 85°C] - 4GB RAM: 4GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4-3200, SO-DIMM [0°C ~ 85°C] - 8GB
DDR4-3200, SO-DIMM [0°C ~ 85°C] - 8GB RAM: 8GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4-3200, SO-DIMM [0°C ~ 85°C] - 16GB
DDR4-3200, SO-DIMM [0°C ~ 85°C] - 16GB RAM: 16GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4-3200, SO-DIMM [0°C ~ 85°C] - 32GB
DDR4-3200, SO-DIMM [0°C ~ 85°C] - 32GB RAM: 32GB
Storage | NVMe:

Recommended for the installation of the operating system.

Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 128GB
M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 128GB Storage | Size: 128GB
_Components_Accessories_M.2 2280 (NVMe PCIe 4.0 x4) SAMSUNG, TLC [0°C ~ 70°C] - 1TB
M.2 2280 (NVMe PCIe 4.0 x4) SAMSUNG, TLC [0°C ~ 70°C] - 1TB Storage | Size: 1TB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 256GB
M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 256GB Storage | Size: 256GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 512GB
M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 512GB Storage | Size: 512GB
_Components_Accessories_M.2 2280 (NVMe PCIe 4.0 x4) SAMSUNG, TLC [0°C ~ 70°C] - 2TB
M.2 2280 (NVMe PCIe 4.0 x4) SAMSUNG, TLC [0°C ~ 70°C] - 2TB Storage | Size: 2TB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 1TB
M.2 2280 (NVMe PCIe Gen. III x4) SSD, TLC [0°C ~ 70°C] - 1TB Storage | Size: 1TB
_Components_Accessories_M.2 2280 (NVMe PCIe 4.0 x4) SAMSUNG, TLC [0°C ~ 70°C] - 4TB
M.2 2280 (NVMe PCIe 4.0 x4) SAMSUNG, TLC [0°C ~ 70°C] - 4TB Storage | Size: 4TB
Reset choice
€0.00*
Storage | 2.5" SSD:
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 240GB
2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 240GB Storage | Size: 240GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 480GB
2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 480GB Storage | Size: 480GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 960GB
2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 960GB Storage | Size: 960GB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 1.92TB
2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 1.92TB Storage | Size: 1,92TB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 3.84TB
2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 3.84TB Storage | Size: 3,84TB
Systemkomponenten & Zubehör_Components_Accessories_2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 7.68TB
2.5 Zoll SSD SAMSUNG, TLC [PLP, 24/7, RAID, 0°C ~ 70°C] - 7.68TB Storage | Size: 7,68TB
Reset choice
€0.00*
WLAN | Mobile Network:
Systemkomponenten & Zubehör_Components_Accessories_5G/GPS M.2 3052 module Quectel RM520N-GL [w/2x antenna]
5G/GPS M.2 3052 module Quectel RM520N-GL [w/2x antenna]
Systemkomponenten & Zubehör_Components_Accessories_WLAN - M.2 2230 module, Intel® Wi-Fi 6 AX200 [802.11ac, Bluetooth 5.1]
WLAN - M.2 2230 module, Intel® Wi-Fi 6 AX200 [802.11ac, Bluetooth 5.1]
Power Supply:
Systemkomponenten & Zubehör_Components_Accessories_Desktop power supply [Terminal Block] - 60W [24V/2.5A]
Desktop power supply [Terminal Block] - 60W [24V/2.5A] Power adaptor | Output: 60W [24V/2.5A, Terminal Block]
Systemkomponenten & Zubehör_Components_Accessories_Desktop power supply [Terminal Block] - 90W [24V/3.75A]
Desktop power supply [Terminal Block] - 90W [24V/3.75A] Power adaptor | Output: 90W [24V/3.75A, Terminal Block]
Systemkomponenten & Zubehör_Components_Accessories_Desktop power supply [Terminal Block] - 120W [24V/5A]
Desktop power supply [Terminal Block] - 120W [24V/5A] Power adaptor | Output: 120W [24V/5A, Terminal Block]
Systemkomponenten & Zubehör_Components_Accessories_Desktop power supply [Terminal Block] - 160W [24V/6.67A]
Desktop power supply [Terminal Block] - 160W [24V/6.67A] Power adaptor | Output: 160W [24V/6.67A, Terminal Block]
Systemkomponenten & Zubehör_Components_Accessories_Desktop power supply [Terminal Block] - 280W [24V/11.67A]
Desktop power supply [Terminal Block] - 280W [24V/11.67A] Power adaptor | Output: 280W [24V/11.67A, Terminal Block]
Systemkomponenten & Zubehör_Components_Accessories_Switching power supply [DIN-rail mount] - 120W [AC IN 100-240V, DC OUT 24V, 5A]
Switching power supply [DIN-rail mount] - 120W [AC IN 100-240V, DC OUT 24V, 5A] Power adaptor | Output: 120W [AC IN 100-230V, DC OUT 24V, 5A]
Systemkomponenten & Zubehör_Components_Accessories_Switching power supply [DIN-rail mount] - 240W [AC IN 100-240V, DC OUT 24V, 10A]
Switching power supply [DIN-rail mount] - 240W [AC IN 100-240V, DC OUT 24V, 10A] Power adaptor | Output: 240W [AC IN 100-230V, DC OUT 24V, 10A]
Systemkomponenten & Zubehör_Components_Accessories_Switching power supply [DIN-rail mount] - 480W [AC IN 100-240V, DC OUT 24V, 20A]
Switching power supply [DIN-rail mount] - 480W [AC IN 100-240V, DC OUT 24V, 20A] Power adaptor | Output: 480W [AC IN 100-230V, DC OUT 24V, 20A]
Reset choice
€0.00*
Operating System:
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 Professional - 64bit
Windows® 10 Professional - 64bit OS | Variant: 64bit
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 IoT Enterprise LTSC 2021 - #ENTRY 64bit [For Intel Atom, Celeron, Pentium]
Windows® 10 IoT Enterprise LTSC 2021 - #ENTRY 64bit [For Intel Atom, Celeron, Pentium] OS | Variant: #ENTRY 64bit [For Intel Atom, Celeron, Pentium]
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 11 Professional OEM - 64bit
Windows® 11 Professional OEM - 64bit
_Components_Accessories_Windows® 11 IoT Enterprise 2024 LTSC - #ENTRY
Windows® 11 IoT Enterprise 2024 LTSC - #ENTRY OS | Variant: #ENTRY 64bit [For Intel Atom, Celeron, Pentium]
Reset choice
€0.00*

€1,732.00*

Prices excl. VAT plus shipping costs

Product number: 510600.1
Key facts• 15.6" ~ 21.5"
• Intel® Alder Lake-N97 on-board
• Max. 32GB DDR4
• IP65
• Optical Bonding
• Aluminium
• Capacitive
• Fanless
Display Size 15.6” • 17” • 21.5”
Aspect ratio / resolution 16:9 / 1920 x 1080 (15.6”; 21.5”) • 5:4 / 1280 x 1024 (17”)
Touch Capacitive (PCT)
Protection class IP65, front
Case Aluminium silver
CPU Intel® Alder Lake-N97 on-board, max. 3.60GHz, 6 MB Cache
Chipset Intel® Alder Lake SoC - Embedded Long Life Chipset
RAM 1x DDR4 Slot 3200MHz up to 32GB
Storage interface 1x 2.5” SSD slot • Internal: 1x M.2 2280 NVMe slot

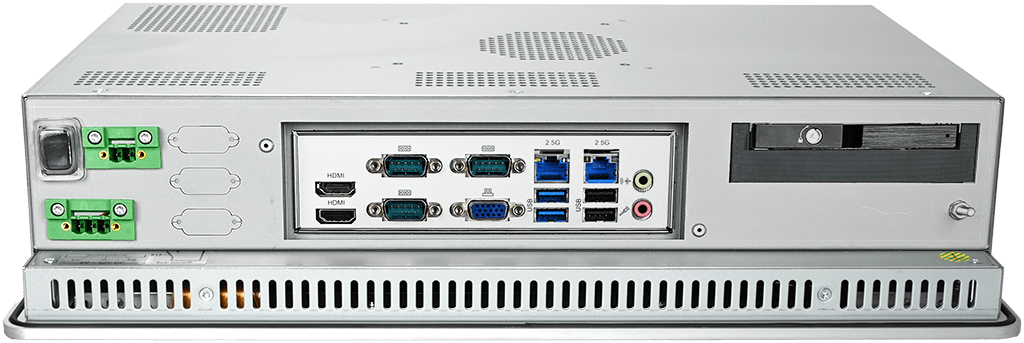

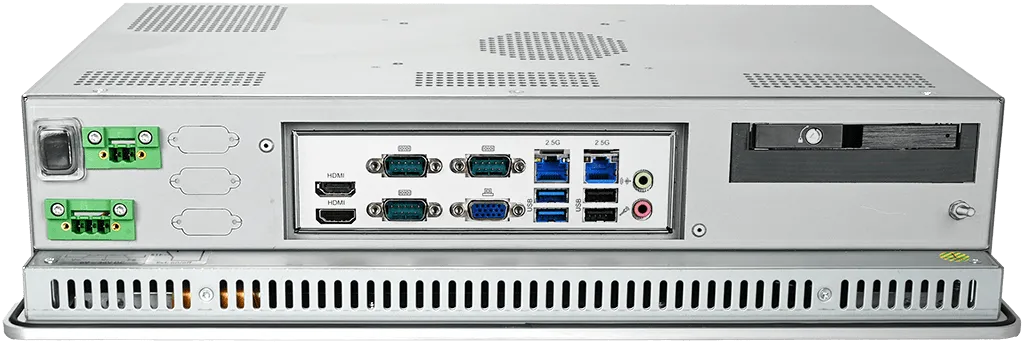

Ports 2x Realtek 2.5 Gigabit LAN • 2x USB 3.2 Gen1; 1x USB3 Header internal • 2x USB 2.0, (+ 1 USB2 Header 1 USB2 Port internal) • 3x COM (RS-232/422/485) + 3x COM RS-232 internal • 1x In (Mic); 1x Out (LS) • Support Triple Display: 2x HDMI 2.0b; 4096 x 2160px / 1x VGA 1920 x 1200px / 1x LVDS or eDP • 4x GPI, 4x GPO • TPM Header
PCI / PCIe / mini-PCIe 1x PCIe x1 (Gen3) • 1x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless • 1x M.2 (Key B, 3042/3052) with PCIe x1, USB 3.2 Gen1, USB2.0 and SIM for 4G/5G • 1x SIM socket connected to M.2 key B
Cooling System Passive, fanless
Mounting Panel mounting • VESA 100 x 100 (15.6”; 17”) • VESA 200 x 200 (21.5”)
Power input ATX-PWR (24+4-pin) and 12~28V DC-In co-design
Power consumption TBA
Operating system Option: Windows® 10 • Windows® 11 • LINUX
Max. color 16.7M
Luminance /cd/m2 500 (15.6”) • 350 (17”) • 250 (21.5”)
View angle / H/V 178° / 178° (15.6”) • 160° / 140° (17”) • 178° / 178° (21.5”)
Backlight lifetime / hrs 50,000 (15.6"; 17") • 30,000 (21.5")
Contrast ratio 1000:1 (15.6”) • 800:1 (17”) • 5000:1 (21.5”)
Operating temperature -20°C to 70°C
Storage temperature -40°C to 85°C
Certificate CE
Weight / kg 7.4 (15.6”; 17”) • 11.5 (21.5”)

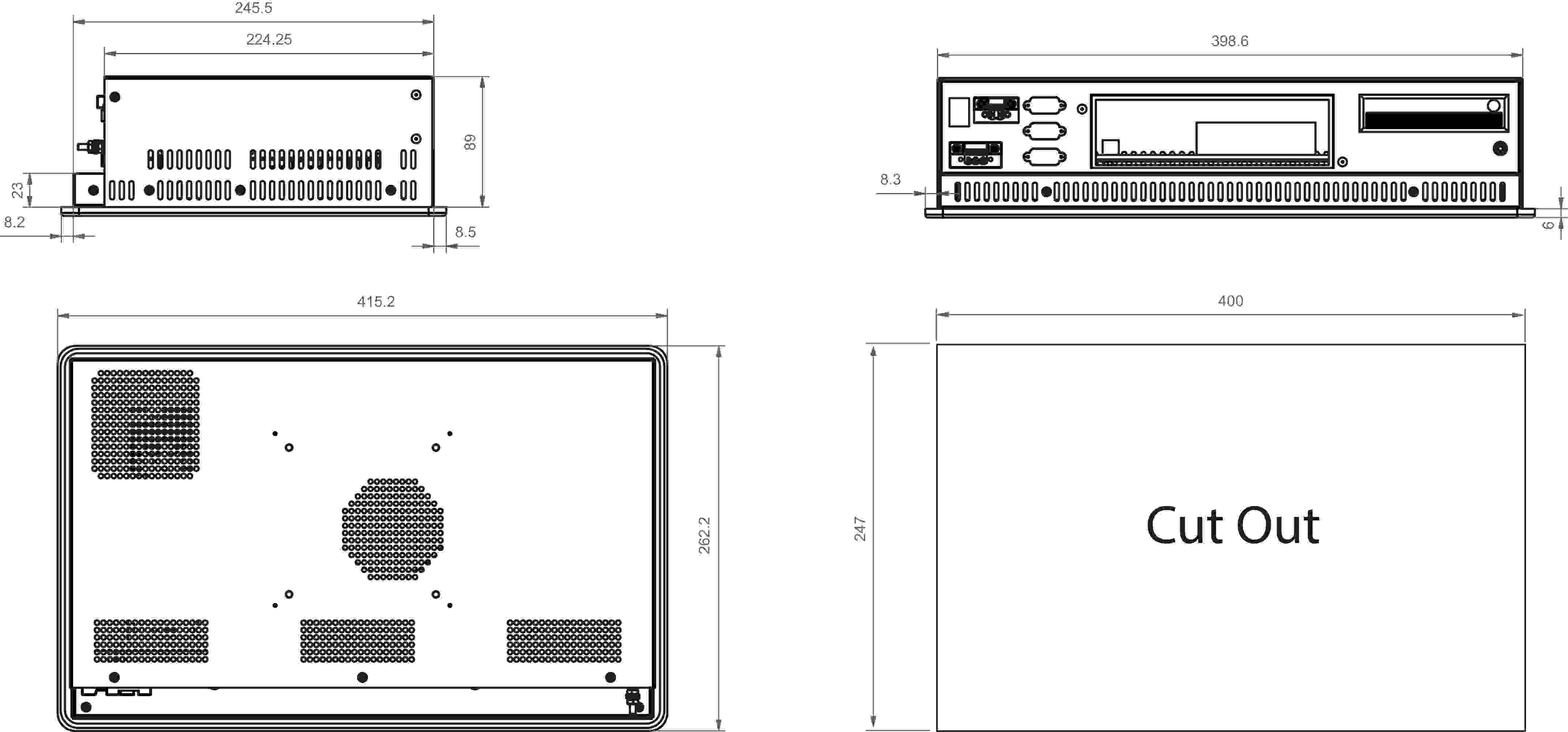

Dimensions / mm 415.2 x 262.2 x 95 (15.6”) • 423.5 x 358.8 x 94.8 (17”) • 562 x 359 x 94.3 (21.5”)
Scope of delivery 3-pin terminal block connector • retaining clip • touch pen • on/off button • driver CD
