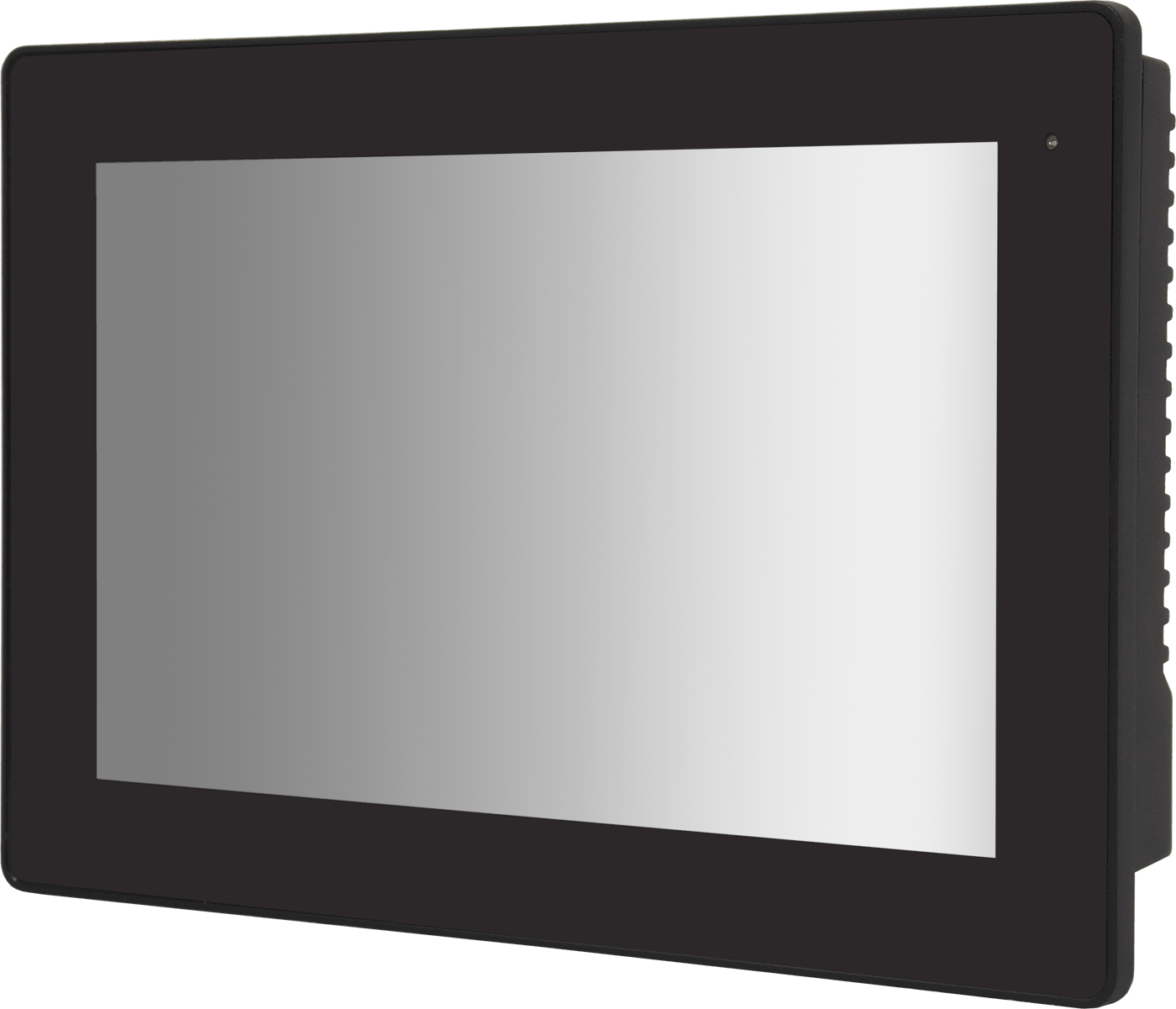

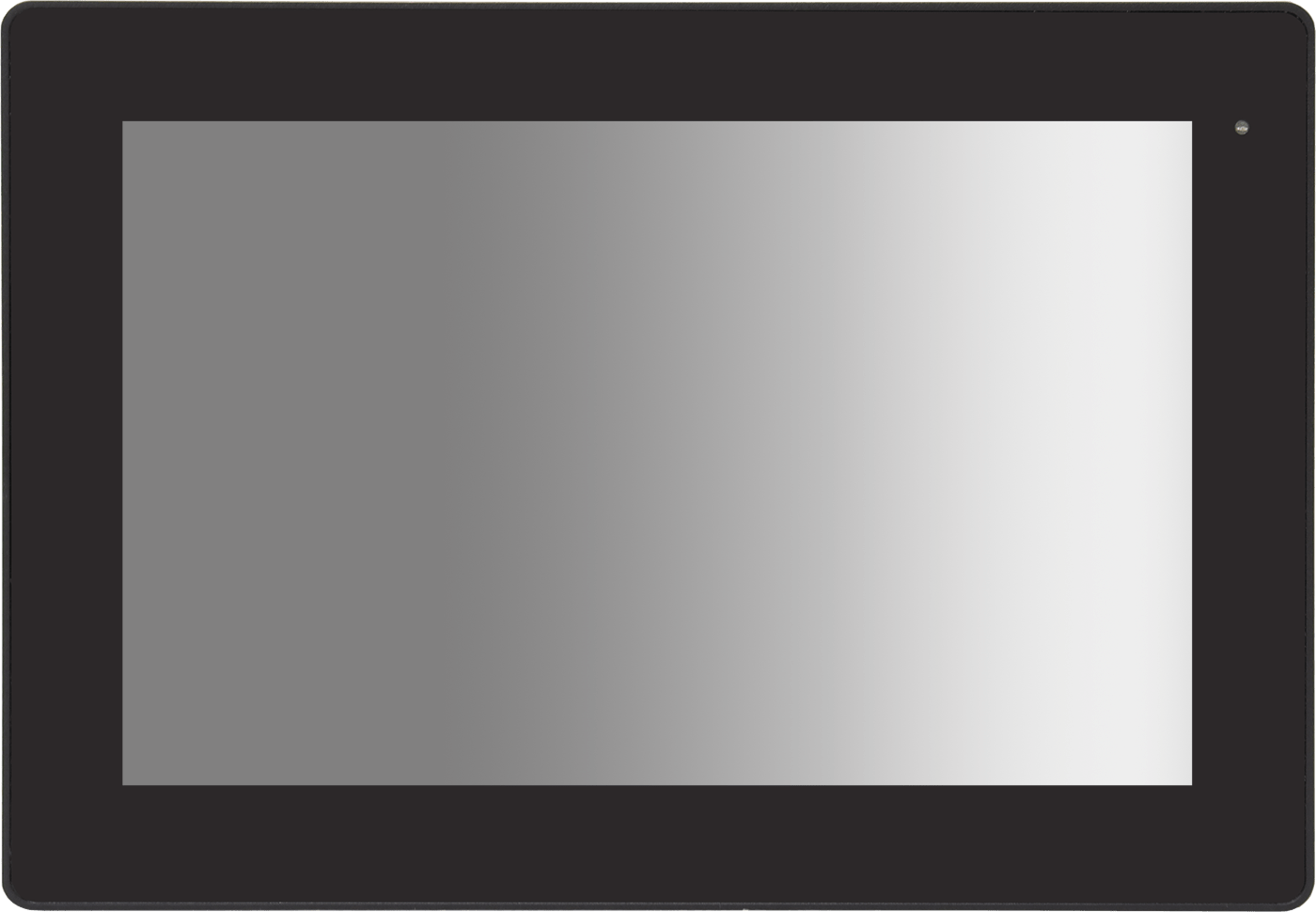

HAWK AP 10-HEL-WT | Intel® Celeron® J6412 [PCT]

10.1" (Widescreen) Elkhart Lake IP66 Panel-PC for operating in wide temperatures

Skip image gallery
_Panel-PC_HAWK AP 10-HEL-WT | Intel® Celeron® J6412 [PCT]
_Panel-PC_HAWK AP 10-HEL-WT | Intel® Celeron® J6412 [PCT]
_Panel-PC_HAWK AP 10-HEL-WT | Intel® Celeron® J6412 [PCT]
_Panel-PC_HAWK AP 10-HEL-WT | Intel® Celeron® J6412 [PCT]
_Panel-PC_HAWK AP 10-HEL-WT | Intel® Celeron® J6412 [PCT]
_Panel-PC_HAWK AP 10-HEL-WT | Intel® Celeron® J6412 [PCT]
_Panel-PC_HAWK AP 10-HEL-WT | Intel® Celeron® J6412 [PCT]
_Panel-PC_HAWK AP 10-HEL-WT | Intel® Celeron® J6412 [PCT]
_Panel-PC_HAWK AP 10-HEL-WT | Intel® Celeron® J6412 [PCT]
_Panel-PC_HAWK AP 10-HEL-WT | Intel® Celeron® J6412 [PCT]
Prices on request

Prices excl. VAT plus shipping costs

Available in 21 days, delivery time 1-2 weeks [incl. assembly & function test]

Screen | Size
Summary
RAM:
Storage:
WLAN | Mobile Network:
Expansion | I/O-Port:
Operating System:
RAM:
Mandatory
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 4GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 8GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 16GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 32GB
Storage:
Systemkomponenten & Zubehör_Components_Accessories_M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 128GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 256GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 512GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 1TB
Reset choice
€0.00*
WLAN | Mobile Network:
Systemkomponenten & Zubehör_Components_Accessories_5G/GPS M.2 3052 module Quectel RM520N-GL [w/2x antenna]
Systemkomponenten & Zubehör_Components_Accessories_WLAN - M.2 2230 module, Intel® Wi-Fi 6 AX200 [802.11ac, Bluetooth 5.1]
Expansion | I/O-Port:
Zubehör [kein Direktverkauf]_Components_Accessories_Expansion | +1x COM RS-232. 2x USB 2.0
Zubehör [kein Direktverkauf]_Components_Accessories_Expansion | +1x GbE LAN, 2x USB 2.0
Zubehör [kein Direktverkauf]_Components_Accessories_Expansion | +2x CAN
Zubehör [kein Direktverkauf]_Components_Accessories_Expansion | +2x COM RS-232
Zubehör [kein Direktverkauf]_Components_Accessories_Expansion | +2x COM RS-422/485 with isolated
Zubehör [kein Direktverkauf]_Components_Accessories_Expansion | +4x USB 2.0
Zubehör [kein Direktverkauf]_Components_Accessories_Expansion | +4x USB 2.0, 1x Mini PCIe full size, 1x SIM slot
Reset choice
€0.00*
Operating System:
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 IoT Enterprise LTSC 2021 - #ENTRY 64bit [For Intel Atom, Celeron, Pentium]
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 11 Professional OEM - 64bit
_Components_Accessories_Windows® 11 IoT Enterprise 2024 LTSC - #ENTRY
Reset choice
€0.00*

€1,277.00*

Prices excl. VAT plus shipping costs

Product number: 610111.1
Key facts • 10.1“
• Intel® Celeron® J6412
• Max. 32GB DDR4
• IP66
• Wide Temperature
• Fanless
Display Size 10.1“
Aspect ratio / resolution 16:10 / 1280 x 800
Touch Capacitive (PCT)
Protection class IP66 Compliant Front Bezel
Front Aluminium
CPU Intel® Celeron® J6412, 4x 2.0GHz/2.6GHz, 1.5MB L2 Cache
Chipset Intel® Baytrail SoC - Embedded Long Life Chipset
RAM 1x 260-pin SO-DIMM bis zu 32GB DDR4 3200MHz
Storage interface 1x M.2 B-Key slot (support SATA3)

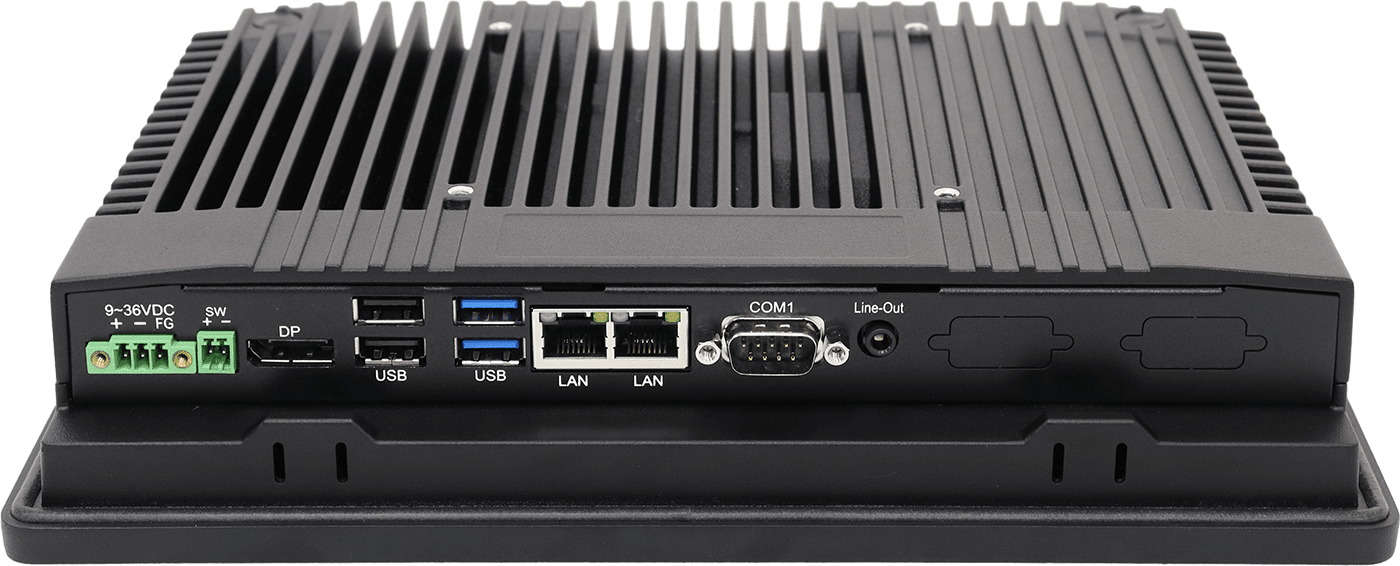

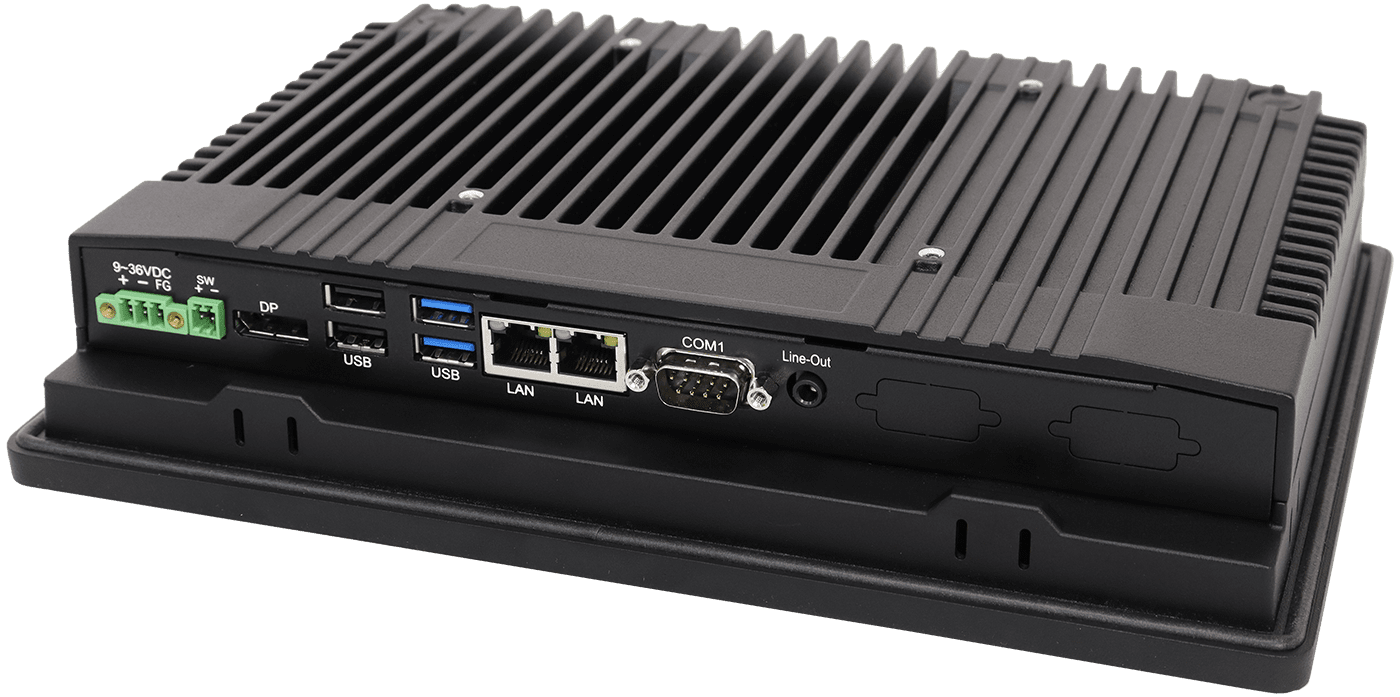

Ports 2x 2.5 Gigabit-LAN RJ-45 • 2x USB 3.2 Gen2 type A • 2x USB 2.0 type A • 1x RS-232/422/485 (default RS-232; select via BIOS) • 1x Line-out • 1x DP, support DP++
PCI / PCIe / mini-PCIe 1x M.2 E-key • 1x M.2 B-key • 1x Nano SIM slot
Cooling System Passive, fanless
Mounting Panel mounting • VESA 100 x 100
Power input 9V to 36V DC • 1x 3-pin Terminal Block Connector • 1x 2-pin Power Switch Connector
Power consumption 35W
Operating system Windows 10 IoT • Windows 11 IoT
Max. color 16.7M
Luminance /cd/m2 350
View angle / H/V 170°/170°
Backlight lifetime / hrs 30,000
Contrast ratio 800:1
Operating temperature -20° to 60°C
Storage temperature -30° to 70°C
Storage humidity 10% to 95% @ 40°C, non-condensing
Certificate CE/FCC Class B
Weight / kg 2.4

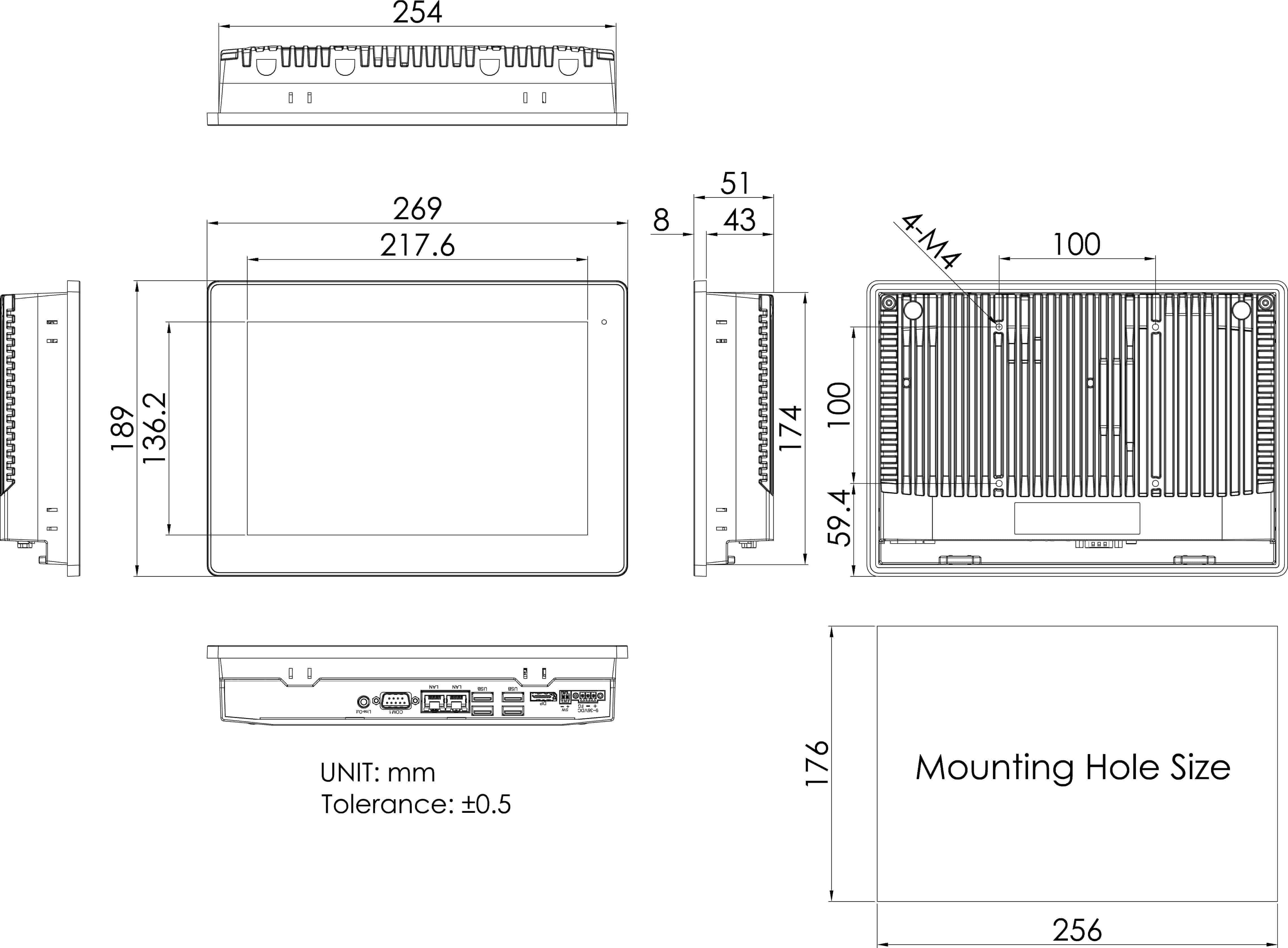

Dimensions / mm 269 x 189 x 51
Scope of delivery Power supply, 60W • 3-pin terminal connector • retaining clip • touch pen • driver CD
