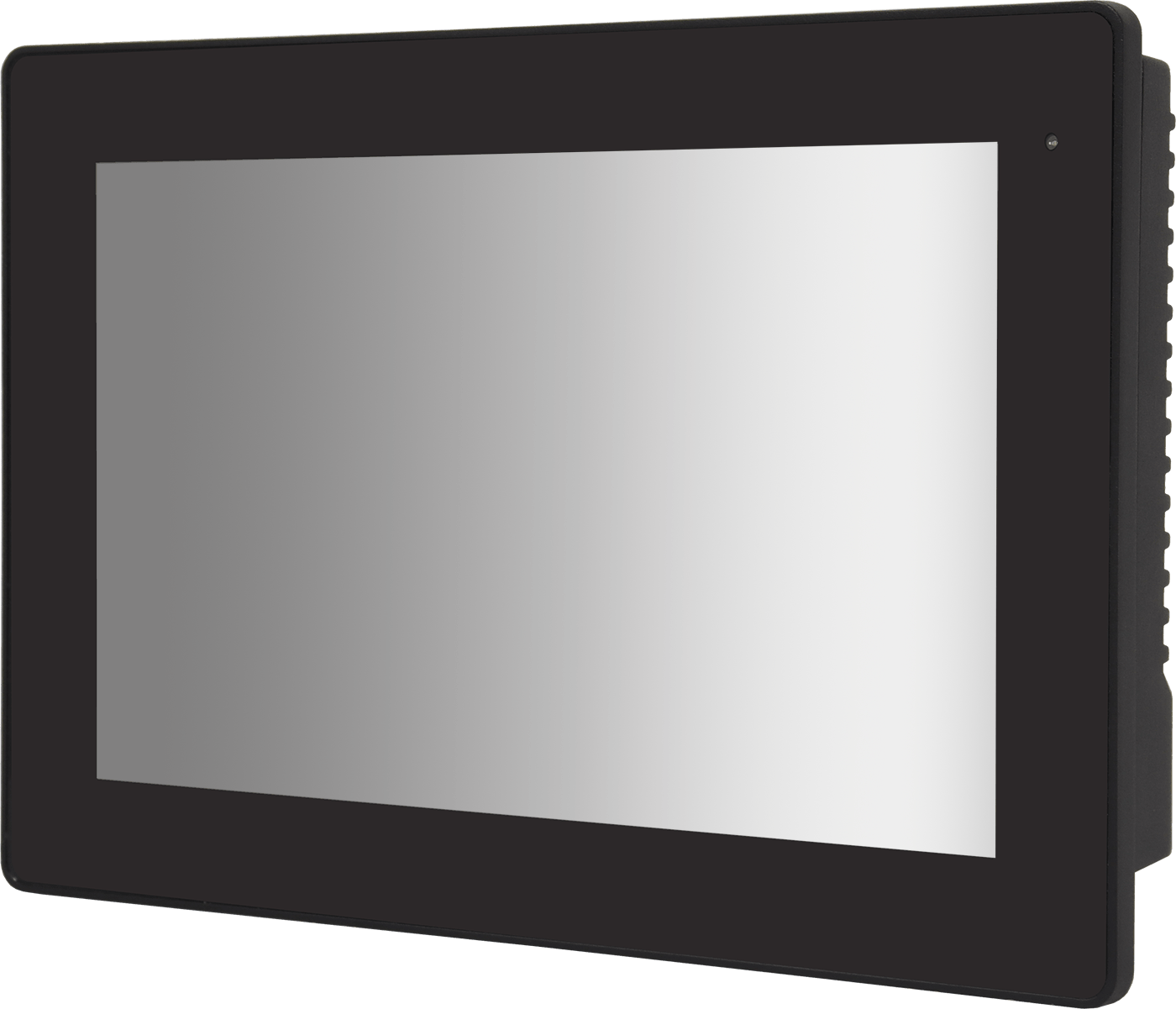

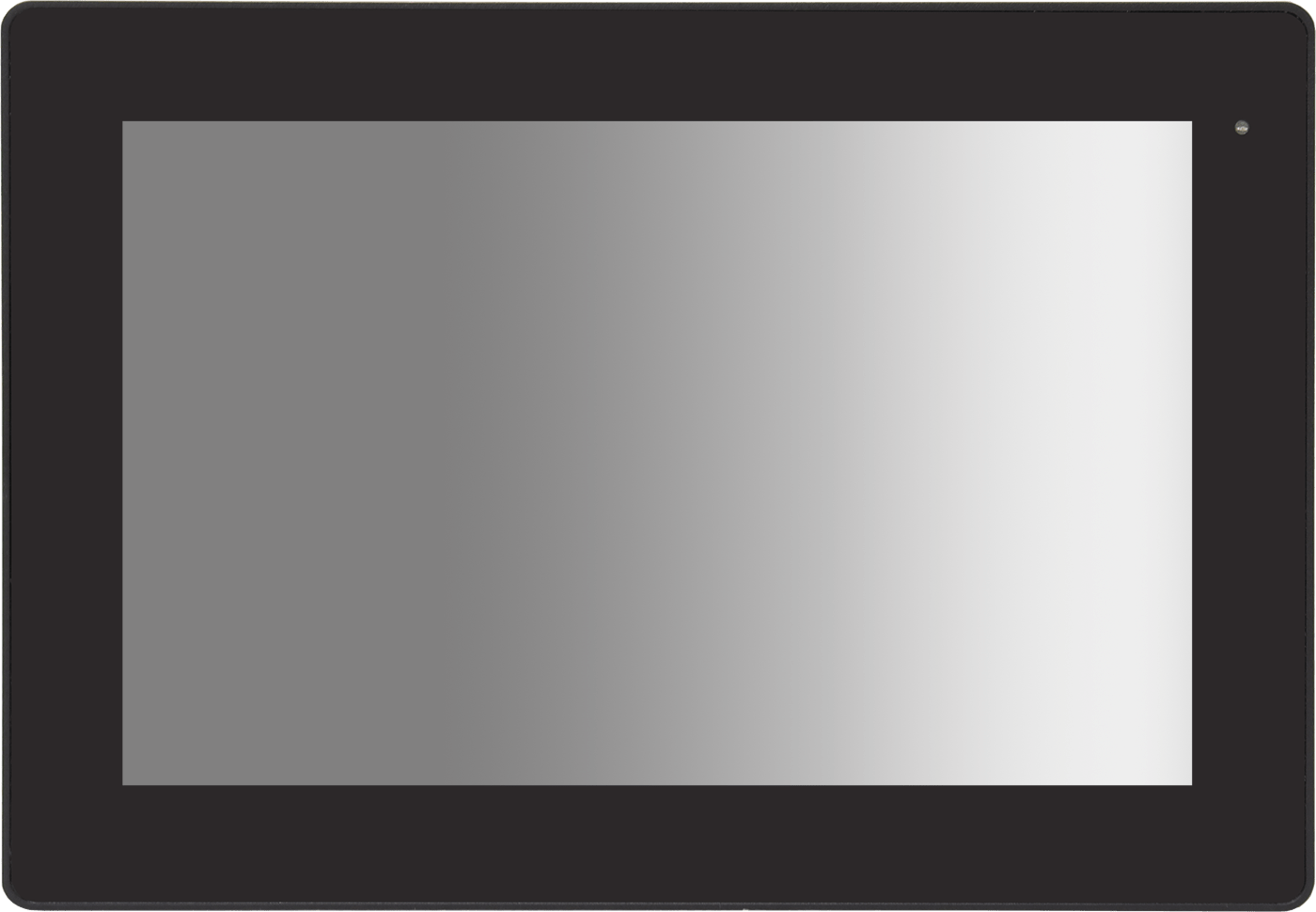

HAWK AP 10-HEL-SR | Intel® Celeron® J6412 [PCT]

10.1" (Widescreen) Panel-PC for Semi-Outdoor applications with TPM

Prices on request

Prices excl. VAT plus shipping costs

Available in 21 days, delivery time 1-2 weeks [incl. assembly & function test]

.

When changing the above variants, the following configuration options are reset.

RAM:

Storage:

WLAN | Mobile Network:

Expansion | I/O-Port:

Operating System:

Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 4GB

W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 4GB RAM: 4GB

Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 8GB

W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 8GB RAM: 8GB

Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 16GB

W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 16GB RAM: 16GB

Systemkomponenten [kein Direktverkauf] _Components_Accessories_W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 32GB

W.T. | DDR4, SO-DIMM [-40°C ~ 85°C] - 32GB RAM: 32GB

Systemkomponenten & Zubehör_Components_Accessories_M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 64GB

M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 64GB Storage | Size: 64GB

Systemkomponenten & Zubehör_Components_Accessories_M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 128GB

M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 128GB Storage | Size: 128GB

Systemkomponenten & Zubehör_Components_Accessories_M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 256GB

M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 256GB Storage | Size: 256GB

Systemkomponenten & Zubehör_Components_Accessories_M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 512GB

M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 512GB Storage | Size: 512GB

Systemkomponenten & Zubehör_Components_Accessories_M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 1TB

M.2 2242 (SATA III) W.T. SSD, TLC [-40°C ~ 85°C] - 1TB Storage | Size: 1TB

Reset choice

€0.00*

5G/GPS M.2 3052 module Quectel RM520N-GL [w/2x antenna]

WLAN - M.2 2230 module, Intel® Wi-Fi 6 AX200 [802.11ac, Bluetooth 5.1]

Zubehör [kein Direktverkauf]_Components_Accessories_Expansion | +1x COM RS-232. 2x USB 2.0

I/O-Port: +1x COM RS-232, 2 x USB 2.0

Zubehör [kein Direktverkauf]_Components_Accessories_Expansion | +1x GbE LAN, 2x USB 2.0

I/O-Port: +1x GbE LAN, 2 x USB 2.0

Zubehör [kein Direktverkauf]_Components_Accessories_Expansion | +2x CAN

I/O-Port: +2x CAN

Zubehör [kein Direktverkauf]_Components_Accessories_Expansion | +2x COM RS-232

I/O-Port: +2x COM RS-232

Zubehör [kein Direktverkauf]_Components_Accessories_Expansion | +2x COM RS-422/485 with isolated

I/O-Port: +2x COM RS-422/485 with isolated

Zubehör [kein Direktverkauf]_Components_Accessories_Expansion | +4x USB 2.0

I/O-Port: +4x USB 2.0

Zubehör [kein Direktverkauf]_Components_Accessories_Expansion | +4x USB 2.0, 1x Mini PCIe full size, 1x SIM slot

I/O-Port: +4x USB 2.0, 1 x Mini PCIe full size, 1 x SIM slot

Reset choice

€0.00*

Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 Professional - 64bit

Windows® 10 Professional - 64bit OS | Variant: 64bit

Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 IoT Enterprise LTSC 2021 - #ENTRY 64bit [For Intel Atom, Celeron, Pentium]

Windows® 10 IoT Enterprise LTSC 2021 - #ENTRY 64bit [For Intel Atom, Celeron, Pentium] OS | Variant: #ENTRY 64bit [For Intel Atom, Celeron, Pentium]

Windows® 11 Professional OEM - 64bit

_Components_Accessories_Windows® 11 IoT Enterprise 2024 LTSC - #ENTRY

Windows® 11 IoT Enterprise 2024 LTSC - #ENTRY OS | Variant: #ENTRY 64bit [For Intel Atom, Celeron, Pentium]

Reset choice

€0.00*

Product number: 610112.1

Key facts	• 10.1“ ~ 21.5“ • Intel® Celeron® J6412 • Max. 32GB DDR4 • IP66 • Optical Bonding; 1000nits • Wide Temperature • Fanless
Display Size	10.1" • 15.6" • 21.5"
Aspect ratio / resolution	16:10 / 1280 x 800 (10.1") • 16:9 / 1920 x 1080 (15.6"; 21.5")
Touch	Capacitive (PCT)
Protection class	IP66 Compliant Front Bezel
Front	Aluminium
CPU	Intel® Celeron® J6412, 4x 2.0GHz/2.6GHz, 1.5MB L2 Cache
Chipset	Intel® Baytrail SoC - Embedded Long Life Chipset
RAM	1x 260-pin SO-DIMM bis zu 32GB DDR4 3200MHz
Storage interface	1x M.2 B-Key slot (support SATA3)

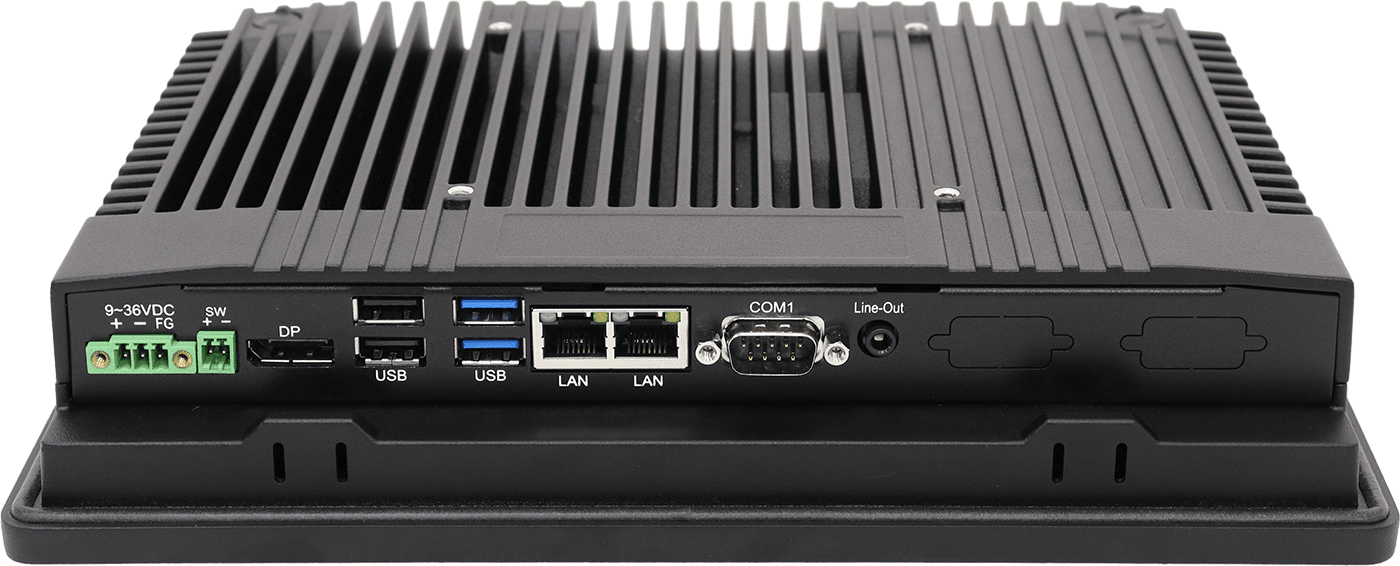

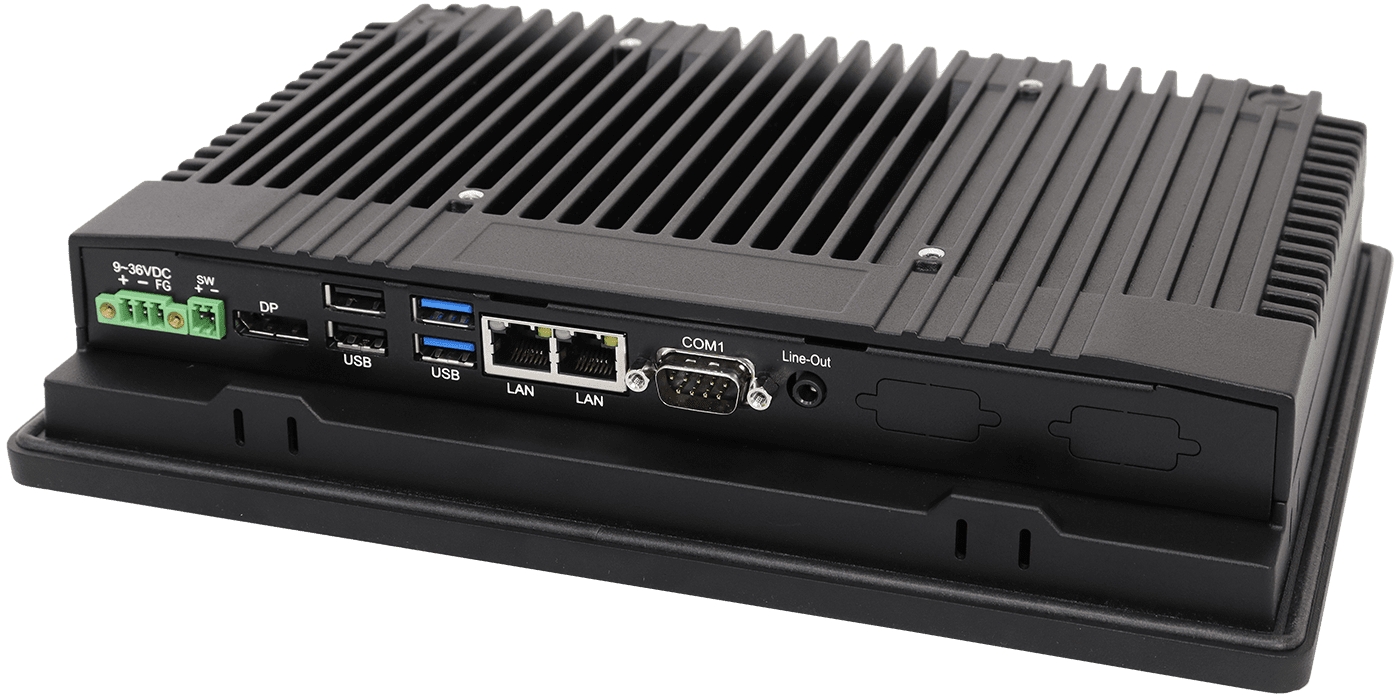

Ports	2x 2.5 Gigabit-LAN RJ-45 • 2x USB 3.2 Gen2 type A • 2x USB 2.0 type A • 1x RS-232/422/485 (default RS-232; select via BIOS) • 1x Line-out • 1x DP, support DP++
PCI / PCIe / mini-PCIe	1x M.2 E-key • 1x M.2 B-key • 1x Nano SIM slot
Cooling System	Passive, fanless
Mounting	Panel mounting • VESA 100 x 100
Power input	9V to 36V DC • 1x 3-pin Terminal Block Connector • 1x 2-pin Power Switch Connector
Power consumption	35W (10.1“) • 40W (15.6“) • 50W (21.5“)
Operating system	Windows 10 IoT • Windows 11 IoT
Max. color	16.2M (10.1") • 16.7M (15.6"; 21.5")
Luminance /cd/m2	1000
View angle / H/V	170°/170° (10.1") • 160°/160° / 170°/170° (15.6") • 178°/178° (21.5")
Backlight lifetime / hrs	50,000
Contrast ratio	1300:1 (10.1") • 500:1 / 1000:1 (15.6") • 1000:1 (21.5")
Operating temperature	-20° to 60°C
Storage temperature	-30° to 70°C
Storage humidity	10% to 95% @ 40°C, non-condensing
Certificate	CE/FCC Class B
Weight / kg	2.4 (10.1“) • 3.7 (15.6“) • 6.5 (21.5“)

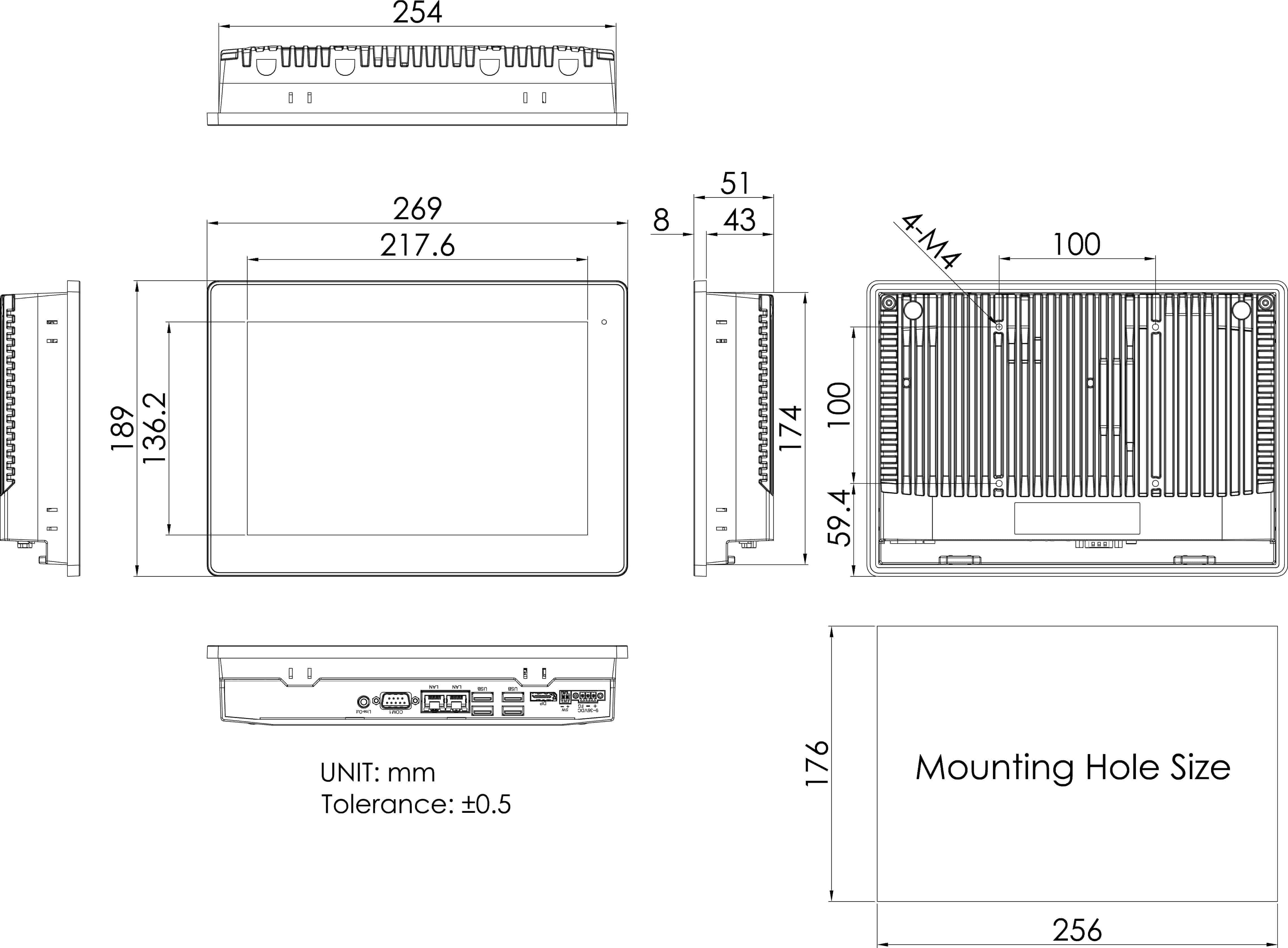

Dimensions / mm	269 x 189 x 51 (10.1“) • 405 x 256 x 59 (15.6“) • 541 x 333 x 59 (21.5“)
Scope of delivery	Power supply, 60W • 3-pin terminal connector • retaining clip • touch pen • driver CD
