HAWK AP 7-FEL | Intel® Celeron® J6412 [Stainless Steel 304, PCT]

7" IP66 Stainless steel Panel-PC with Intel® Celeron®

Skip image gallery
_Panel-PC_HAWK AP 7-FEL | Intel® Celeron® J6412 [Stainless Steel 304, PCT]
_Panel-PC_HAWK AP 7-FEL | Intel® Celeron® J6412 [Stainless Steel 304, PCT]
_Panel-PC_HAWK AP 7-FEL | Intel® Celeron® J6412 [Stainless Steel 304, PCT]
_Panel-PC_HAWK AP 7-FEL | Intel® Celeron® J6412 [Stainless Steel 304, PCT]
_Panel-PC_HAWK AP 7-FEL | Intel® Celeron® J6412 [Stainless Steel 304, PCT]
_Panel-PC_HAWK AP 7-FEL | Intel® Celeron® J6412 [Stainless Steel 304, PCT]
_Panel-PC_HAWK AP 7-FEL | Intel® Celeron® J6412 [Stainless Steel 304, PCT]
_Panel-PC_HAWK AP 7-FEL | Intel® Celeron® J6412 [Stainless Steel 304, PCT]
Prices on request

Prices excl. VAT plus shipping costs

Available in 21 days, delivery time 1-2 weeks [incl. assembly & function test]

Screen | Size
Touch | Type
Construction
Summary
RAM:
Storage:
WLAN:
Mobile Network:
Operating System:
RAM:
Mandatory
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4, SO-DIMM - 4GB
DDR4, SO-DIMM - 4GB RAM: 4GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4, SO-DIMM - 8GB
DDR4, SO-DIMM - 8GB RAM: 8GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4, SO-DIMM - 16GB
DDR4, SO-DIMM - 16GB RAM: 16GB
Systemkomponenten [kein Direktverkauf] _Components_Accessories_DDR4, SO-DIMM - 32GB
DDR4, SO-DIMM - 32GB RAM: 32GB
Storage:
Systemkomponenten & Zubehör_Components_Accessories_M.2 2242 (SATA III) SSD, TLC [0°C ~ 70°C] - 64GB
M.2 2242 (SATA III) SSD, TLC [0°C ~ 70°C] - 64GB Storage | Size: 64GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2242 (SATA III) SSD, TLC [0°C ~ 70°C] - 128GB
M.2 2242 (SATA III) SSD, TLC [0°C ~ 70°C] - 128GB Storage | Size: 128GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2242 (SATA III) SSD, TLC [0°C ~ 70°C] - 256GB
M.2 2242 (SATA III) SSD, TLC [0°C ~ 70°C] - 256GB Storage | Size: 256GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2242 (SATA III) SSD, TLC [0°C ~ 70°C] - 512GB
M.2 2242 (SATA III) SSD, TLC [0°C ~ 70°C] - 512GB Storage | Size: 512GB
Systemkomponenten & Zubehör_Components_Accessories_M.2 2242 (SATA III) SSD, TLC [0°C ~ 70°C] - 1TB
M.2 2242 (SATA III) SSD, TLC [0°C ~ 70°C] - 1TB Storage | Size: 1TB
Reset choice
€0.00*
WLAN:
Systemkomponenten & Zubehör_Components_Accessories_WLAN - M.2 2230 module, Intel® Wi-Fi 6 AX200 [802.11ac, Bluetooth 5.1]
WLAN - M.2 2230 module, Intel® Wi-Fi 6 AX200 [802.11ac, Bluetooth 5.1]
Reset choice
€0.00*
Mobile Network:
Systemkomponenten & Zubehör_Components_Accessories_4G_GPS - miniPCIe module [w/antenna]
4G_GPS - miniPCIe module [w/antenna]
Systemkomponenten & Zubehör_Components_Accessories_5G/GPS M.2 3052 module Quectel RM520N-GL [w/2x antenna]
5G/GPS M.2 3052 module Quectel RM520N-GL [w/2x antenna]
Reset choice
€0.00*
Operating System:
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 IoT Enterprise LTSC 2021 - #ENTRY 64bit [For Intel Atom, Celeron, Pentium]
Windows® 10 IoT Enterprise LTSC 2021 - #ENTRY 64bit [For Intel Atom, Celeron, Pentium] OS | Variant: #ENTRY 64bit [For Intel Atom, Celeron, Pentium]
_Components_Accessories_Windows® 11 IoT Enterprise 2024 LTSC - #ENTRY
Windows® 11 IoT Enterprise 2024 LTSC - #ENTRY OS | Variant: #ENTRY 64bit [For Intel Atom, Celeron, Pentium]
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 10 Professional - 64bit
Windows® 10 Professional - 64bit OS | Variant: 64bit
Systemkomponenten [kein Direktverkauf] _Components_Accessories_Windows® 11 Professional OEM - 64bit
Windows® 11 Professional OEM - 64bit
Reset choice
€0.00*

€1,254.00*

Prices excl. VAT plus shipping costs

Product number: 610105.20
Key facts• 7" ~ 21.5"
• Intel® Celeron® J6412
• Max. 32GB DDR4
• IP66/IP69K
• Stainless Steel
• Fanless
Display Size 7"; 10.1"; 12.1"; 15"; 15.6"; 17"; 18.5"; 19"; 21.5"
Aspect ratio / resolution 5:3 / 800 x 480 (7") • 16:10 / 1280 x 800 (10.1") • 4:3 / 1024 x 768 (12.1“; 15") • 16:9 / 1920 x 1080 (15.6"; 18.5”; 21.5") • 5:4 / 1280 x 1024 (17"; 19")
Touch Capacitive (PCT) • Resistive (RTW)
Protection class IP66/IP69K Compliant Front Bezel
Front Stainless Steel 304 • Stainless Steel 316L • Aluminum Die-casting Back Cover
CPU Intel® Celeron® J6412, 4x 2.0GHz/2.6GHz, 1.5MB L2 Cache
Chipset Intel® Baytrail SoC - Embedded Long Life Chipset
RAM 1x 260-pin SO-DIMM up to 32GB DDR4 3200MHz
Storage interface 1x M.2 B-Key slot (support SATA3; 2242)

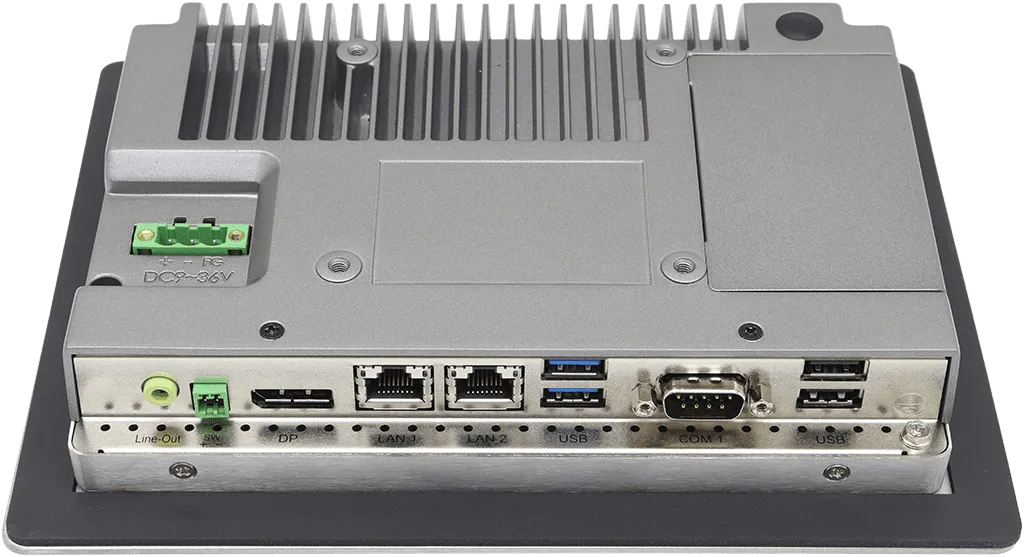

Ports 2x 2.5 Gigabit-LAN RJ-45 (I226) • 2x USB 3.2 Gen2 type A • 2x USB 2.0 type A • 1x RS-232/422/485 (default RS-232; select via BIOS) • 1x Line-out • 1x DP, support DP++
PCI / PCIe / mini-PCIe 1x mini-PCIe slot (full size) • 1x M.2 E-key • 1x Nano SIM Card Holder
Cooling System Passive, fanless
Mounting Panel mounting • VESA 75 x 75 (7") • VESA 100 x 100 (10.1"-21.5")
Power input 9V to 36V DC • 1x 3-pin Terminal Block Connector • 1x 2-pin Power Switch Connector
Power consumption 30W (7") • 40W (12.1"; 15W; 15.6") • 50W (18.5"; 19"; 21.5W) • TBA (10.1"; 17")
Operating system Windows 10 IoT • Windows 11 IoT
Max. color 262K (7") • 16.7M (10.1"; 12.1"; 15"; 18.5"; 19"; 21.5") • 16.2M (15.6"; 17")
Luminance /cd/m2 350 (7"; 10.1"; 12.1"; 17"; 19") • 300 (15"; 15.6") • 300/350 (18.5") • 250 (21.5")
View angle / H/V 160°/160° (7") • 170°/170° (10.1") • 176° / 176° (12.1"; 15"; 15.6") • 170°/160° (17"; 19") • 170°/160° / 178°/178° (18.5") • 178° / 178° (21.5")
Backlight lifetime / hrs 40,000 (7") • 30,000 (10.1"; 17") • 50,000/30,000 (12.1") • 70,000 (15"; 15.6") • 50,000 (18.5"; 19"; 21.5")
Contrast ratio 1000:1 (7"; 12.1"; 17"; 18.5"; 19"; 21.5") • 2000:1 (15"; 15.6") • 800:1 (10.1")
Operating temperature 0° to 50°C
Storage temperature -30° to 70°C
Storage humidity 10% to 95% @ 40°C, non-condensing
Certificate CE/FCC Class B/ EN 1672-2 Compliant for PCT Model (optional)
Weight / kg 1.4 (7") • TBA (10.1") • 3.3 (12.1") • 5.1 (15") • 5.3 (15.6") • TBA (17") • 6.7 (18.5") • 7.8 (19") • 8.3 (21.5")

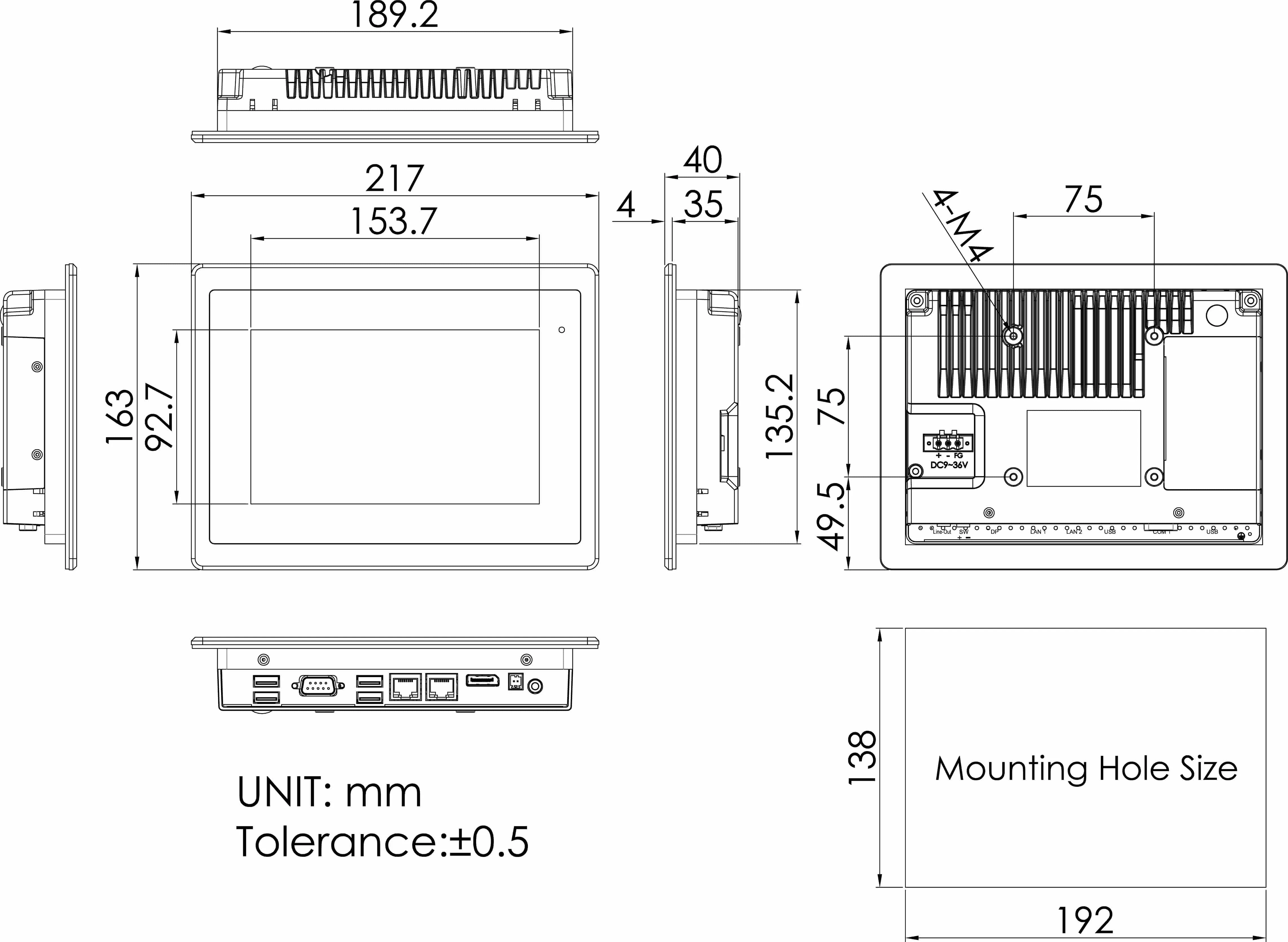

Dimensions / mm 217 x 163 x 40 (7") • 296 x 200 x 46.9 (10.1") • 331 x 257 x 51.6 (12.1") • 422 x 322 x 54 (15") • 424 x 289.5 x 58.1 (15.6") • 449 x 358 x 64 (17") • 510 x 325 x 63.7 (18.5") • 485 x 398 x 63.8 (19") • 573.8 x 378.8 x 59.8 (21.5")
Scope of delivery Power supply, 60W • 3-pin terminal connector • retaining clip • touch pen • driver CD
