GOLUB 6000-RPL-4NH

AI Edge Inference Computer with RAID • 13th Gen. Intel® Core™ i9/i7/i5/i3/Celeron

GOLUB 6000-RPL series is an extreme features integration, outstanding system performance, versatile I/O connections, and rugged reliability, fanless embedded systems. It offers dramatically enhanced CPU and graphics performance, wide power and feature scalability, and advanced features, modularize expansion I/O, rich connectivity interfaces, wide range (9~48V) DC power input, and high reliability even operating in temperature extremes (-25°C~60°C).

Featuring a completely cable-less design, high functional, one-piece housing design, and anti-vibration, GOLUB 6000-RPL series are ruggedized systems that can operate in harsh environments and easy to install and maintain. A built-in over-voltage protection (OVP), over-current protection (OCP), reverse protection, and wide-range DC power input makes GOLUB 6000-RPL series a safe system for all industrial applications.

Key facts	• 13th Gen. Intel® Core™ i9/i7/i5/i3/Celeron • Up to 64GB DDR5 • RAID • Option: 2x 10GigE, PoE • Supports NVIDIA® RTX A2000
Protection class	IP20
CPU	Support 12th/13th/14th (Non-vPRO) Gen Intel® ADL & RPL Processor (LGA 1700, 65W/35W TDP)
Chipset	Intel® R680E Express Chipset • 2.5 GbE1: Intel I226, 2.5 GbE2: Intel I226; Support Wake-on-LAN and PXE, Support TSN
RAM	2x 262-Pin DDR5 4800/5600MHz SODIMM. Max. up to 64GB (ECC and Non-ECC)

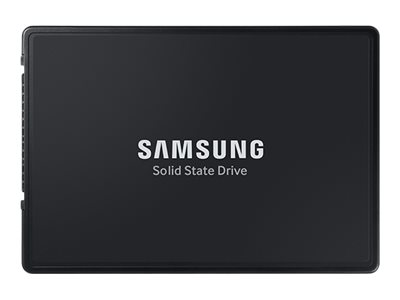

Storage interface	1x M.2 B Key, 2242/3042/3052 (PCIe x2, Support AI Module/NVMe Storage) (PCIe x1 & USB 3.2 Gen1, Support 4G/5G) • 1x mSATA (Shared by 1x mini-PCI Express) • 2x External SIM socket (mini-PCIe/M.2 B Key attached) • 1x 9mm 2.5“ SATA HDD Bay (Internal) • 1x 7mm 2.5“ SATA Bay (Hot-swappable) • Support RAID 0, 1, 5 2x Removable Cannister Bricks with 2.5“ 4 Bay U.2 NVMe SSD (Support H=15mm) with Hardware RAID 0, 1 • 4x 7mm 2.5“ NVMe SSD Bay (Hot-swappable) (GOLUB 6000-RPL-2E16-4NH) 2x Removable Cannister Bricks with 2.5“ 4 Bay U.2 NVMe SSD (Support H=15mm) with Software RAID 0, 1 • 4x 15mm 2.5“ NVMe SSD Bay (Hot-swappable) (GOLUB 6000-RPL-2E16-4NS) 2x Removable Cannister Bricks with 2.5“ 8 Bay U.2 NVMe SSD (Support H=7mm) • 8x 7mm 2.5“ NVMe SSD Bay (Hot-swappable) (GOLUB 6000-RPL-2E16-8NS) 1x Removable Cannister Brick with 2.5“ 2 Bay U.2 NVMe SSD (Support H=15mm) • 2x 15mm 2.5“ NVMe SSD Bay (Hot-swappable) (GOLUB 6000-RPL-2E16-2NA2000) 1x Removable Cannister Brick with 2.5“ 4 Bay U.2 NVMe SSD (Support H=7mm) • 4x 7mm 2.5“ NVMe SSD Bay (Hot-swappable) (GOLUB 6000-RPL-2E16-4NA2000)
RAID	0, 1, 5, 10
Ports	2x RJ45 • 2x DisplayPort, Support resolution 5120 x 3200 (up to 7680 x 4320) • 8x USB 3.2 Gen 2 (10 Gbps) • 1x USB 3.2 Gen 1 (5 Gbps, 1x Internal), 2x USB 2.0 (Internal) • 2x RS-232/422/485; 4x RS-232/422/485 (Internal) • 1x DVI-I, support resolution 1920 x 1200 • 1x VGA (by optional split cable) • 1x Mic-in; 1x Line-out • 2x CAN 2.0 A/B 2-pin Internal header • 5x WiFi Antenna Holes • 1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off • 1x PC/Car Mode Switch, 1x Delay Time Switch • 1x Removable CMOS Battery • 2x EDGEBoost I/O Bracket (by mini-PCIe interface)

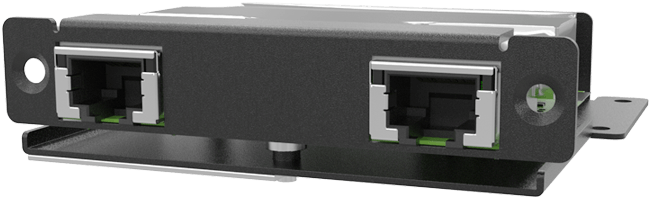

PCI / PCIe / mini-PCIe	1x M.2 (E Key, PCIe x1, USB 2.0, 2230) • 1x Full-size mini-PCIe (1x shared by 1x mSATA) EDGEBoost Node Options: • 1x PCIe x1 (1-lane, Gen3)(without GOLUB 6000-RPL-2E16-2NA2000; GOLUB 6000-RPL-2E16-4NA2000) 2x EDGEBoost I/O Brackets: • 4-port GbE module with Intel® I350 Chipset, RJ-45/M12 connector (PoE optional); • 2-Port RJ45 10GbE with Intel X710 Chipset; • 4-Port USB 3.0 (share PCIe Gen2 x1 bandwidth); • 1x M.2 B-Key, 2242 for AI/NVMe, 1x M.2 B-Key, 3042/3052 for 5G/AI/NVMe; • 1x M.2 M-Key, PCIe x4 Lane, 2242/2260 for AI Module/NVMe; • 1x M.2 for 5G (B Key, PCIe x1, USB 3.0, 3042/3052), 2x SIM socket, 1x SIM switch 1x PCIe x16 (16-Lane, Gen4), 1x PCIe x4 (1-Lane, Gen3) (GOLUB 6000-RPL-2E16-2NA2000; GOLUB 6000-RPL-2E16-4NA2000)
DIO	8 in / 8 out (Isolated)
Cooling System	Passive, fanless (optional External Fan Kit: Recommended for i9 CPU/65W)
Mounting	Wall mounting
Power input	9V to 48VDC • 12V to 48VDC for NVMe EDGEboost Node 1x 5-pin Terminal Block • 1x 4-pin Terminal Block for NVMe EDGEBoost Node (12V requires 4-pin terminal block)
Power consumption	TBA
Operating system	Option: Microsoft Windows® 10/11 • Linux kernel
Operating temperature	-25°C to 60°C (35W/65W CPU) • -25°C to 45°C (35W/65W CPU) (GOLUB 6000-RPL-2E16-2NA2000; GOLUB 6000-RPL-2E16-4NA2000)
Storage temperature	-30° to 85°C
Storage humidity	10% to 95%; non-condensing
Vibration	IEC60068-2-64:2008 • With HDD: 1 Grms (5Hz - 500Hz, 0.5 hr/axis) • With SSD: 5 Grms (5Hz - 500Hz, 0.5 hr/axis) • Designed to comply with MIL-STD-810G Method 514.7, Procedure I
Shock	IEC60068-2-27:2008 • With SSD: 50G half-sin 11ms • Designed to comply with MIL-STD-810G Method 516.7, Procedure I
Certificate	UL 62368 Ed. 3, CE, FCC Class A
Weight / kg	10.5 to 11.5 • 11 to 12 (GOLUB 6000-RPL-2E16-2NA2000; GOLUB 6000-RPL-2E16-4NA2000)
Dimensions / mm	240 x 261 x 166.9
Scope of delivery	1x Wall Mount Kit • 1x Accessory Kit • 1x DVI to VGA Adapter
