GOLUB 610 | Intel® Atom® x7425E [3x 2.5GigE]

Ultra-compact Embedded PC • Intel® Elkhart Lake Atom® x7425E

GOLUB 600 is APROtech‘s new ultra-compact fanless embedded computer based on Intel® Atom® x7425E processor. With four efficient cores operating at only 12W TDP and support for up to 16 GB DDR5 memory, it delivers up to 1.5x CPU performance improvement and higher memory bandwidth compared to previous Atom® platforms, making it a reliable solution for next-generation industrial edge deployments.

Despite its compact form factor, the GOLUB 600 offers comprehensive connectivity options. It features three 2.5-GbE ports based on Intel® I226-IT controllers, as well as two optional PoE+ ports for powering cameras or sensors. The system also features two HDMI™ 1.4b outputs that support a resolution of 3840 x 2160, four USB 3.2 ports with screw-lock connectors for reliable high-speed connections, and versatile serial communication options with a software-programmable RS-232/422/ 485 port and additional RS-232 or RS-422/485 ports. For storage, the GOLUB 600 supports an M.2-2280 SATA device as well as the MezIO® interface for adding application-specific functions such as isolated DIO, ignition control, or wireless modules.

With its balance of performance, low power consumption, and robust I/O capabilities, GOLUB 600 is designed for a wide range of industrial applications. It is ideal for machine vision systems requiring multiple high-speed camera connections and smart transportation that demands reliable PoE+ networking. Sharing the same compact footprint as GOLUB 400 and GOLUB 300, GOLUB 600 allows seamless system upgrades and supports DIN-rail mounting for easy and secure installation in industrial control cabinets or confined spaces, enabling next-generation industrial automation and intelligent edge solutions.

Key facts	• Intel® Atom® x7425E • Max. 16GB DDR5 • Supports dTPM 2.0 • Fanless
Protection class	IP20
CPU	Intel® Atom® x7425E processor 12W with 4 E-Cores (4C/4T, 1.5 /3.4GHz, 12W TDP)
RAM	Up to 16GB DDR5-4800 SDRAM (one SODIMM socket)
Storage interface	1x M.2 2280 SATA interface
Ports	3x 2.5Gb Ethernet ports by Intel® I226-IT GbE controllers • IEEE 802.3at PoE+ on port #2 and #3; - 30W power budget (with UL certified); - 50W power budget (maximum) • 2x USB 3.2 Gen1 with screw-lock • 2x USB 3.2 Gen2 with screw-locK • 1x Software-programmable RS-232/422/485 ports (COM1) • 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2) • 2x HDMI™ 1.4b, Supporting 3840 x 2160 • 1x 3.5 mm jack for mic-in and speaker-out
MezIO™-interfaces	Option: 1x MezIO® expansion interface
Cooling System	Passive, fanless
Mounting	DIN-rail mount • Wall-mount
Power input	1x 3-pin pluggable terminal block for 8V to 35V DC input
Operating system	Windows® 11 • LINUX 64Bit
Operating temperature	-25°C to 70°C
Storage temperature	-40°C to 85°C
Storage humidity	10% to 90%; non-condensing
Vibration	MIL-STD-810H, Method 514.8, Category 4
Shock	MIL-STD-810H, Method 516.8, Procedure I
Certificate	CE/ FCC Class A, according to EN 55032 & EN 55035
Weight / kg	0.98

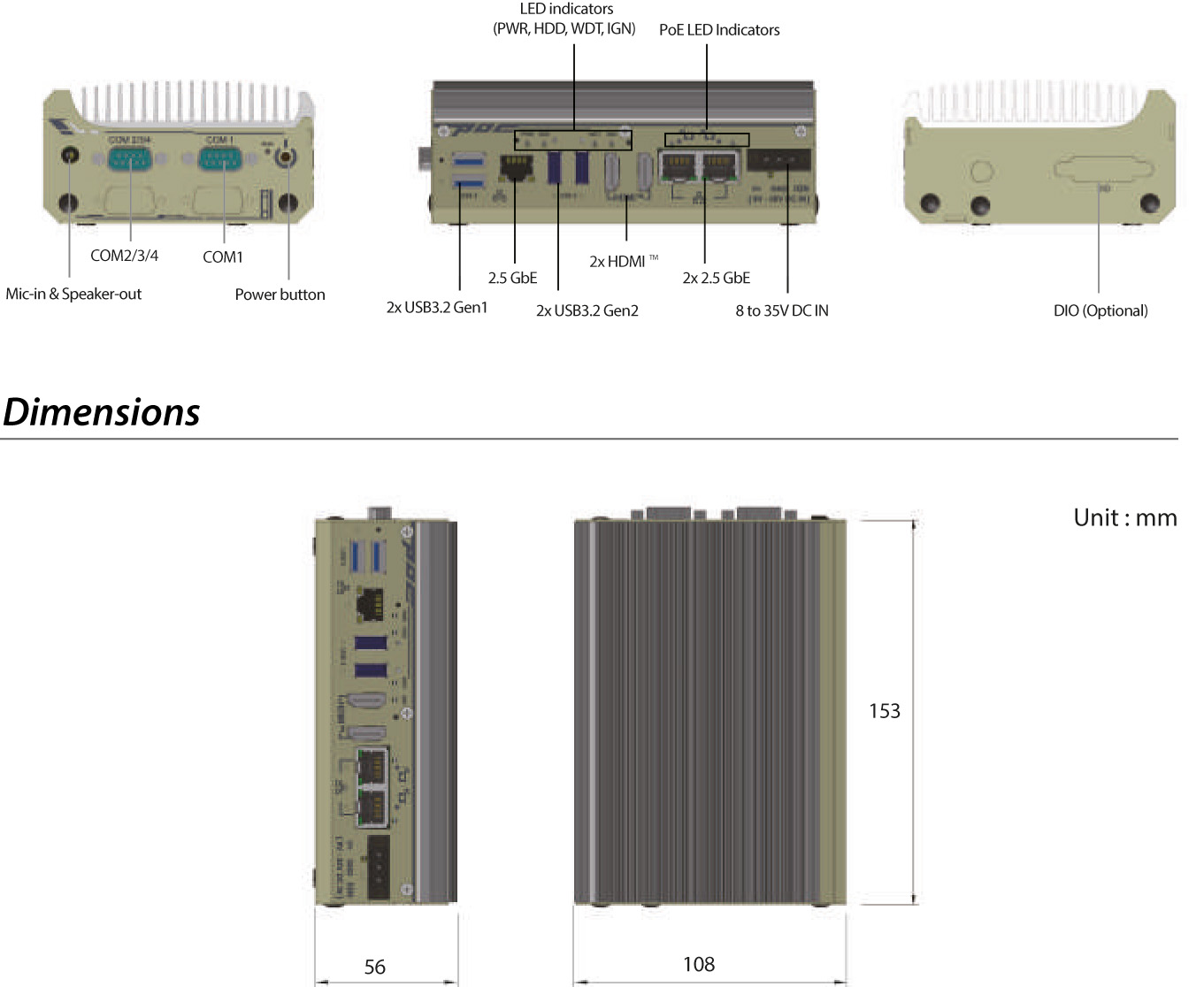

Dimensions / mm	56 x 108 x 153
Scope of delivery	Accessory Kit • DIN-rail Mount Kit
